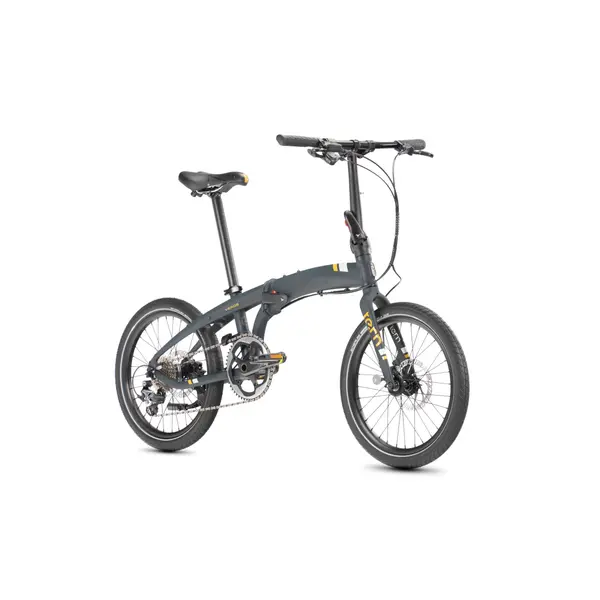

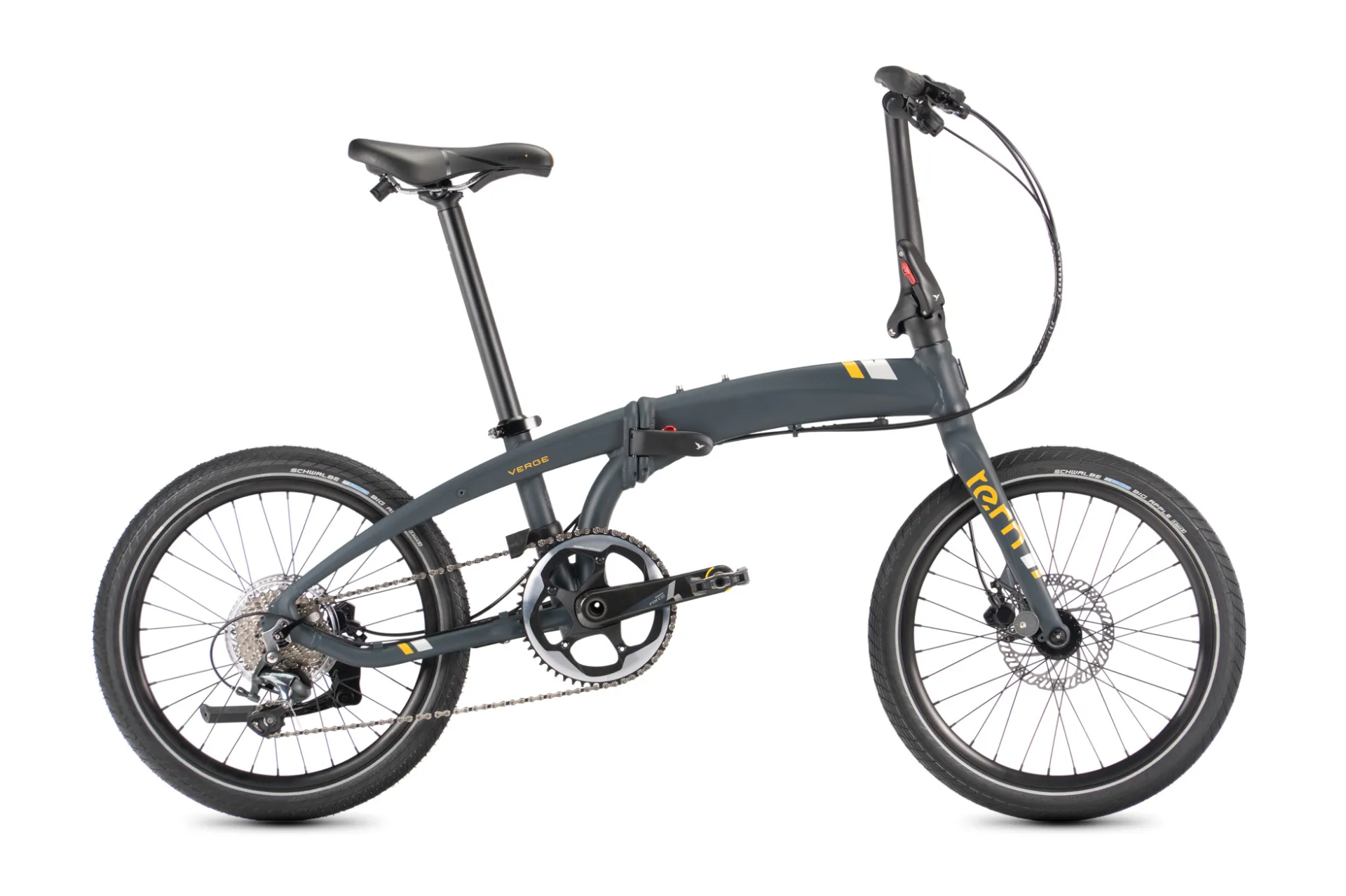

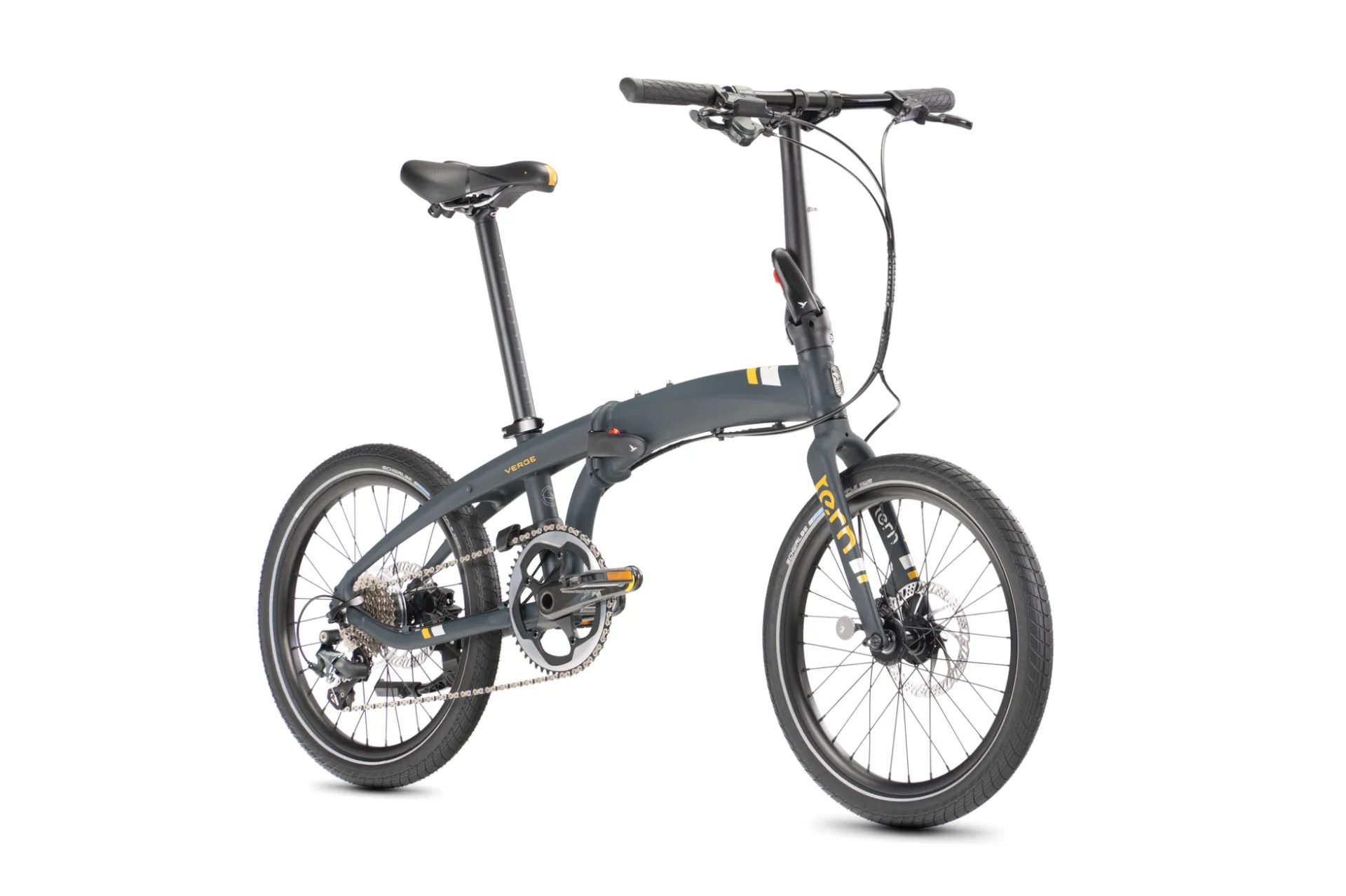

Tern Verge R10 Satin Dark Grey
Specifications
Information
What makes Verge R10!
The sporty Verge R10 unfolds to deliver a dose of fast-paced cycling fun to your day, wherever you bring it. With racing foundations rooted in its aerodynamic T-Tuned geometry and carbon fiber crankset, the Verge R10 gets you up to speed with ease while wider, air-cushioned tires enhance on-road stability and comfort to keep the good times rolling.
- Rides with exceptional comfort and stability thanks to our unique technology and T-Tuned geometry
- Ultralight & stiff SRAM carbon cranks, paired with X-SYNC chainring for maximum chain control and easy drivetrain maintenance
- Rolls smoothly on cushy, 50 mm-wide Schwalbe Big Apple tires, in an ideal 406 mm size to keep your bespoke options open
- Shimano Tiagra 1x drivetrain, delivering versatile gear range in a simple package
- Hydraulic disc brakes ensure all-weather stopping power
- Adjustable handlebar stem to dial in your preferred riding position

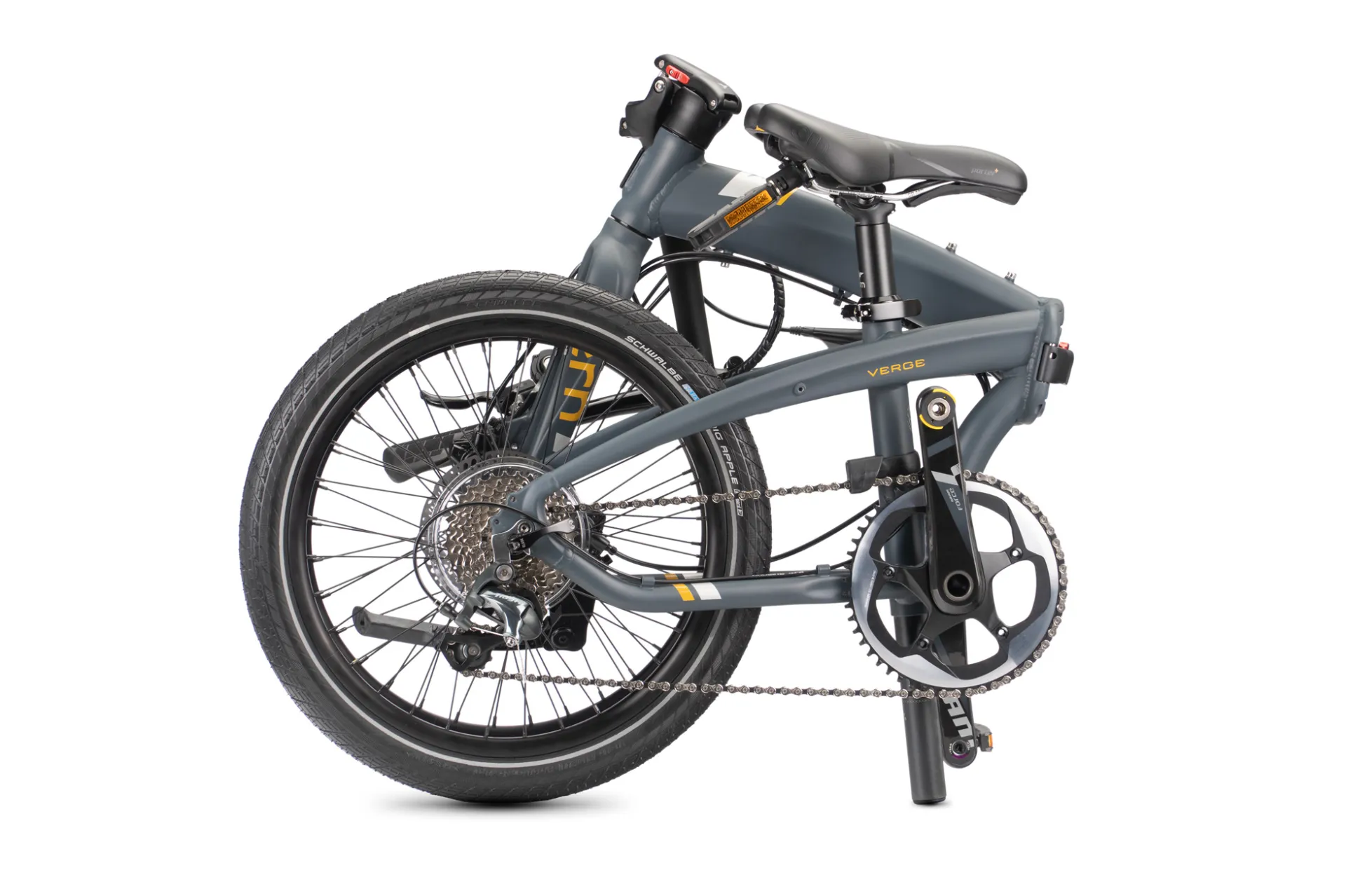

- Folds in under 10 seconds to fit on public transport or beneath a desk
SPECIFICATIONS
General Info
Generation: Gen 1
Color(s):
Speeds: 1 x 10
Weight: 12.3 kg
Gear Inches: 33" - 87" (2.60 - 6.94 m)
Frame Sizes: One size
Folding Size: 38 × 80 × 74 cm
Folding Time: 10 seconds
Distance: Seatpost to Handlebar: 61 - 66 cm
Distance: Saddle to Pedal: 65 - 91 cm
Suggested Rider Height: 142 - 190 cm
Max Gross Vehicle Weight: 120 kg
Max Load Weight: 105 kg
Max Rider Weight: 105 kg
Frame
Frame: Tern Verge, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork: Tern Tarsus, 6061-AL, hydroformed
Cockpit

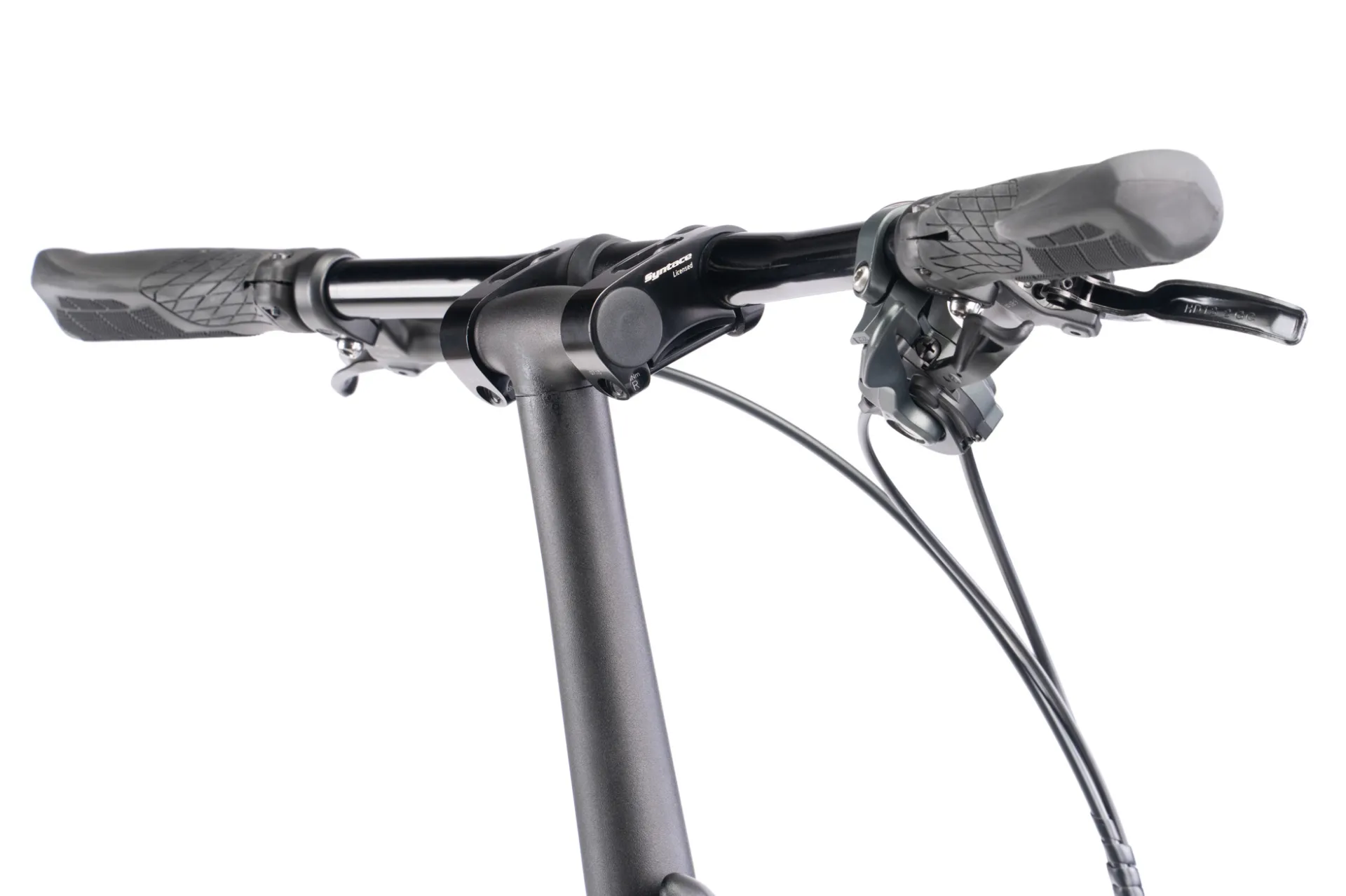

Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem: Syntace VRO, adjustable, Built for Tern
Headset: Flux, cartridge bearings, Physis integrated
Handlebar: Kinetix Comp, double-butted 6061-AL, for VRO
Grips/Bar Tape: Velo ergonomic, lock-on
Saddle: Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost: Tern Strut, 2014-AL, 2 bolt clamp
Seatpost Clamp: Syntace OverLock
Brakes

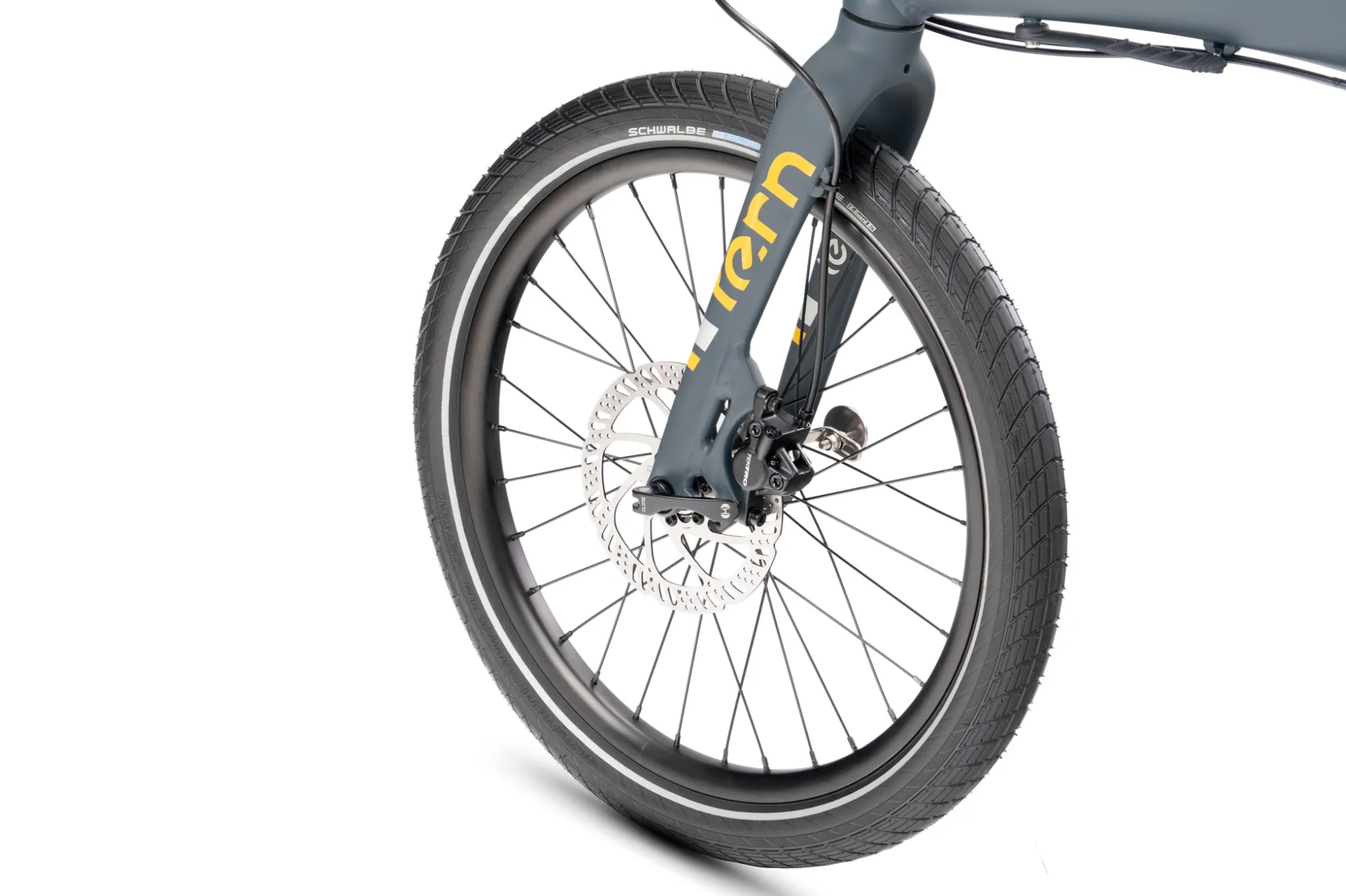

Front Brake: Tektro, hydraulic disc
Rear Brake: Tektro, hydraulic disc
Brake Levers: Tektro, hydraulic disc
Brake Cable & Housing: Tektro, hydraulic
Wheels
Front Hub: Novatec, sealed cartridge bearing, disc
Rear Hub: Novatec, sealed cartridge bearing, disc
Spokes & Nipples: Stainless steel
Rims: Doublewall aluminum

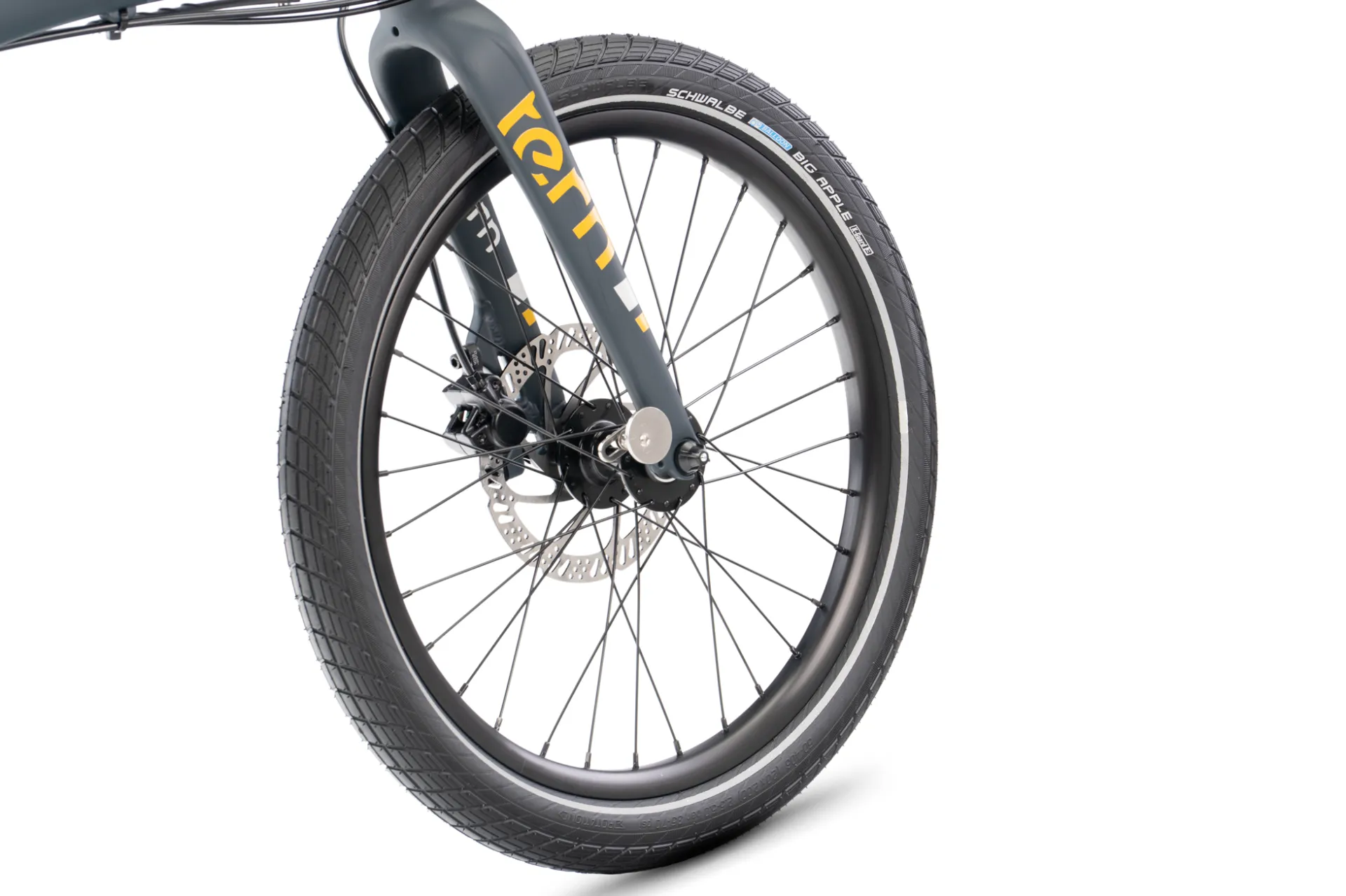

Tires: Schwalbe Motion Big Apple, 50-406
Transmission
Shifter: Shimano Tiagra, 1x10 spd

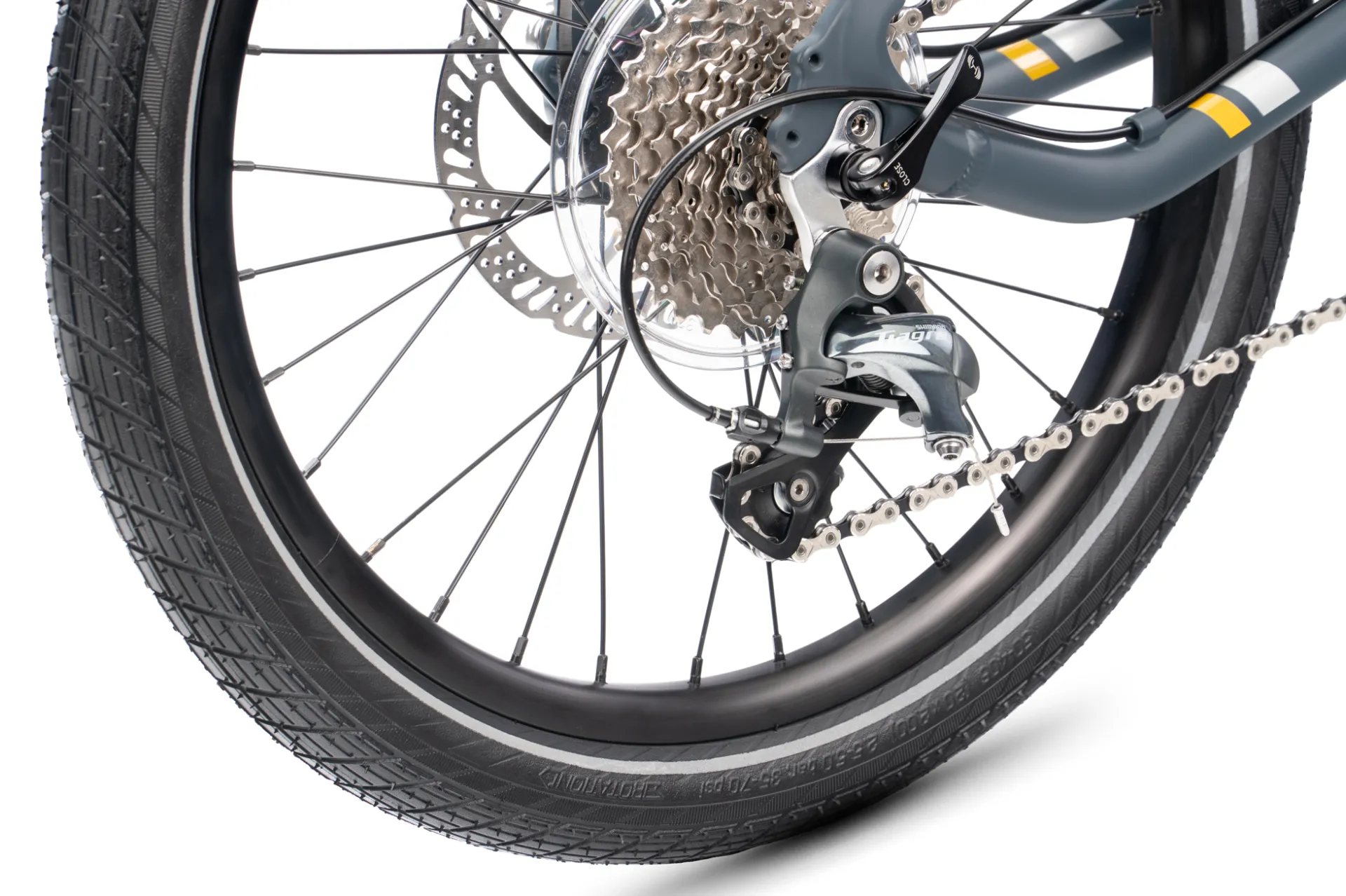

Rear Derailleur: Shimano Tiagra

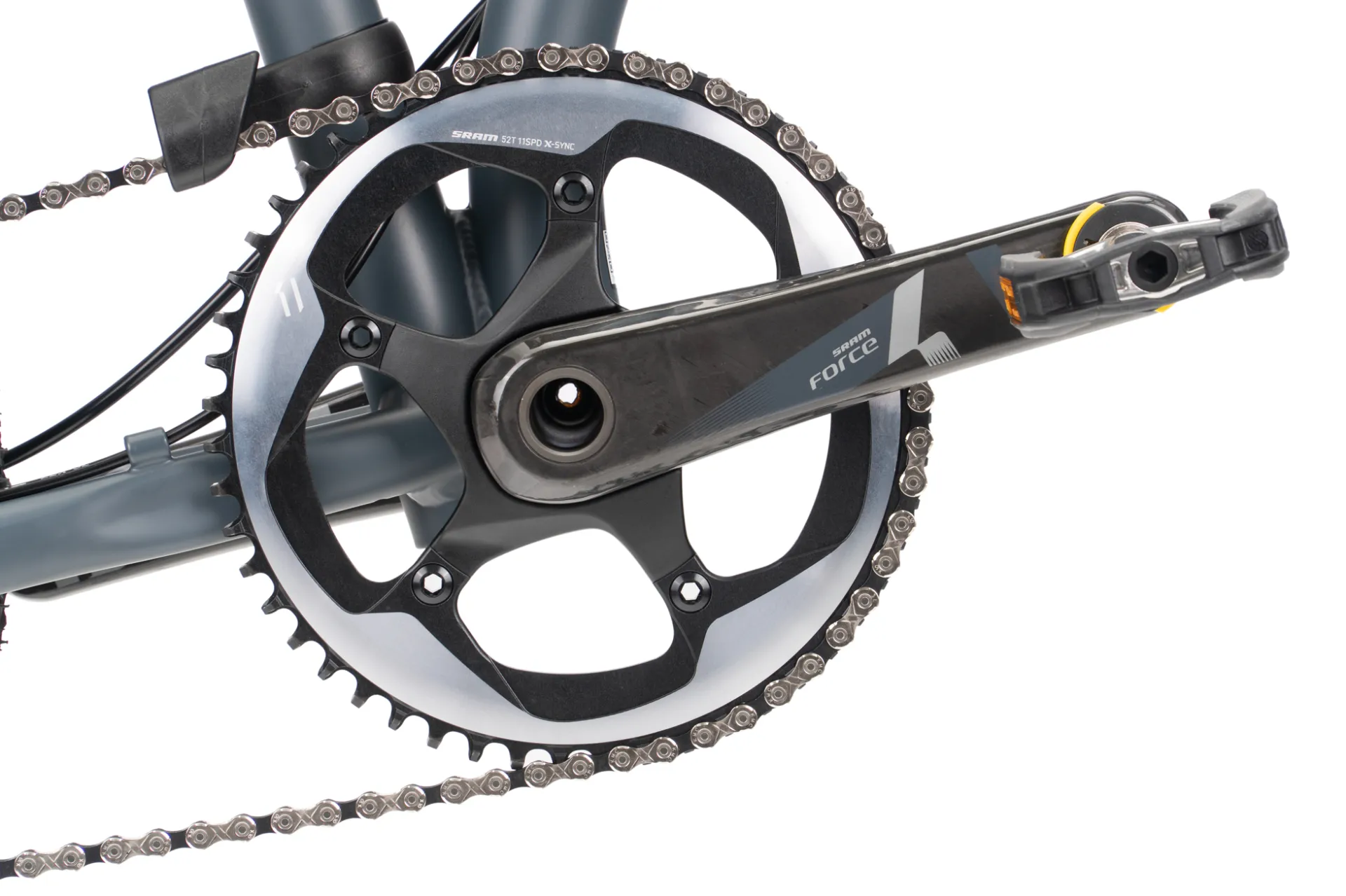

Crankset: SRAM Force 1 carbon, X-SYNC chainring, 52T
Cassette/Freewheel: Shimano 11-32T, 10 spd
Bottom Bracket: SRAM GXP
Chain: KMC X10
Pedals: LiteForm QR, alloy body, QR right/standard left
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Bells & Whistles
Bell: Pitch, brass

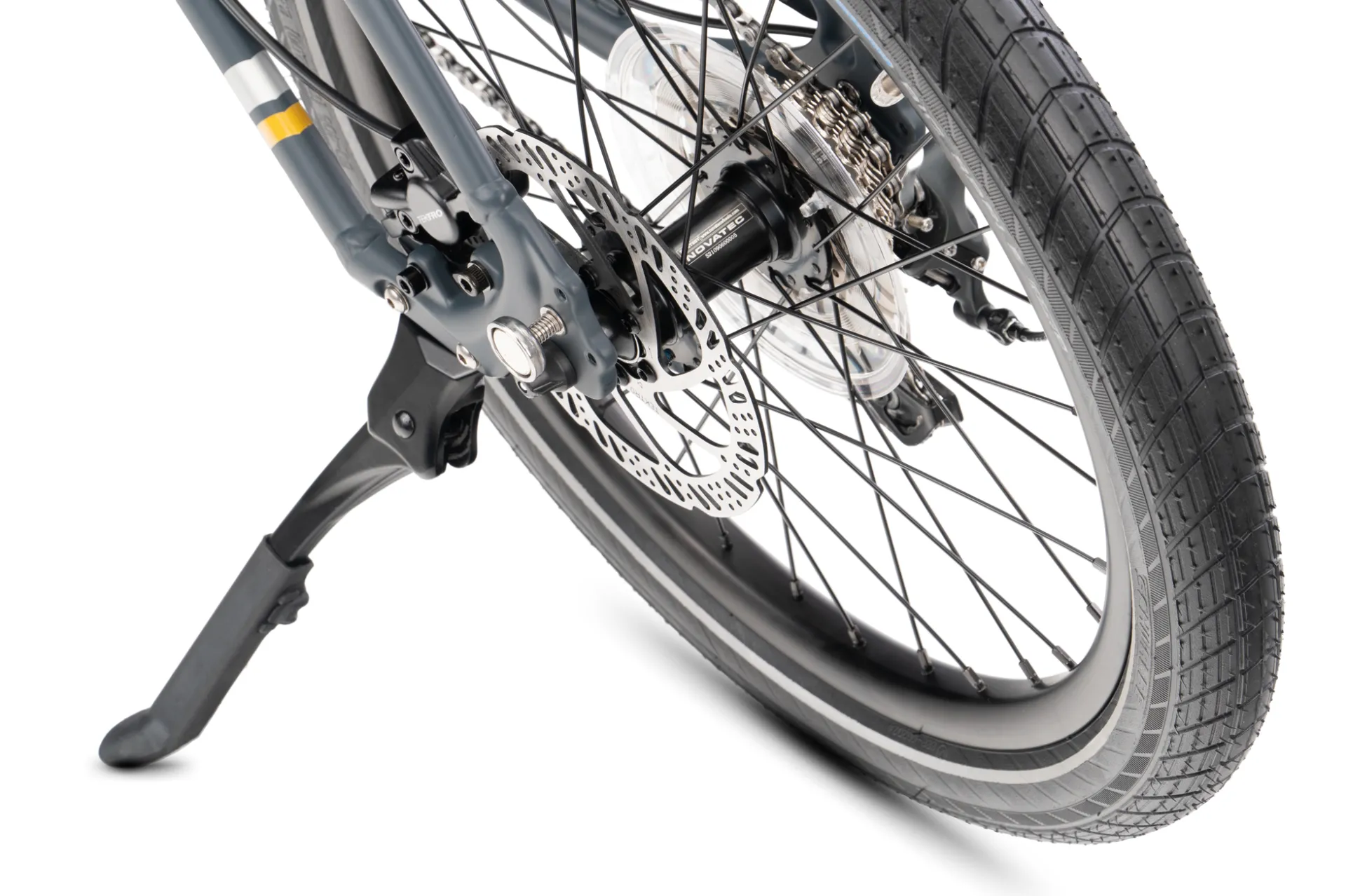

Kickstand: Pletscher design, rear mount

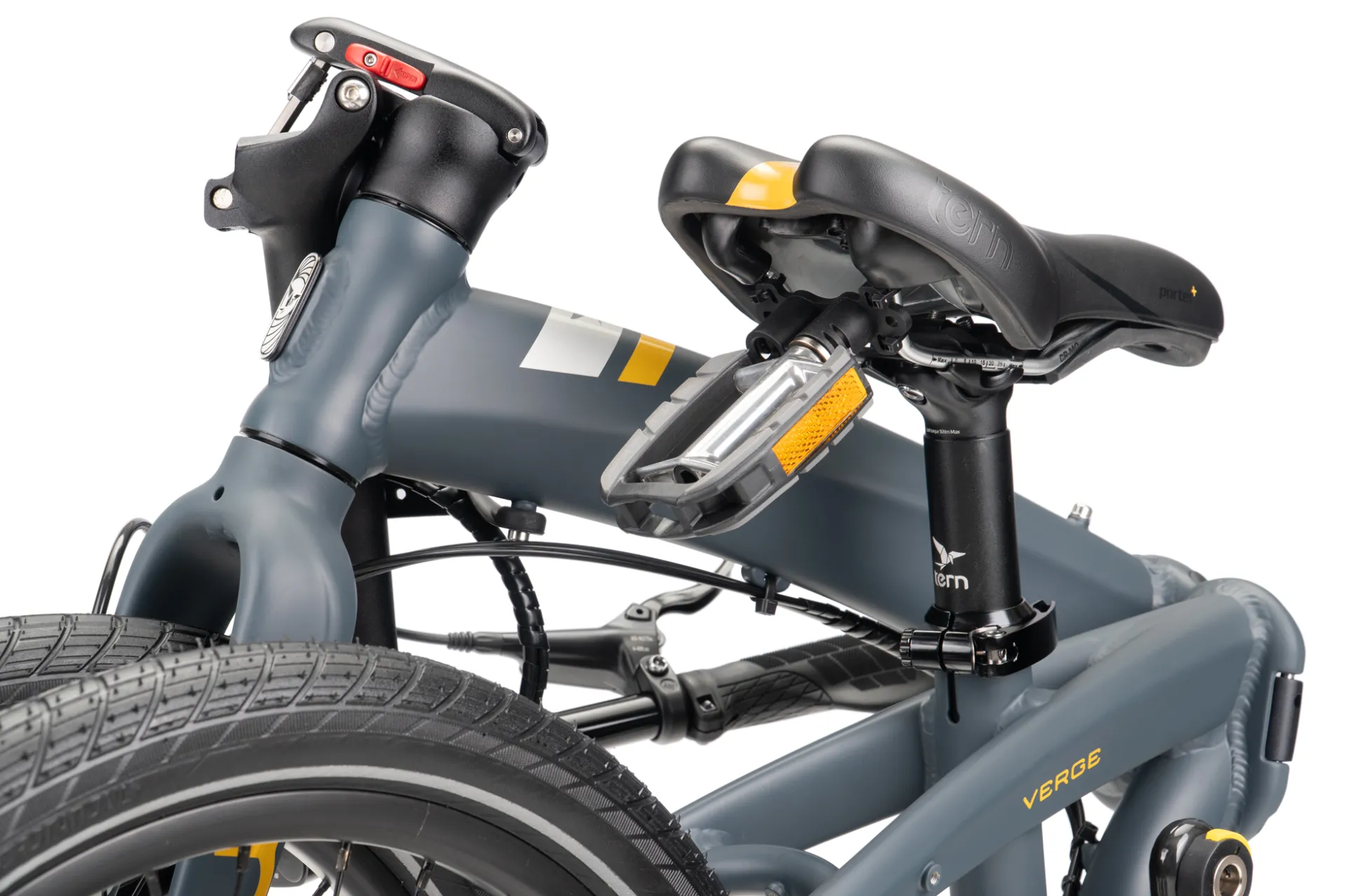

Clip System: Magnetix 2.0
Luggage Socket: Yes
Rear Light: Biologic TailLight
Accessory: Pedal Holder
