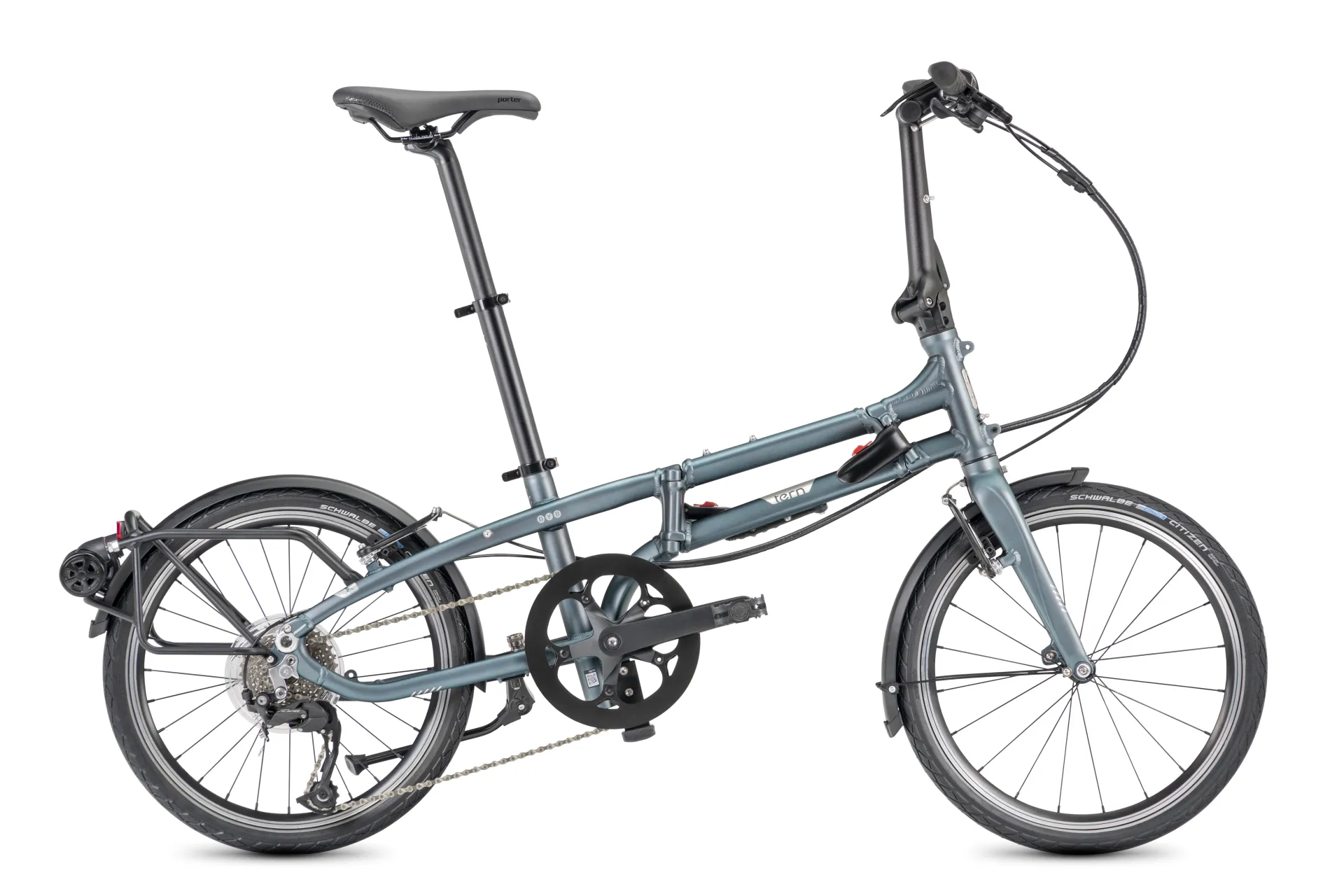

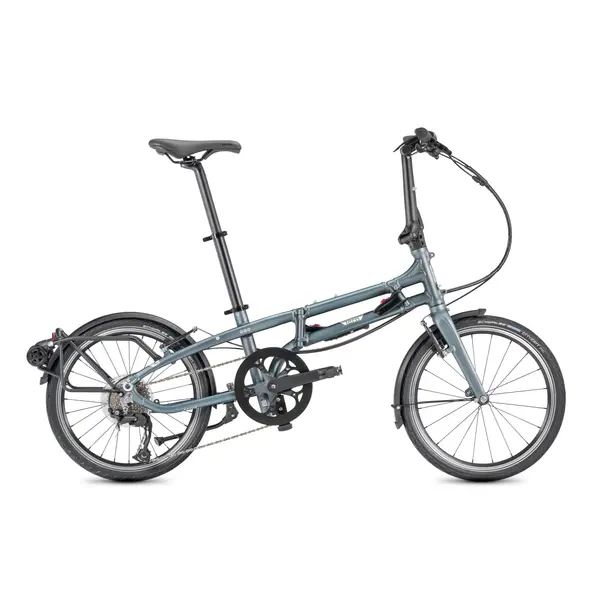

Tern BYB P8
Specifications
Information
What make the BYB P8
- 30% smaller than traditional 20” folding bikes
- Fits conveniently into lockers, closets, or any narrow space
- Metro Transit Rack with built-in spinner wheels for easier trolleying
- Fits riders from 147 to 195 cm (4’10” – 6’5”)
- New TFL Joint with 3D interface, DeadBolt design and SpringLock technology
- New 3D-forged Physis RF Handlepost
- Tern Porter saddle with patented GripPad design
- 8-speed Shimano Alivio, Shadow RD derailleur
SPECIFICATIONS
General Info
Generation: Gen 1
Color(s):
Speeds: 1 x 8
Weight: 14.3 kg
Gear Inches: 31" - 91" (2.50 - 7.28 m)
Frame Sizes: One size

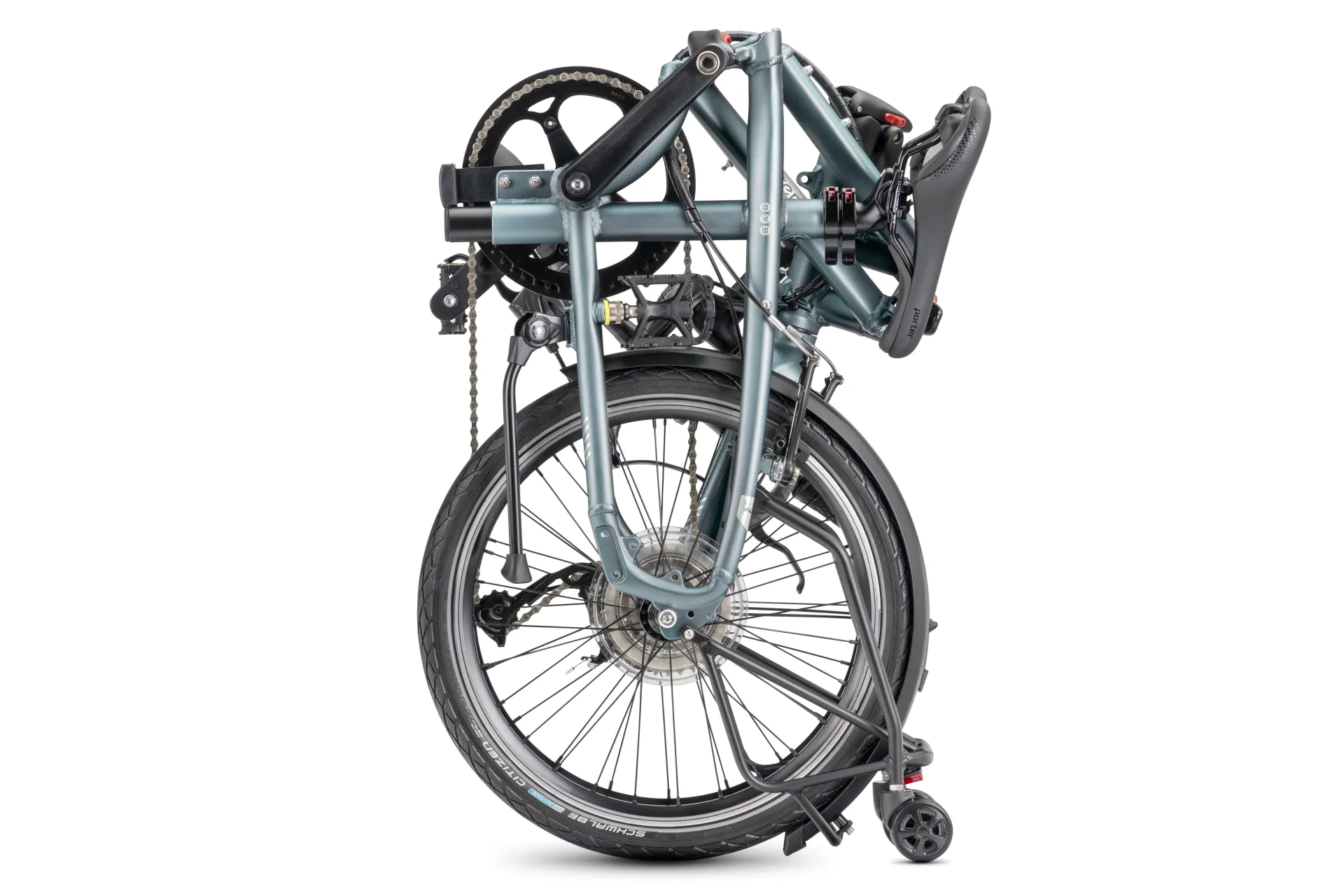

Folding Size: 35 × 81 × 52 cm
Folding Time: 30 seconds
Distance: Seatpost to Handlebar: 63 - 67.5 cm
Suggested Rider Height: 147 - 195 cm
Max Gross Vehicle Weight: 120 kg
Max Rider Weight: 105 kg
Frame
Frame: Tern BYB, Aluminum, TriFold patented technology, EFBE tested: ISO 4210
Fork: Tern Tarsus, 6061-AL, hydroformed
Cockpit
Handlepost: Tern Physis RF, 3D forged, 5 patented technologies
Stem: Tern Andros (G2), adjustable, forged construction, patented technology
Headset: Flux, cartridge bearings, Physis integrated
Handlebar: Flat bar, 6061-AL, Andros adapted
Grips/Bar Tape: Velo ergonomic, lock-on
Saddle: Tern Porter, patented GripPad design
Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp: Oversize, 6061-AL, 2pc
Brakes
Front Brake: Kinetix SpeedStop V-brakes, stainless hardware
Rear Brake: Kinetix SpeedStop V-brakes, stainless hardware
Brake Levers: Shimano
Brake Cable & Housing: Jagwire, anti-compression housing, Slick Lube liner
Wheels
Front Hub: Kinetix Neutron Mini 74, sealed cartridge bearing Opt: BioLogic Joule 3 dynamo
Rear Hub: Novatec, sealed cartridge bearing
Spokes & Nipples: Stainless steel
Rims: Doublewall aluminum
Tires: Schwalbe Citizen, 42-406, puncture protection, Reflex
Transmission
Shifter: Shimano, 1 x 8 spd
Front Derailleur: n/a
Rear Derailleur: Shimano Alivio, Shadow RD
Crankset: Forged 6061-AL, 52T
Cassette/Freewheel: Shimano 11-32T, 8 spd
Bottom Bracket: FSA, Cartridge, sealed bearings
Chain: KMC, 8 spd
Pedals: MKS EZY
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Bells & Whistles
Bell: Pitch, brass
Chainguard: Hebie
Kickstand: Deluxe center mount
Clip System: Anchor Bolt
Luggage Socket: Combo Mount
Front Light: Opt: Tern Valo 2, integrated, 41 lux/150 lumens
Rear Light: Opt: Deluxe LED
Fenders: SKS, stainless hardware
Rack: Tern Metro Transit Rack; Max load weight: 20 kg
Accessory: Pedal Holder
