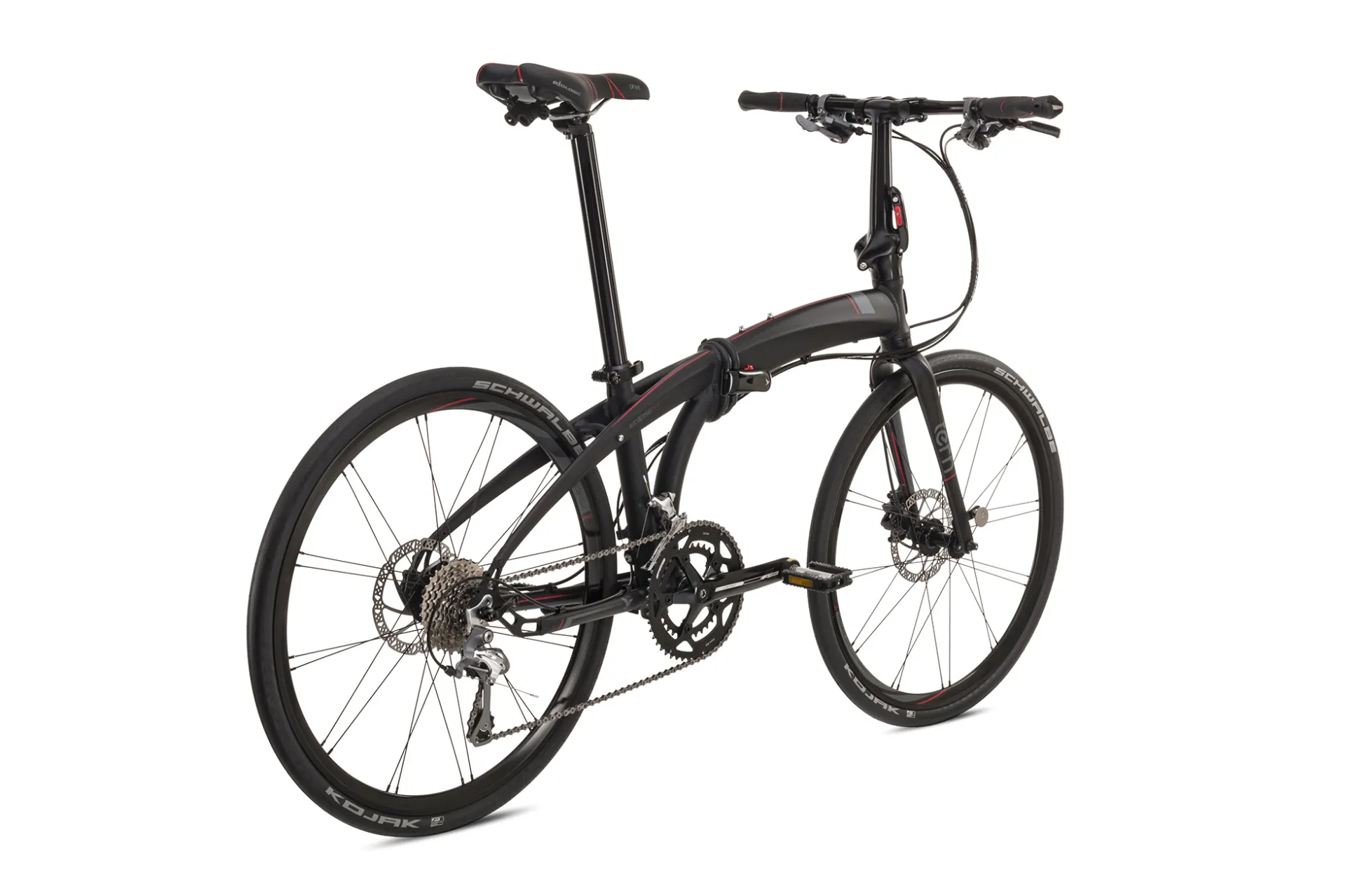

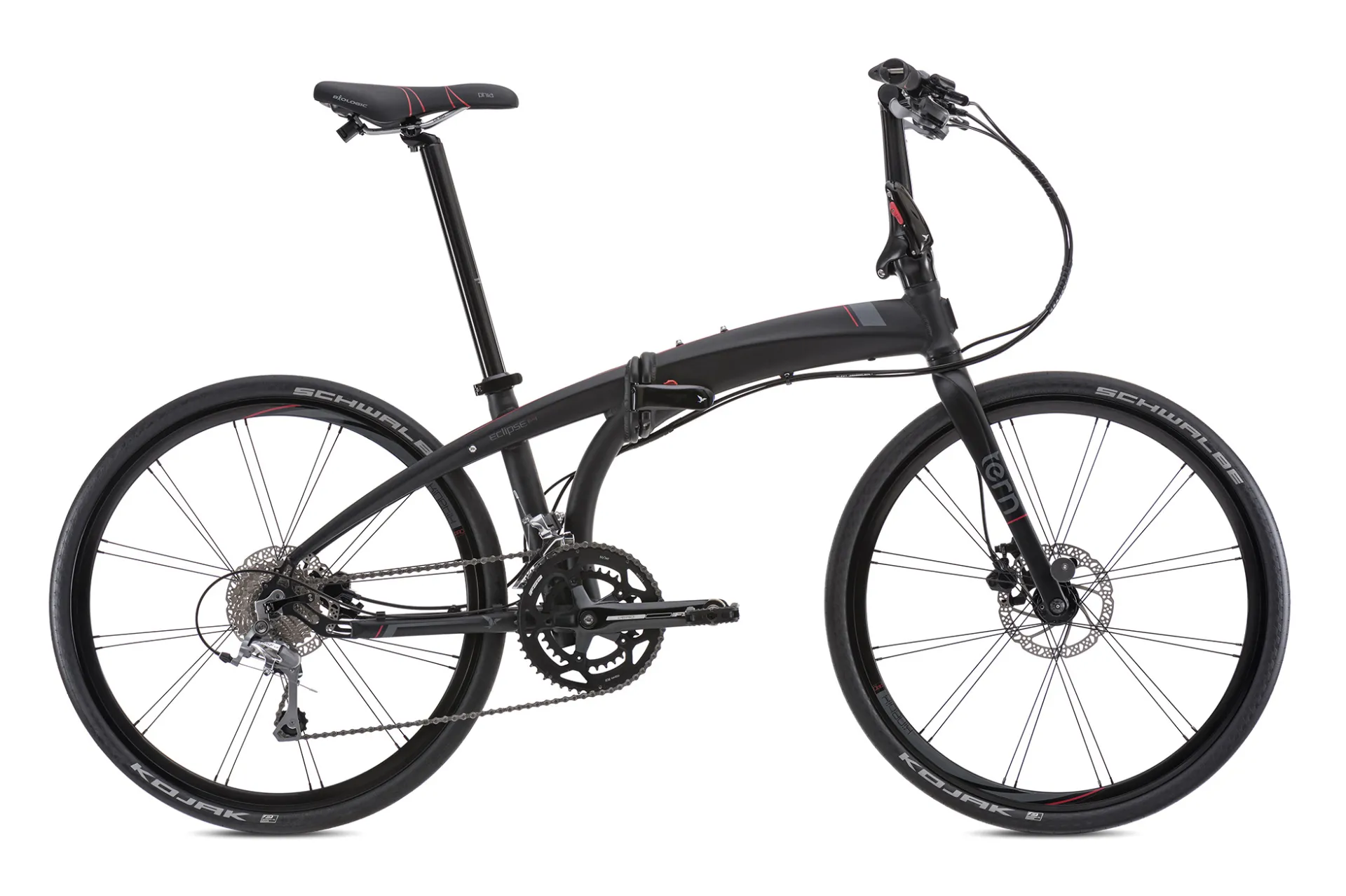

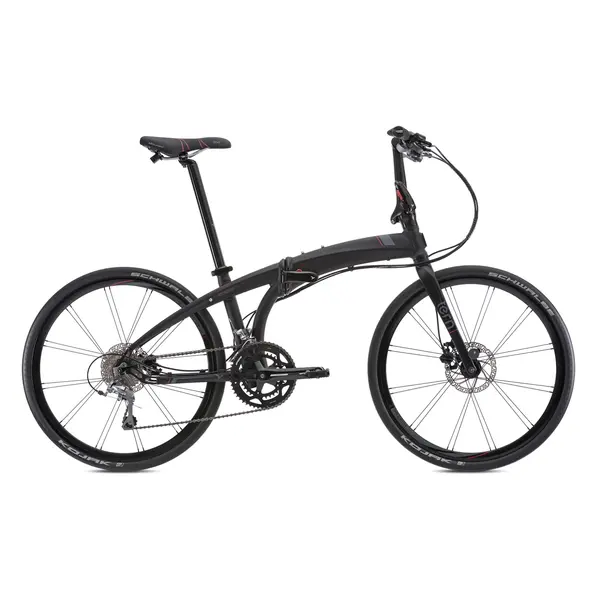

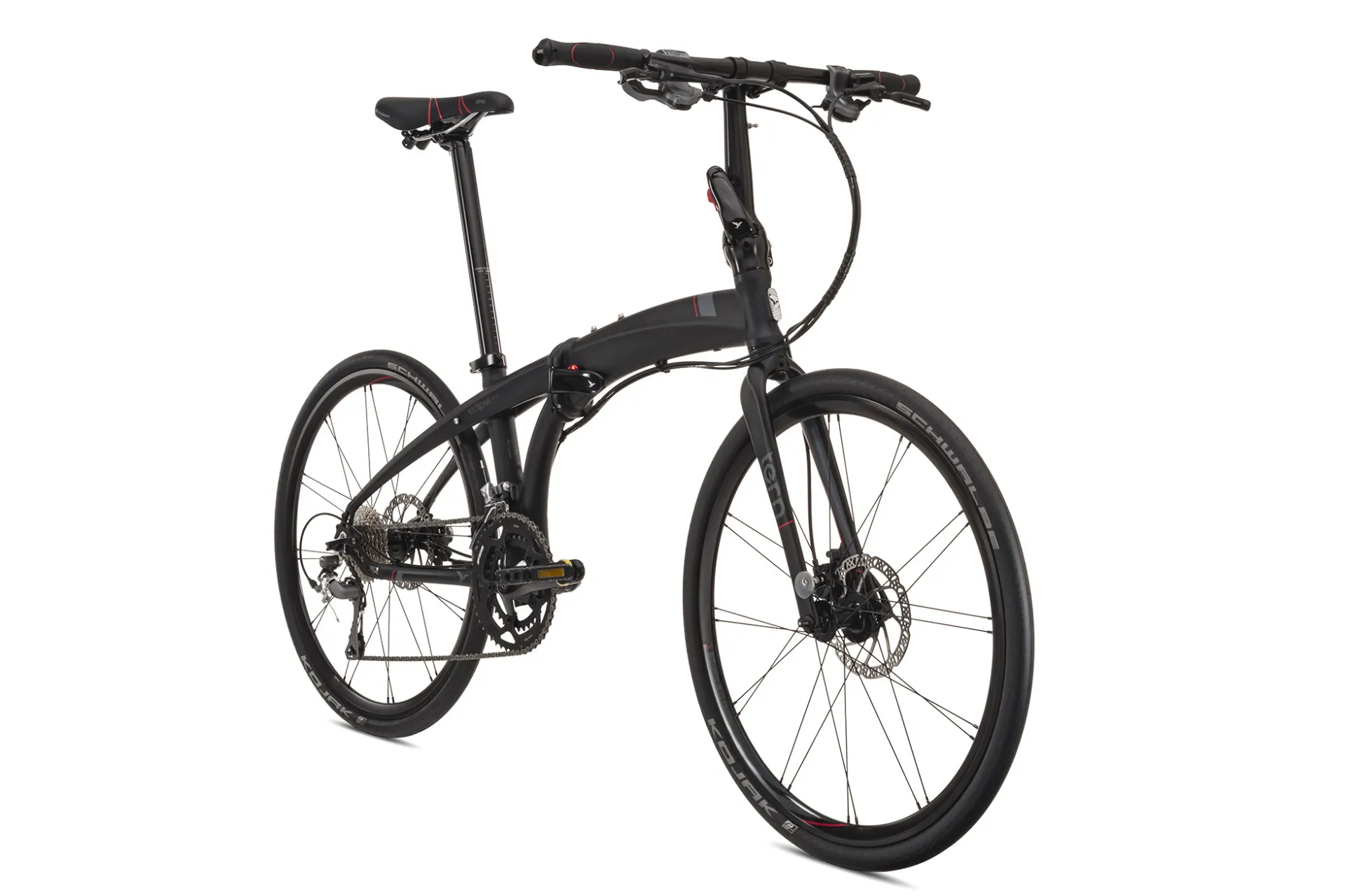

Tern Eclipse P20 Matte Black
Specifications
Information
What makes the Eclipse P20!
The Eclipse P20 is a high-performance road bike that folds down fast. With custom 26” Rolf Paired Spoke wheels, a 250 mm Physis™ 3D handlepost, and performance-tuned frame geometry, the Eclipse P20 is engineered for speed. It sports a stealth black finish, hydraulic disc brakes, and BioLogic Arx grips.
- Kinetix™ Pro Disc 26” wheels with patented Rolf Paired Spoke design
- Shimano Tiagra drivetrain for 20 speeds and precise, responsive shifting
- Tektro Auriga hydraulic disc brakes for all-weather stopping power
- Adjustable VRO handlebar stem to fine tune your ride position
- High performance Kojak road tires with puncture protection

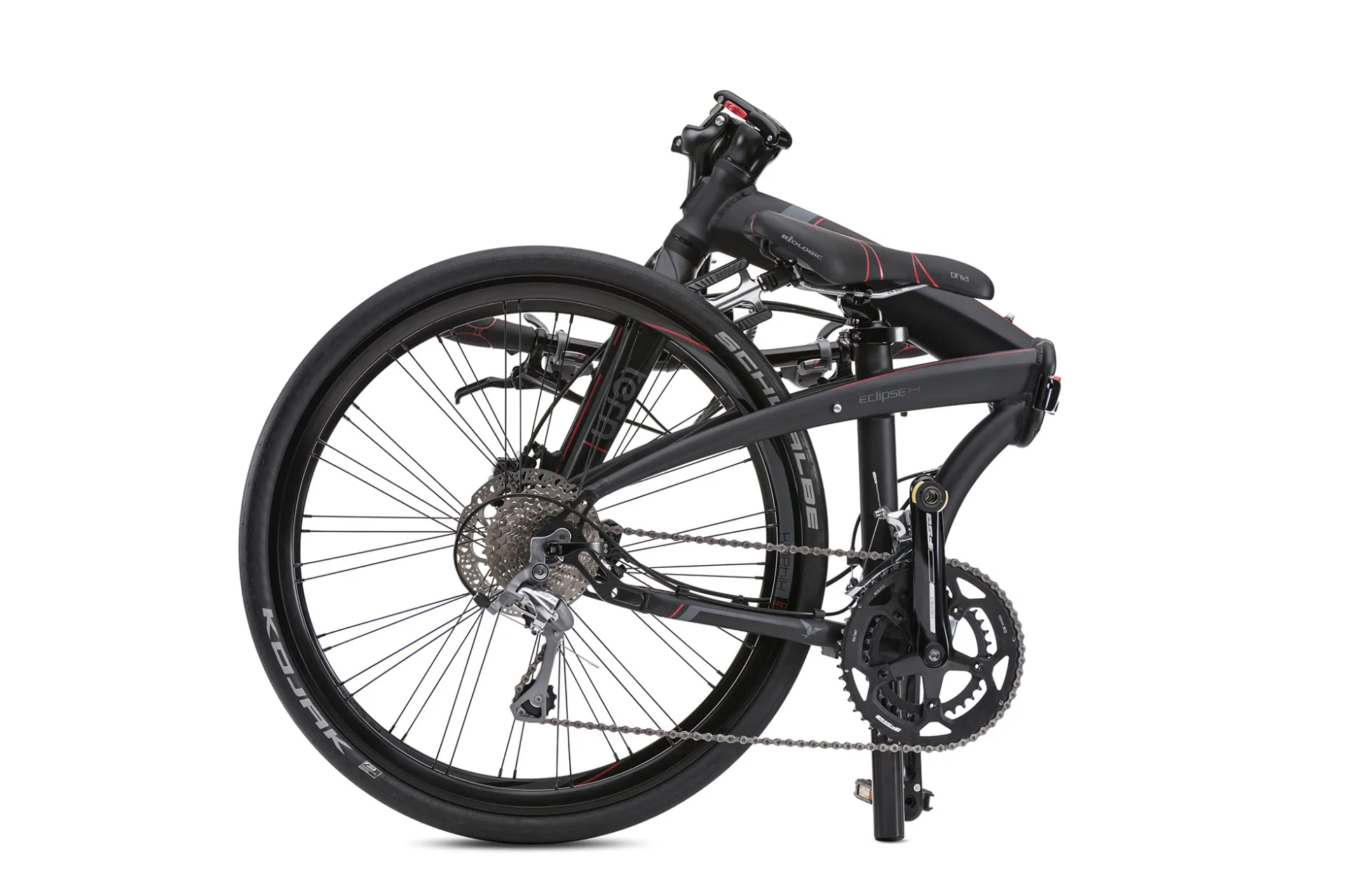

- Folds compactly in 10 seconds for storage and transport
SPECIFICATIONS
General Info
Speeds: 2 x 10
Weight:
12.22 kg (26.9 lb)
Gear Inches:
26" - 112" (2.09 - 8.92 m)
Frame Sizes: One size
Folding Size:
38 × 91 × 80 cm (15 × 35.8 × 31.5 in)
Folding Time: 10 sec
Distance: Seatpost to Handlebar:
63 - 70 cm (24.8 - 27.6 in)
Distance: Saddle to Pedal:
77 - 104 cm (30.3 - 40.9 in)
Suggested Rider Height:
148 - 195 cm (58.3 - 76.8 in)
Max Gross Vehicle Weight:
120 kg (264.6 lb)
Max Rider Weight:
105 kg (231.5 lb)
Frame
Frame: Tern Eclipse, hydroformed aluminum w/ smooth TIG welding, OCL+ joint, 3 patented technologies
Fork: Tarsus, 6061-AL, hydroformed
Cockpit
Handlepost: Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm

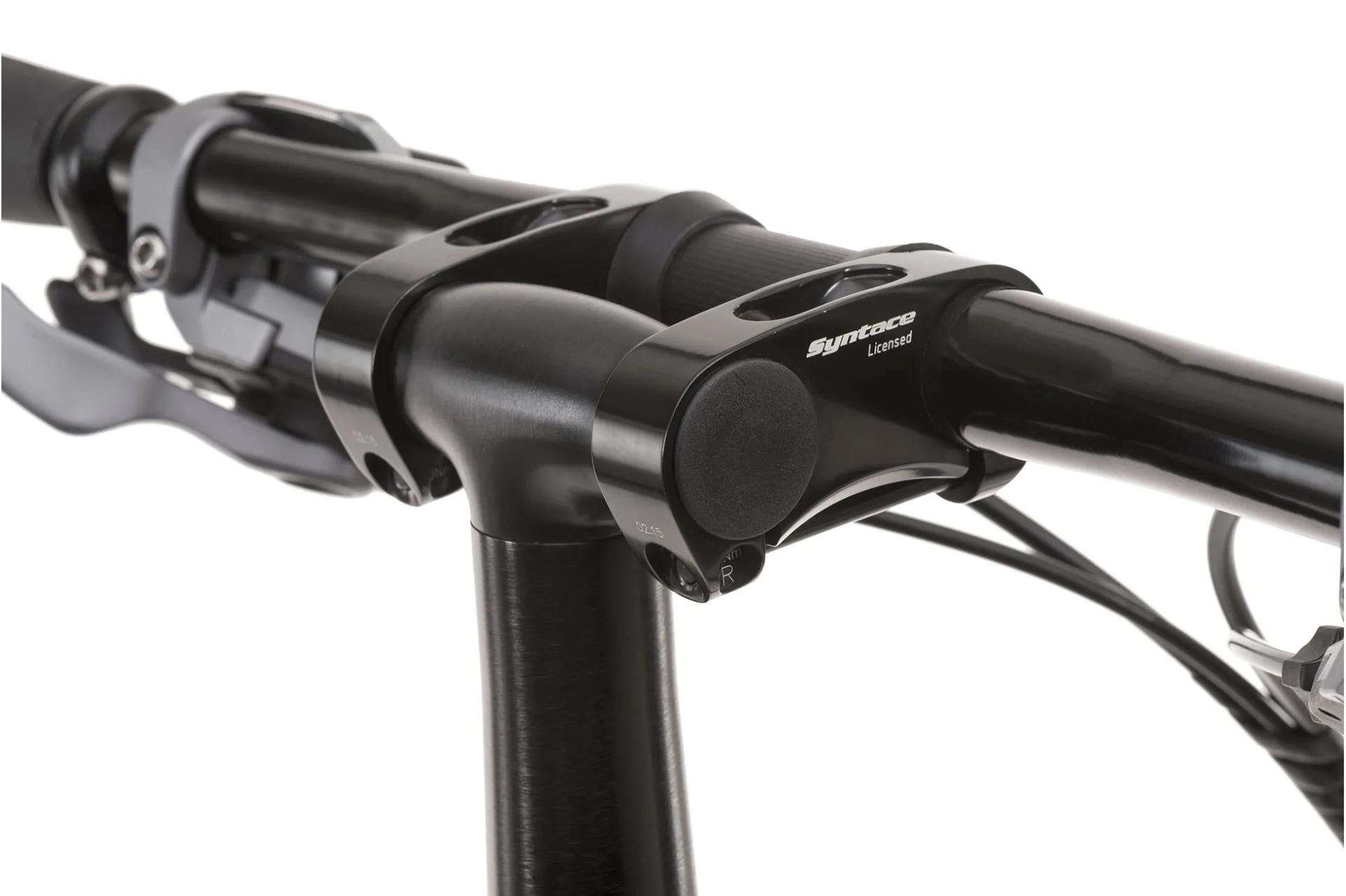

Stem: Syntace VRO, adjustable
Headset: Flux, cartridge bearings, Physis integrated
Handlebar: Kinetix Comp, 6061-Al, VRO butted
Grips/Bar Tape: BioLogic Arx
Saddle: Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost: SuperOversize, 6061-Al, forged clamp
Seatpost Clamp: Syntace OverLock
Brakes

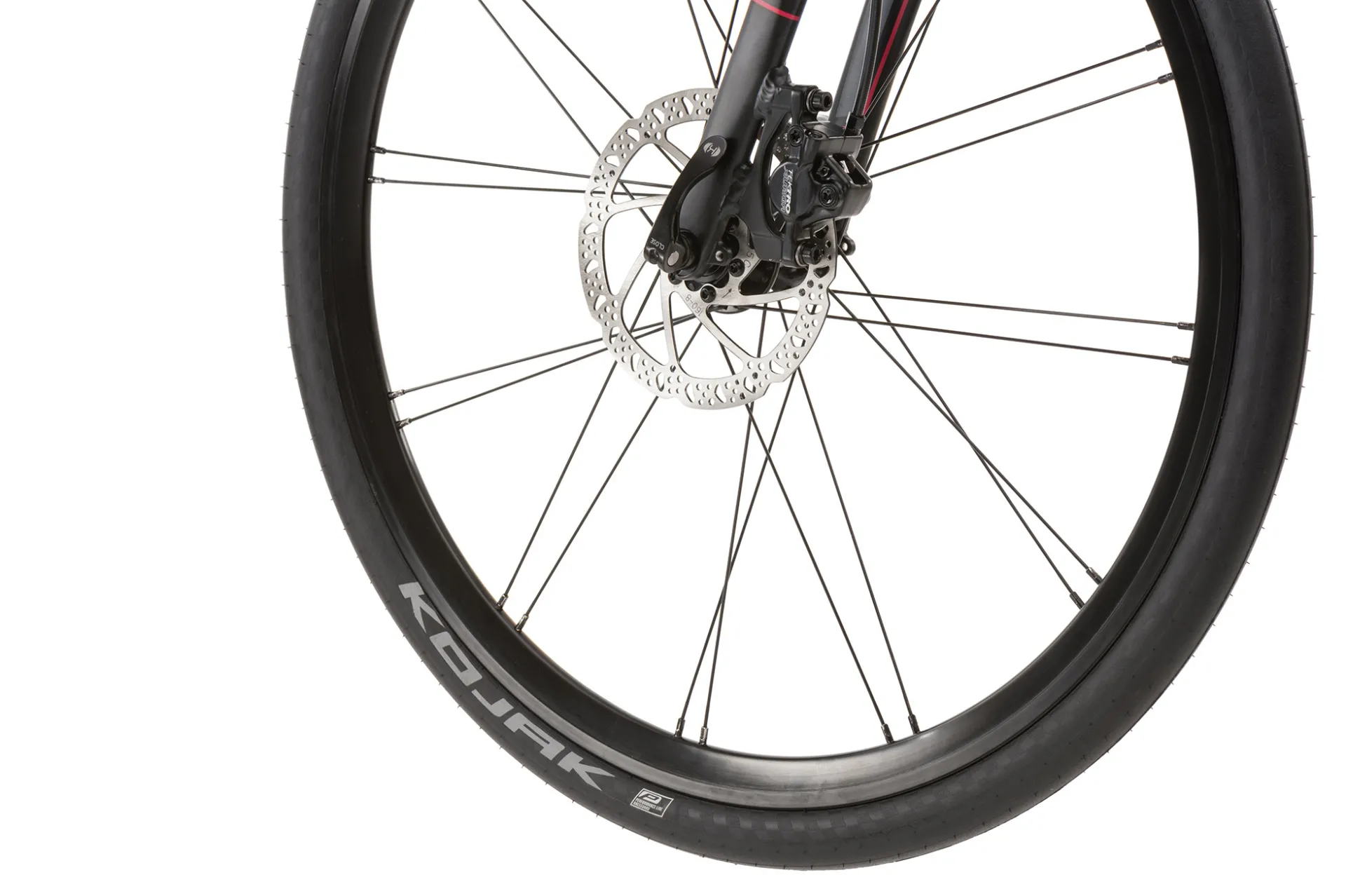

Front Brake: Tektro Auriga, hydraulic disc
Rear Brake: Tektro Auriga, hydraulic disc
Brake Levers: Tektro Auriga, hydraulic disc
Brake Cable & Housing: Tektro Auriga, hydraulic
Wheels
Front Wheel: Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
Rear Wheel: Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
Spokes & Nipples: Double-butted 18/10 stainless, Sapim Polyax nipples
Tires: Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
Transmission
Shifter: Shimano Tiagra trigger, 2x10 spd
Front Derailleur: Shimano Tiagra

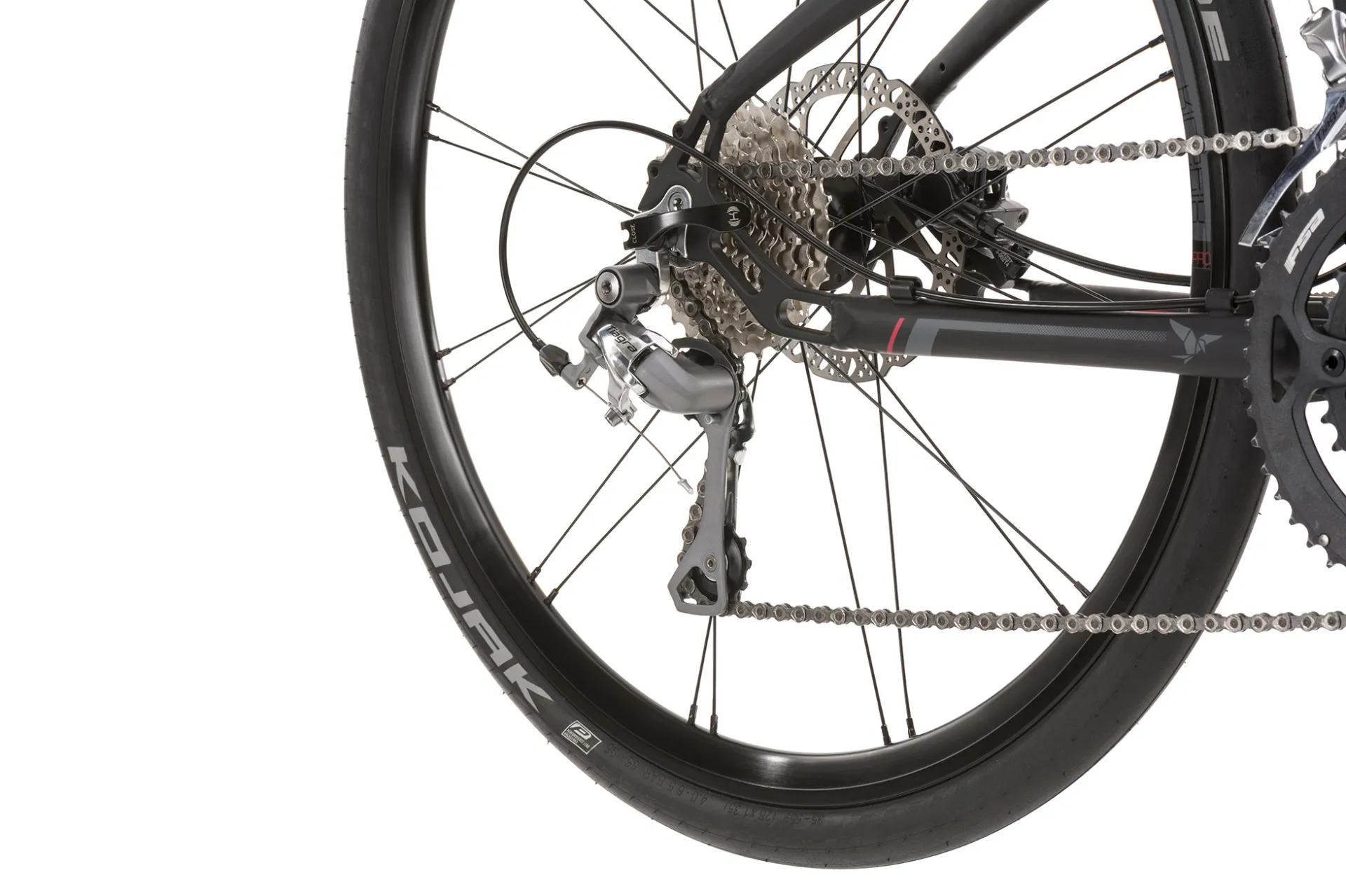

Rear Derailleur: Shimano Tiagra

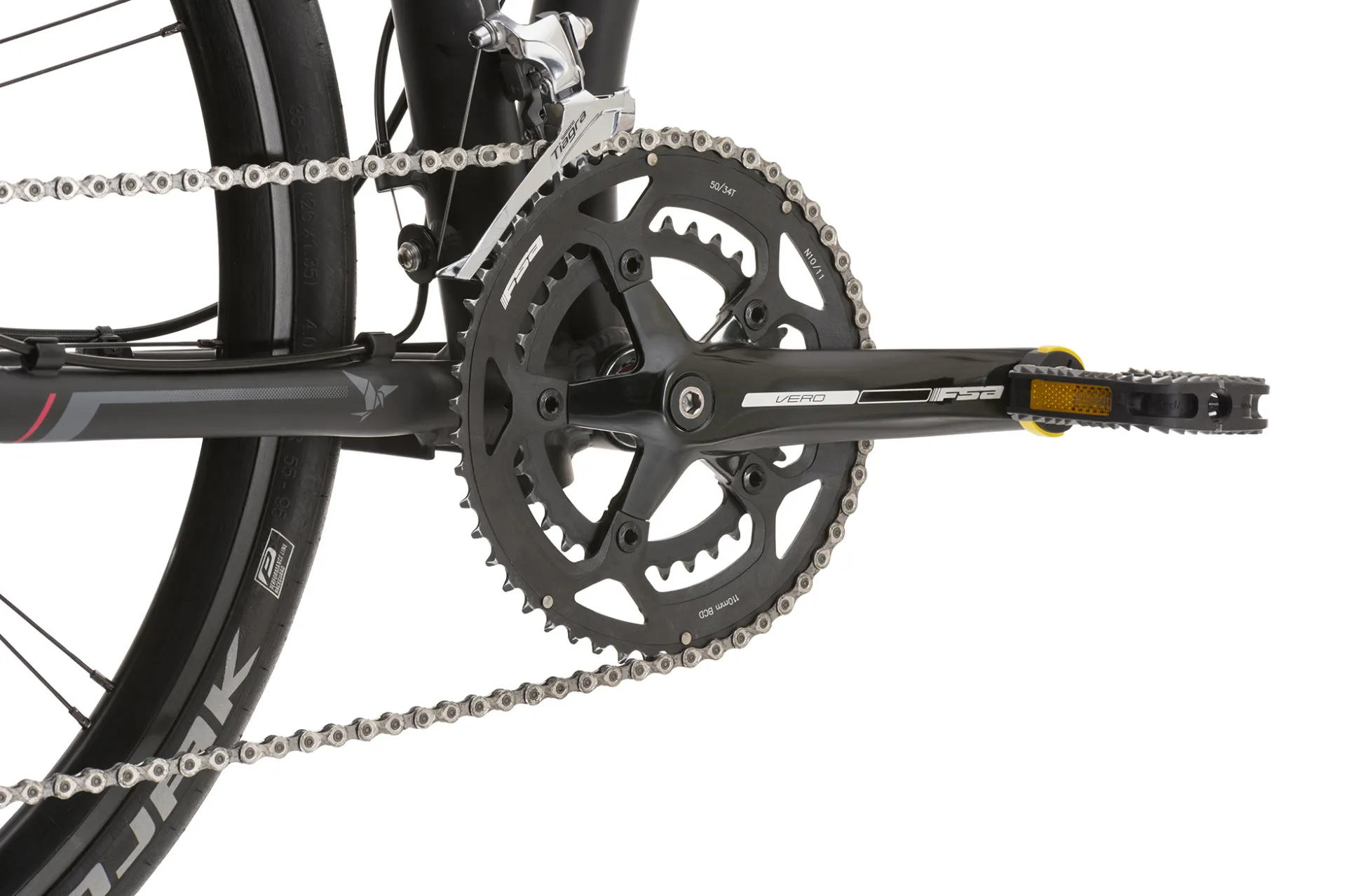

Crankset: FSA Vero, 50/34T
Cassette/Freewheel: Shimano Deore, 11-32T, 10 spd
Bottom Bracket: Cartridge, sealed bearings
Chain: KMC X10
Pedals: LiteForm QR, alloy body, QR right/standard left
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Bells & Whistles
Bell: Pitch, brass
Kickstand: Premium center mount
Clip System: Magnetix 2.0
Luggage Socket: Yes
Rear Light: BioLogic TailLight
Accessory: Pedal Holder
