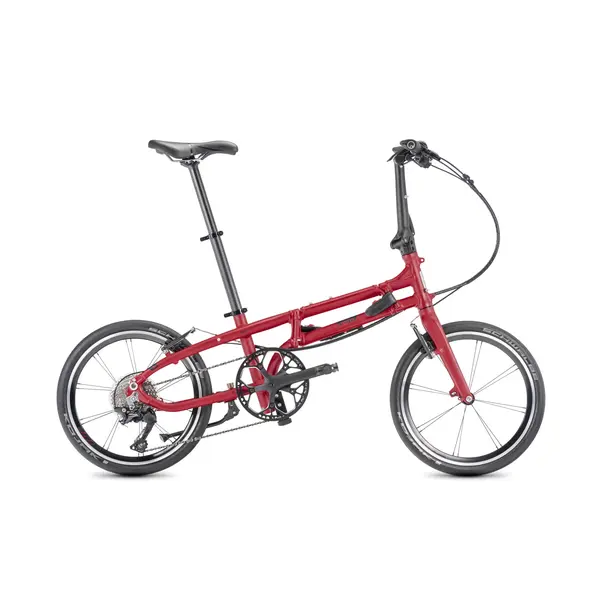

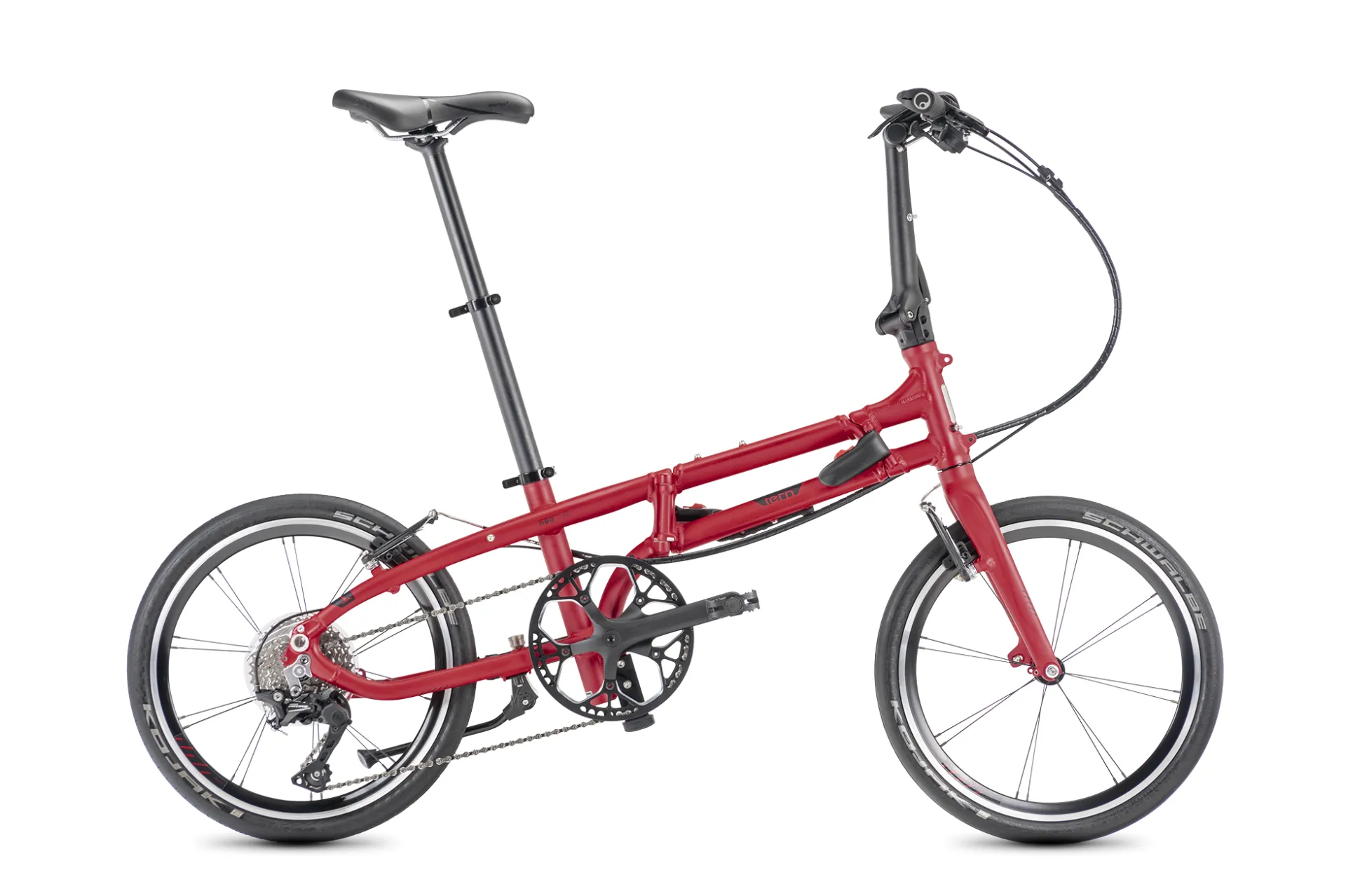

Tern BYB P10 Satin Metallic Red
Specifications
Information
What makes the BYB P10
- 30% smaller than traditional 20” folding bikes
- Fits conveniently into lockers, closets, or any narrow space
- Fits riders from 147 to 195 cm (4’10” - 6’5”)

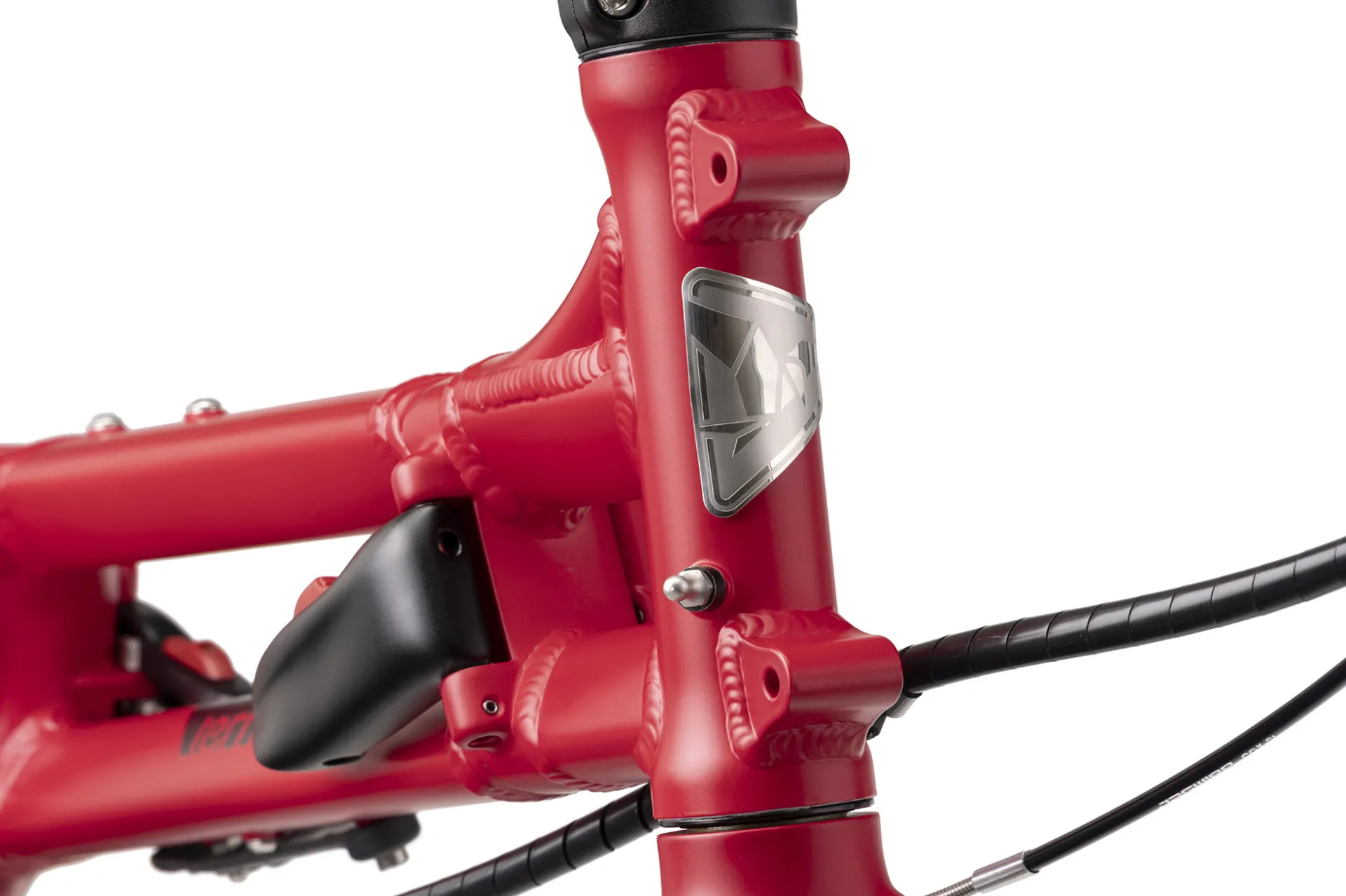

- TFL Joint with 3D interface, DeadBolt design and SpringLock technology

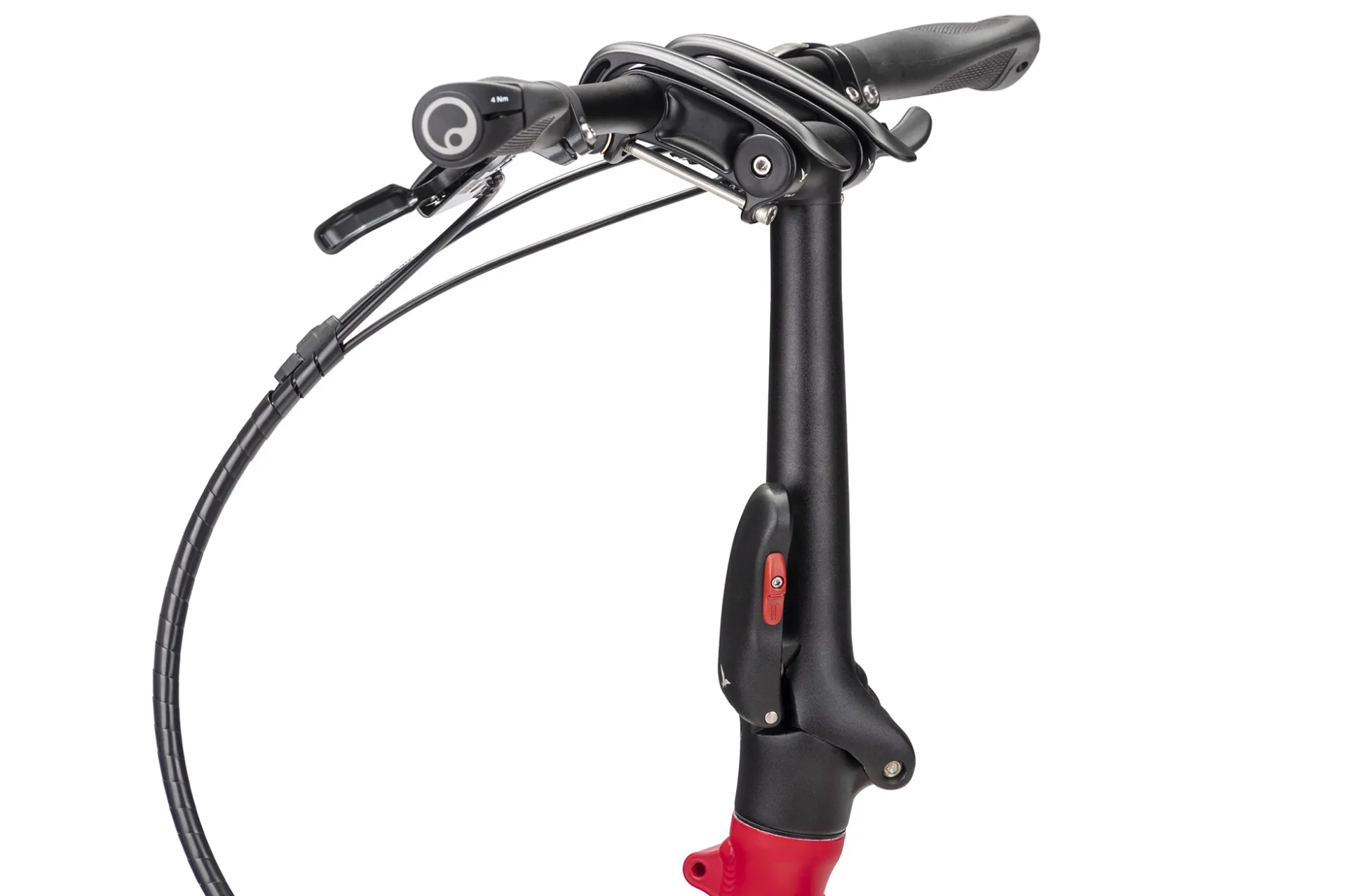

- 3D-forged Physis RF Handlepost
- Tern Porter+ saddle with patented GripPad design
- Kinetix Pro wheels with paired spoke technology
- 10-speed Shimano Deore, Shadow+ derailleur
- Optional Metro Transit Rack* and MTR Fenders for easier commutes
* With the Metro Transit Rack, the BYB P10 stands upright when folded.
SPECIFICATIONS
General Info
Generation: Gen 1
Color(s):
Speeds: 1 x 10
Weight: 12 kg
Gear Inches: 28" - 90" (2.20 - 7.19 m)
Frame Sizes: One size

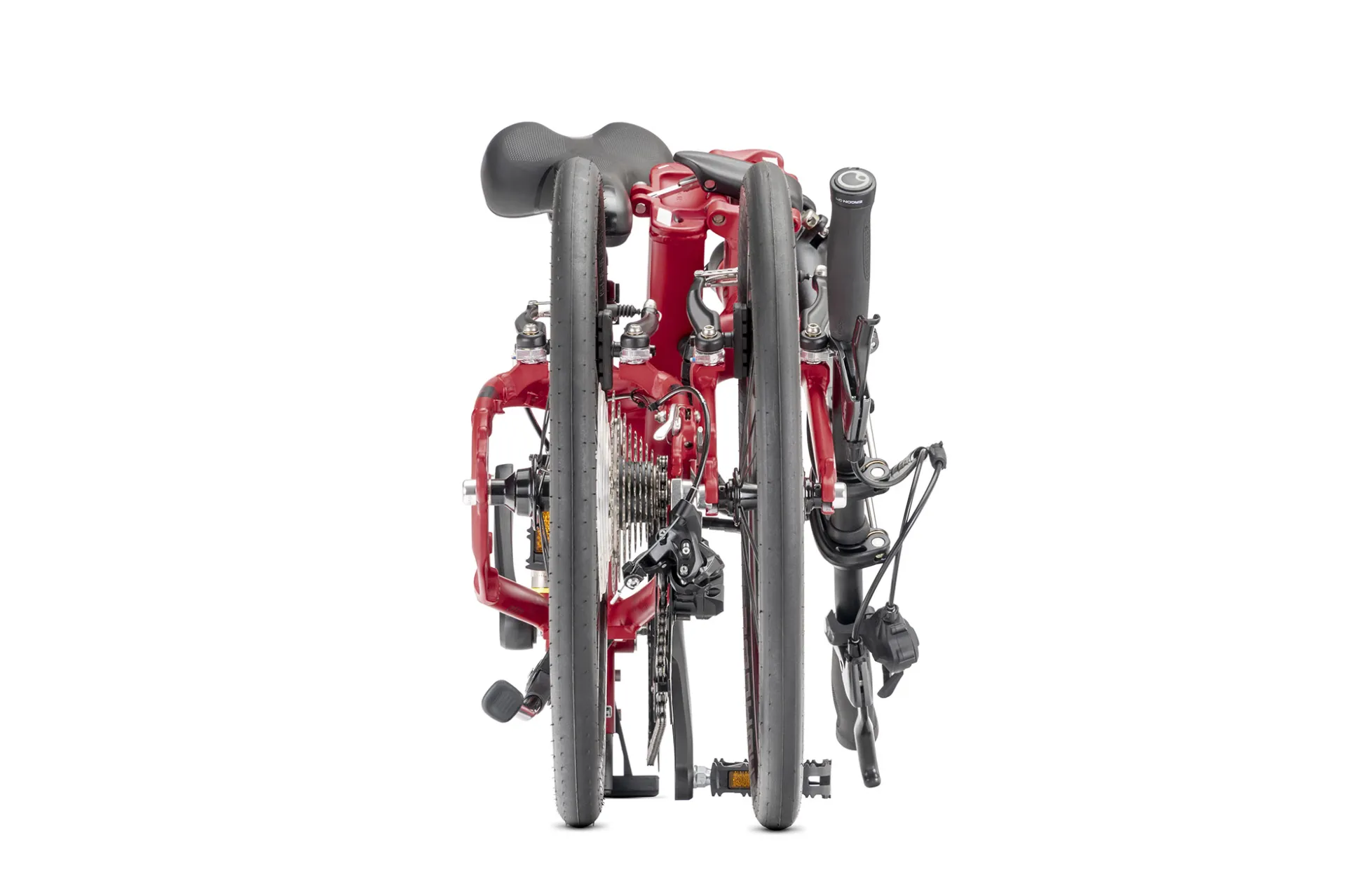

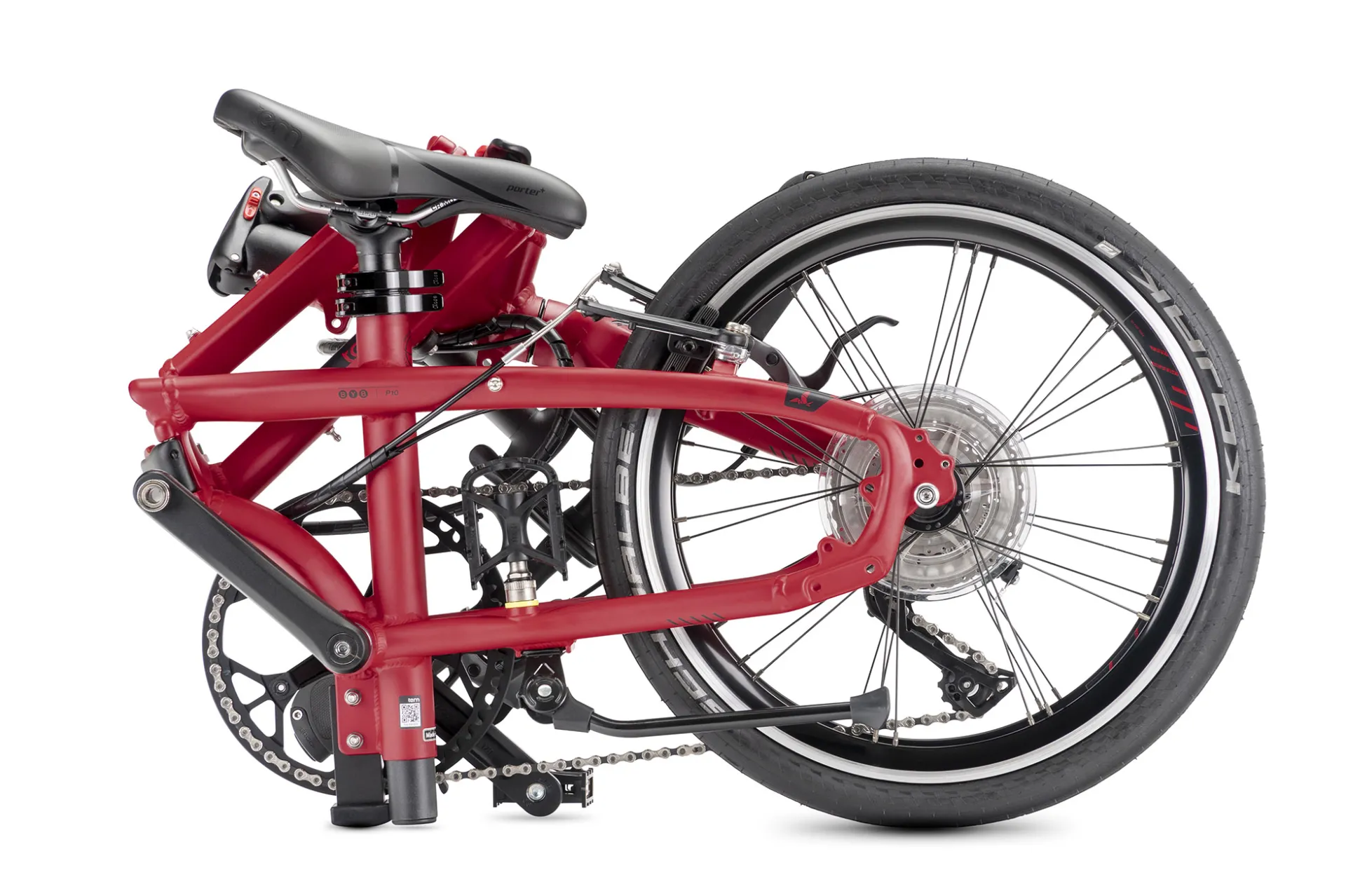

Folding Size: 33 × 81 × 51 cm
Folding Time: 30 seconds
Distance: Seatpost to Handlebar: 63 - 67.5 cm
Suggested Rider Height: 147 - 195 cm
Max Gross Vehicle Weight: 120 kg
Max Load Weight: 105 kg
Max Rider Weight: 105 kg
Frame
Frame: Tern BYB, 6061-AL, Aluminum, TriFold patented technology, EFBE tested: ISO 4210
Fork: Tern Tarsus, 6061-AL, hydroformed
Cockpit
Handlepost: Tern Physis RF, 3D forged, 5 patented technologies
Stem: Tern Andros (G2), adjustable, forged construction, patented technology
Headset: Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar: Flat bar, 6061-AL, Andros adapted
Grips/Bar Tape: Ergon GP10
Saddle: Tern Porter+ by Velo, patented GripPad design, PrimeGel padding
Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp: Tern Collar
Brakes

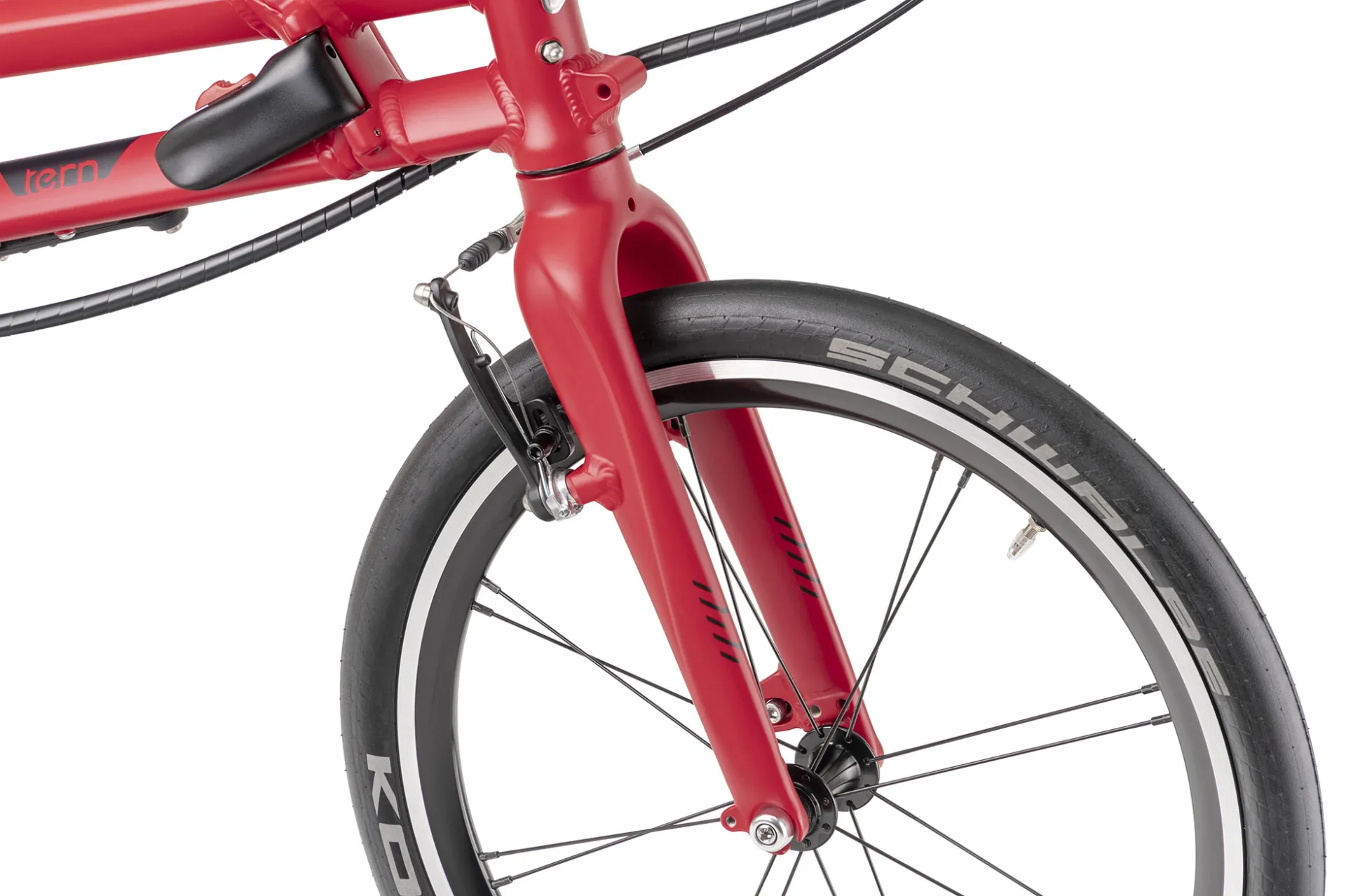

Front Brake: Kinetix SpeedStop V-brakes, stainless hardware
Rear Brake: Kinetix SpeedStop V-brakes, stainless hardware
Brake Levers: Shimano
Brake Cable & Housing: Jagwire, anti-compression housing, Slick Lube liner
Wheels

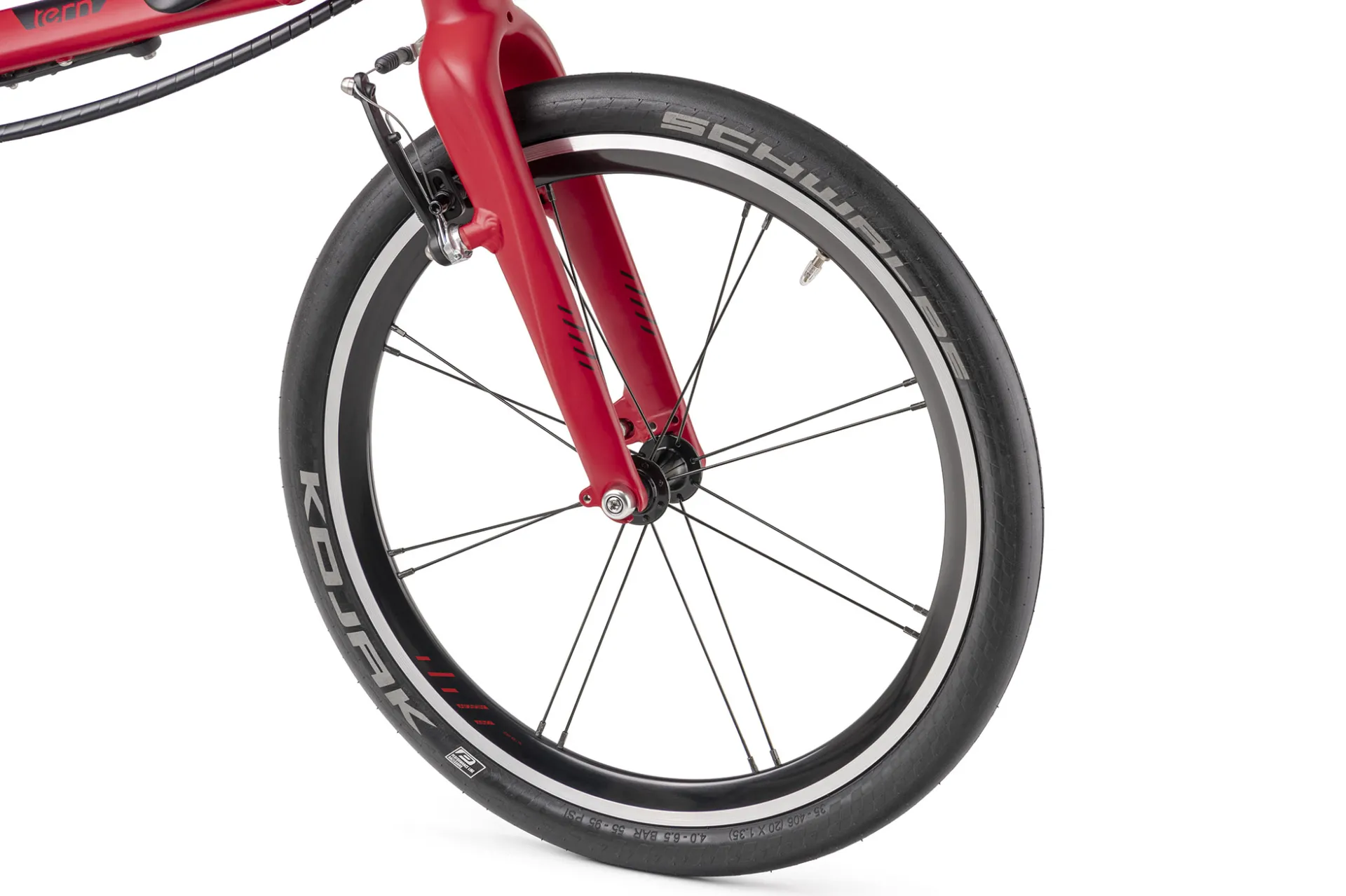

Front Wheel: Kinetix Pro, Paired Spoke technology, 16H
Rear Wheel: Kinetix Pro, Paired Spoke technology, 20H
Tires: Schwalbe Kojak, Performance Line, 35-406, puncture protection
Transmission
Shifter: Shimano Deore, 1 x 10 spd
Front Derailleur: n/a

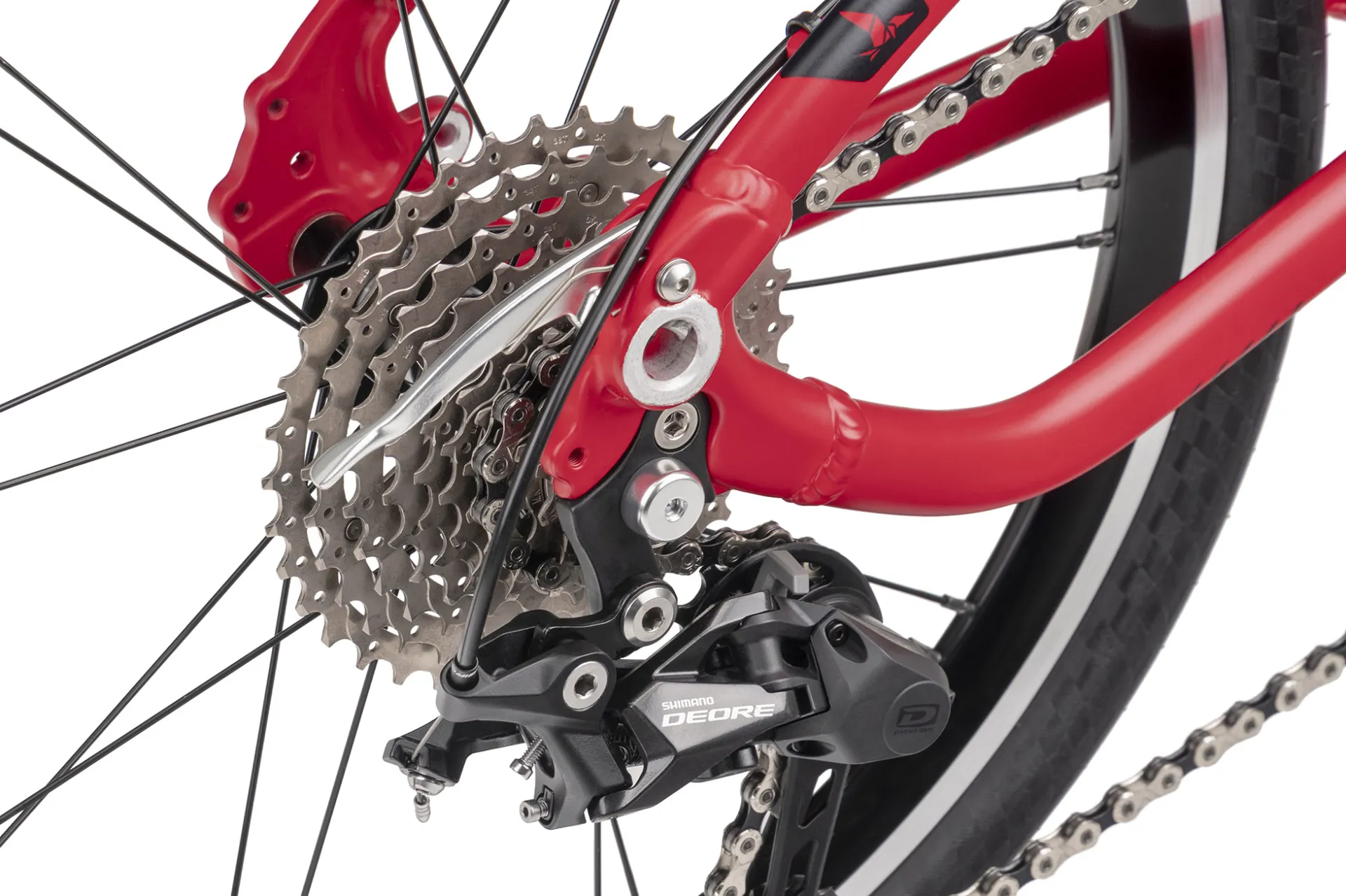

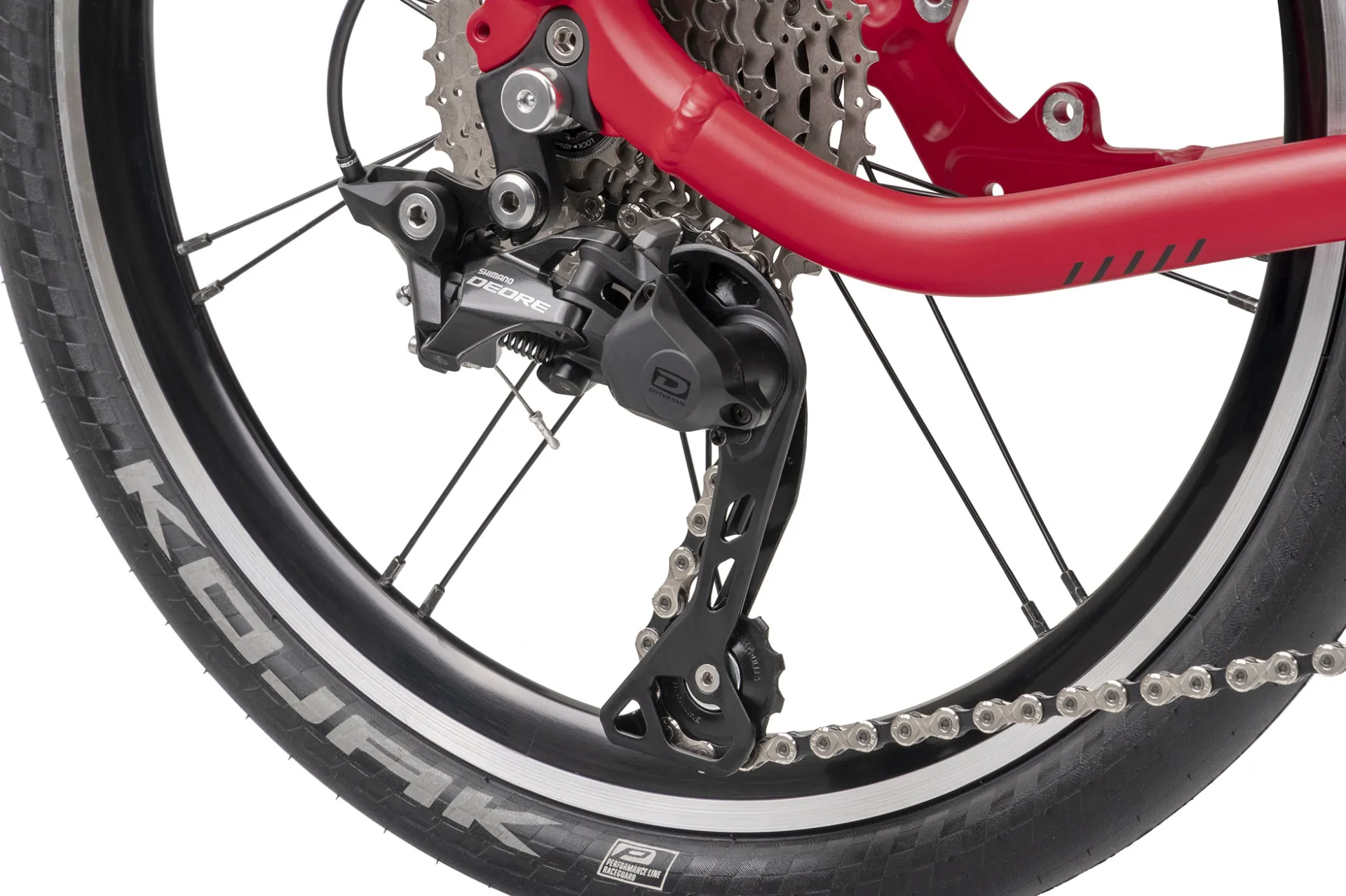

Rear Derailleur: Shimano Deore Shadow+
Crankset: FSA Vero, Built for Tern, 53T
Cassette/Freewheel: 11-36T, 10 spd
Bottom Bracket: FSA, Cartridge, sealed bearings
Chain: KMC X10
Pedals: MKS EZY
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Bells & Whistles
Bell: Pitch, brass
Chainguard: n/a
Kickstand: Deluxe center mount
Clip System: AnchorBolt
Luggage Socket: Combo Mount
Front Light: n/a
Rear Light: n/a
Fenders: n/a
Rack: n/a
Accessory: Pedal Holder
