Tern GSD P00 Gen 3
Specifications
Information

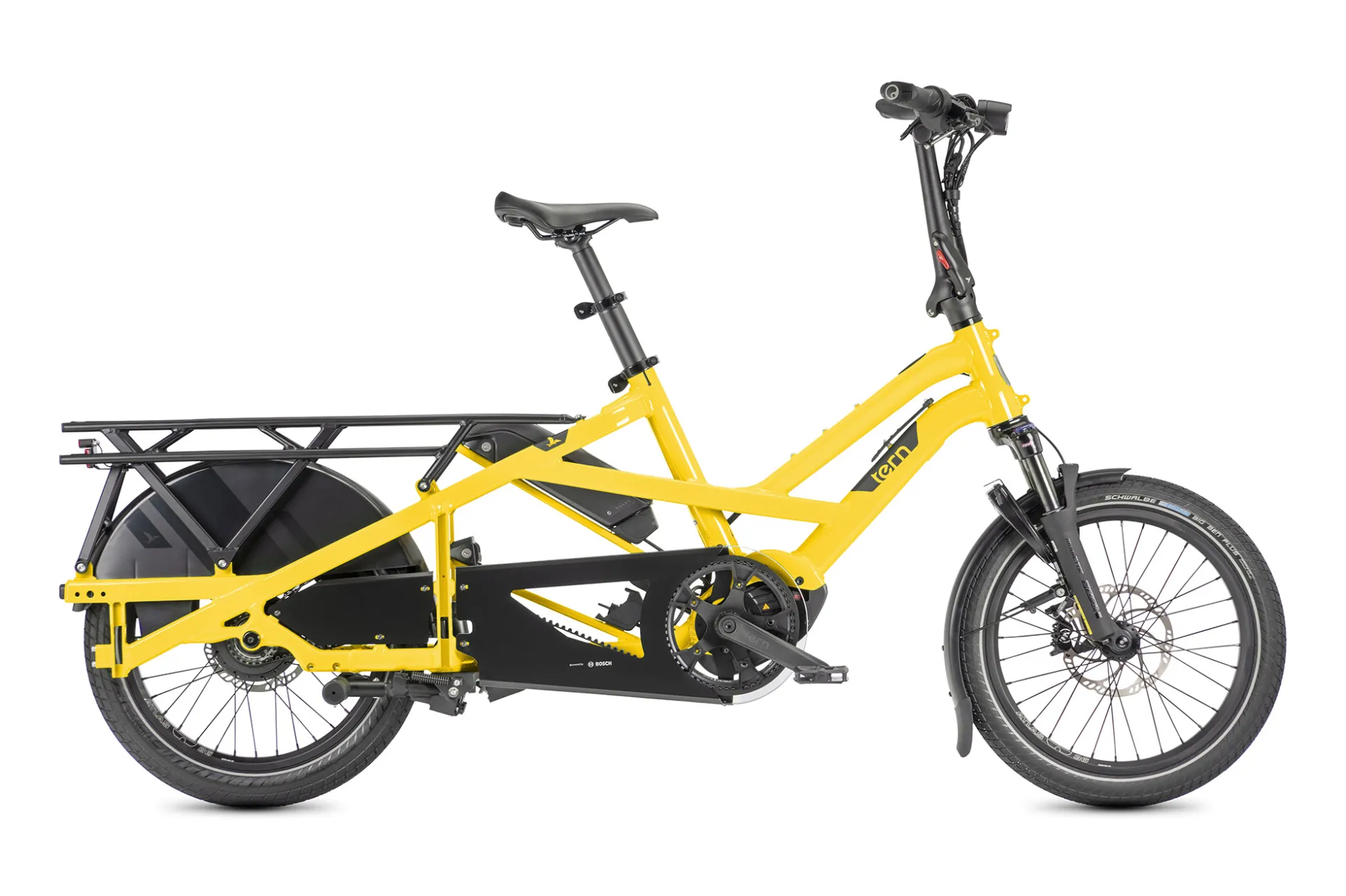

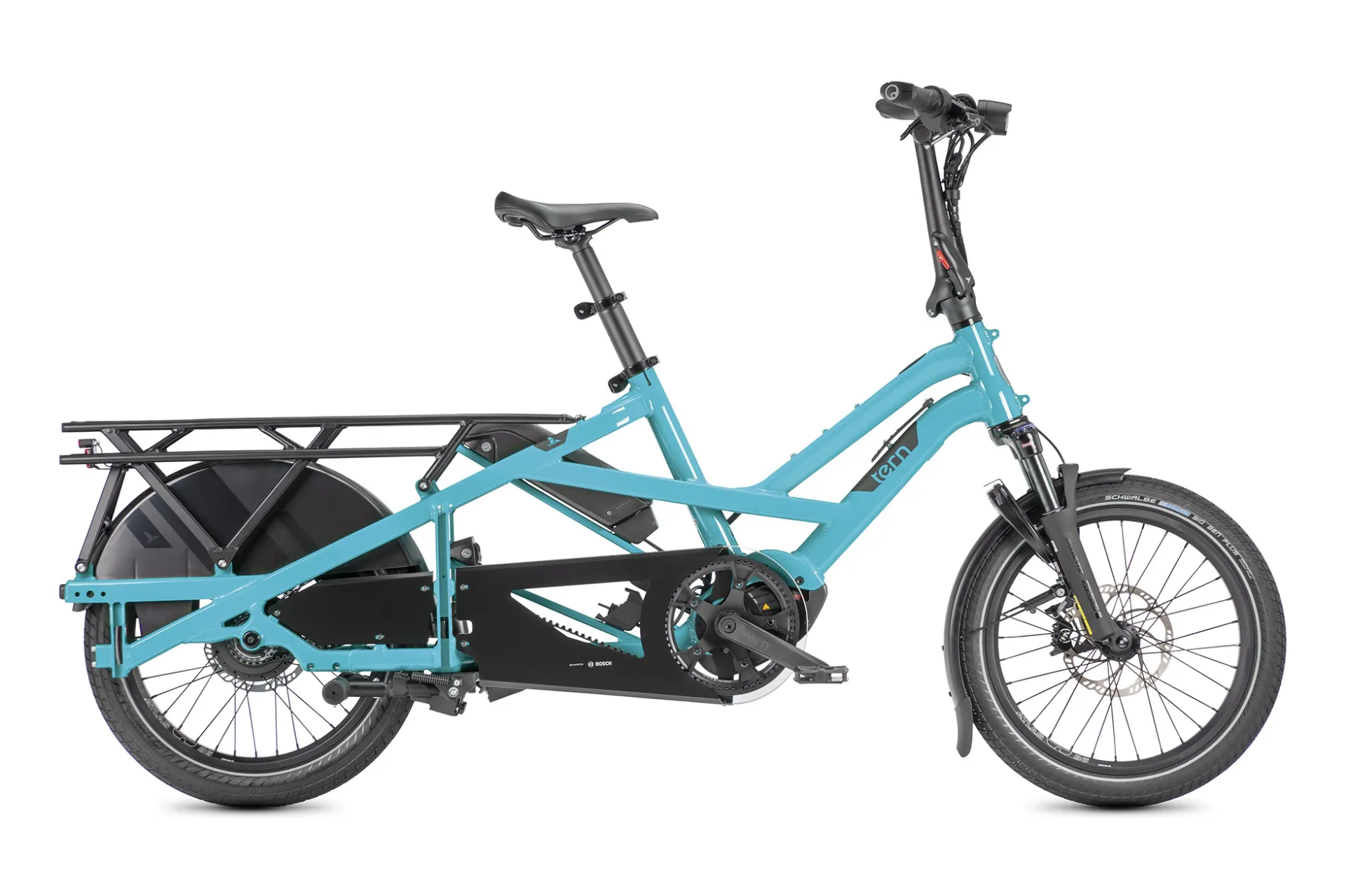

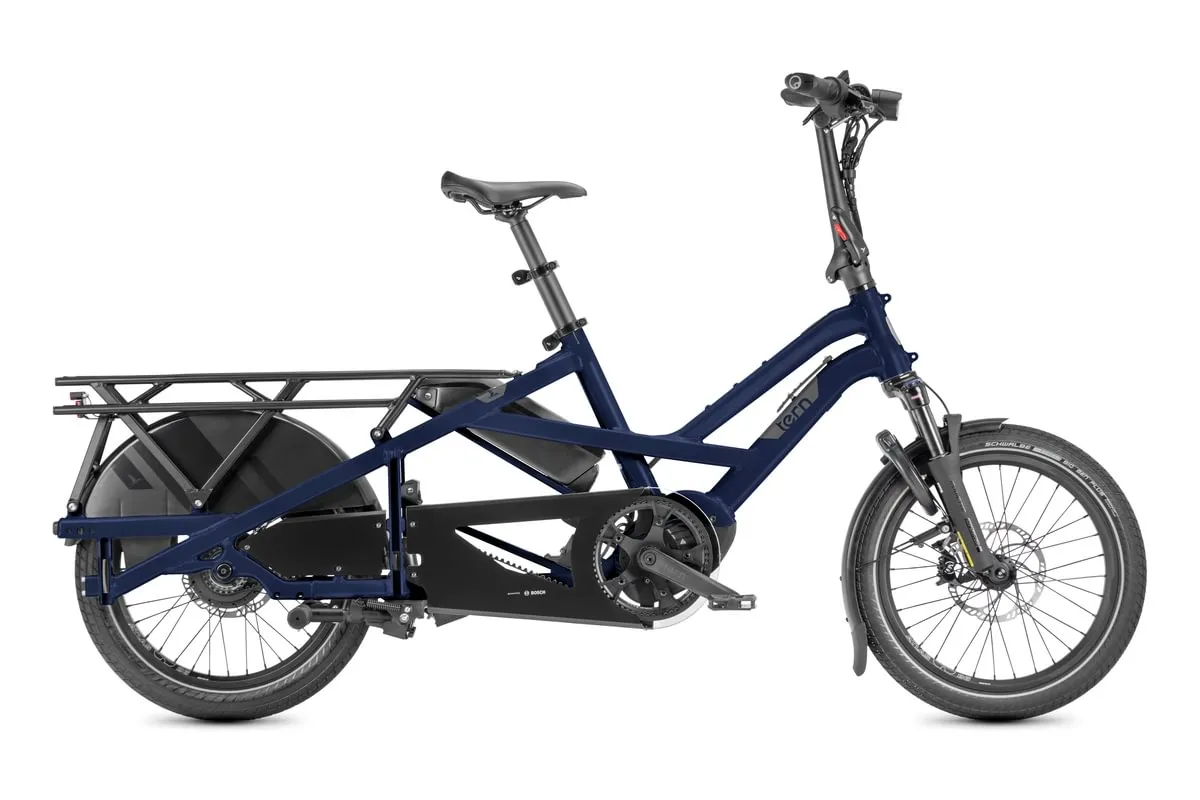

Tern GSD P00 – Premium Belt-Drive Cargo eBike
What makes it a P00?

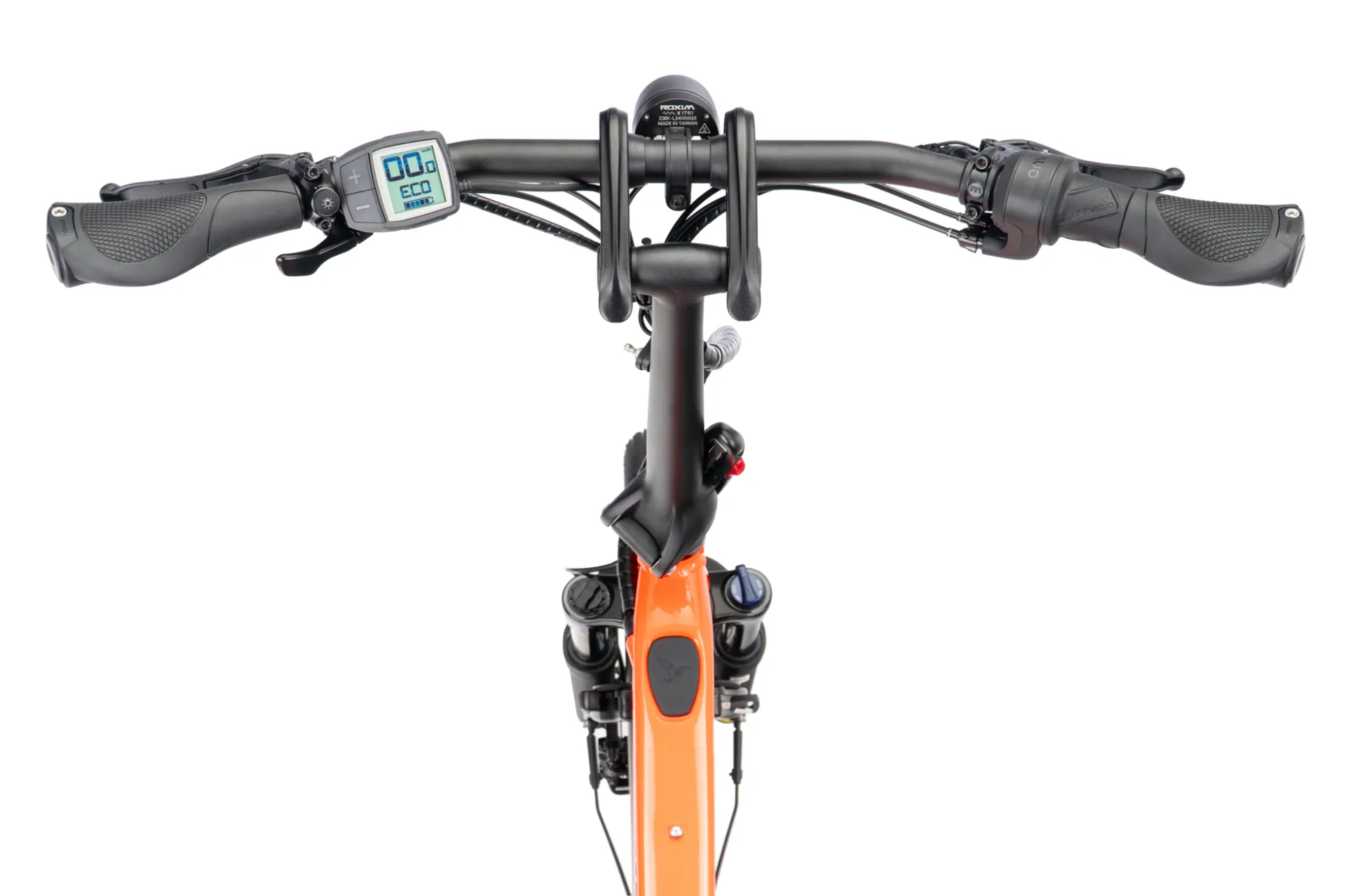

• User-friendly Bosch® e-bike system with Purion display helps you stay informed and in control on the road

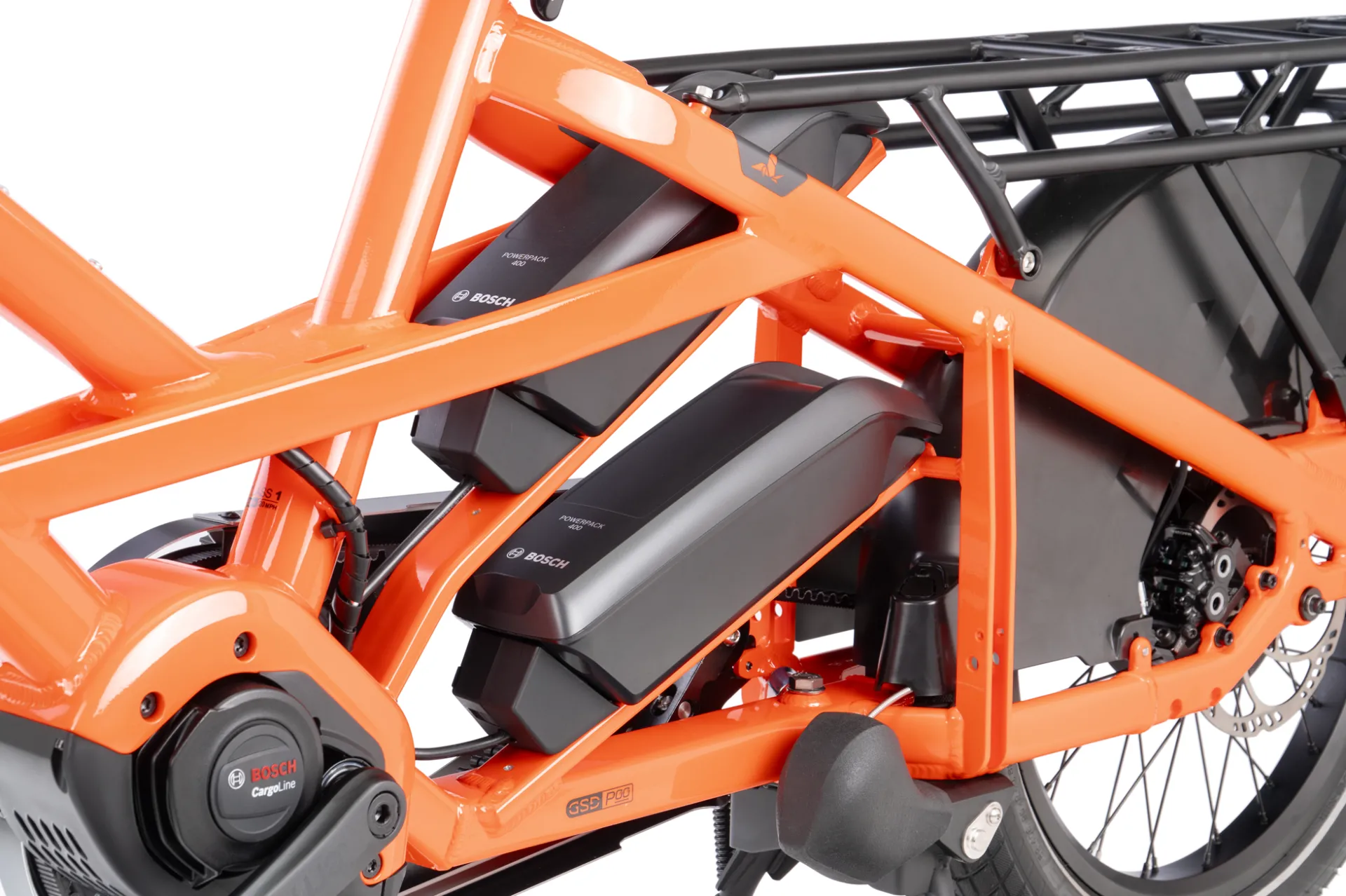

• Dual-battery compatible, ready to power through heavy use and long distances of up to 207 km (129 mi)
• Silent, smooth, and low-maintenance Gates Belt Drive
• Enviolo Heavy Duty internally geared hub with 380% gear range and twist shifter, offering effortless shifting to tackle various terrains
---
GSD highlights
• Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)

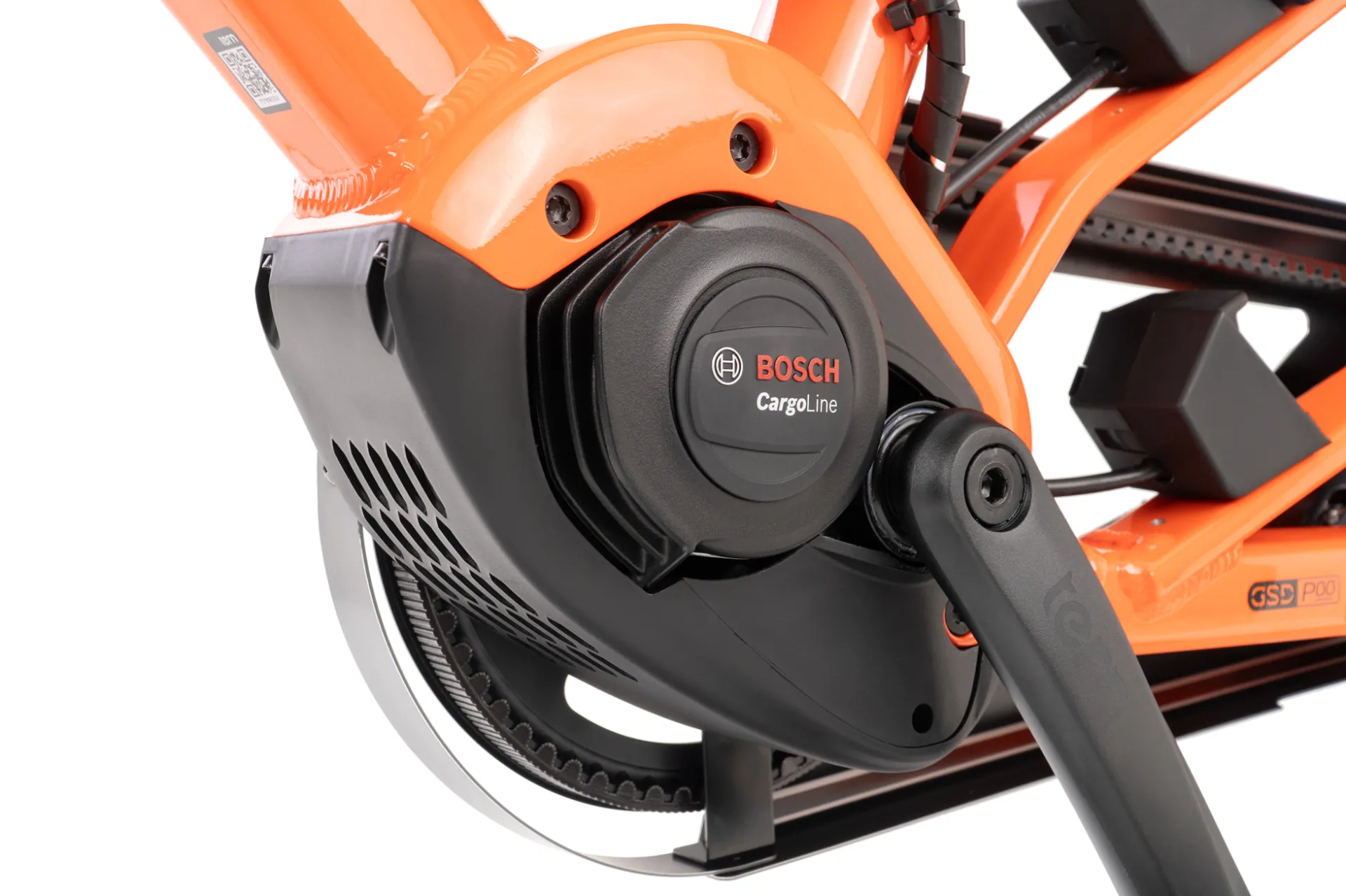

• Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
• Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power

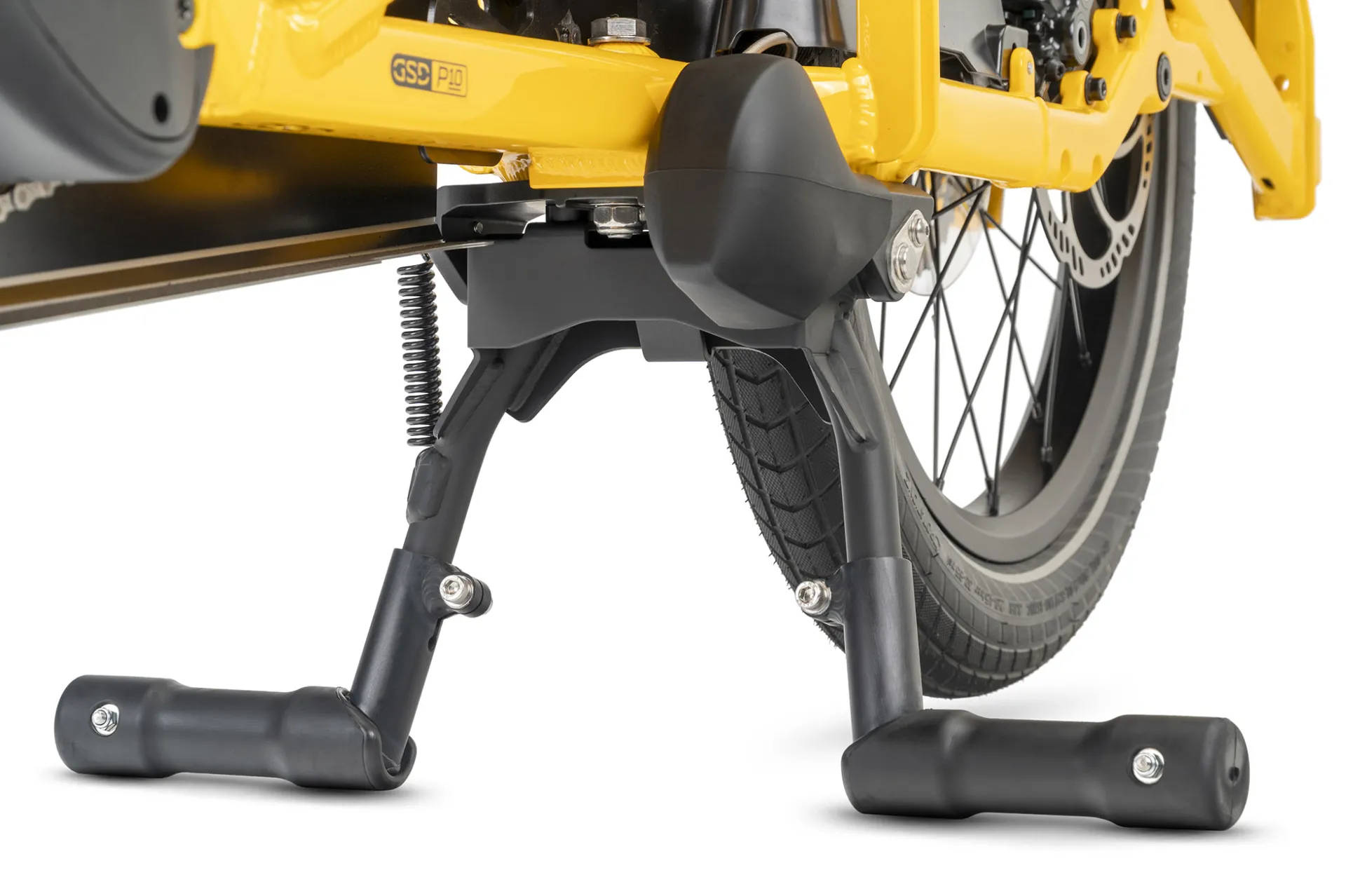

• Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
• Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
• UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
---
SPECIFICATIONS
General Info
Weight: 35.75 kg (78.8 lb)
Gear Inches: 26" - 98" (2.06 - 7.83 m)

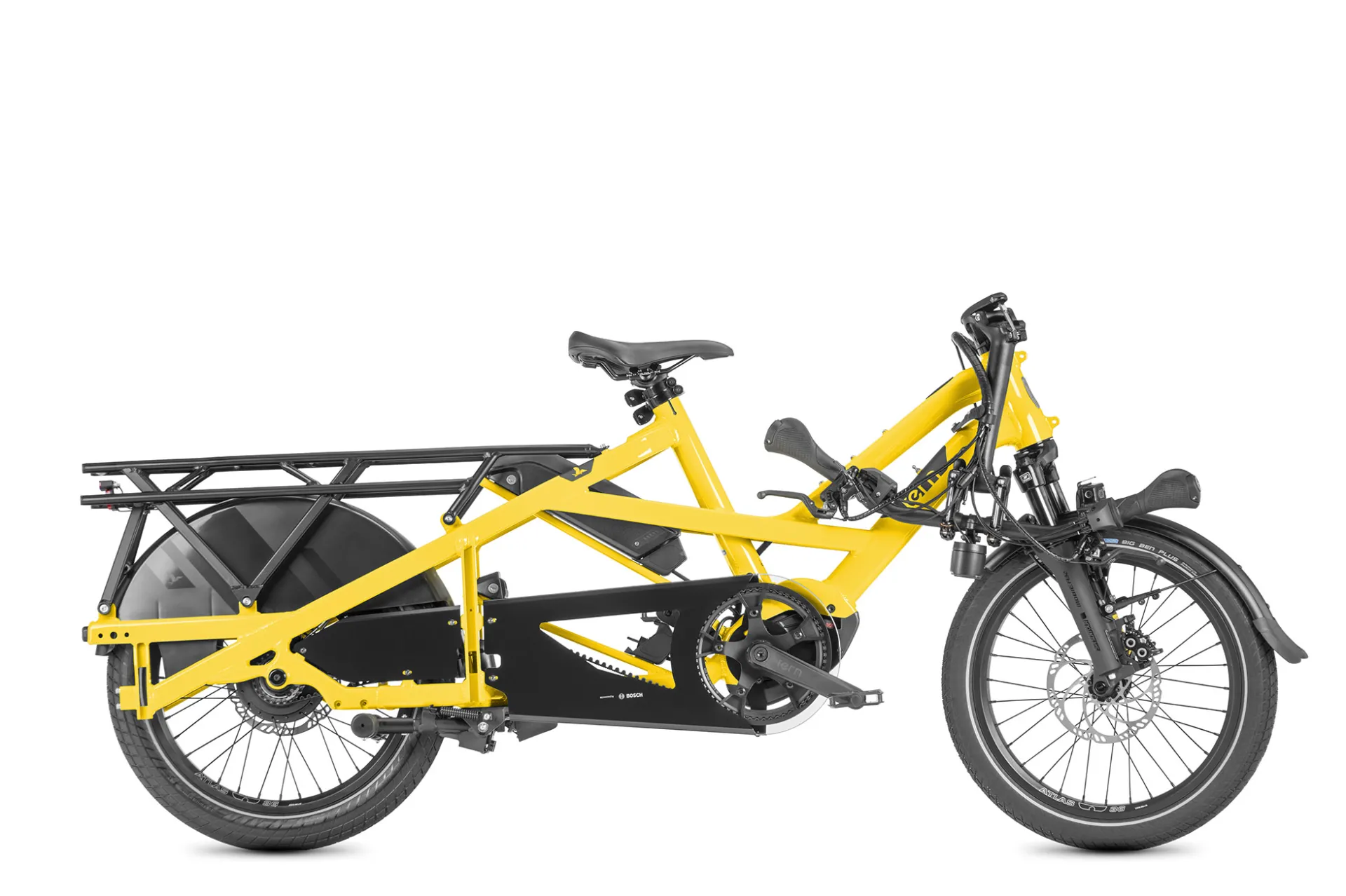

Folding Size: 182 × 46 × 87 cm (71.7 × 18.1 × 34.3 in)
Folding Time: 5 seconds
Frame Sizes: One size
Distance: Seatpost to Handlebar: 49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal: 69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height: 150 - 200 cm (59.1 - 78.7 in)
Max Gross Vehicle Weight: 210 kg (463 lb)
Max Load Weight: 210 kg (463 lb)
Max Rider Weight: 130 kg (286.6 lb)
---
Frame
Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg

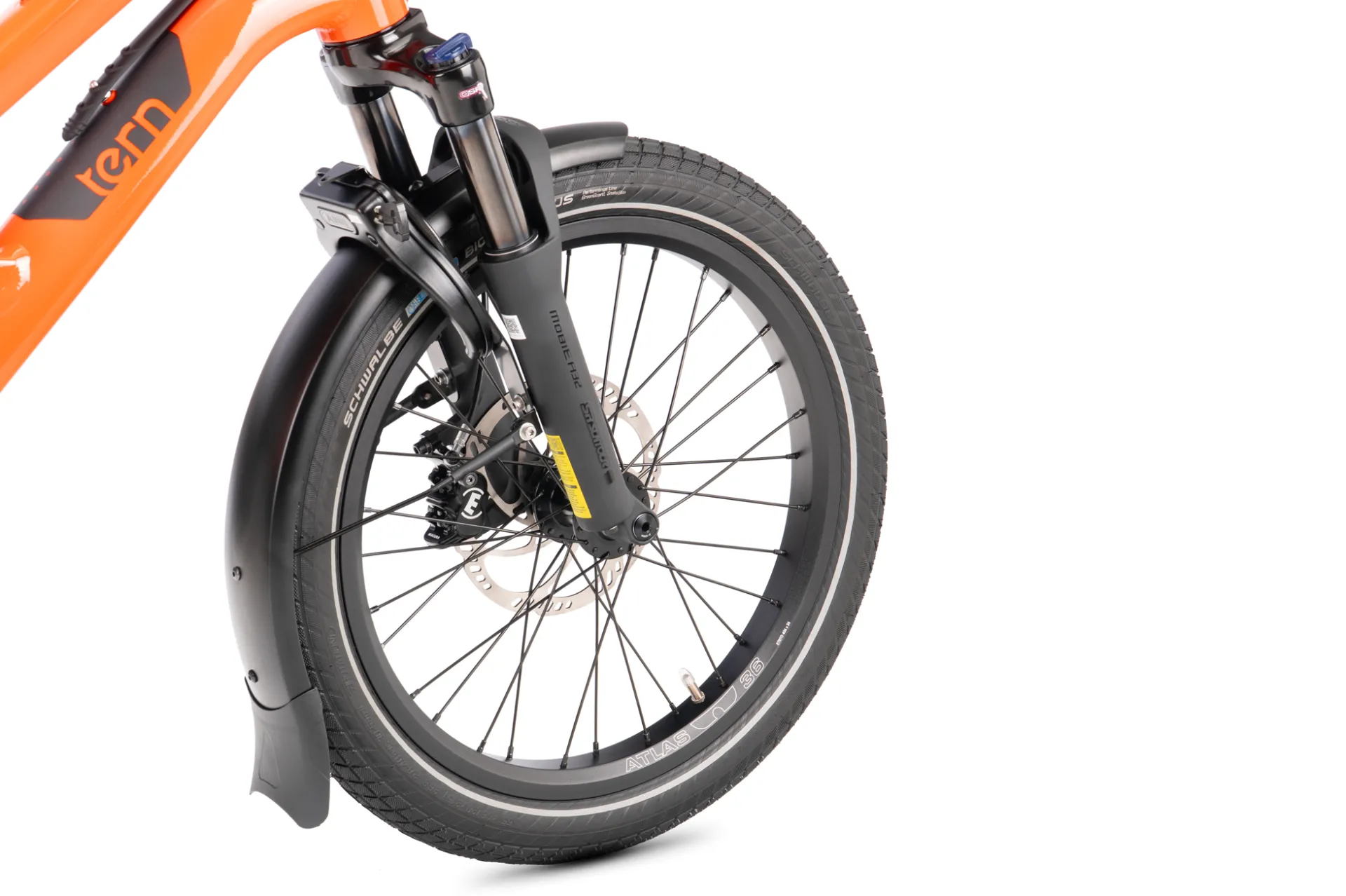

Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210 kg
---
Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern GSD by Velo

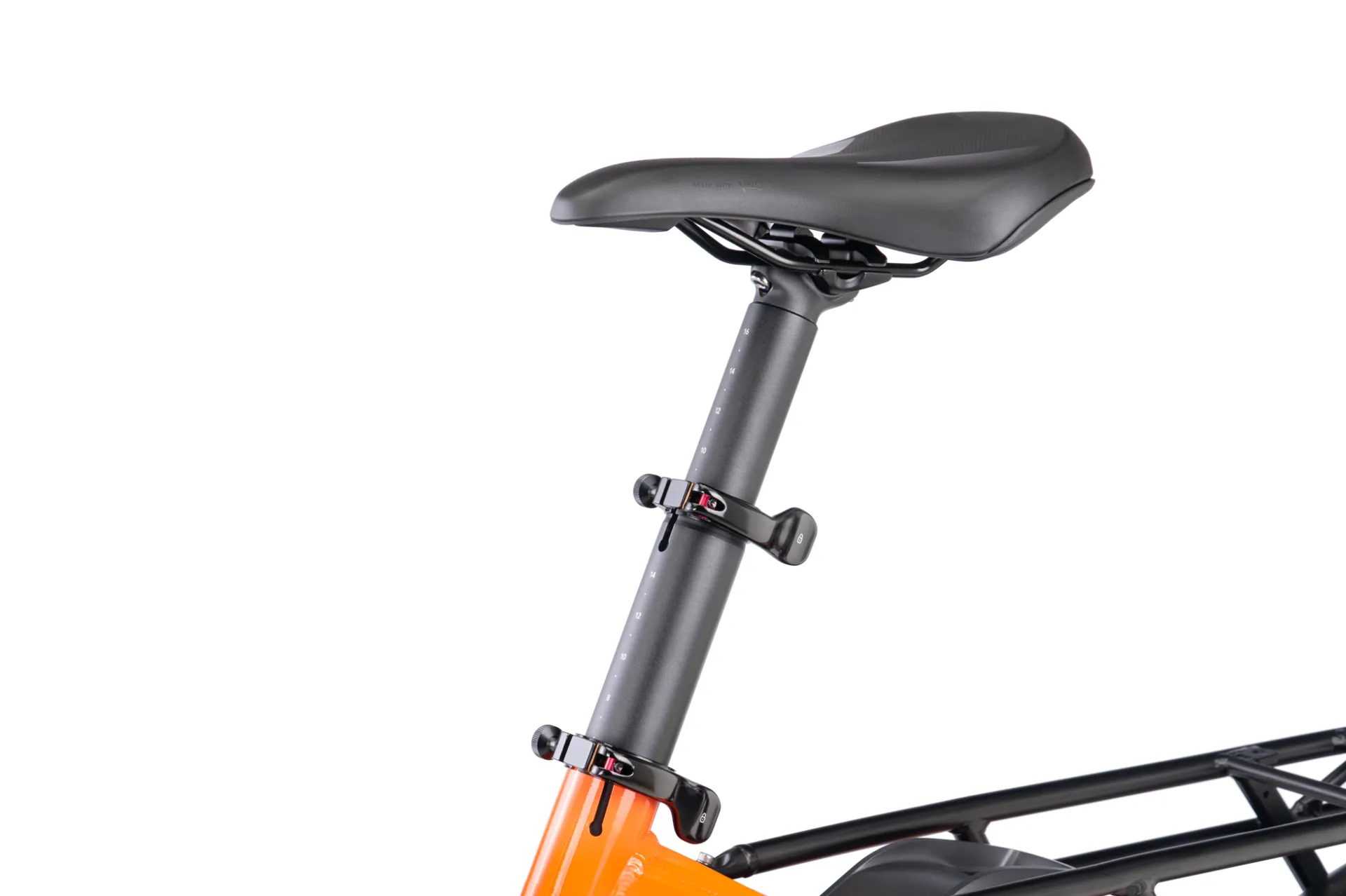

Seatpost: Tern VLT (Very Large Telescope) with LightAction levers
Seatpost Clamp: Tern Collar
---
Brakes
Front Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers: Magura MT5 e-stop, hydraulic, with brake light sensor
Brake Cable & Housing: Magura, hydraulic
---
Wheels
Front Wheel: Tern Atlas, heavy duty cargo wheel
Rear Wheel: Tern Atlas, heavy duty cargo wheel
Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub: Enviolo Heavy Duty, 380% continuously variable range, Boost
Spokes & Nipples: Stainless steel
Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires:
F: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex
R: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
---
Transmission
Shifter(s): Enviolo, Twist
Crankset: Tern GSD, Gates CDX CNC machined beltring
Cassette/Freewheel: Gates CDX, precision CNC machined cog
Bottom Bracket: Motor integrated
Chain: Gates Carbon Drive CDX belt
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
---
E-System
---
Bells & Whistles
Bell: Pitch Plus, brass
Chainguard: Tern GSD, full chain cover
Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket: Combo Mount
Front Light: Ignis Headlight, Ultra wide low beam
Rear Light: RearStop Brake Light, Always on
Fenders: F: Aluminum R: GSD wheel guard
Rack(s): Atlas G, 100 kg (220 lb) capacity
Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
---
Ready to haul kids, cargo, or both — folds in 5 seconds for easy storage.
Silent belt drive, stepless shifting, massive range — ultimate low-maintenance family hauler.
