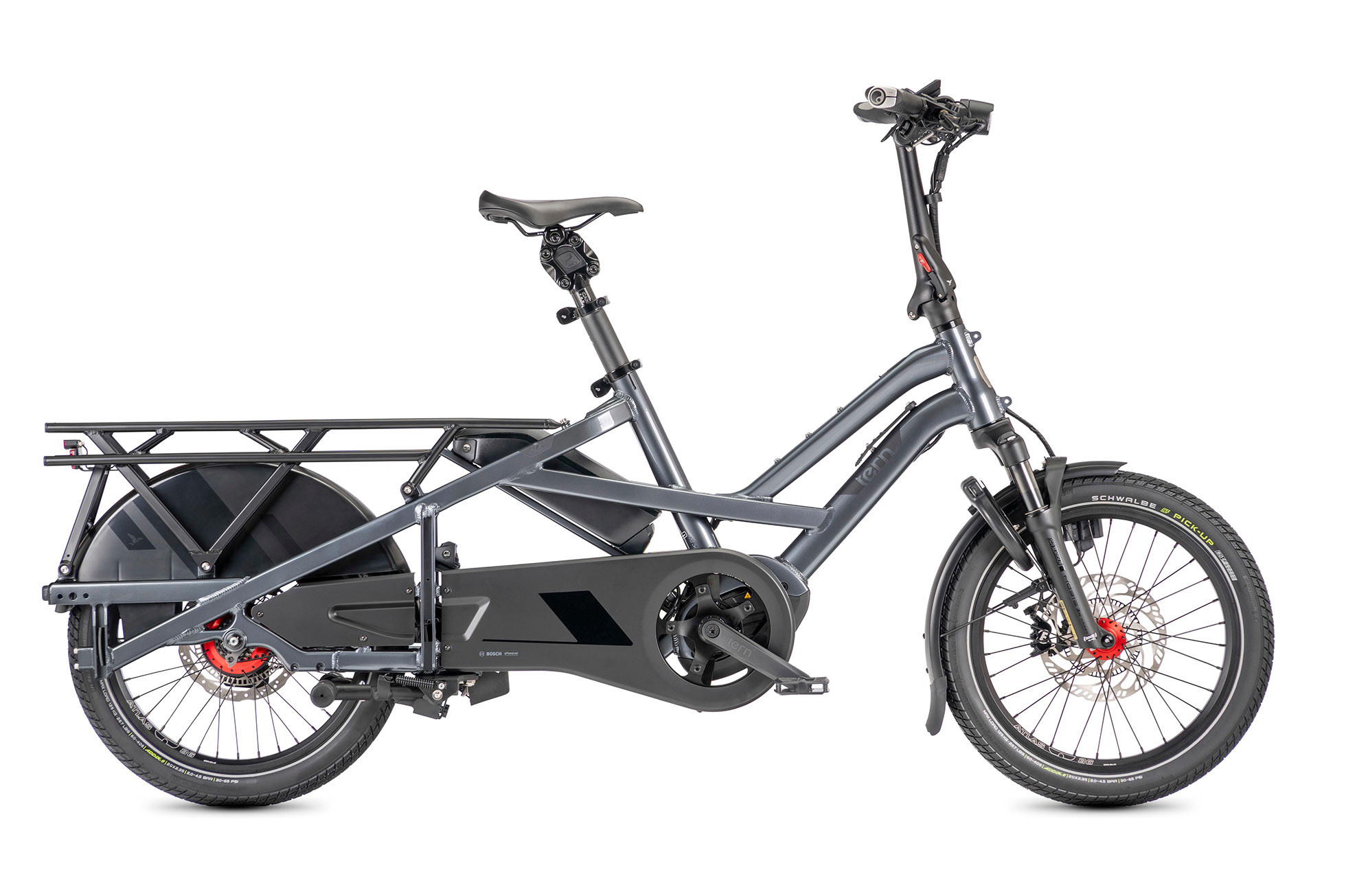

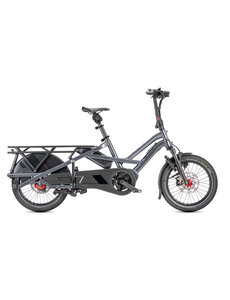

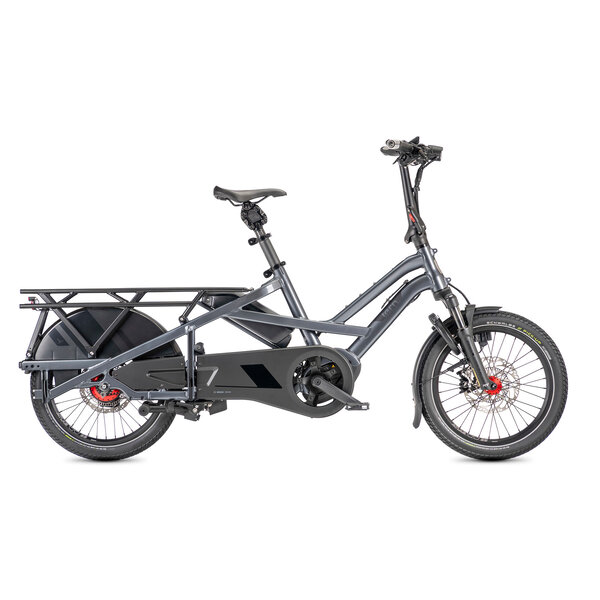

Tern GSD R14 Grey -Available on the end of September-
£8,900.00
Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)
AVAILABLE TO RIDE AWAY IN 3 WORKING DAYS!!!The R14 features Bosch Smart System with Kiox 300, ABS braking, dual-battery range up to 288 km, Gates Belt Drive, and Rohloff E-14 shifter. With 210 kg load capacity. Magura brakes, and certified safety, it’s b Read more
Specifications
Brand:
Tern
Availability:
Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)
Information
What makes it an R14?
- Bosch® Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more!
- Bosch Anti-Lock Braking System enables safer, more efficient braking
- Dual-battery compatible, ready to power through heavy use and long distances of up to 288 km (179 mi)
- Silent, smooth, and low-maintenance Gates Belt Drive
- Maintenance-free Rohloff E-14 electronic shifter with huge 526% gear range, perfect for tackling various terrains and riding styles with ease
GSD highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Specifications
General Info
Speeds: 1 x 14
Weight:38.77 kg (85.5 lb)
Gear Inches:18" - 96" (1.45 - 7.64 m)

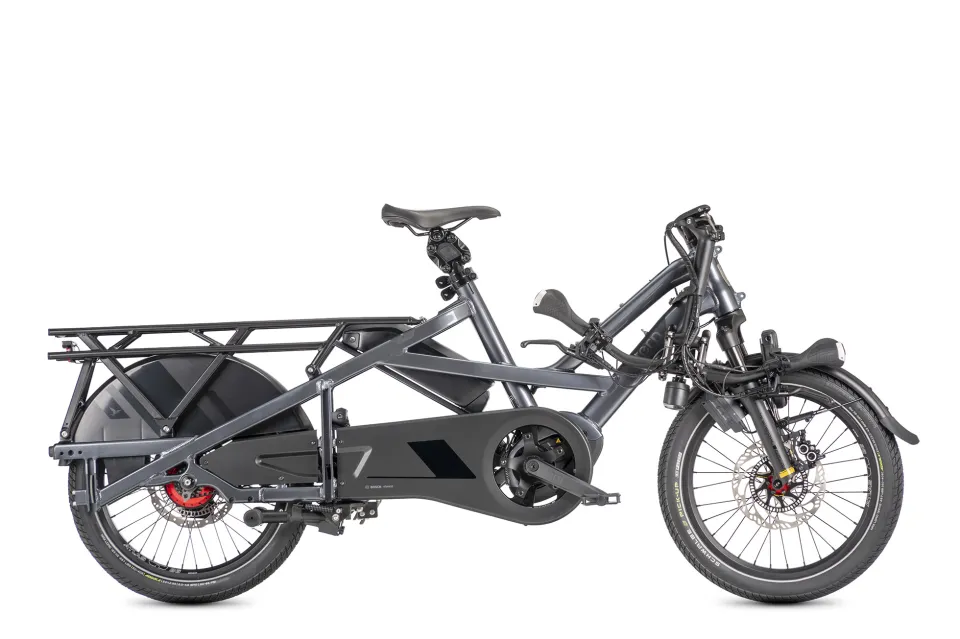

Folding Size:185 × 46 × 88 cm (72.8 × 18.1 × 34.6 in)
Folding Time:5 seconds
Frame Sizes:One size
Distance: Seatpost to Handlebar:49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal:69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height:153 - 200 cm (60.2 - 78.7 in)
Max Gross Vehicle Weight:210 kg (463 lb)
Max Load Weight:210 kg (463 lb)
Max Rider Weight:130 kg (286.6 lb)
Frame
Frame:Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Fork:Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg
Cockpit
Handlepost:Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:Tern Andros, adjustable, forged construction, patented technology
Headset:Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar:Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:Ergon
Saddle:Tern GSD by Velo
Seatpost:Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
Seatpost Clamp:Tern Collar
Brakes
Front Brake:Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Rear Brake:Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Brake Levers:Magura MT-C e-stop, hydraulic, with brake light sensor
Brake Cable & Housing:Magura ABS, hydraulic
Wheels
Front Wheel:Tern Atlas, heavy duty cargo wheel
Rear Wheel:Tern Atlas, heavy duty cargo wheel
Front Hub:Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings

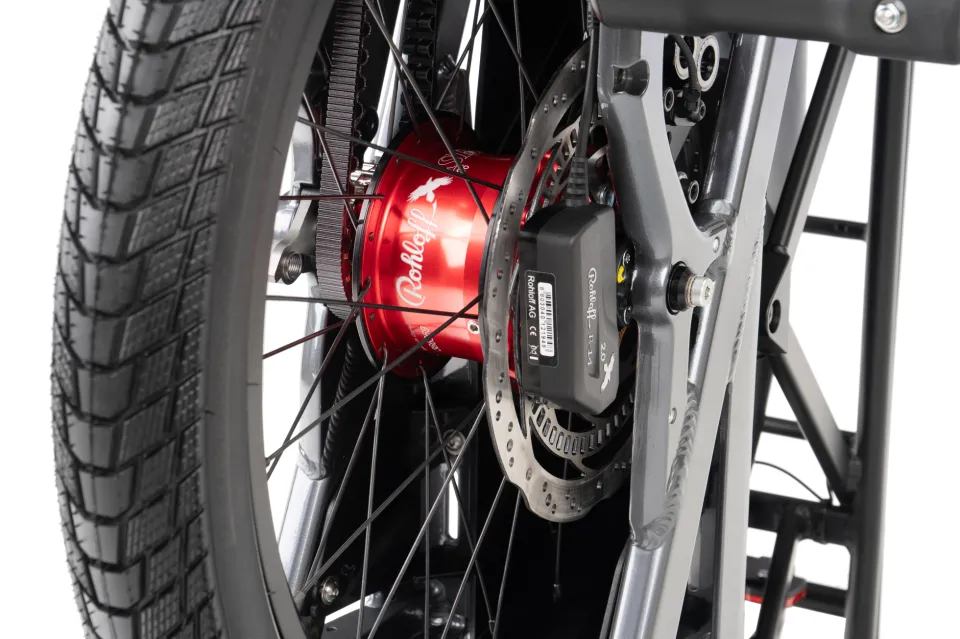

Rear Hub:Rohloff E14, 526% range, Boost
Spokes & Nipples:Stainless steel
Rims:Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tyres:Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex
Transmission
Shifter(s):Rohloff E14, e-shift 14 spd
Crankset: Tern GSD, Gates CDX CNC machined beltring
Cassette/Freewheel: Gates CDX, precision CNC machined cog
Bottom Bracket: Motor integrated
Chain: Gates Carbon Drive CDX belt
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Rohloff E14, e-shift
E-System
Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

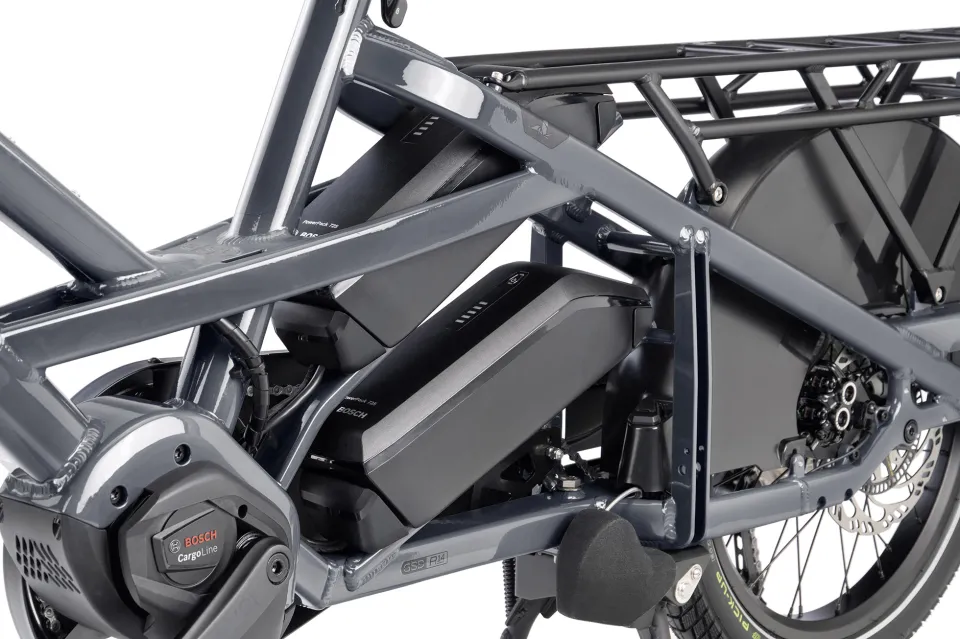

Battery: Bosch 800 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
Display: Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Android app, electronic bike lock, Rohloff integrated shifting w/ auto downshift
Range: 800 Wh: 67-144 km (42-89 mi); 1600 Wh: 134-288 km (83-179 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Connect Module: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Anti-Lock Braking System:
Bosch Anti-Lock Braking System, Gen 2
Bells & Whistles
Bell: Pitch Plus, brass
Chainguard: Tern GSD, full chain cover
Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket: Combo Mount
Front Light: Ignis Headlight, Hi/Lo beams, 700 lumens
Rear Light: RearStop Brake Light, Always on
Fenders: F: Aluminum R: GSD wheel guard

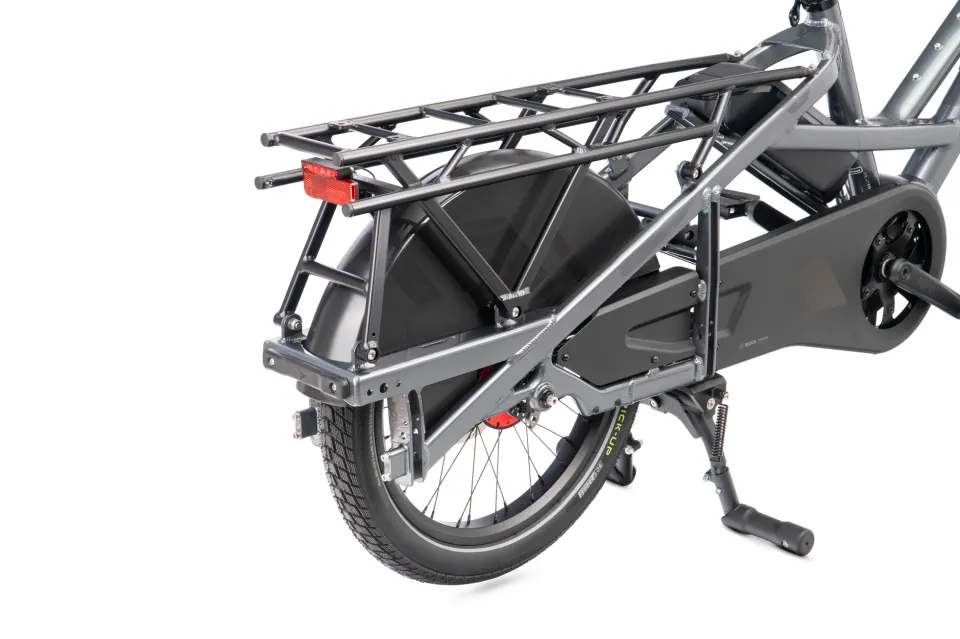

Rack(s): Atlas G, 100 kg (220 lb) capacity
Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
On-board Charging:
USB-C, 5V/2.4A, 12W max
