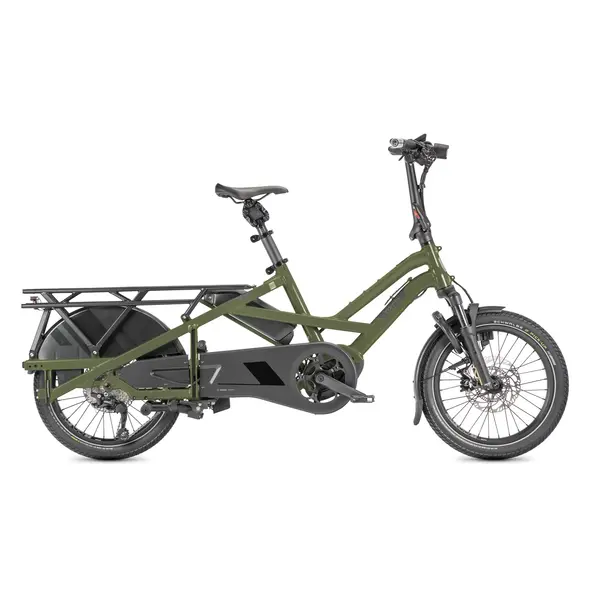

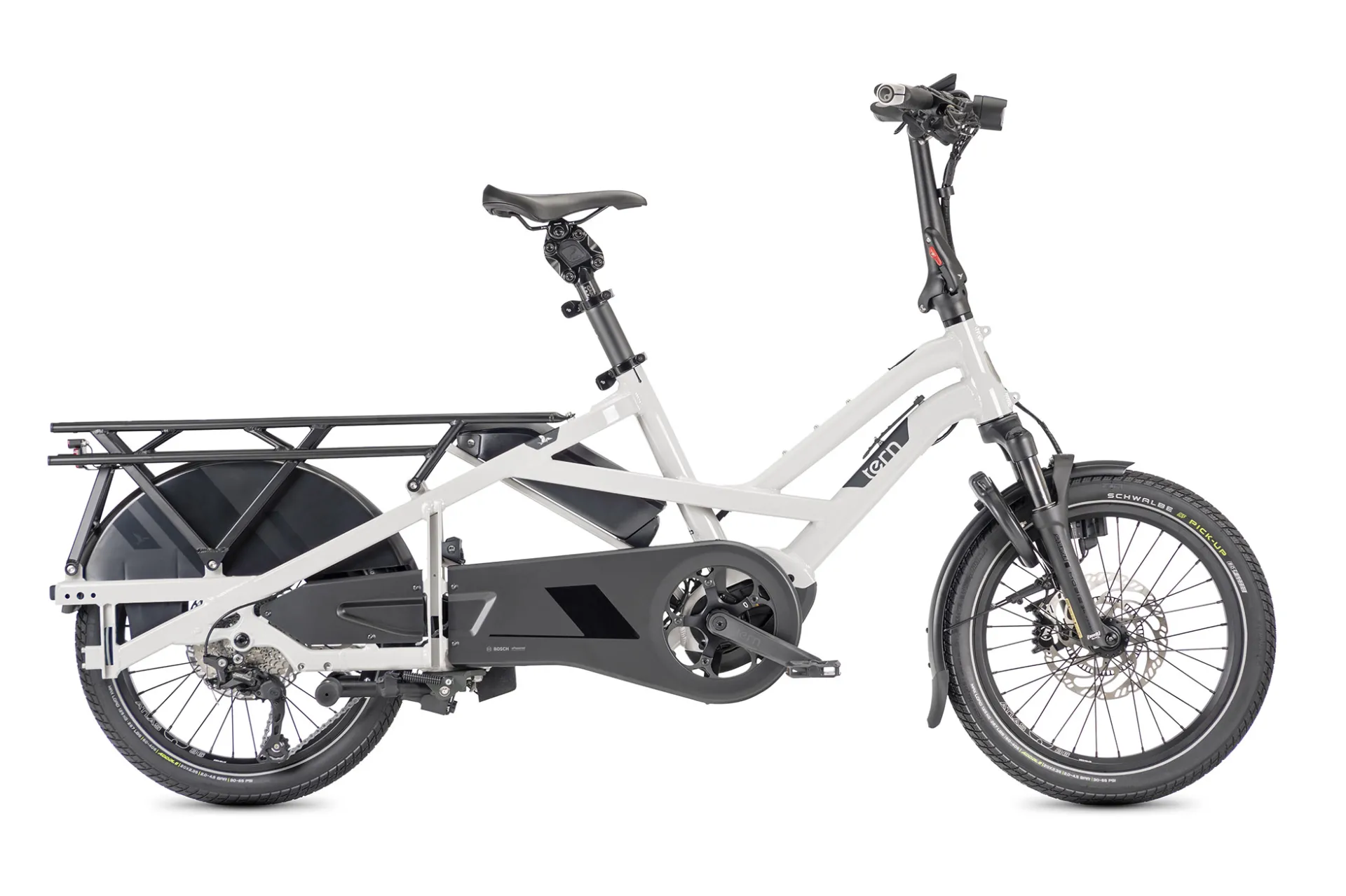

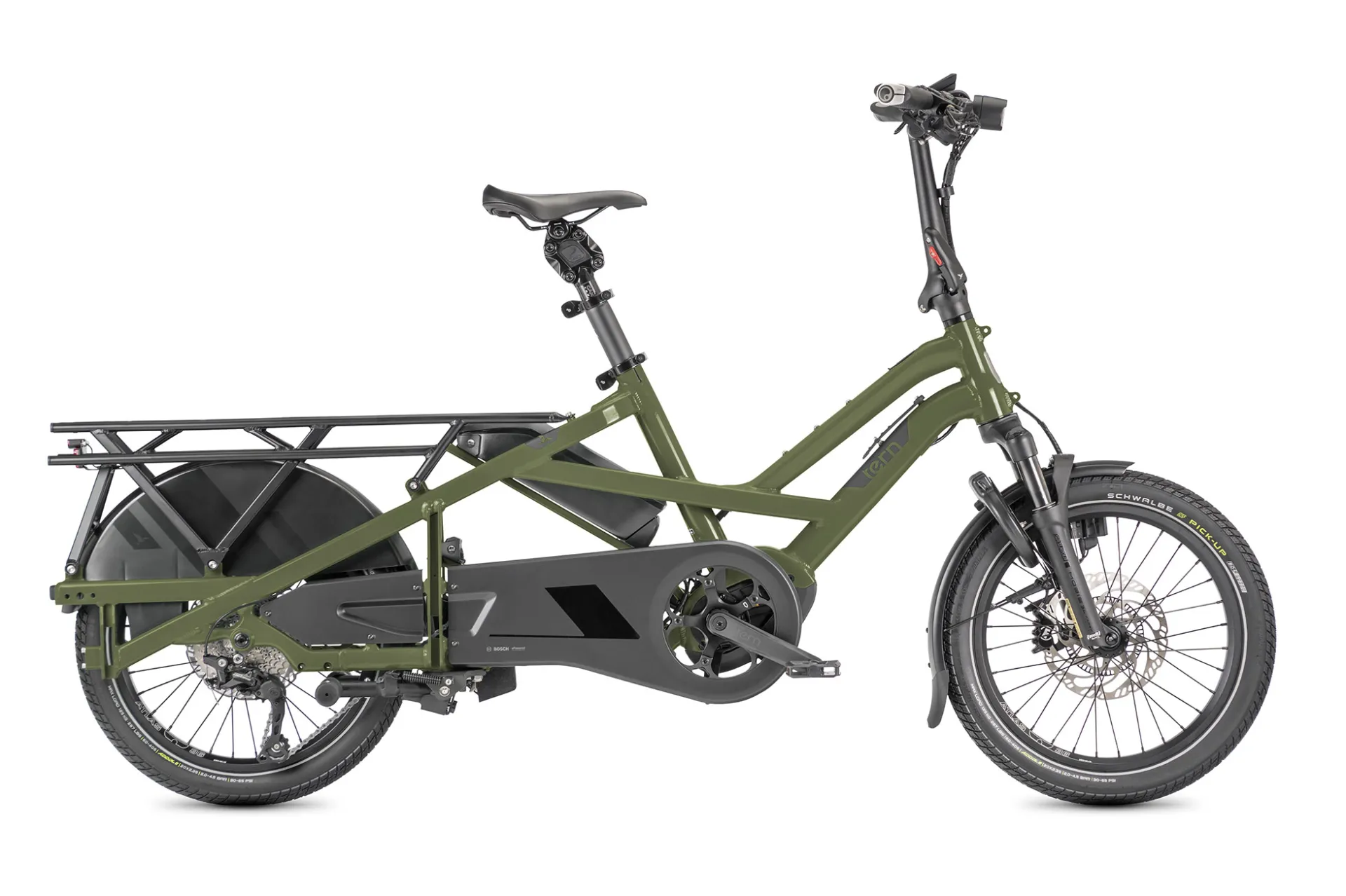

Tern GSD S10 Gen 3
£5,900.00
In stock
The Tern GSD S10 features Bosch® Smart System with Kiox 300 display, ABS braking, dual-battery range up to 196 km, Shimano Deore 10-speed, 210 kg hauling, Bosch Cargo Line motor, Magura brakes, dual-leg kickstand, tool-free cockpit fit, UL 2849 & DIN 7901 Read more
Specifications
Brand:
Tern
Information
What makes it an S10?
- Bosch® Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more!
- Bosch Anti-Lock Braking System enables safer, more efficient braking
- Dual-battery compatible, ready to power through heavy use and long distances of up to 196 km (122 mi)
- Shimano® Deore 1 x 10-speed hub for smooth, efficient shifting
GSD highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Specification
General Info
Speeds: 1 x 10
Weight: 37.32 kg (82.3 lb)
Gear Inches: 26" - 98" (2.04 - 7.80 m)

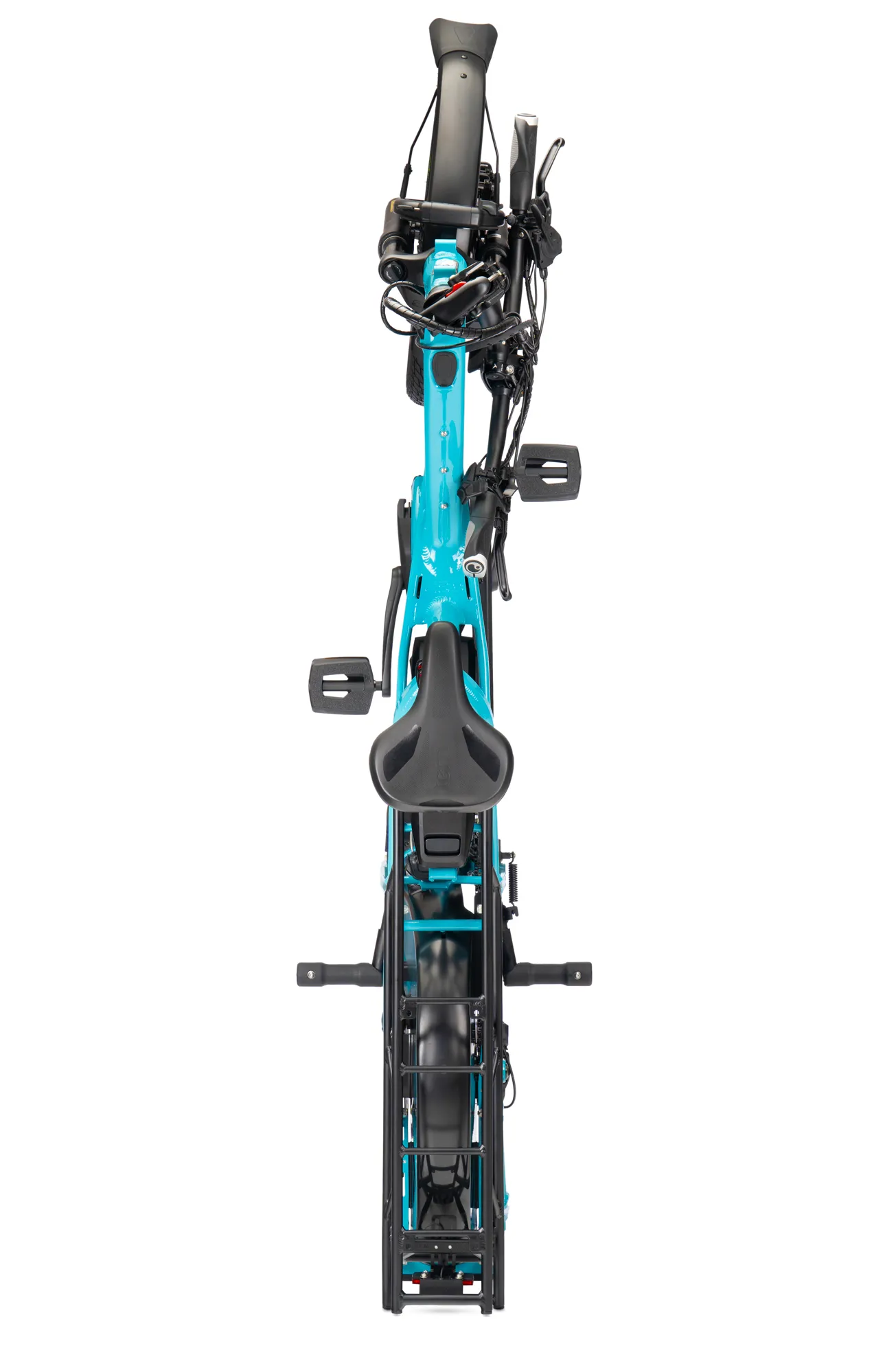

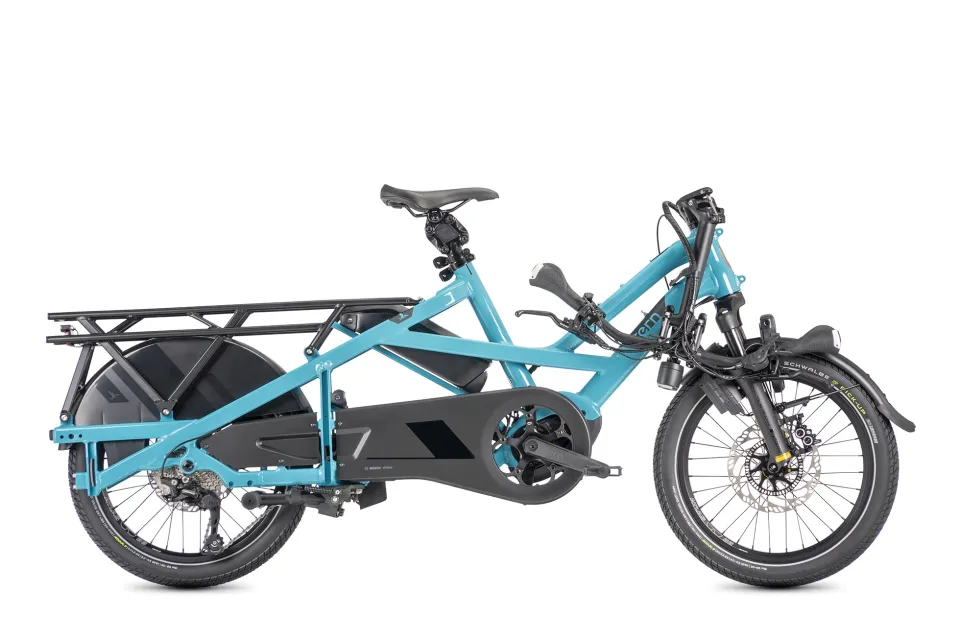

Folding Size: 185 × 46 × 88 cm (72.8 × 18.1 × 34.6 in)
Folding Time: 5 seconds
Frame Sizes: One size
Distance: Seatpost to Handlebar: 49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal: 69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height: 153 - 200 cm (60.2 - 78.7 in)
Max Gross Vehicle Weight: 210 kg (463 lb)
Max Load Weight: 210 kg (463 lb)
Max Rider Weight: 130 kg (286.6 lb)
Frame
Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg

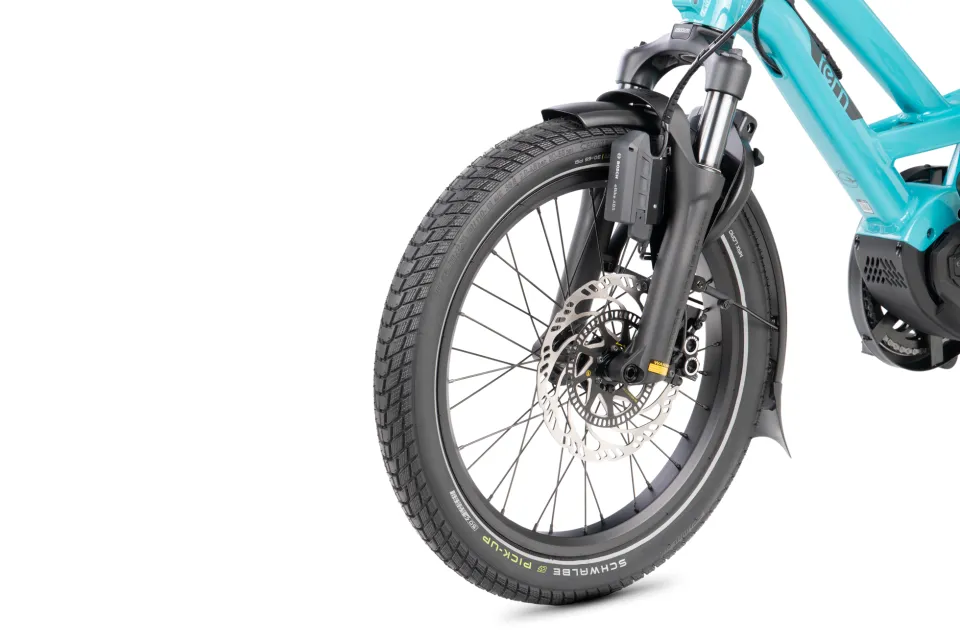

Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg
Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern GSD by Velo

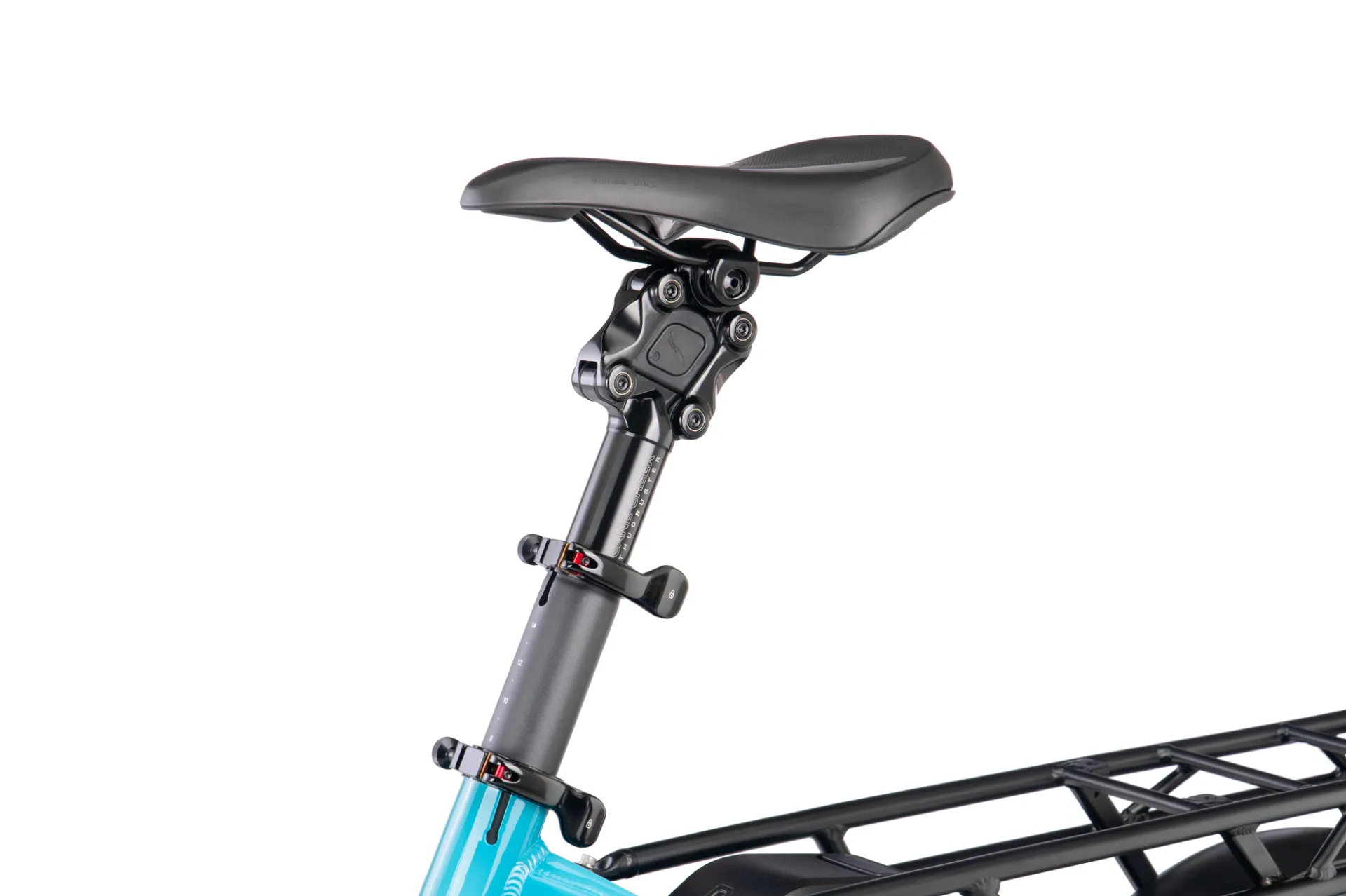

Seatpost: Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Rear Brake: Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Brake Levers: Magura MT-C e-stop, hydraulic, with brake light sensor
Brake Cable & Housing: Magura ABS, hydraulic
Wheels
Front Wheel: Tern Atlas, heavy duty cargo wheel
Rear Wheel: Tern Atlas, heavy duty cargo wheel
Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
Spokes & Nipples: Stainless steel
Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tyres: Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex
Transmission
Shifter(s): Shimano Deore, 1 x 10 spd
Rear Derailleur: Shimano Deore Shadow+
Crankset: Tern GSD, forged 6061-AL DH crankarm
Cassette/Freewheel: Shimano 11-42T, 10 spd
Bottom Bracket: Motor integrated
Chain: KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
E-System

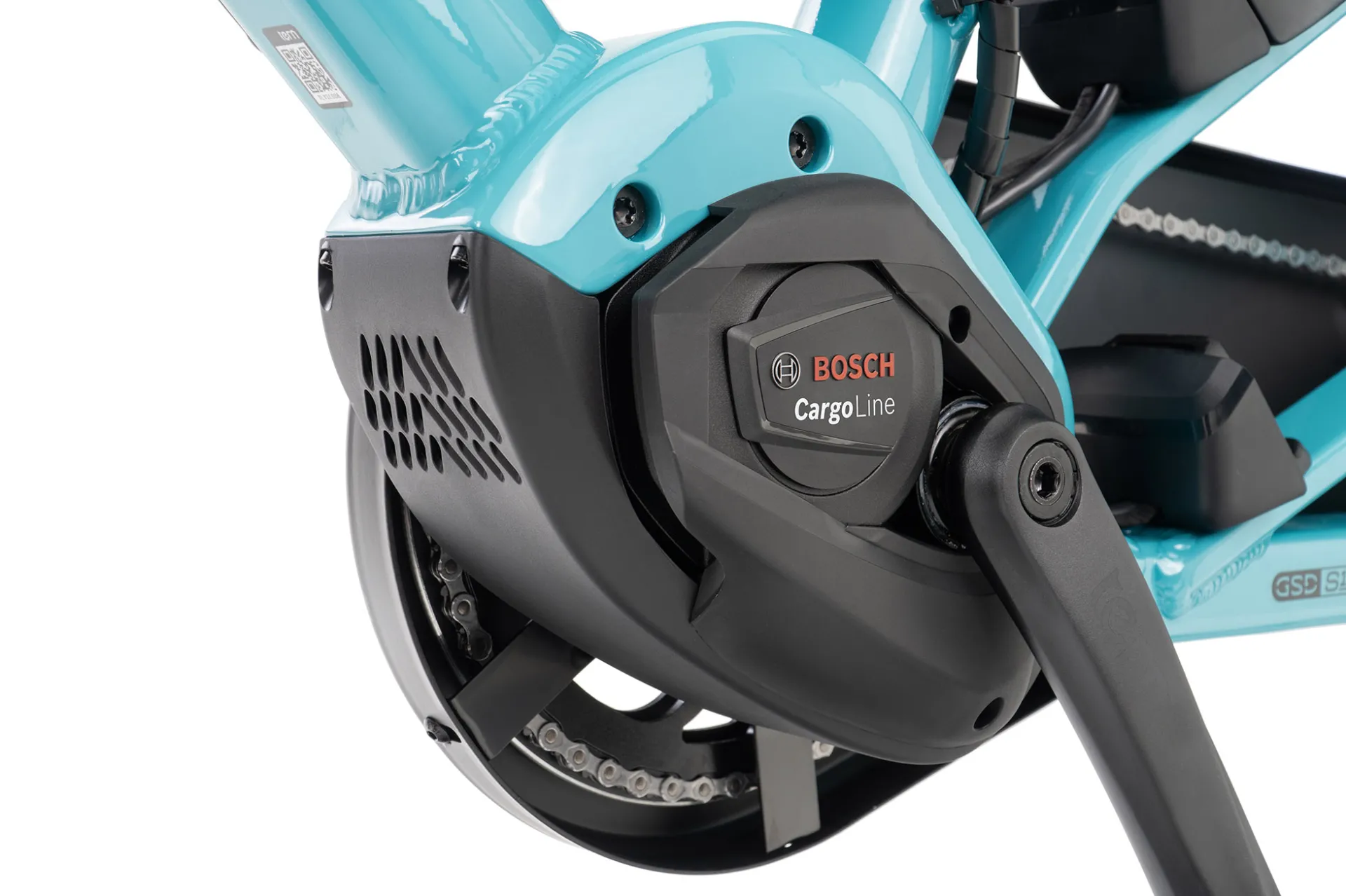

Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

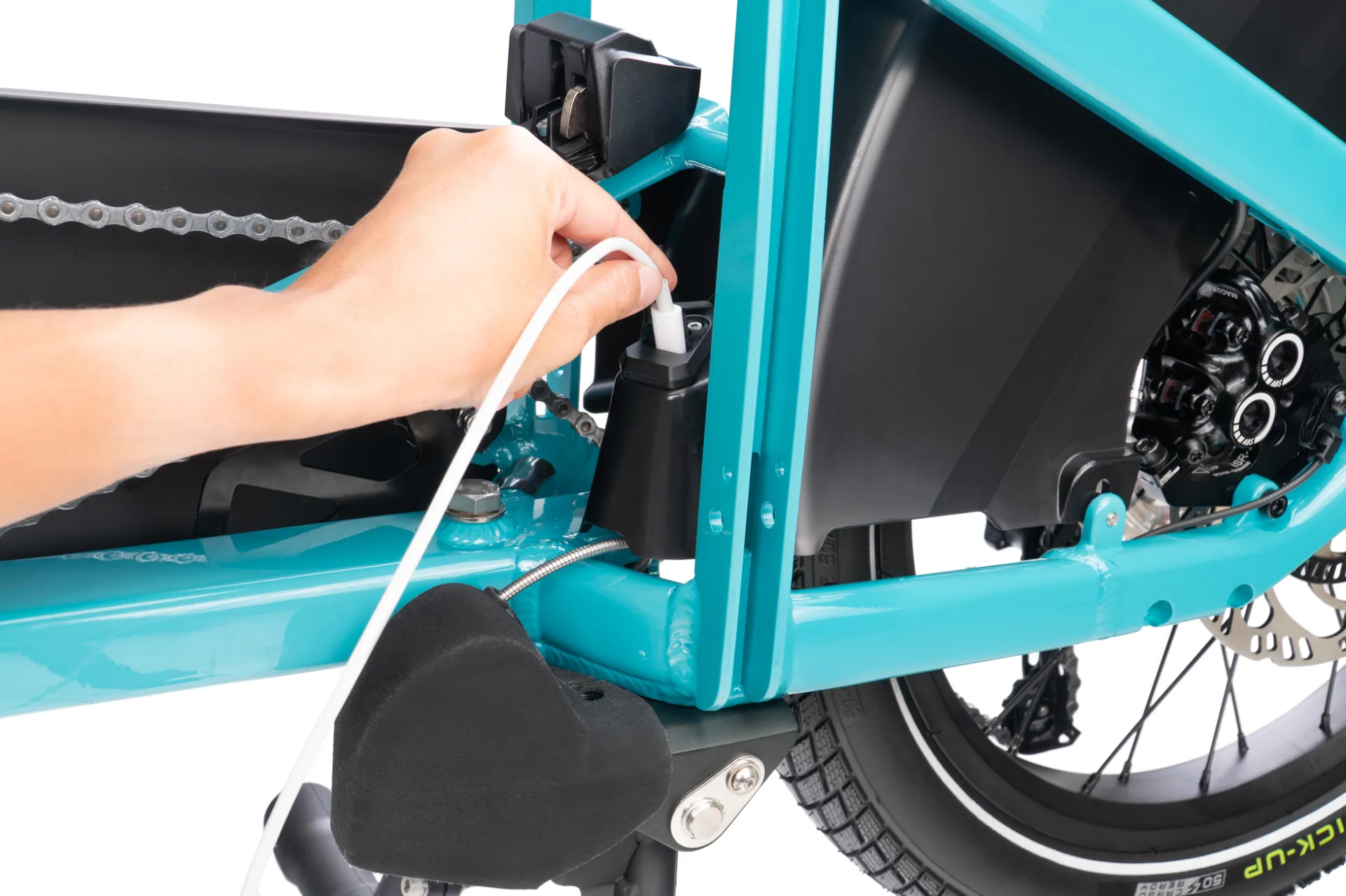

Battery: Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity

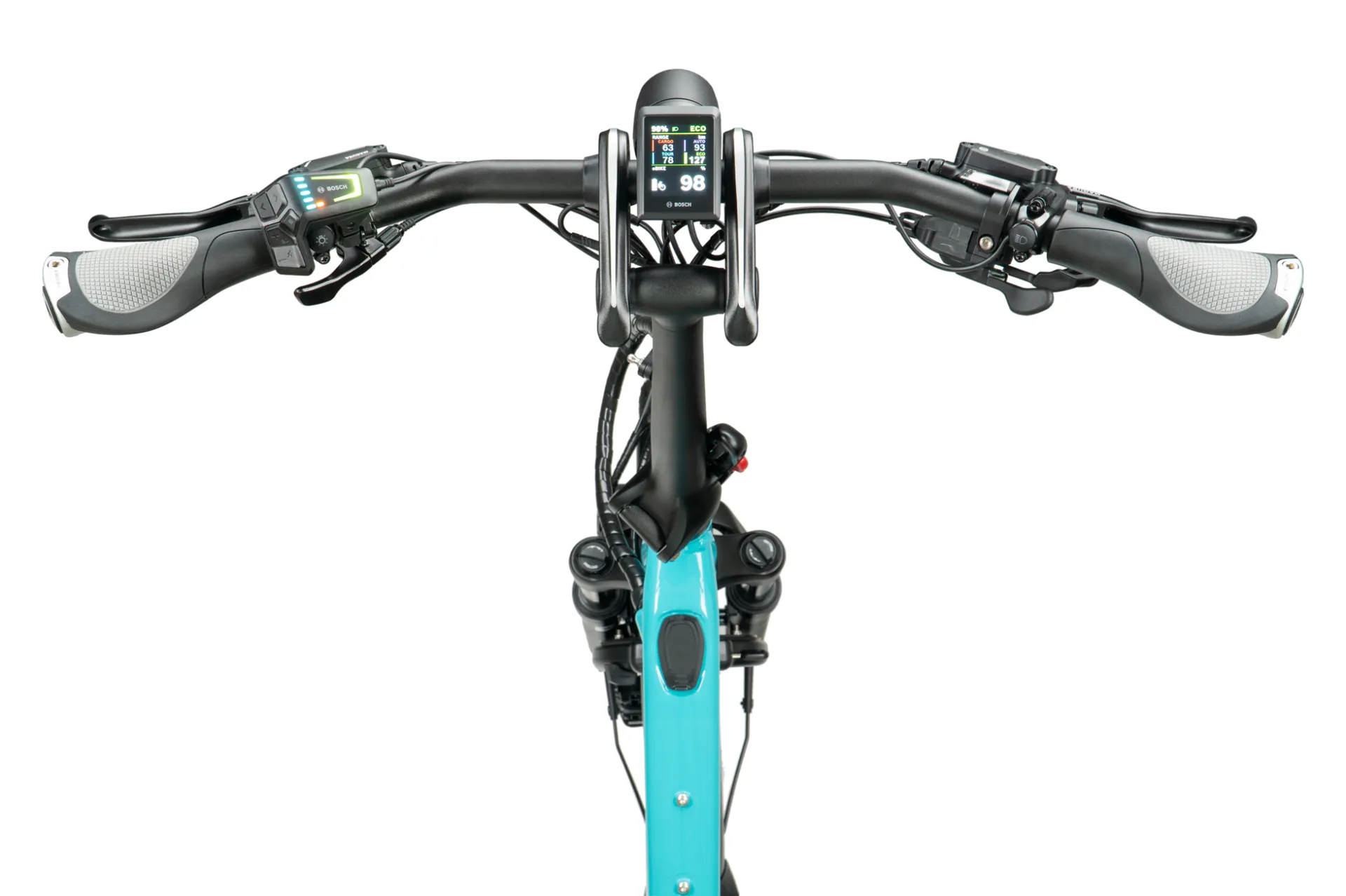

Display: Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Smartphone app, electronic bike lock
Range: 545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Connect Module: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Anti-Lock Braking System:
Bosch Anti-Lock Braking System, Gen 2
Bells & Whistles
Bell: Pitch Plus, brass
Chainguard: Tern GSD, full chain cover

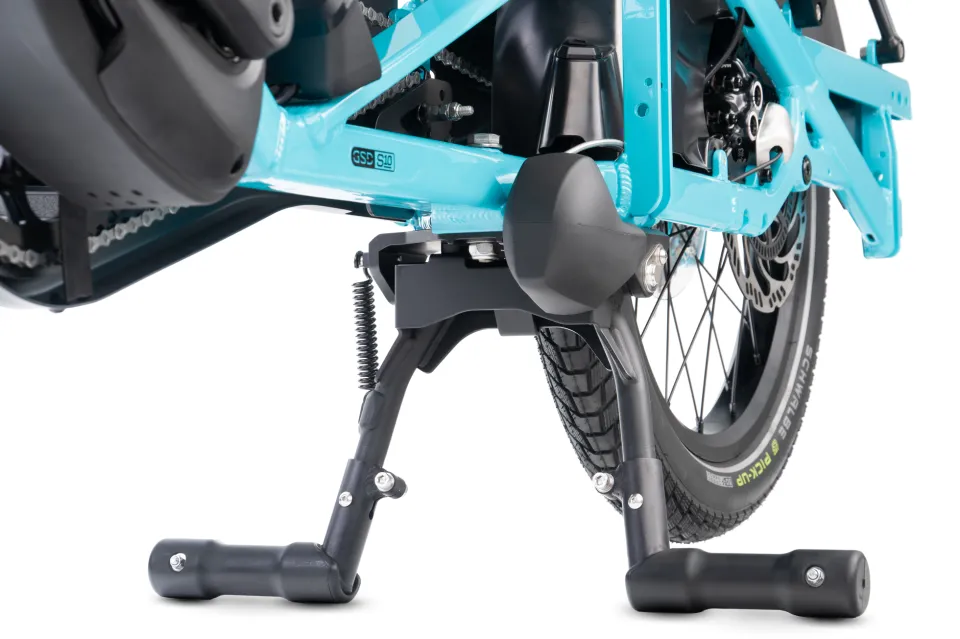

Kickstand: Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket: Combo Mount
Front Light: Ignis Headlight, Hi/Lo beams, 700 lumens
Rear Light: RearStop Brake Light, Always on
Fenders: F: Aluminum R: GSD wheel guard

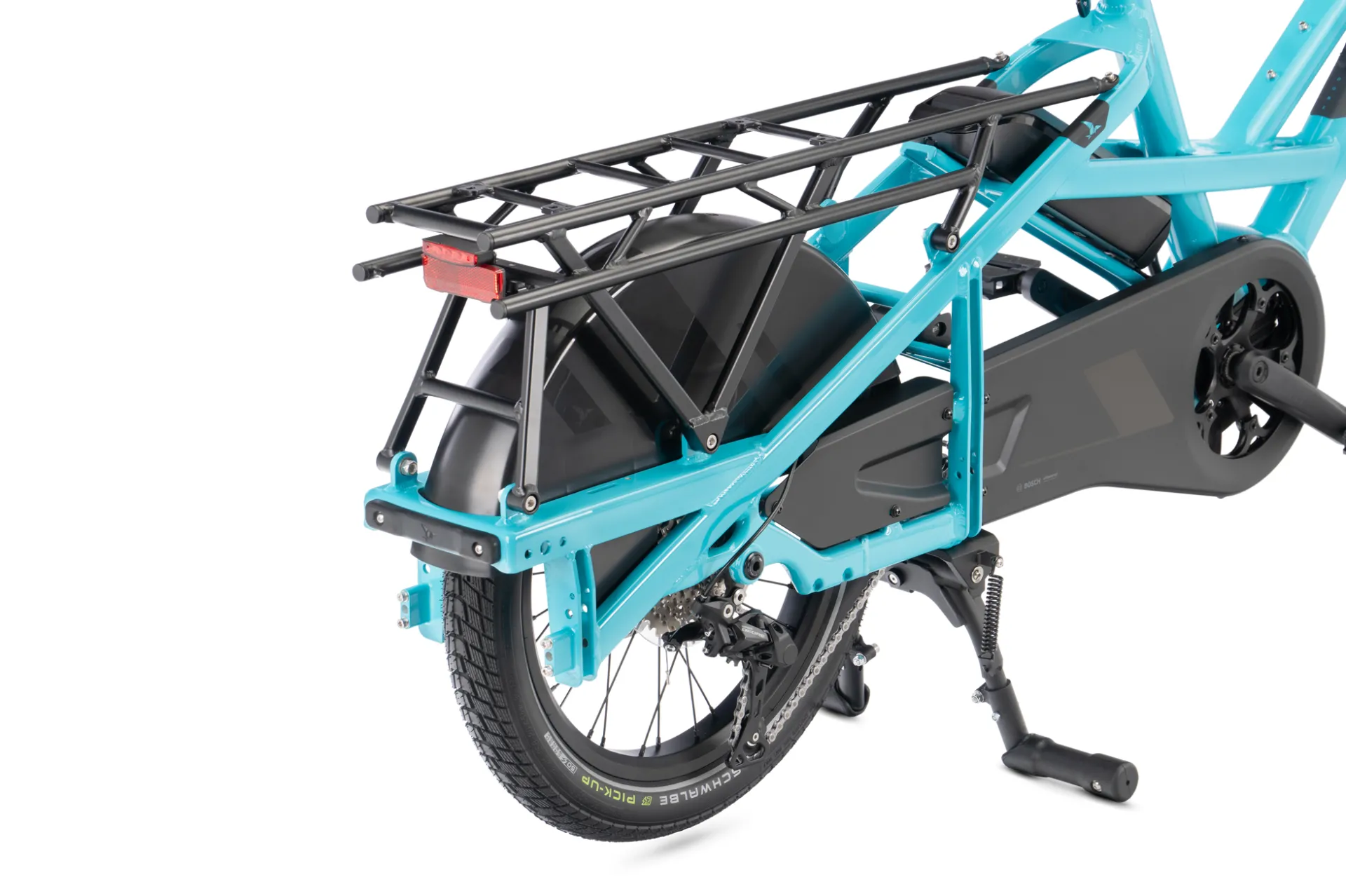

Rack(s): Atlas G, 100 kg (220 lb) capacity
Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
On-board Charging: USB-C, 5V/2.4A, 12W max
