Tern GSD Gen 2 LX 500Wh
Specifications
Information

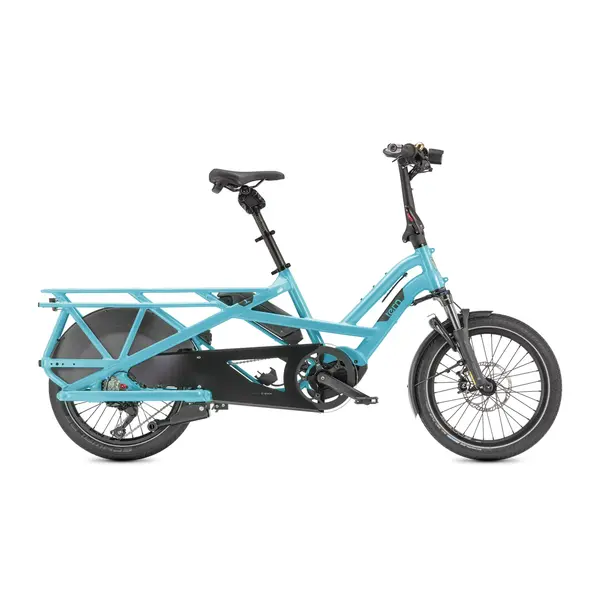

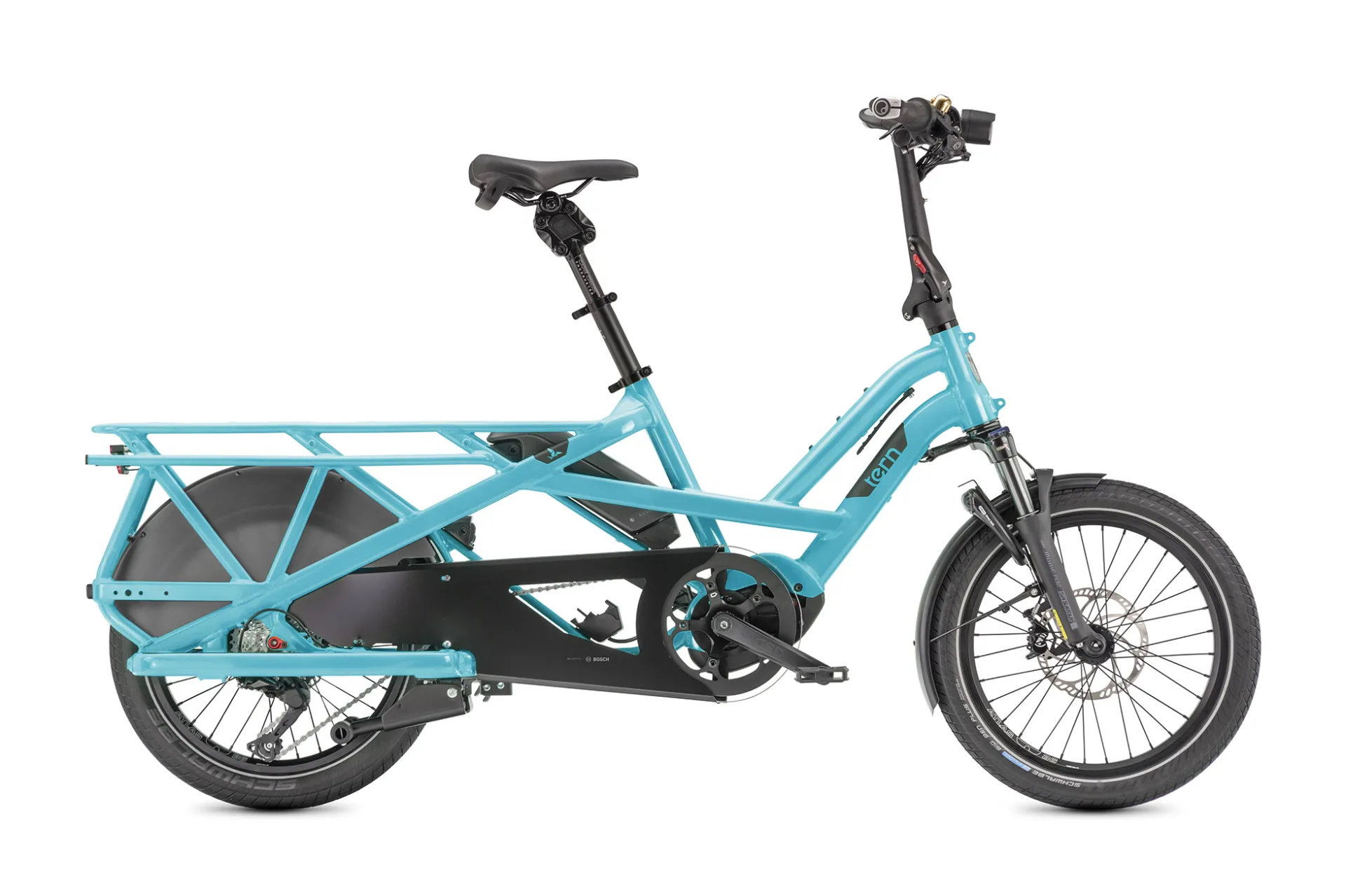

Tern GSD S10 LX – Premium Cargo eBike
What makes it an S10 LX?
• Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
• Bosch dual-battery system (500/1000 Wh) for a range of up to 206 km (128 mi)
• Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
• Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”)
• Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
• Heavy-duty frame-integrated rear rack and integrated lower decks
• Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
• Always-on RearStop™ Brake Light helps you safely signal stops
• Integrated Abus® Wheel Lock, keyed-alike with the battery
• Atlas Wheels with custom CNC machined hubs for extra strength and durability
• Cane Creek® Thudbuster ST Suspension Seatpost for an extra-cushy ride
• Ultra-bright Ignis™ Headlight ensures 24/7 visibility, no matter the weather
• Wide range of cargo- and passenger-carrying accessories
• Fits two Thule® Yepp Maxi seats, no adapters needed
---
SPECIFICATIONS
General Info
Speeds: 1 x 10
Weight: 33.58 kg (74 lb)
Gear Inches: 26" - 99" (2.08 - 7.91 m)
Folding Size: 176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
Folding Time: 5 sec
Frame Sizes: One size
Distance: Seatpost to Handlebar: 49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal: 69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height: 150 - 195 cm (59.1 - 76.8 in)
Max Gross Vehicle Weight: 200 kg (440.9 lb)
Max Rider Weight: 120 kg (264.6 lb)
---
Frame
Frame: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg

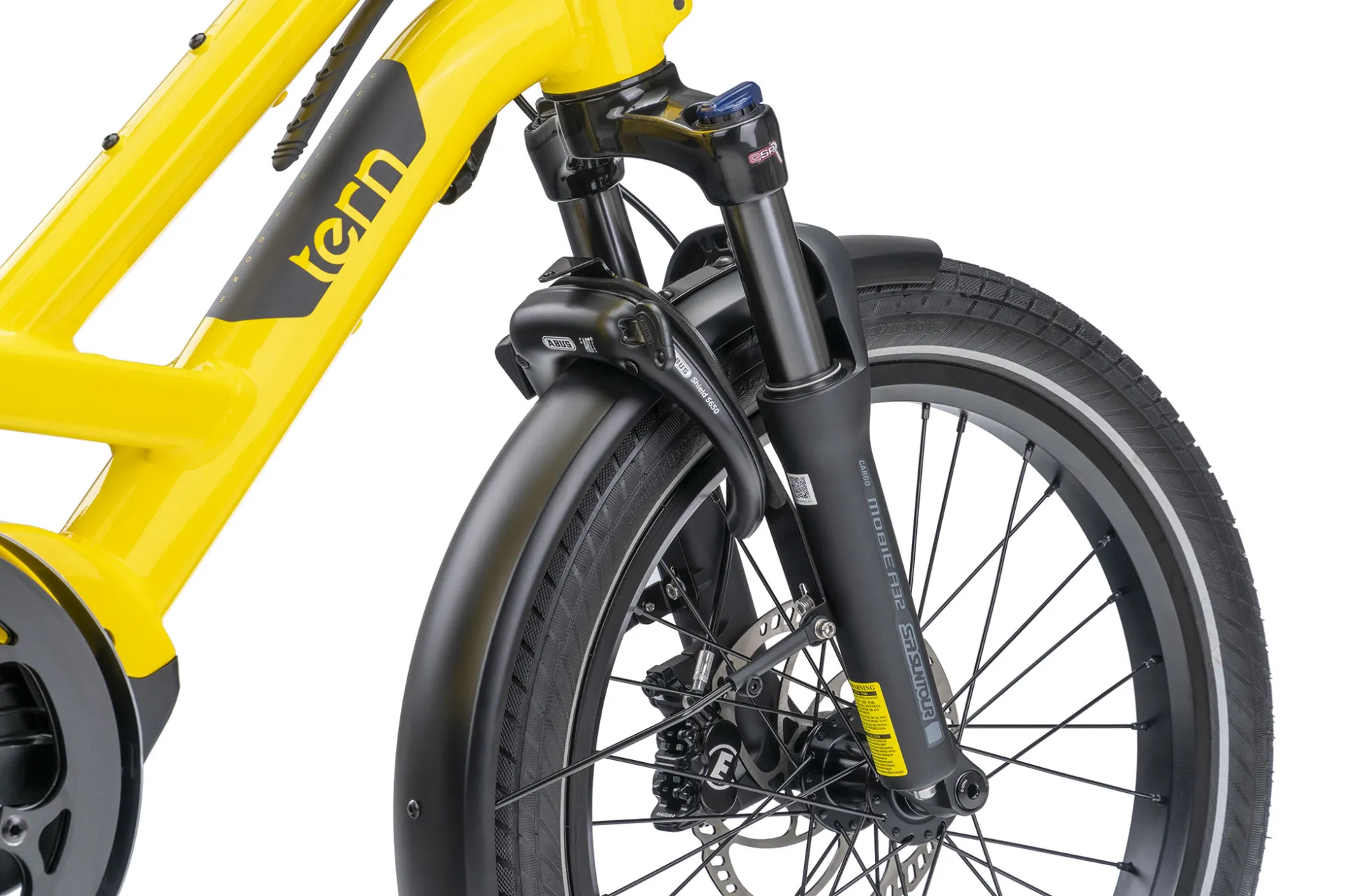

Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
---
Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern GSD by Velo, with rear handle
Seatpost: Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Seatpost Clamp: Tern Collar, 6061-AL, 2pc
---
Brakes
Front Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers: Magura MT5 e-stop, hydraulic, with brake sensor
Brake Cable & Housing: Magura, hydraulic
---
Wheels
Front Wheel: Tern Atlas, heavy duty cargo wheel
Rear Wheel: Tern Atlas, heavy duty cargo wheel
Front Hub: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear Hub: Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Spokes & Nipples: Stainless steel, 13G
Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tyres:
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
---
Transmission
Shifter(s): Shimano Deore, 1 x 10 spd
Rear Derailleur: Shimano Deore Shadow+
Crankset: Tern GSD custom, forged 6061-AL DH crankarm
Cassette/Freewheel: Shimano 11-42T, 10 spd
Bottom Bracket: Motor integrated
Chain: 10 spd, DHT for eBike, GST corrosion resistant coating
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
---
E-System
Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch Dual Battery system, 500 Wh/1000 Wh

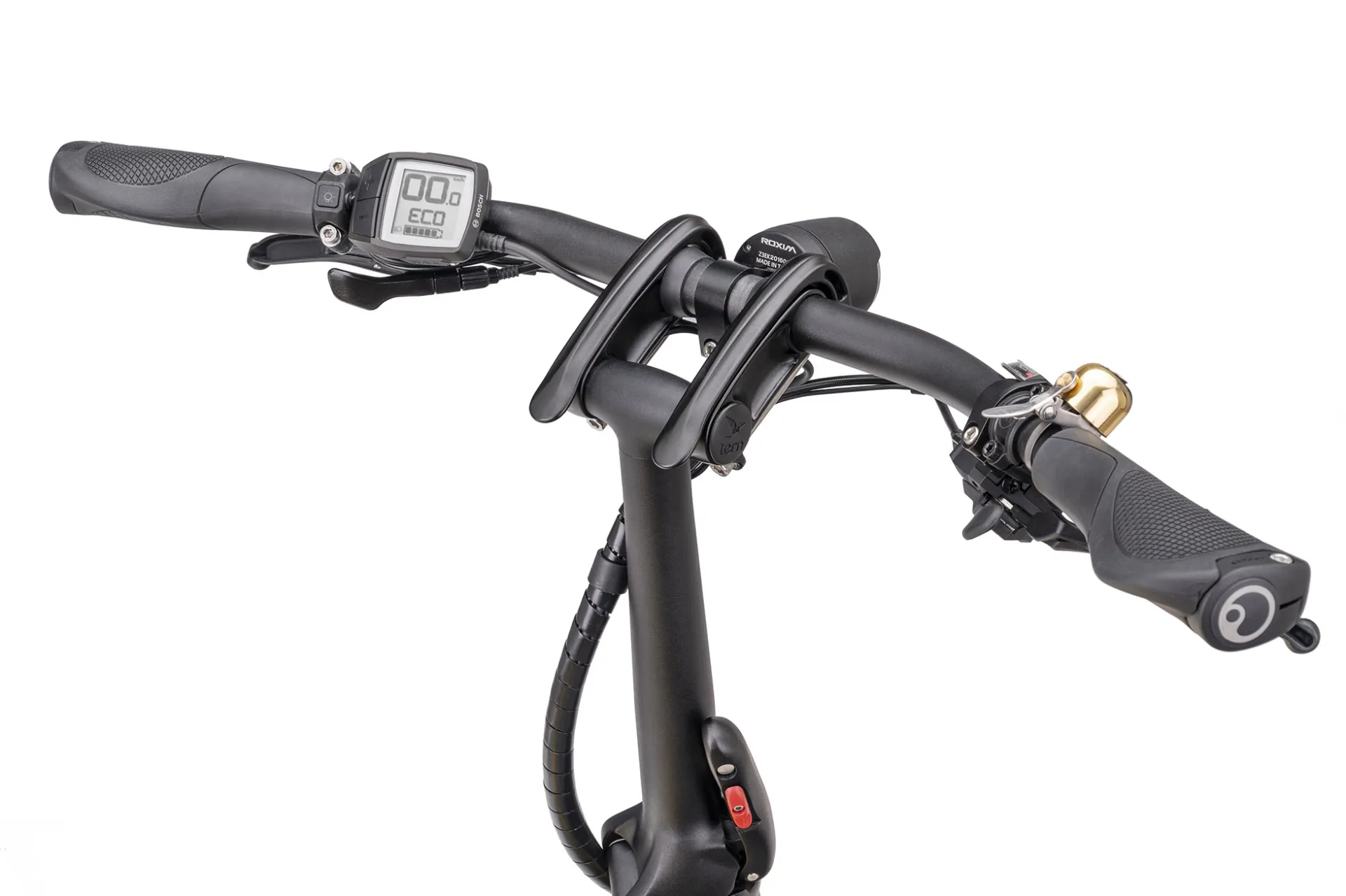

Display: Bosch Purion
Range:
500 Wh: 52-105 km (32-65 mi)
1000 Wh: 102-206 km (63-128 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
---
Bells & Whistles
Bell: Pitch Plus, brass
Chainguard: Tern Custom, full chain cover

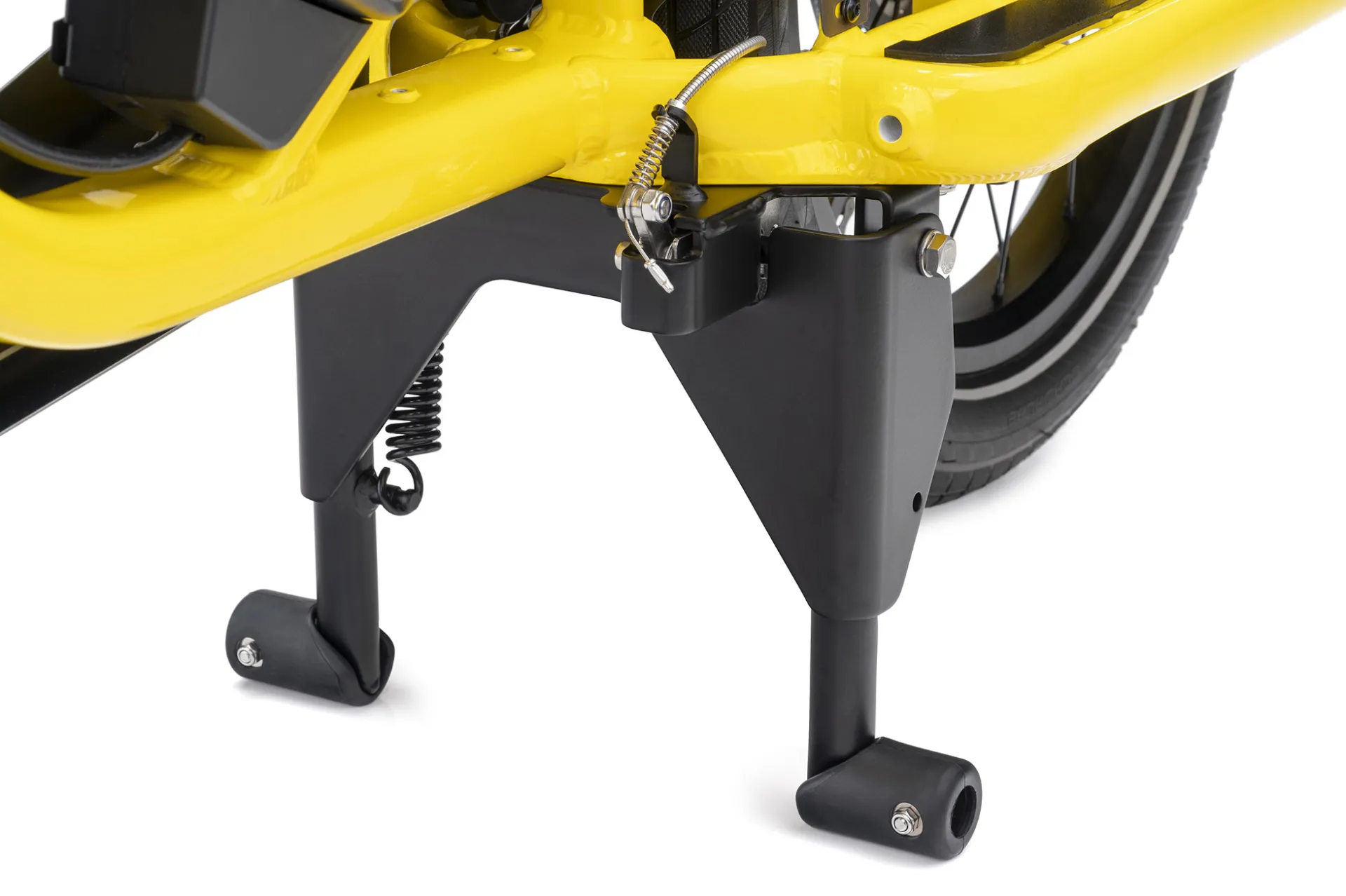

Kickstand: Atlas Lockstand, w/ remote unlock, patented technology
Luggage Socket: Combo Mount

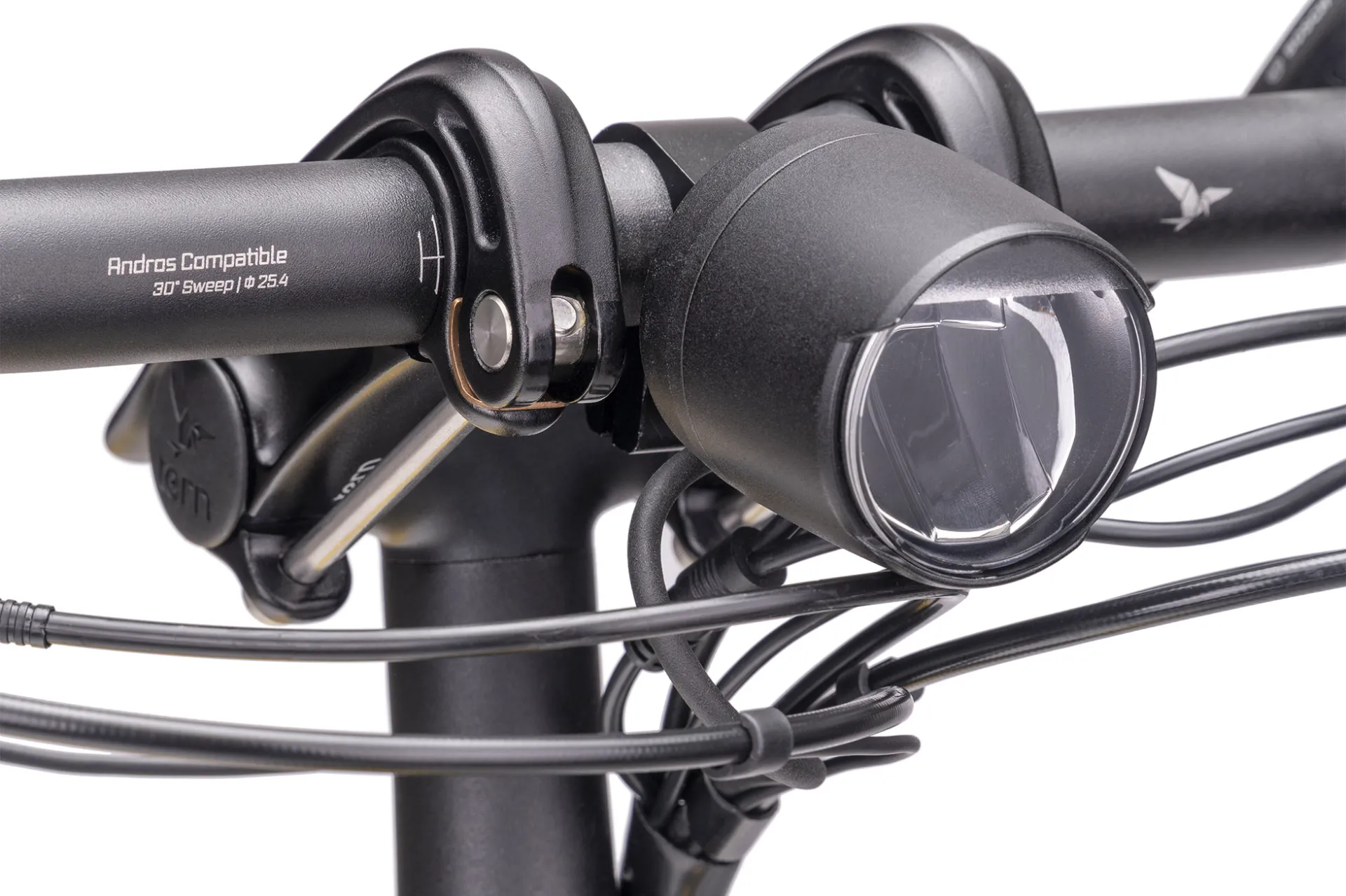

Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light: RearStop Brake Light, Always on brake light
Fenders: Integrated Wheel Guard, AL6061, w/ Side Skirt
Rack(s): Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
Accessory: ABUS, keyed-alike with Bosch battery
---

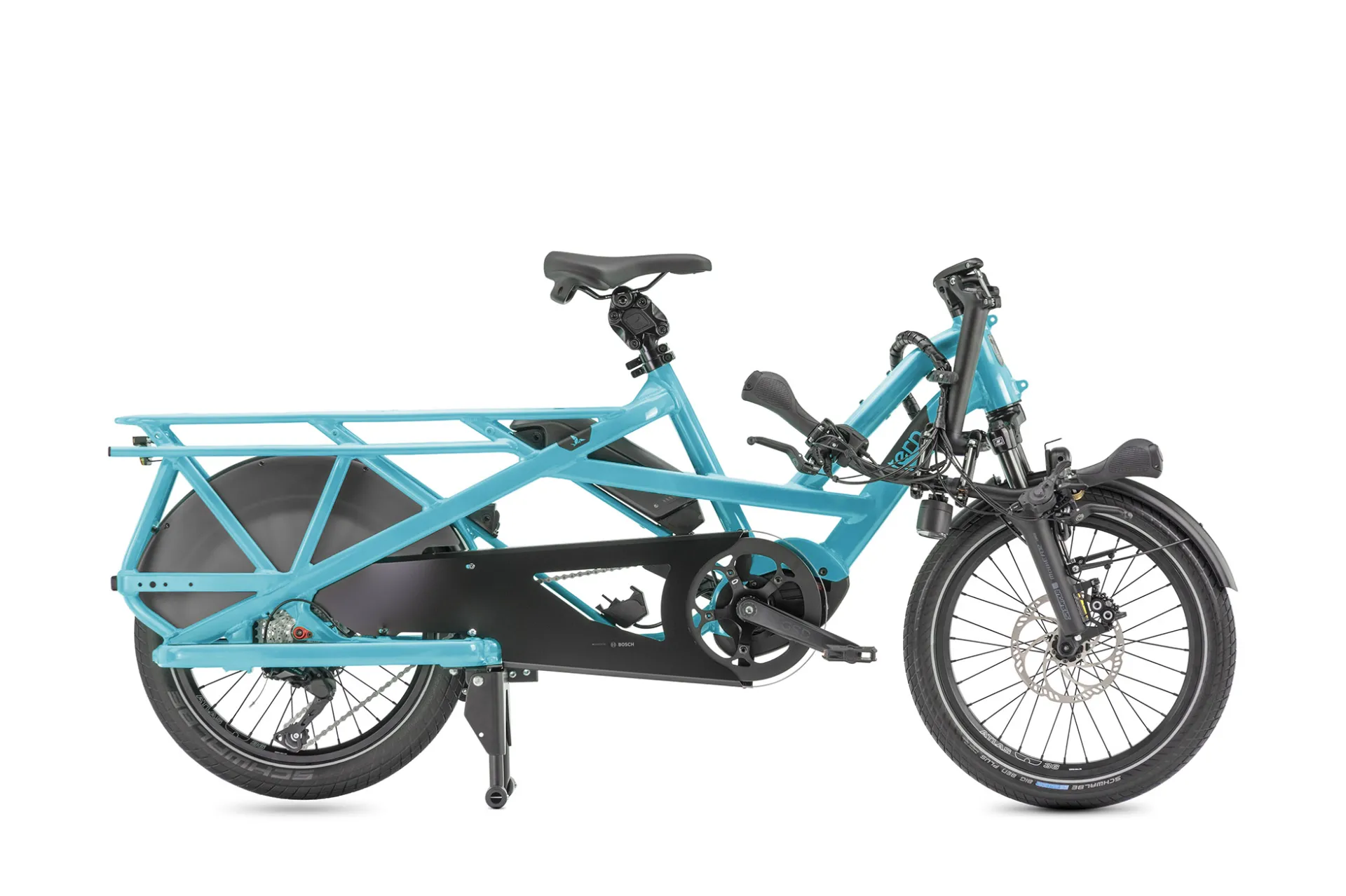

Ready to haul kids, cargo, or both — folds in 5 seconds for easy storage.
Premium family/cargo eBike — extra comfort, extra range, extra visibility.
