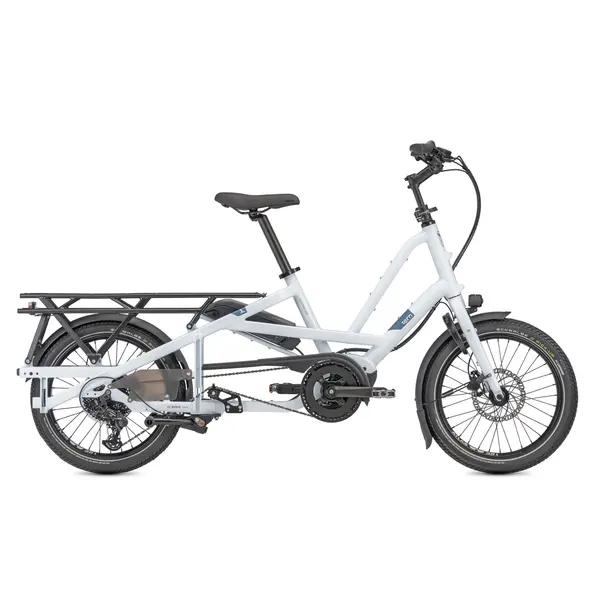

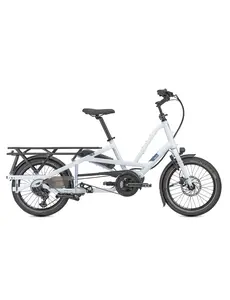

Tern Quick Haul Long D9 400Wh
Specifications
Information

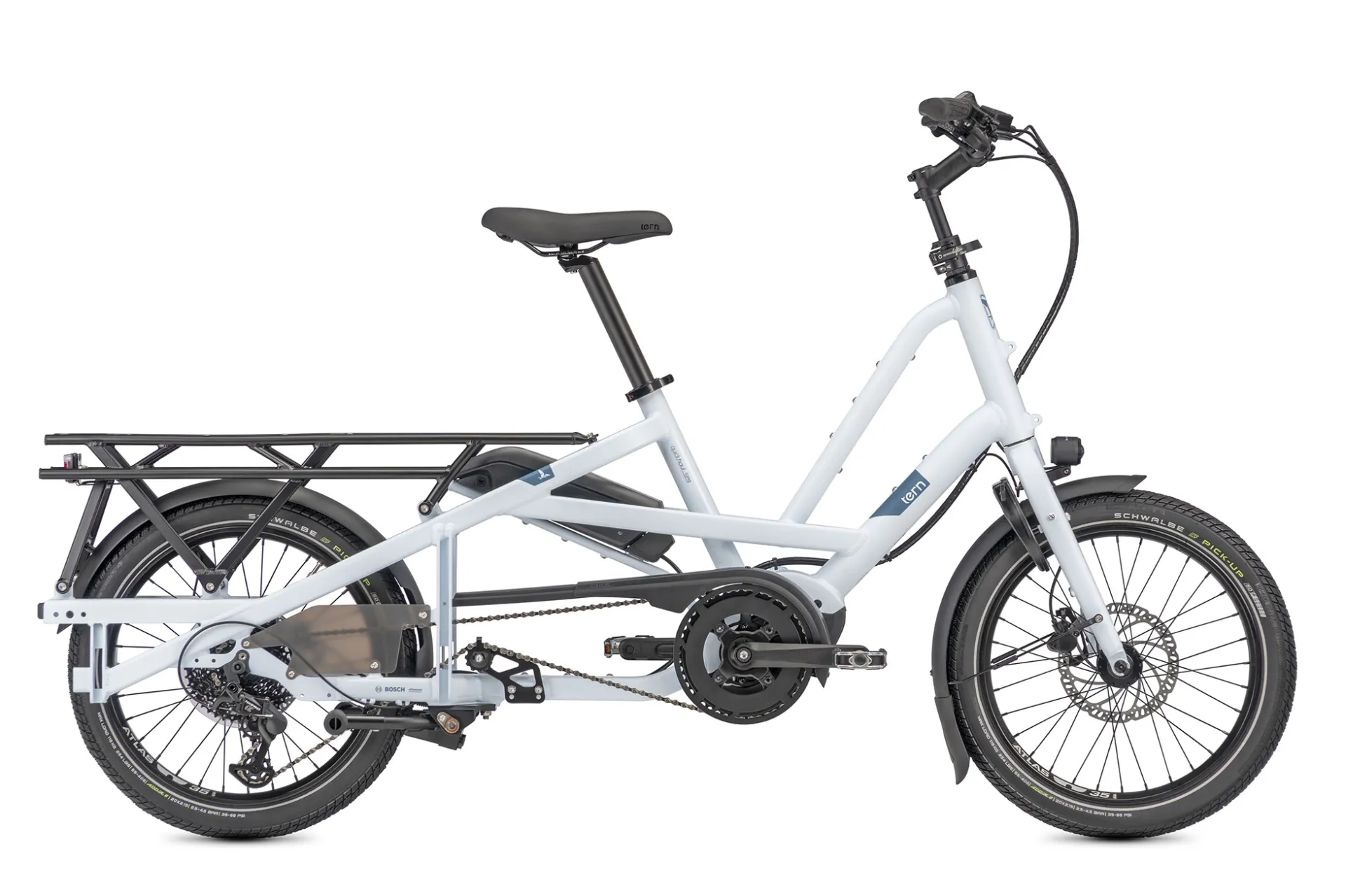

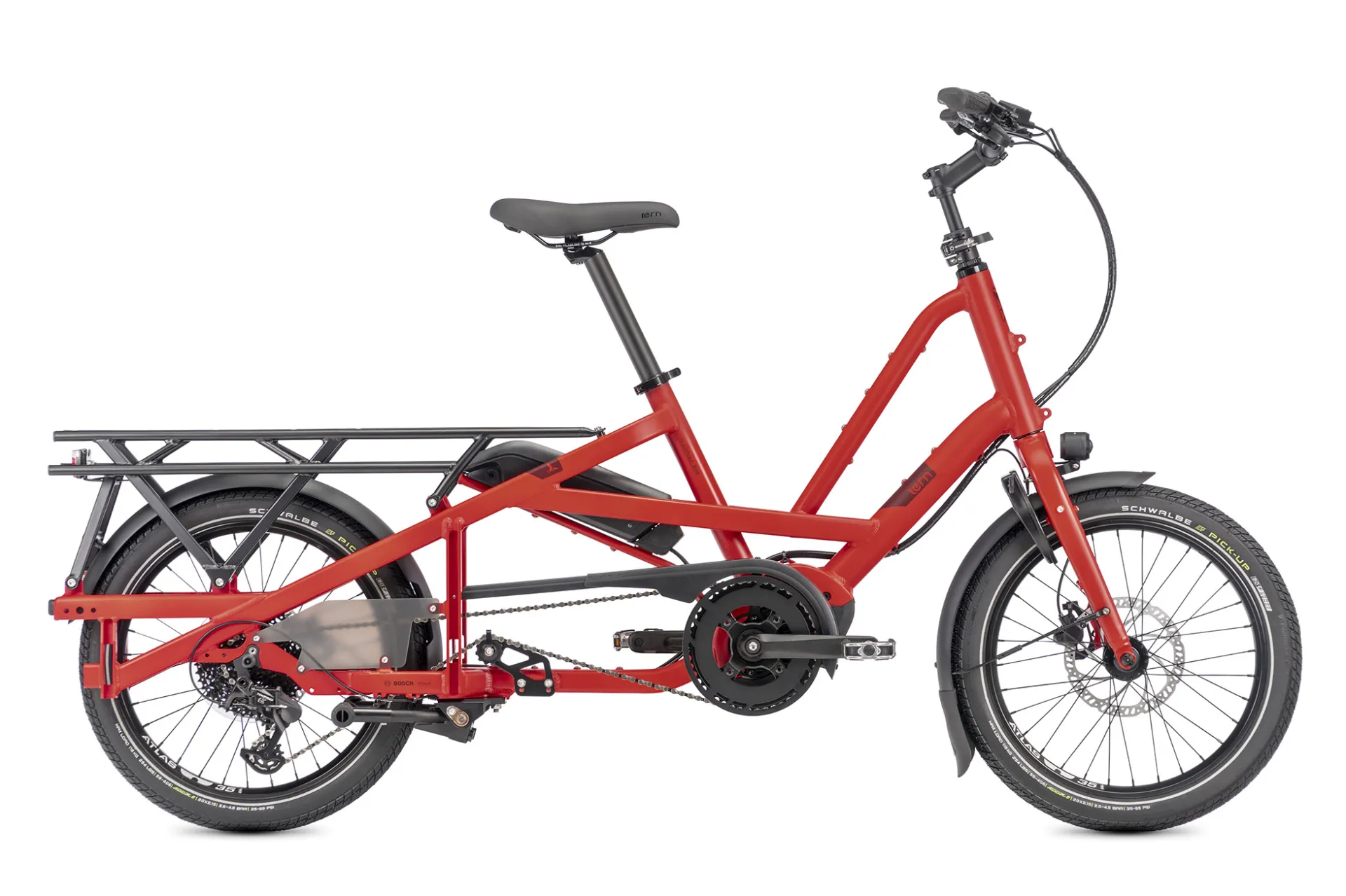

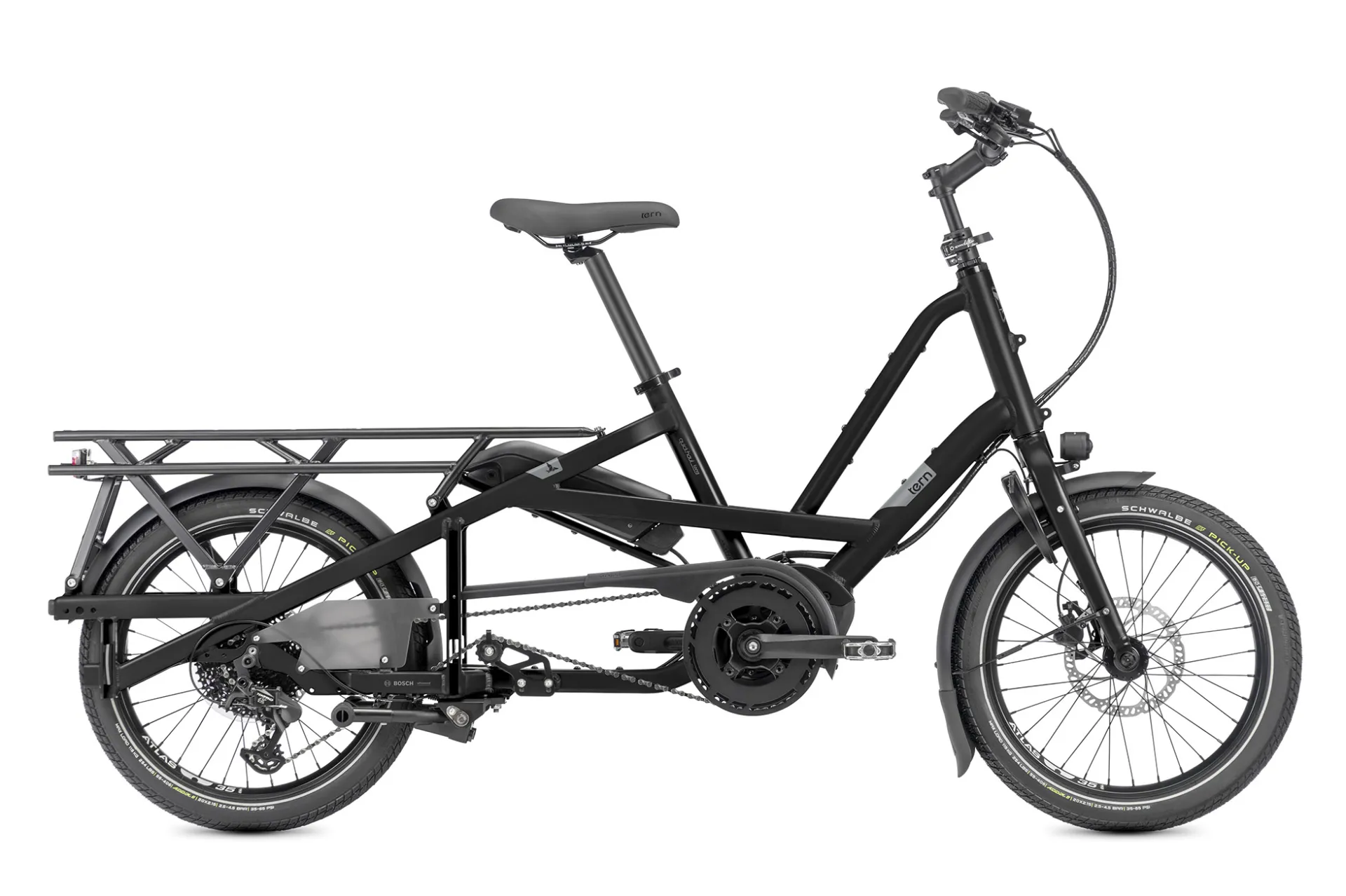

The Tern Quick Haul Long is a compact cargo bike built to safely carry up to two kids while giving the rider plenty of heel clearance—even when using child seats. Powered by the Bosch Cargo Line motor with 85 Nm of torque and up to 400% support, it delivers strong, reliable performance for daily hauling. The intuitive Bosch e-bike system keeps every ride simple and informed, while the custom 1×9-speed e-bike drivetrain provides fast, precise shifting.
Designed for serious load carrying, the Quick Haul Long is rated for a maximum gross vehicle weight of 190 kg (419 lb) and features a heavy-duty rear rack that supports up to 90 kg (198 lb). The patented Atlas Kickstand ensures the bike stays steady during loading and unloading, whether you’re carrying kids or cargo. With a wide range of compatible accessories, you can tailor the setup to your family or transport needs.
Easy to adjust without tools, the bike fits riders 155–190 cm (5'1"–6'3") and up to 120 kg (265 lb). For added peace of mind, the frame and fork exceed the demanding German DIN 79010 cargo bike safety standard, providing a stronger, more durable ride for everyday use.
SPECIFICATIONS
General Info
Speeds: 1 × 9
Weight: 29.3 kg (64.6 lb)
Gear Inches: 23"–89" (1.87–7.13 m)
Frame Sizes: One size
Distance: Seatpost to Handlebar: 60–64 cm (23.6–25.2 in)
Distance: Saddle to Pedal: 76–99 cm (29.9–39 in)
Suggested Rider Height: 155–190 cm (61–74.8 in)
Max Gross Vehicle Weight: 190 kg (418.9 lb)
Max Rider Weight: 120 kg (264.6 lb)
Frame
Frame: Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
Fork: Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
Cockpit

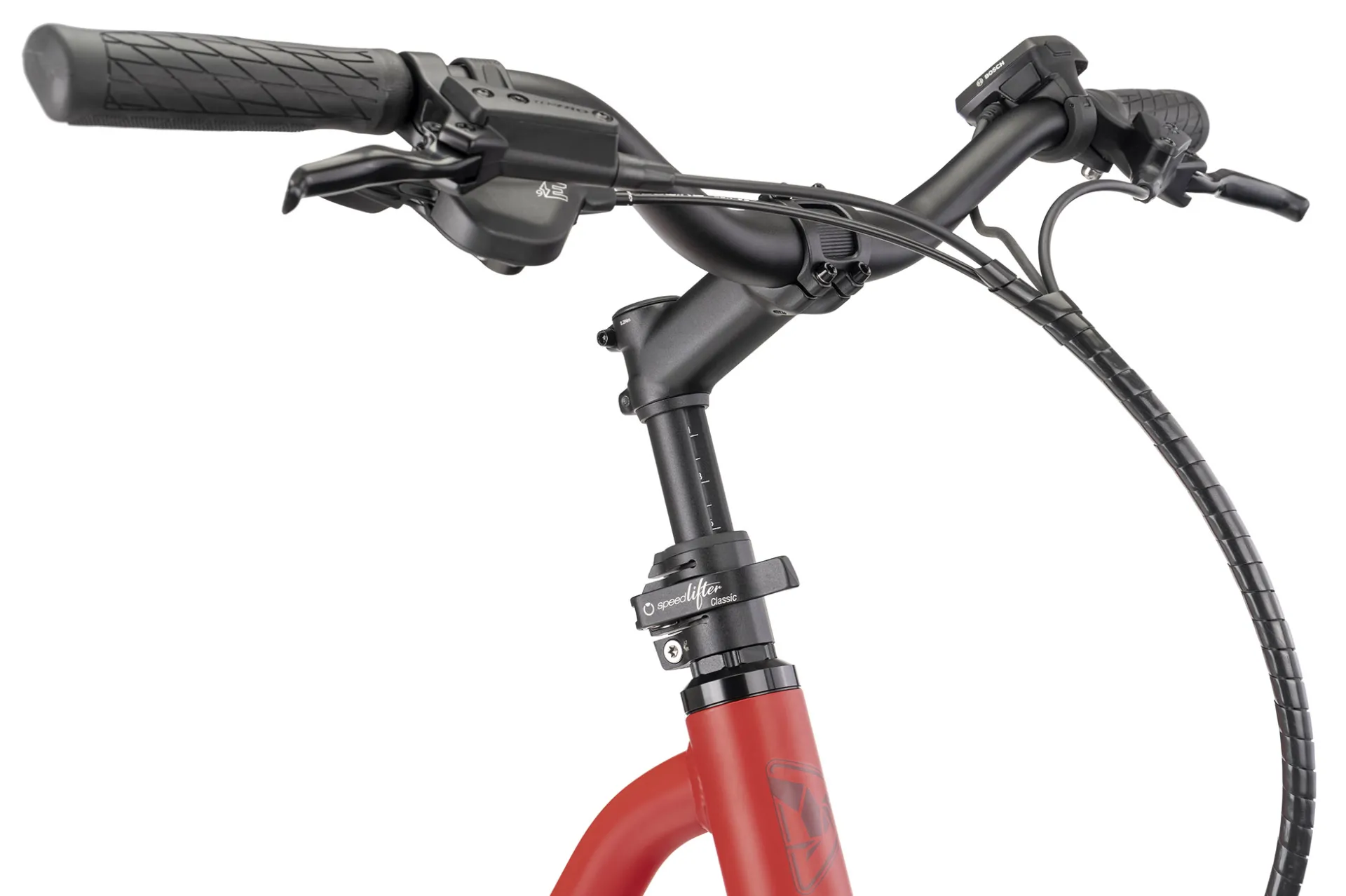

Stem: Speedlifter, adjustable, 3D forged, 31.8
Headset: TH, cartridge bearings
Handlebar: Low riser ergo, 31.8, 6061-AL
Grips/Bar Tape: Velo ergonomic, lock-on
Saddle: Velo Comfort
Seatpost: 34.9 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Tektro hydraulic disc
Rear Brake: Tektro hydraulic disc
Brake Levers: Tektro hydraulic disc
Wheels
Front Hub: Disc, aluminum
Rear Hub: 9-spd, disc, aluminum, Boost
Spokes & Nipples: Stainless steel

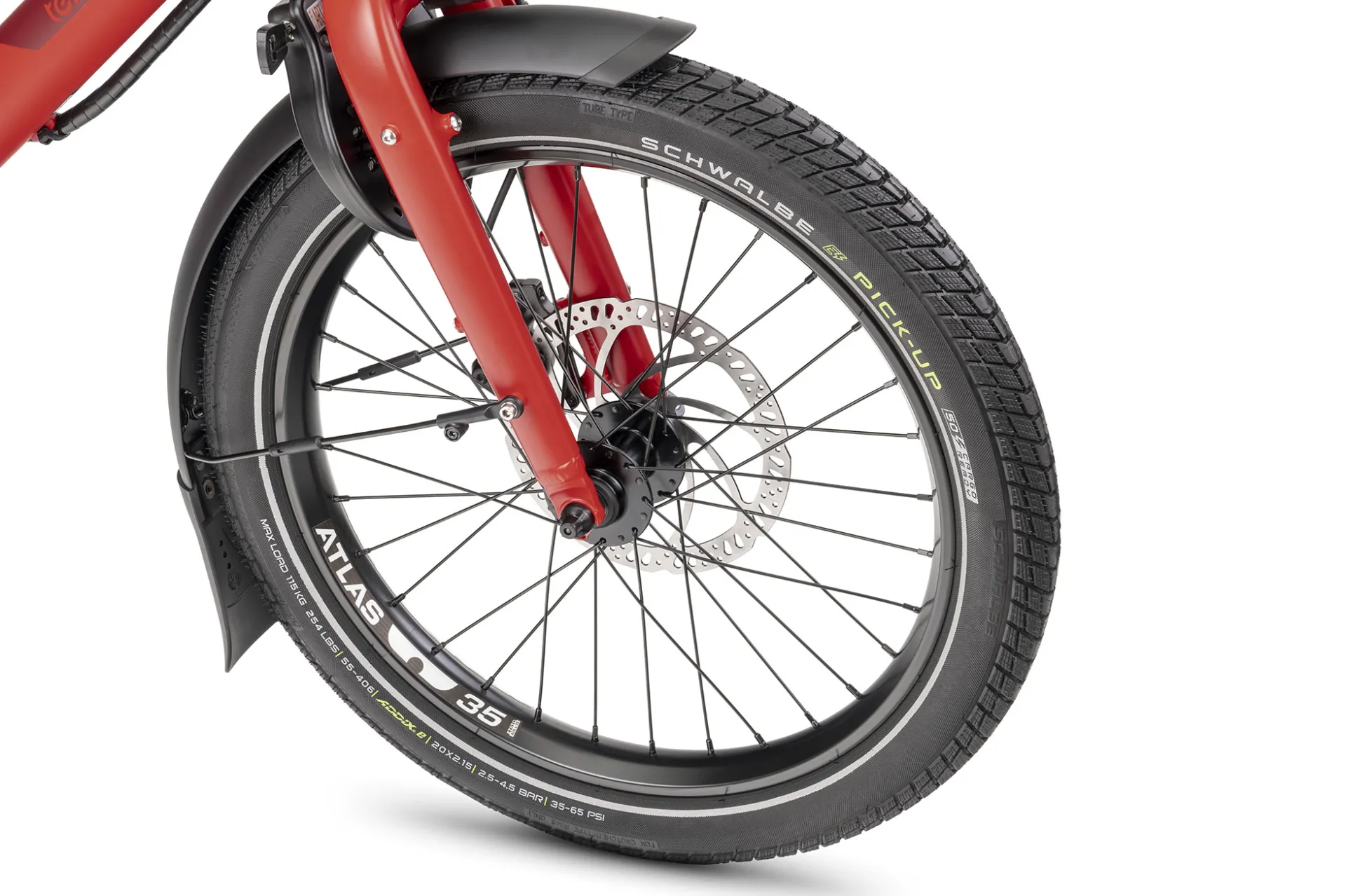

Rims: Tern Atlas H, cargo
Tyres: Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex
Transmission
Shifter(s): Tektro, 1 × 9 spd, trigger
Rear Derailleur: Tektro custom for Tern, 1 × 9 spd
Crankset: Tern custom, forged 6061-AL, anti-drop chainring
Cassette/Freewheel: Tektro 11–42T, 9 spd
Bottom Bracket: Motor integrated
Chain: KMC, 9 spd, for eBike
Pedals: Urban with non-slip surface
Shifter Cable & Housing: SP
E-System

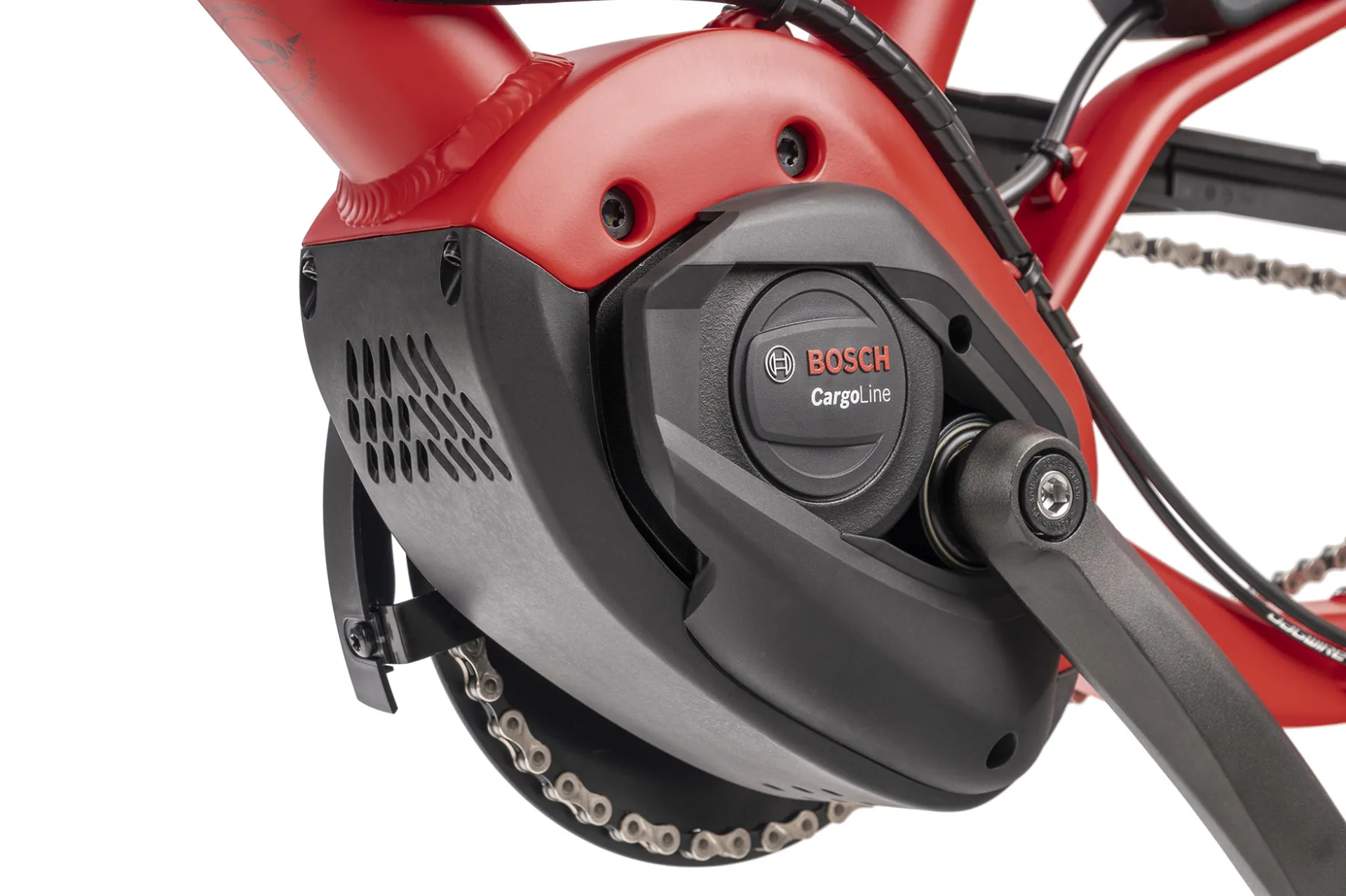

Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); 20 mph (US)

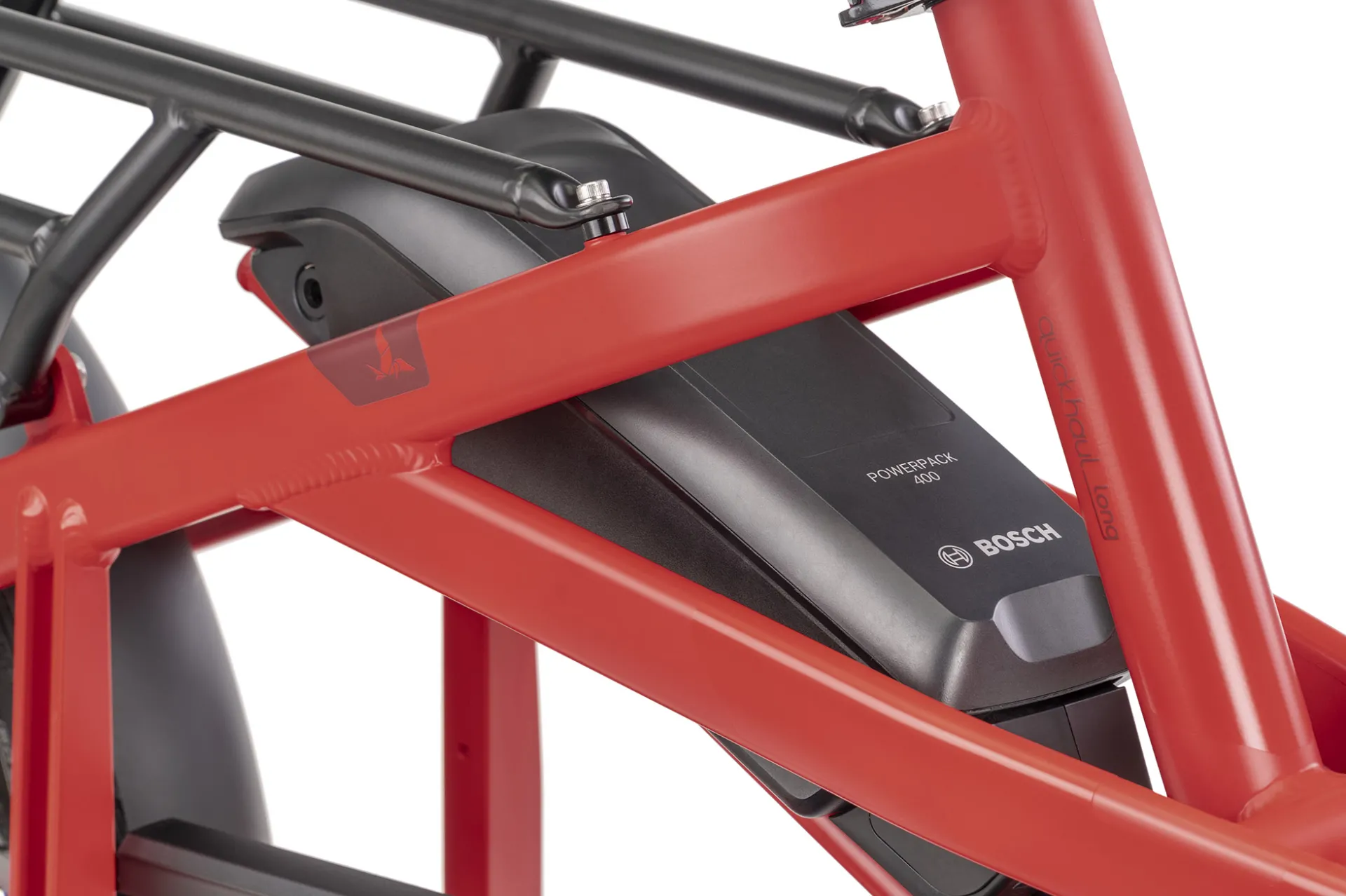

Battery: Bosch PowerPack 400

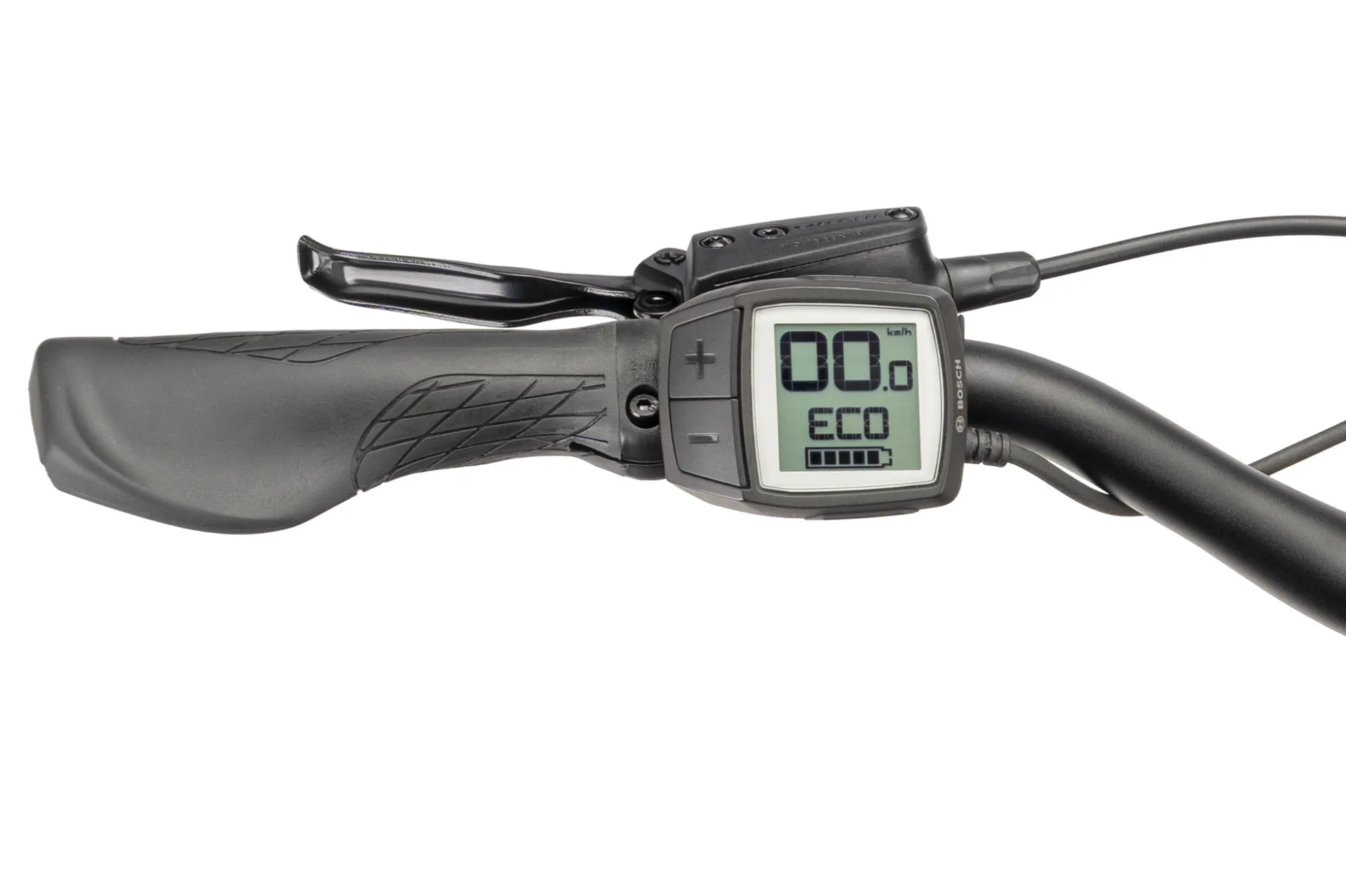

Display: Bosch Purion, 4 modes, walk assist
Range: 400 Wh: 42–85 km (26–53 mi)
Charger: 220V, 4A (EU); 100–240V, 4A (US)
Bells & Whistles
Bell: Aluminum
Chainguard: SKS Chainblade

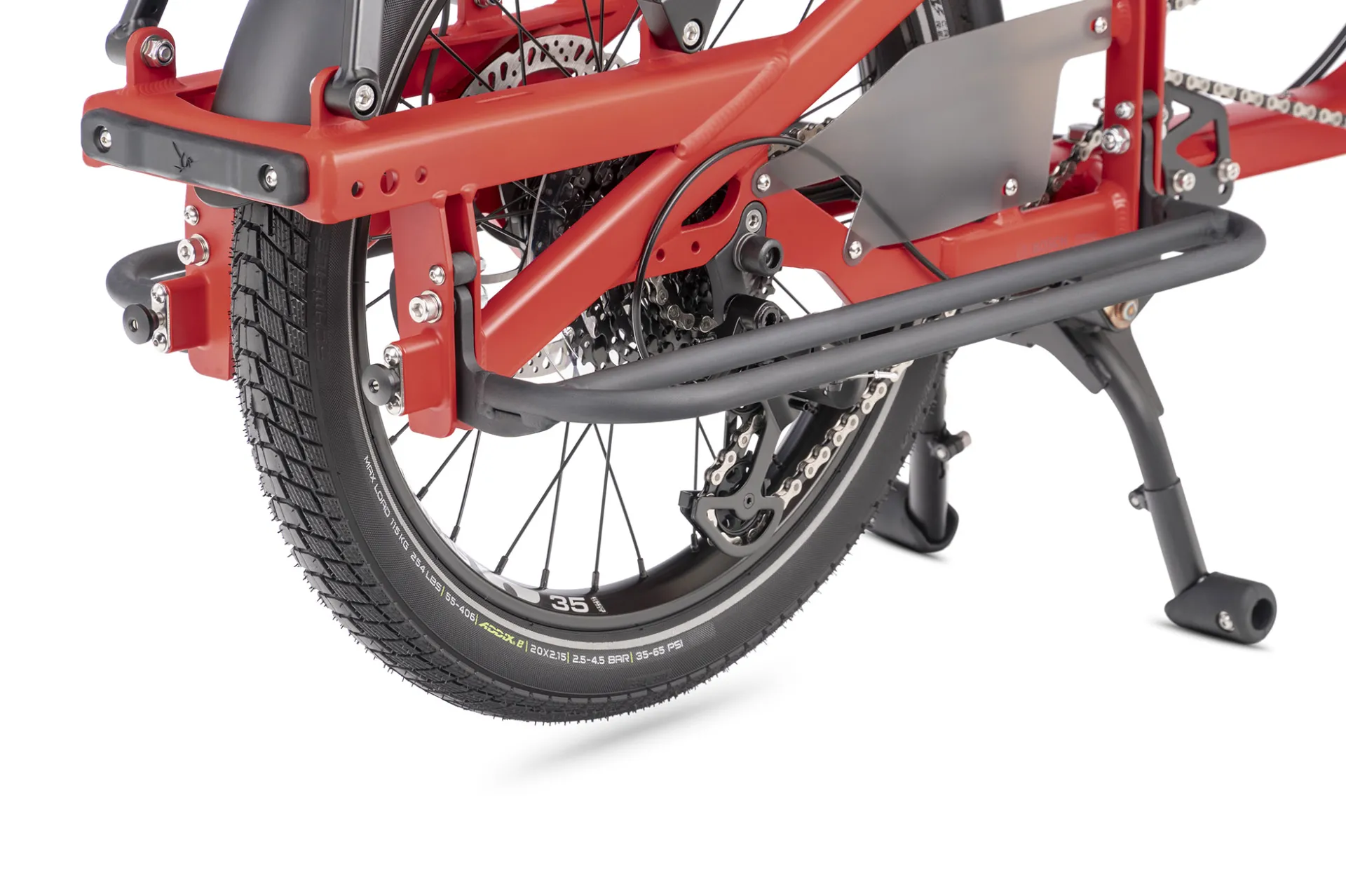

Kickstand: Atlas Kickstand, cargo
Luggage Socket: Combo Mount

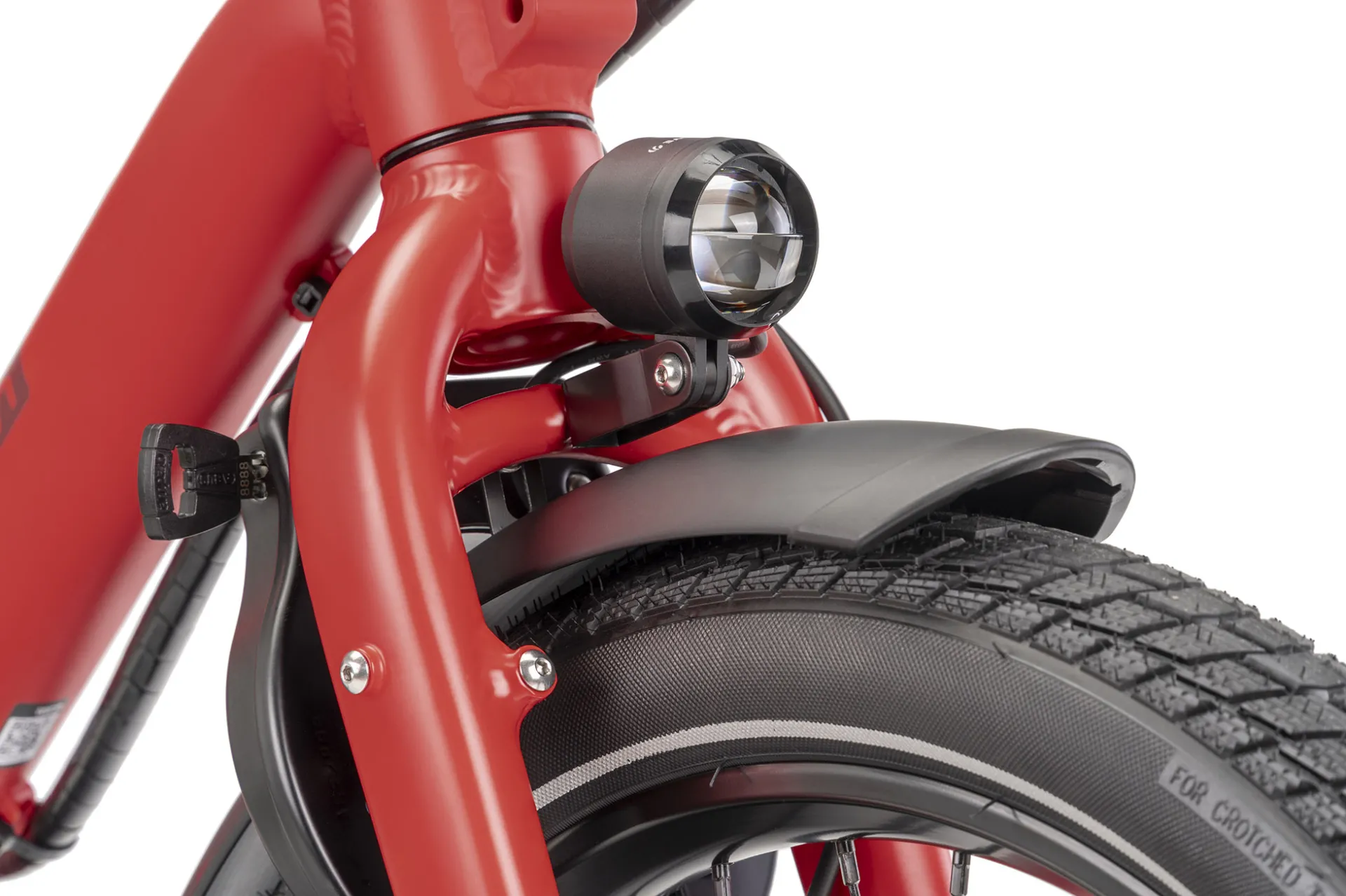

Front Light: 90 lux, StVZO approved
Rear Light: Herrmans
Fenders: SplashGuard, stainless hardware

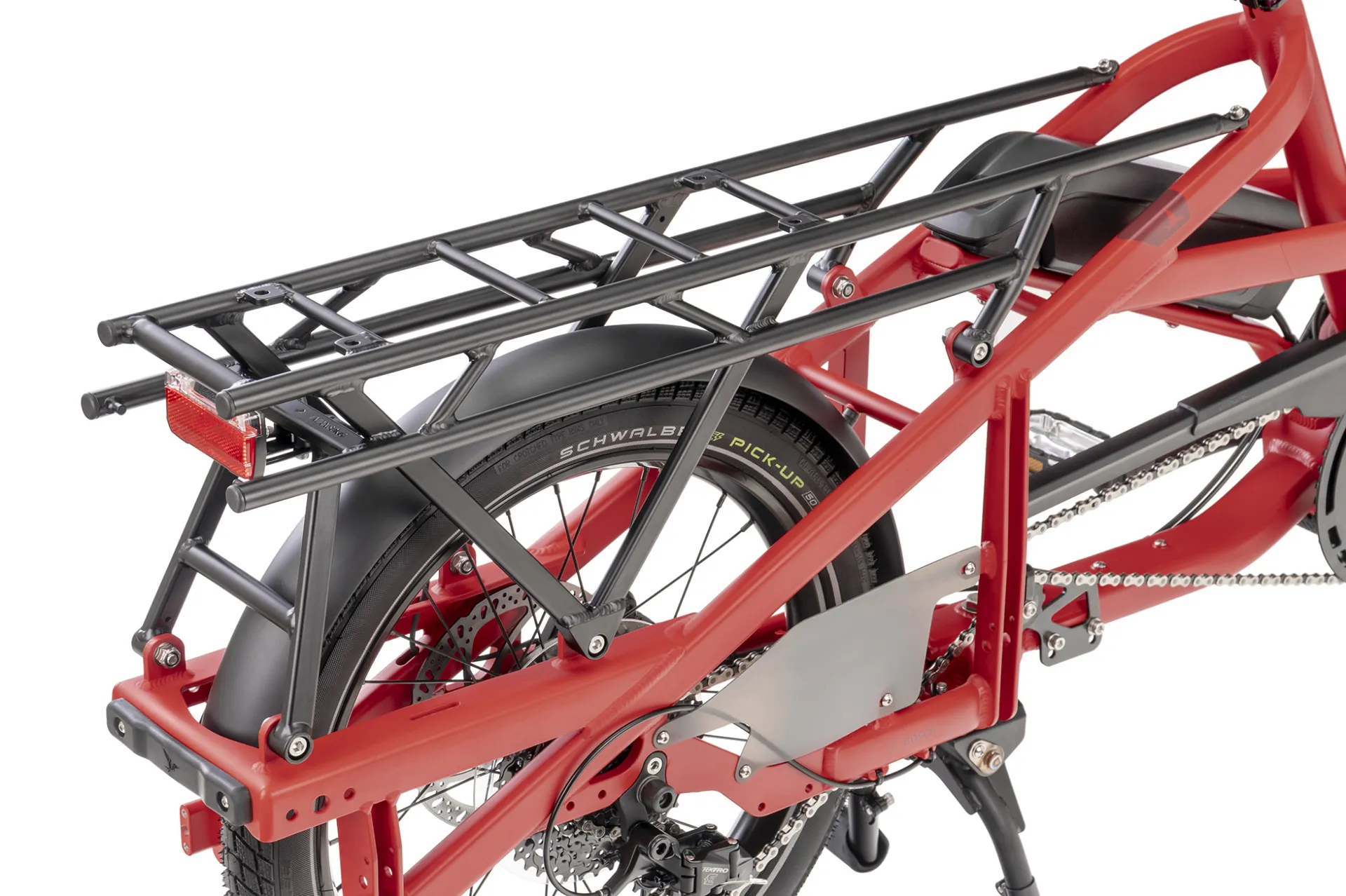

Rack(s): Atlas L, 90 kg (198 lb) capacity

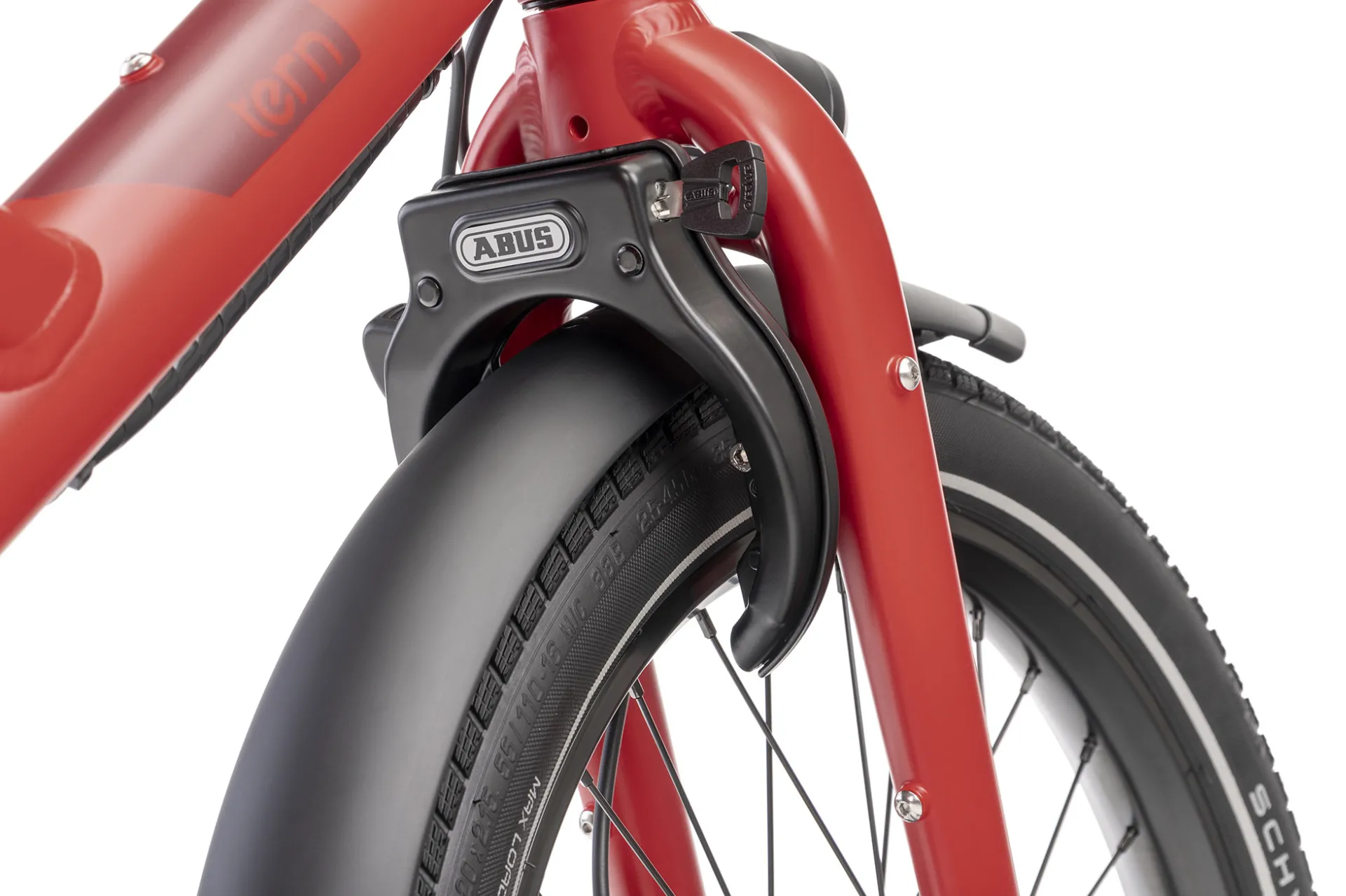

Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
