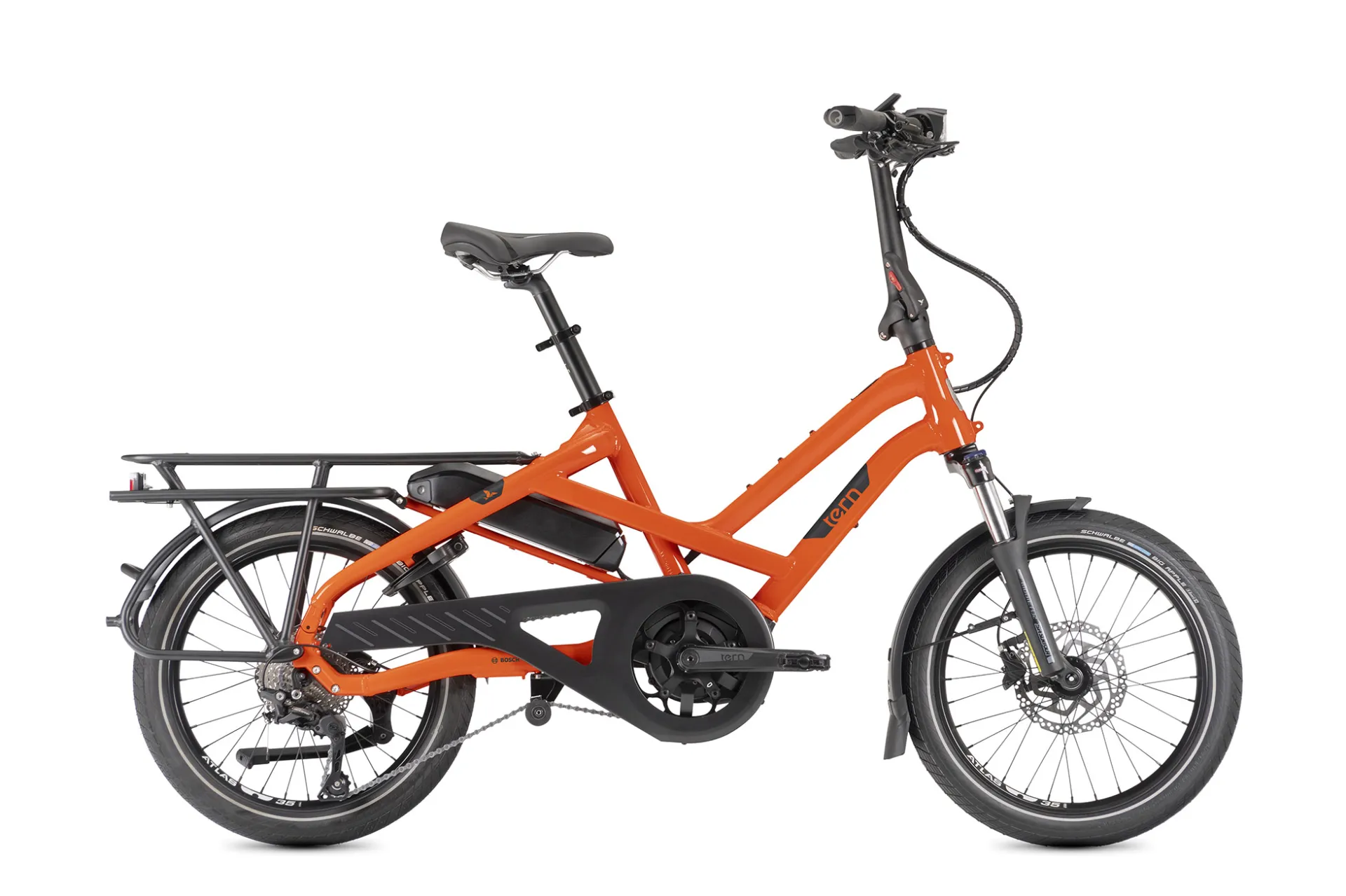

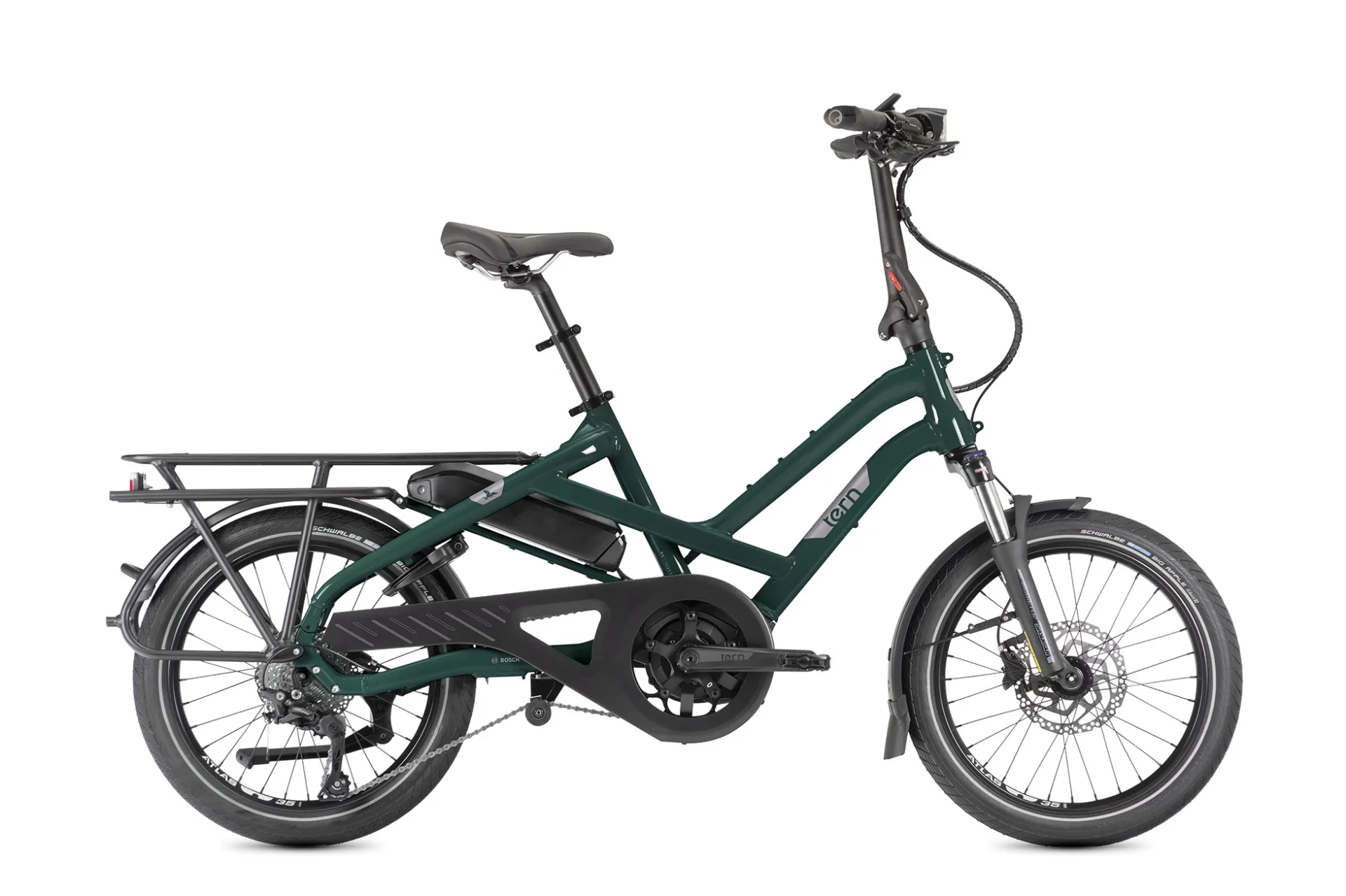

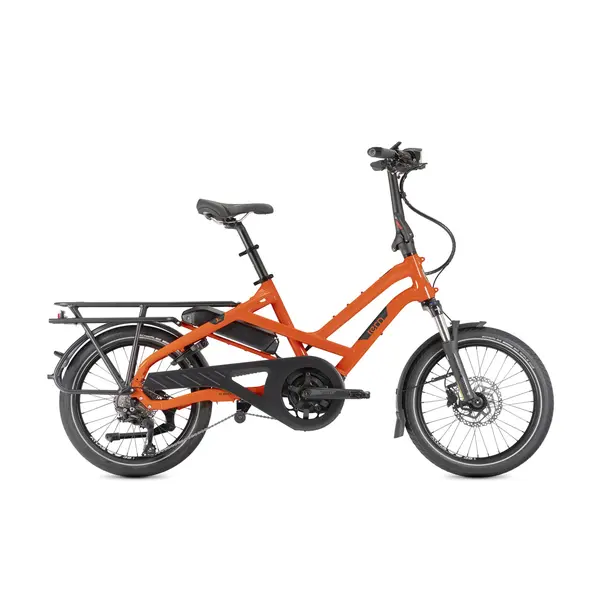

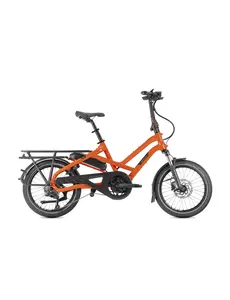

Tern HSD P10 Gen 2 545Wh
Specifications
Information
What makes it a P10?
- Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%

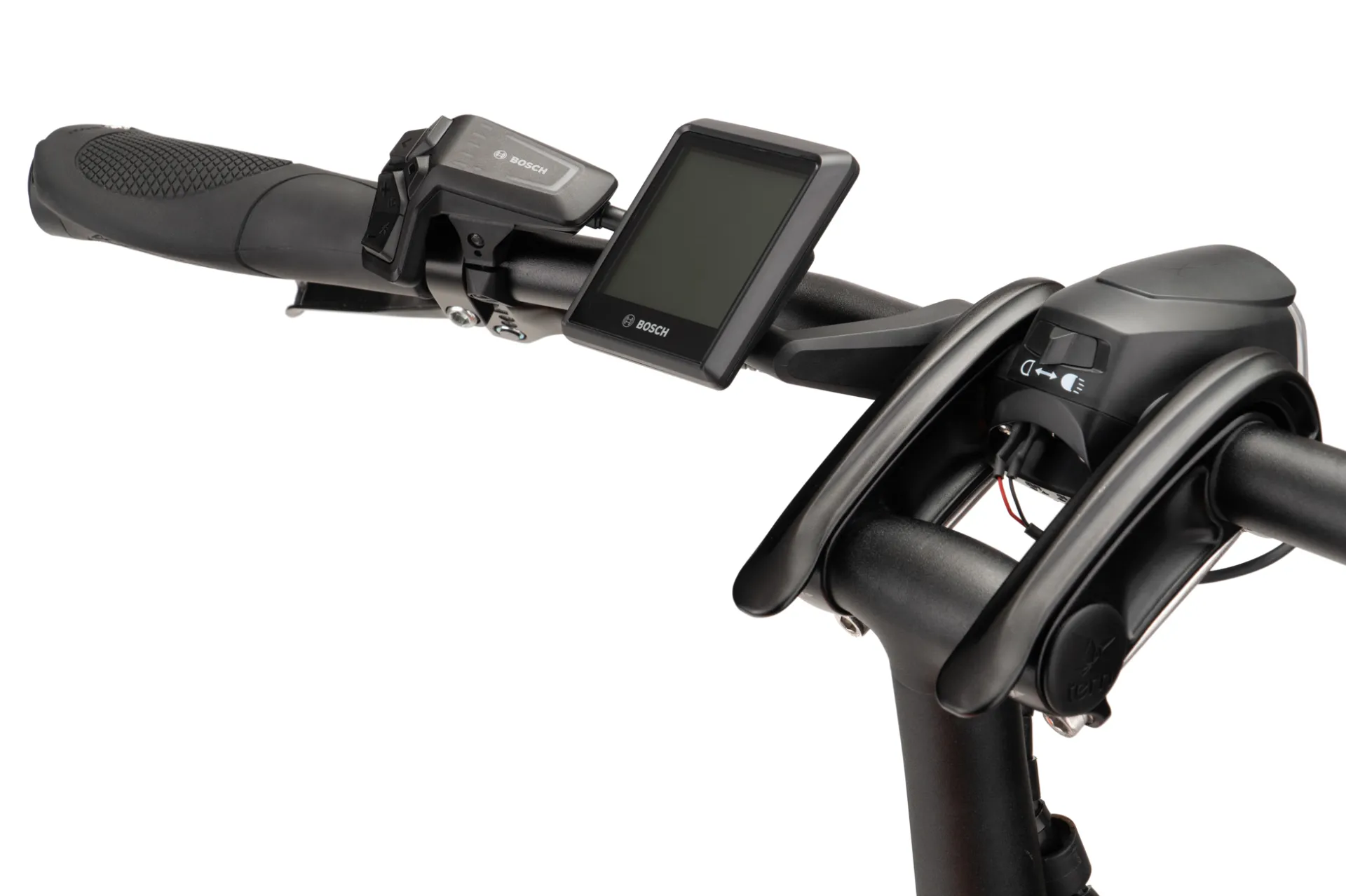

- Detachable and easy-to-understand Intuvia 100 display
- 1x10-speed Shimano Deore groupset with trigger shifter
HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
SPECIFICATIONS
General Info
Speeds: 1 × 10
Weight: 27.6 kg (60.8 lb)
Gear Inches: 30–97" (2.36–7.72 m)

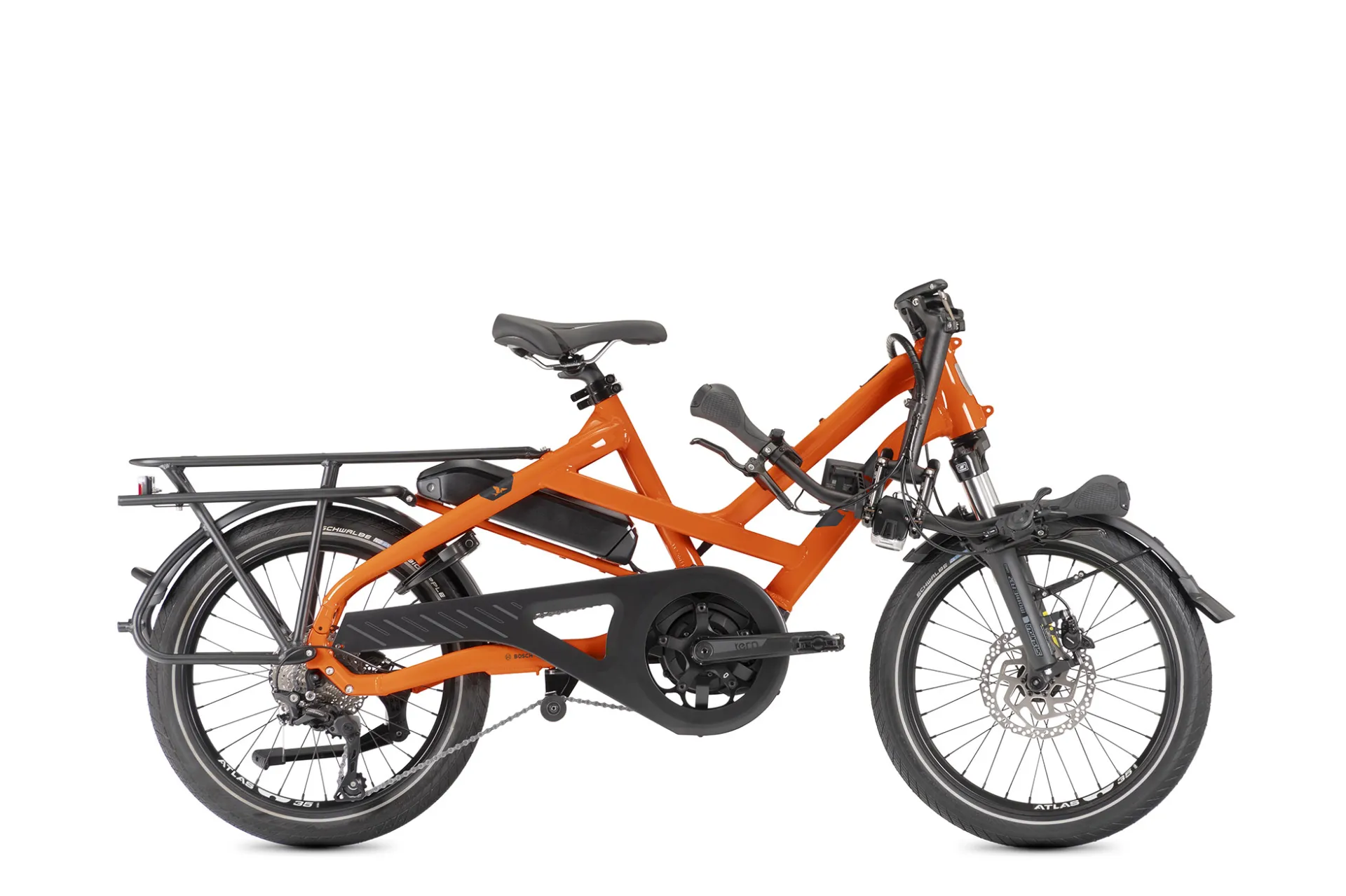

Folding Size: 165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
Folding Time: 5 seconds
Frame Sizes: One size
Distance: Seatpost to Handlebar: 54.5–62.5 cm (21.5–24.6 in)
Distance: Saddle to Pedal: 70–102.5 cm (27.6–40.4 in)
Suggested Rider Height: 150–195 cm (59.1–76.8 in)
Max Gross Vehicle Weight: 180 kg (396.8 lb)
Max Rider Weight: 120 kg (264.6 lb)
Frame
Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern Upright by Velo

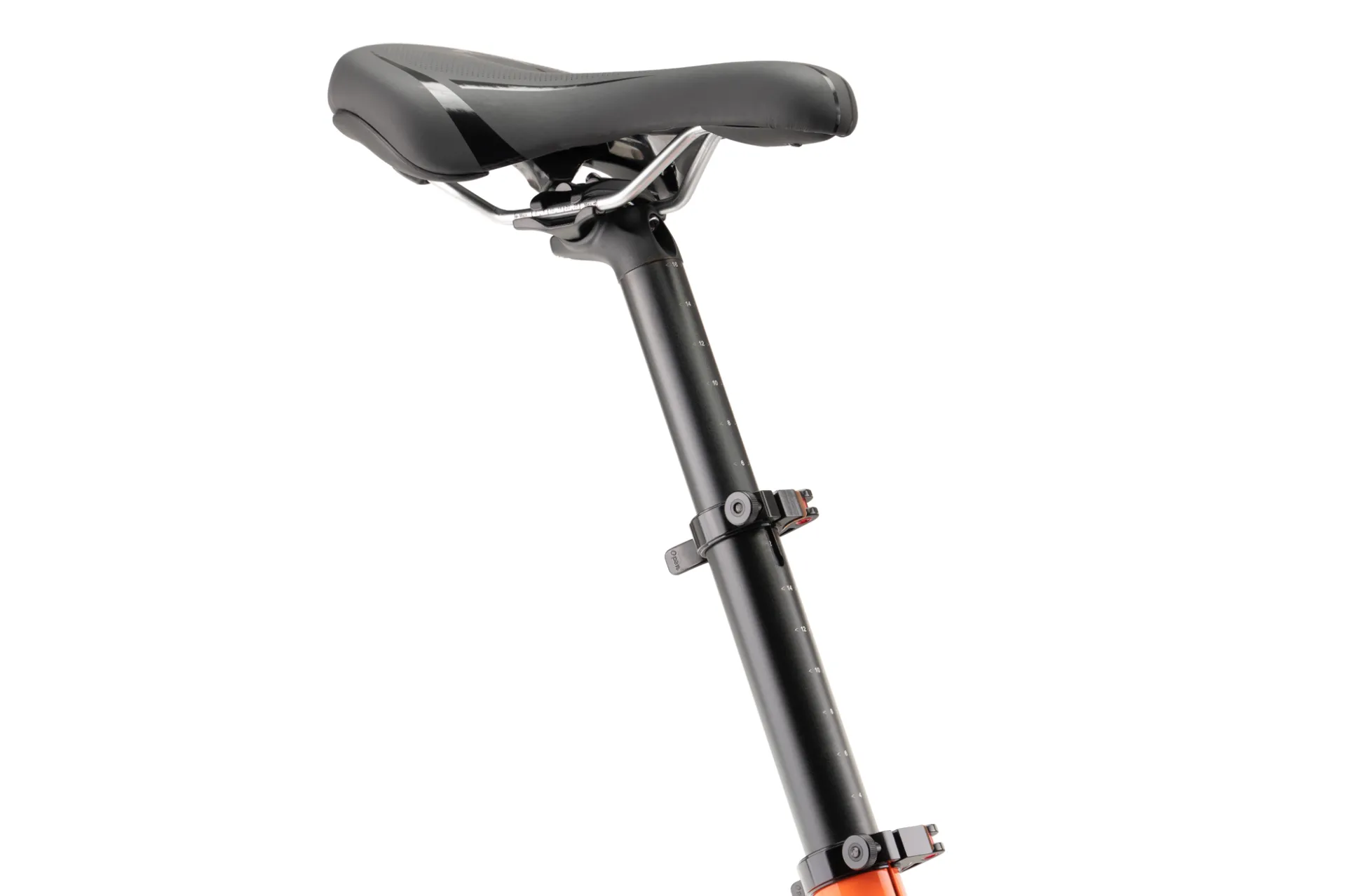

Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Tektro, hydraulic disc, 180 mm rotor
Rear Brake: Tektro, hydraulic disc, 160 mm rotor
Brake Levers: Tektro, hydraulic disc
Brake Cable & Housing: Tektro, hydraulic disc
Wheels
Front Wheel: Tern Atlas H, cargo wheel
Rear Wheel: Tern Atlas H, cargo wheel
Front Hub: Novatec, Thru-axle, sealed bearings
Rear Hub: Novatec, sealed cartridge bearing, disc
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, wide 35 mm
Tyres: Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter(s): Shimano Deore, 1 × 10 spd, trigger
Rear Derailleur: Shimano Deore Shadow+
Crankset: Tern HSD custom
Cassette/Freewheel: Shimano 11–36T, 10 spd
Bottom Bracket: Motor integrated
Chain: KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals: Urban with non-slip surface
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
E-System

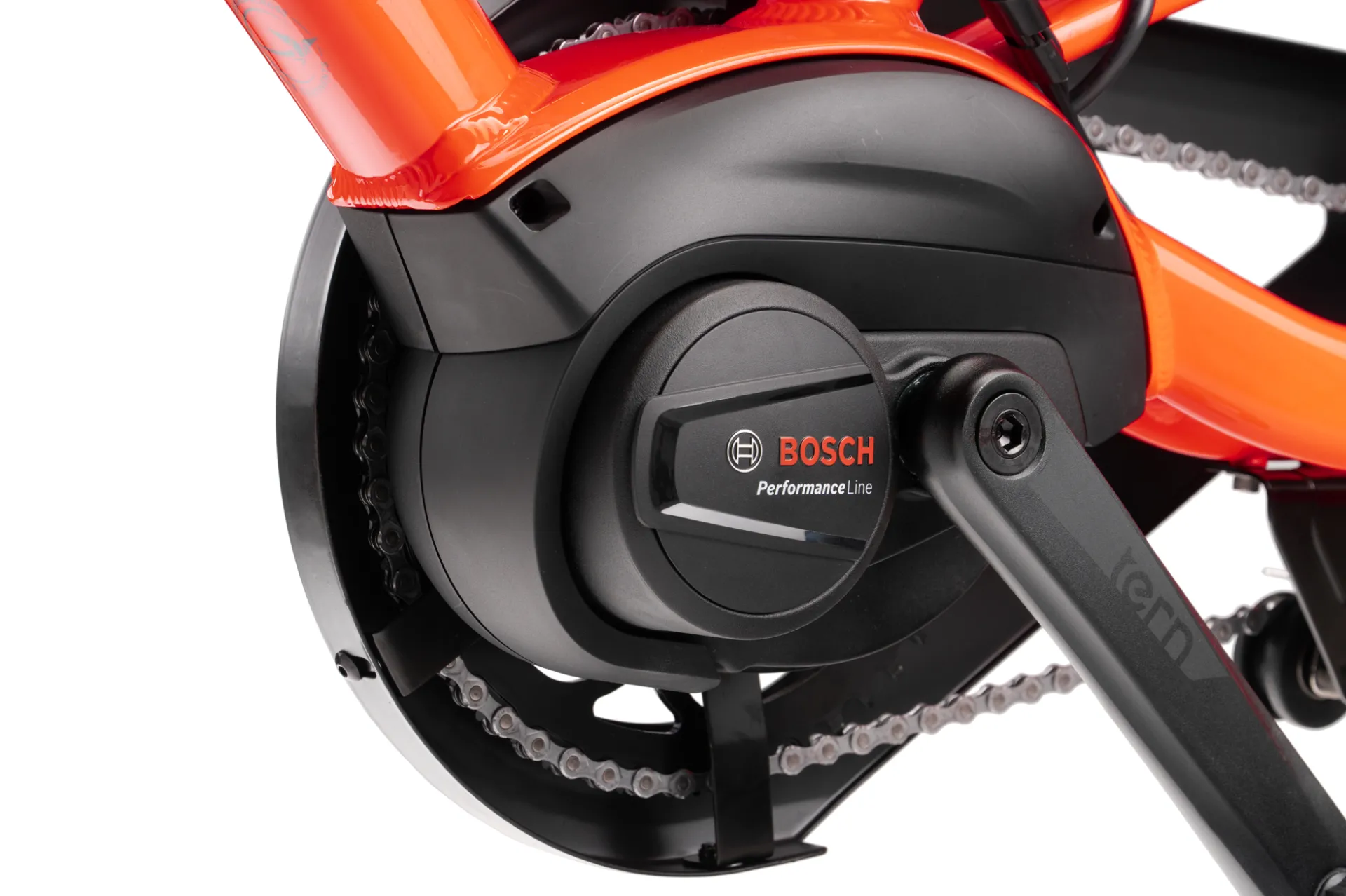

Motor: Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

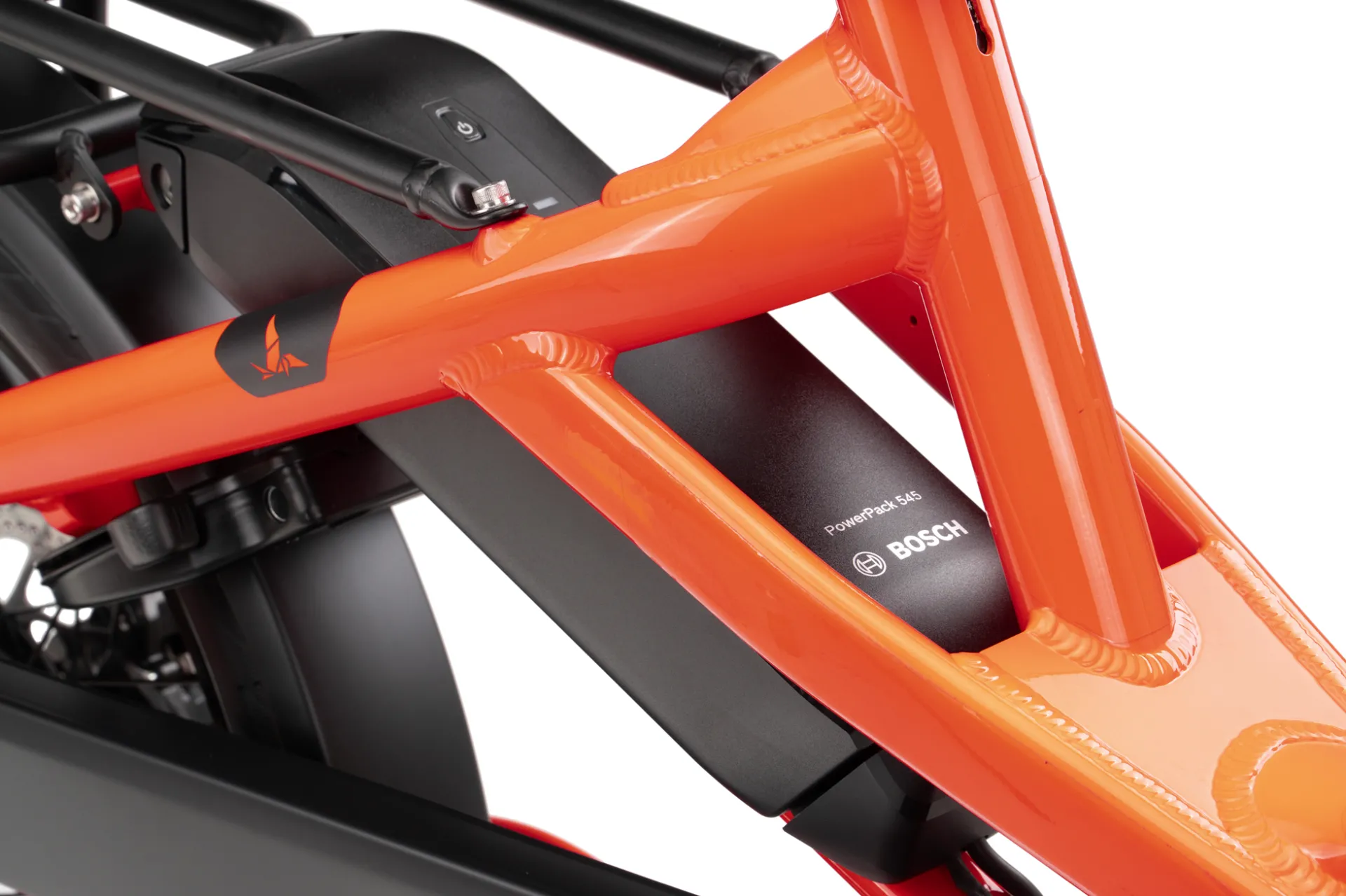

Battery: Bosch PowerPack 545

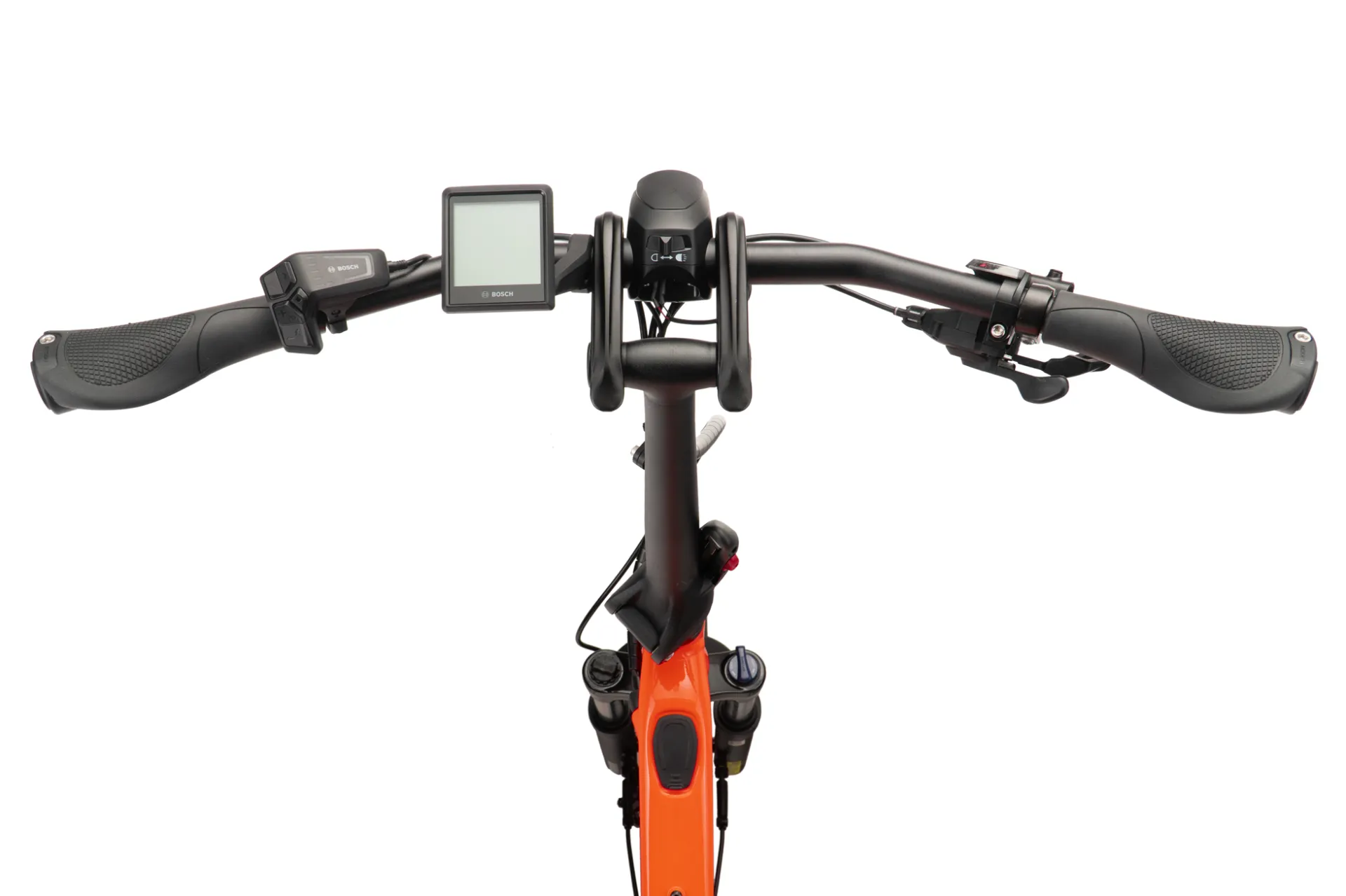

Display: Bosch Intuvia 100 w/ LED remote, 4 modes, walk assist, Bosch eBike Flow app connectivity, electronic bike lock
Lock & Alarm: Optional
Range: 545 Wh: 51–121 km (32–76 mi)

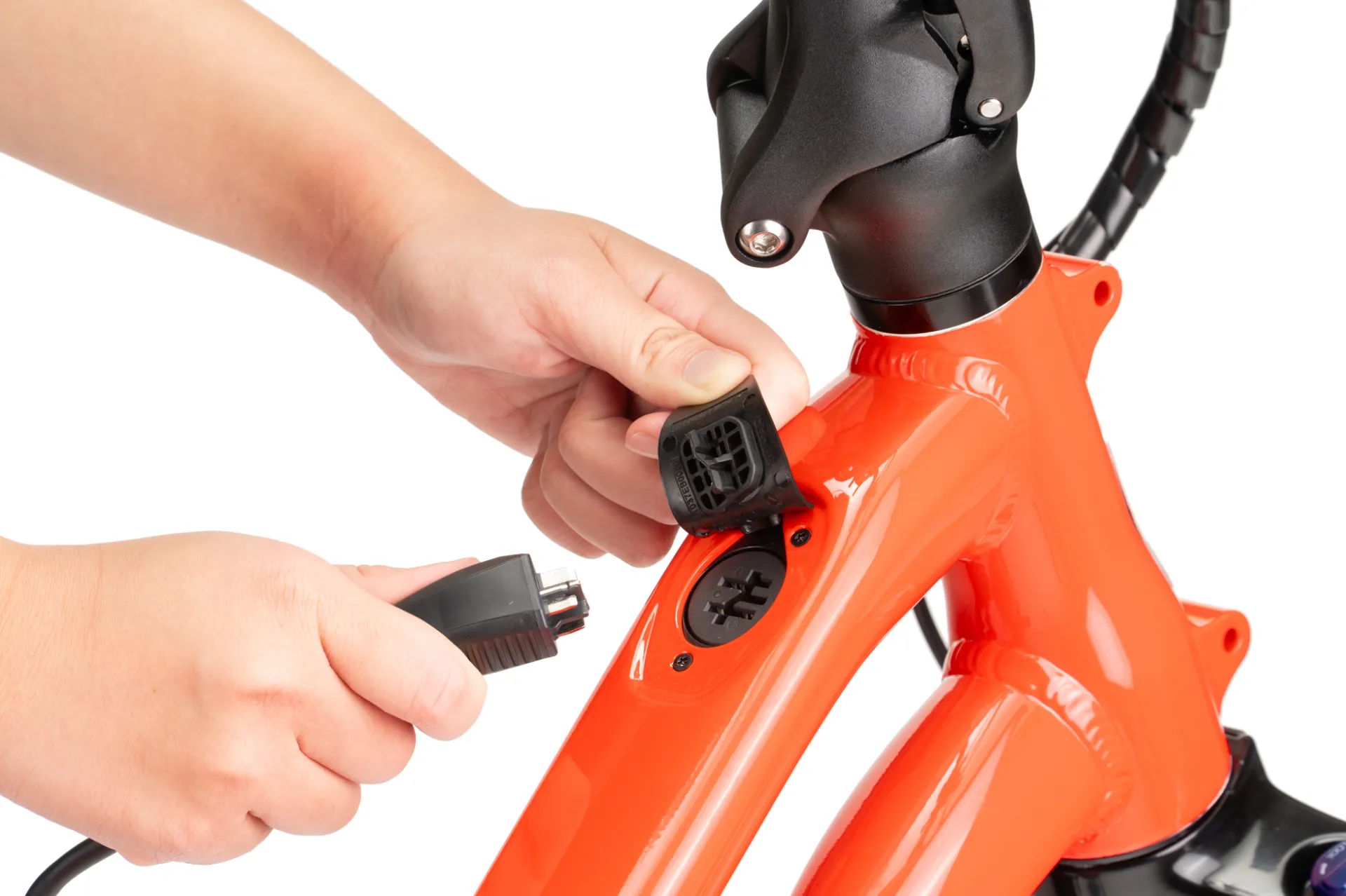

Charger: 220V, 4A (EU); 100–240V, 4A (US)
Bells & Whistles
Bell: Pitch Plus, brass

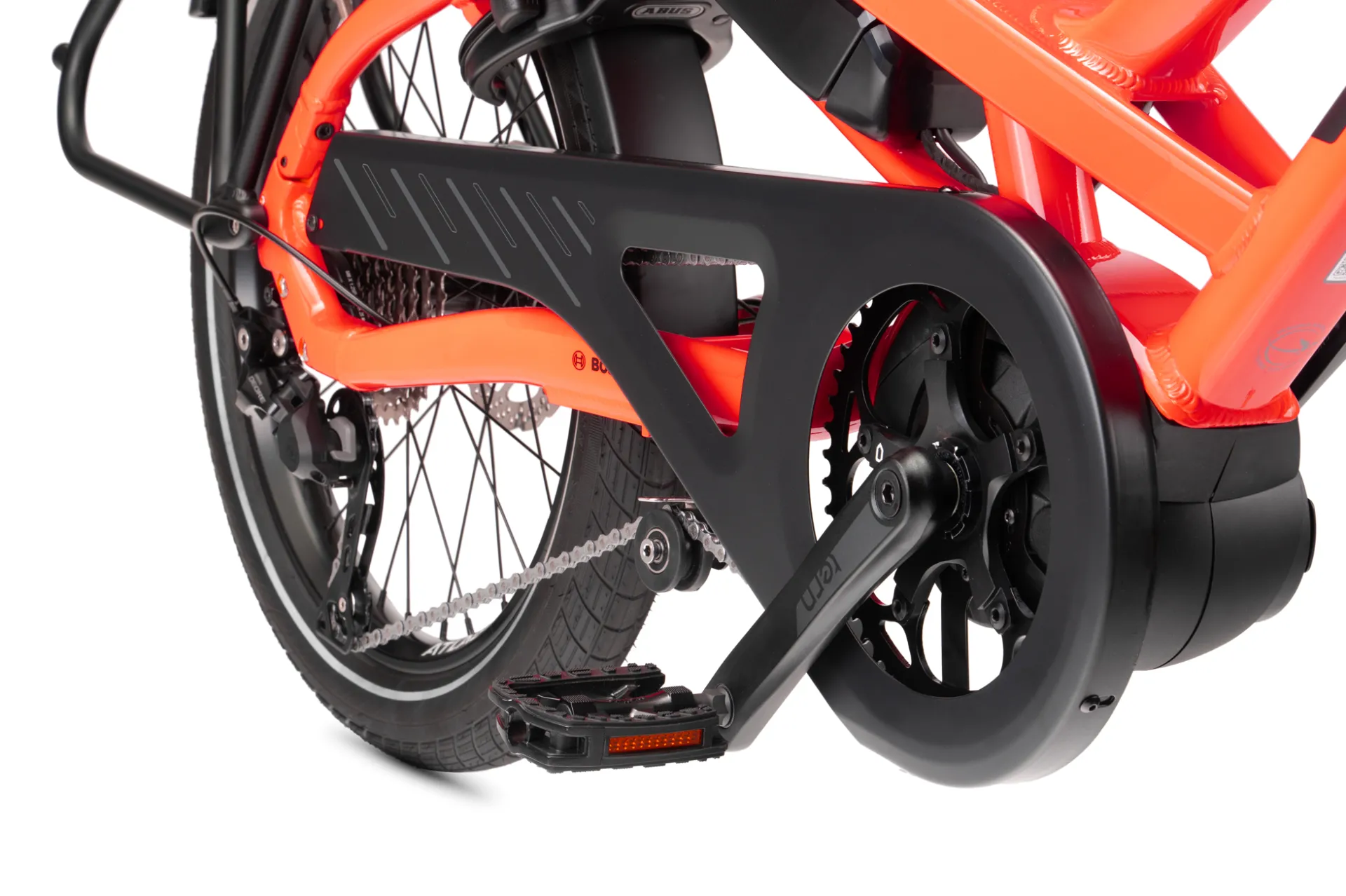

Chainguard: Tern Custom, full chain cover
Kickstand: Ursus, rear mount
Luggage Socket: Combo Mount
Front Light: Tern Valo Direct, 190 lumens
Rear Light: Herrmans H-Trace, for eBike
Fenders: SKS, stainless hardware
Rack(s): Atlas H rack, Atlas Rack Mount, 6-point mounting, 80 kg capacity

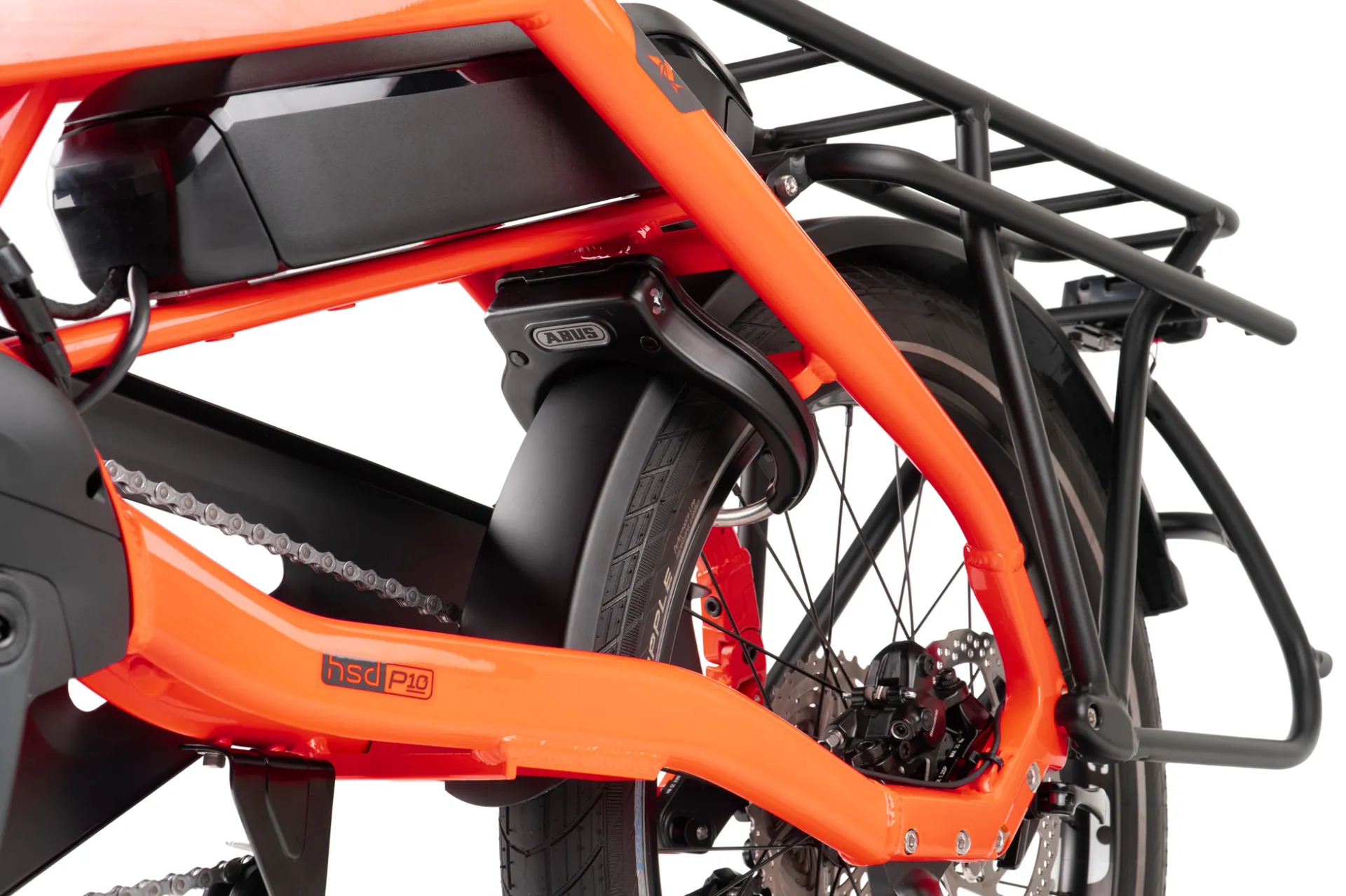

Frame Lock: ABUS, keyed-alike with Bosch battery
