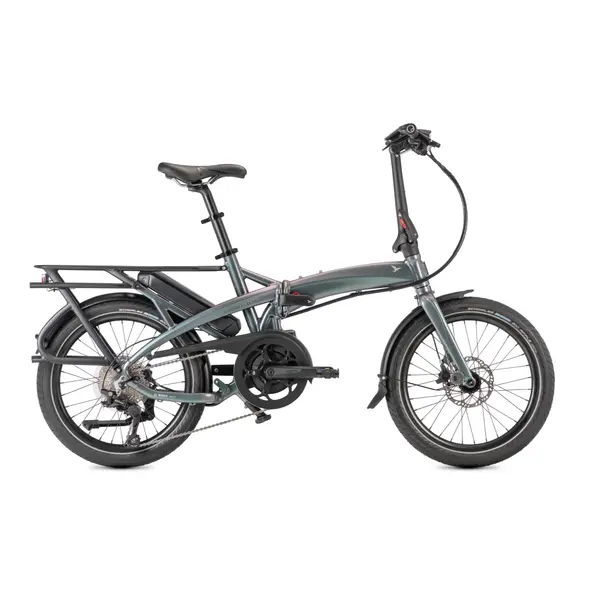

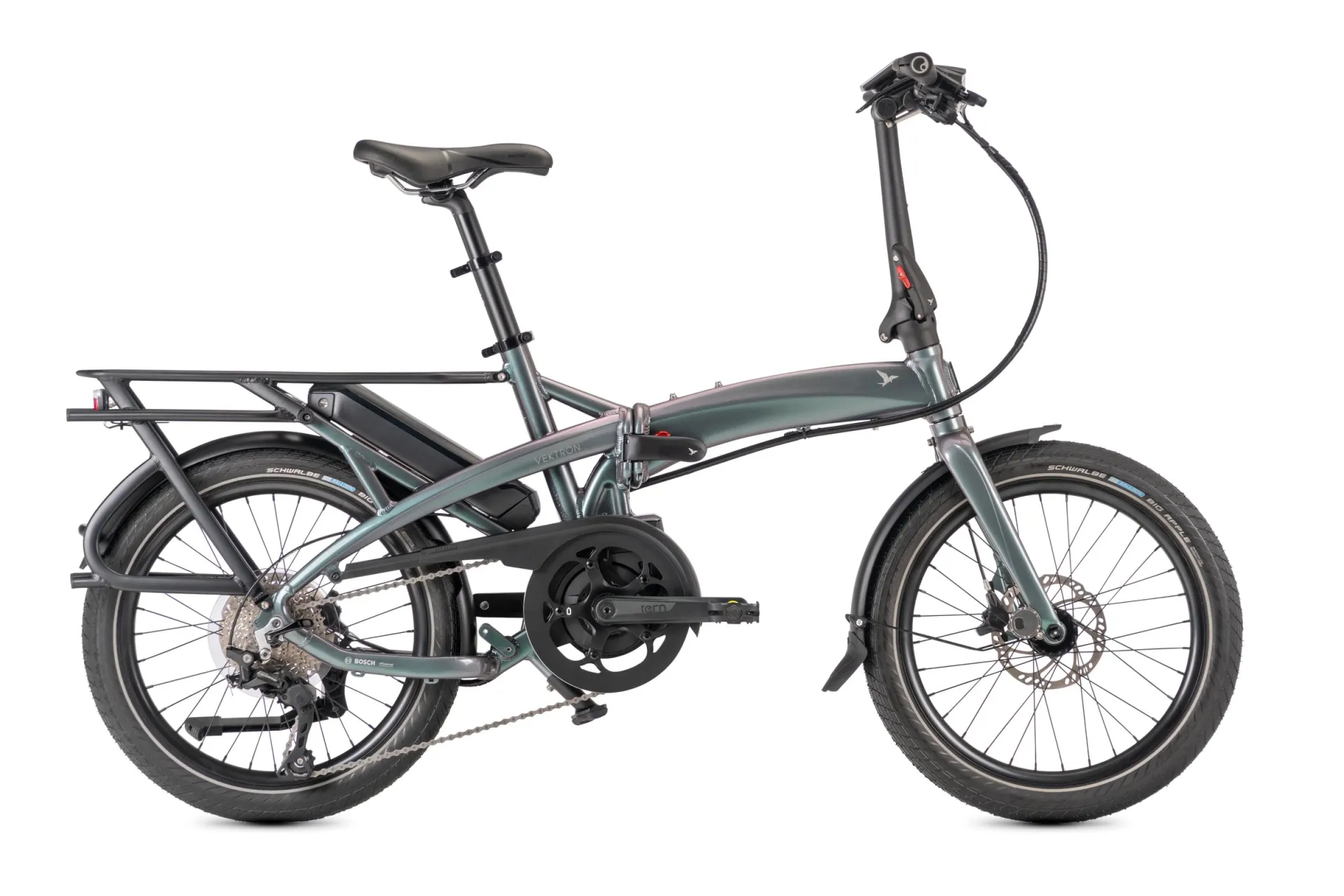

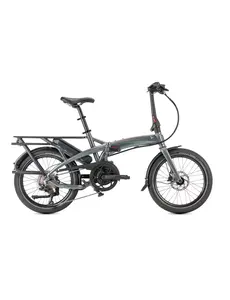

Tern Vektron P10 Electric Gen 4 Cosmic Black 400Wh Folding Bike
Specifications
Information
What makes it a P10?

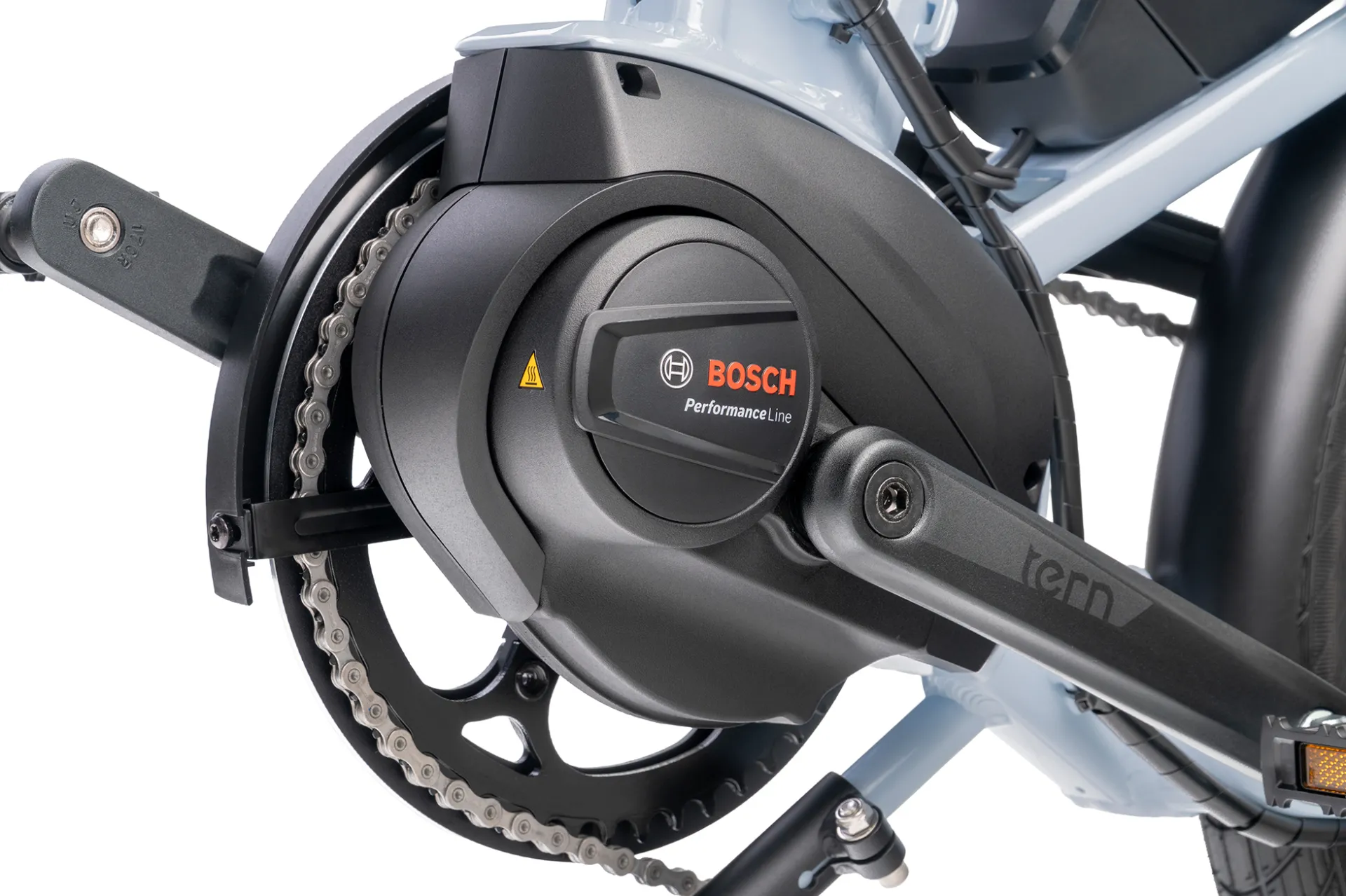

- Powerful Bosch Performance motor provides up to 75 Nm of torque and 340% support
- Intuvia 100 display and LED Remote offer clear info and easy control at your thumb

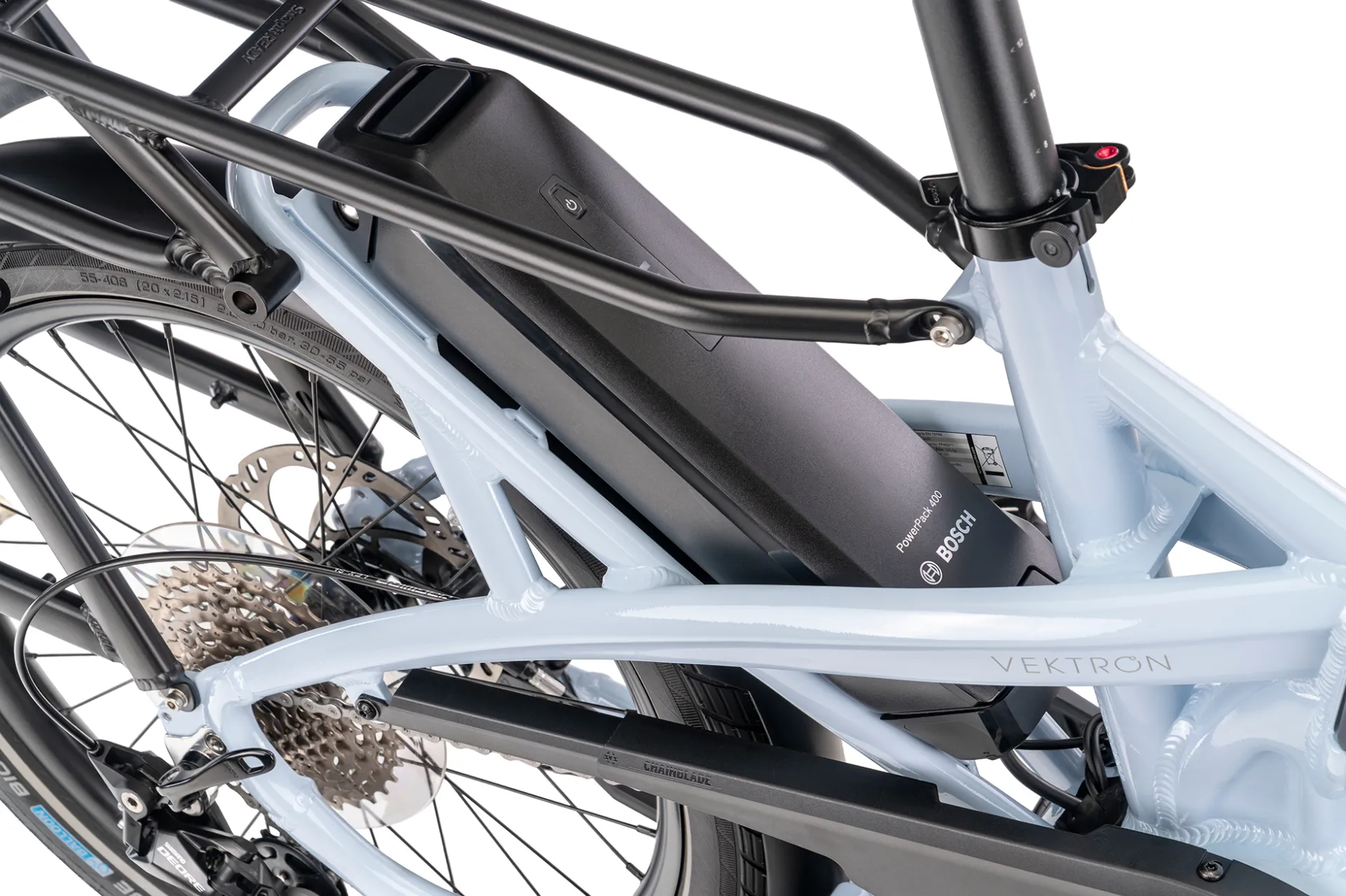

- PowerPack 400 Wh battery lets you ride up to 87 km (54 mi) on a single charge
- Shimano Deore 1 x 10-speed hub for smooth, efficient shifting across changing terrain
Vektron highlights
- Bosch Smart System delivers smart bike features like eBike Lock, ride customization, over-the-air updates, and navigation
- Add the optional ConnectModule to further enhance your experience with advanced functions such as Smart Alarm and GPS tracking
- Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes

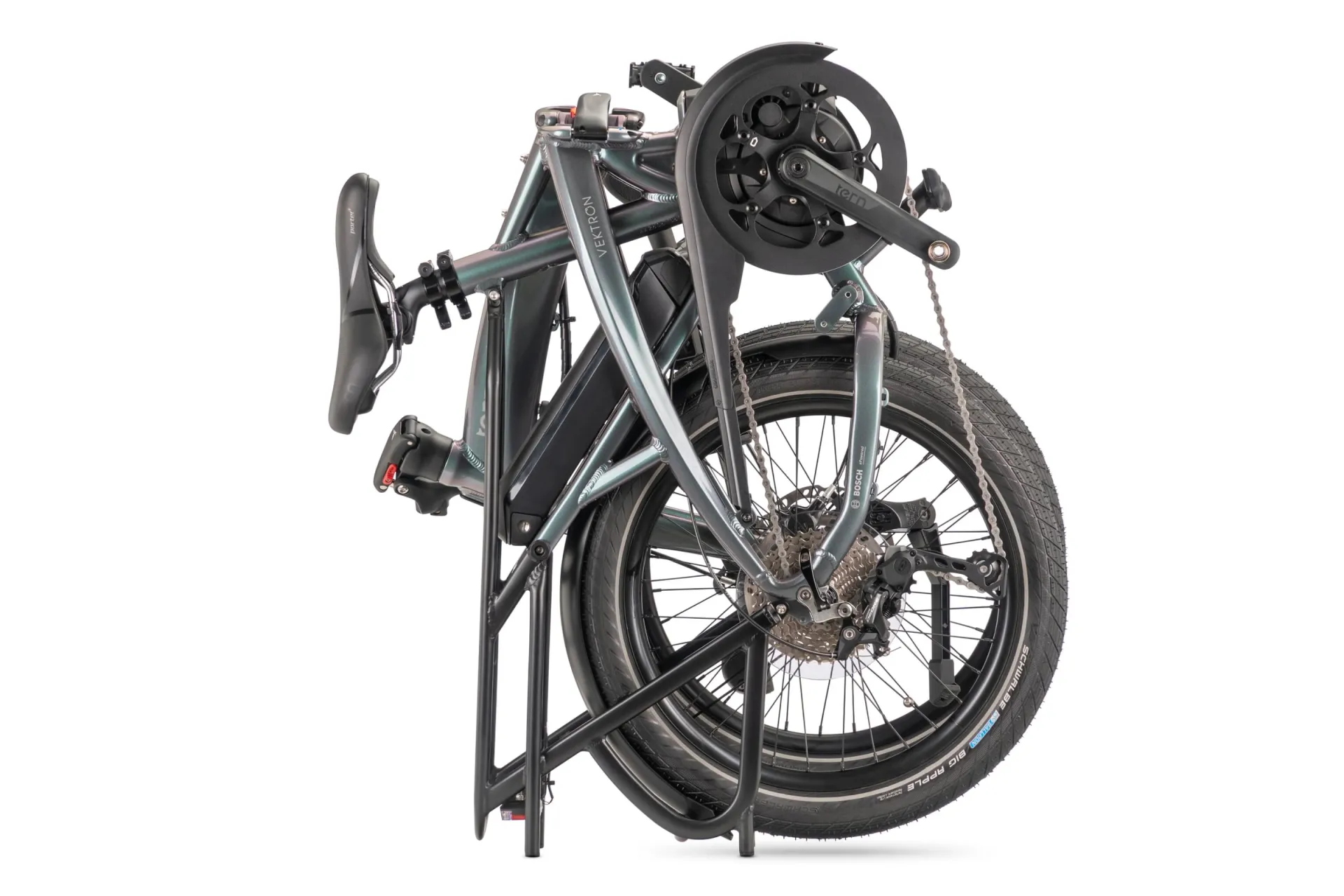

- Folds down compact in 10 seconds to fit in cars, trains, and closets
- Stands upright and rolls when folded—easy to move, easy to store
- Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
- Hydraulic disc brakes for all-weather stopping power
- Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
- UL 2849-certified & tested in compliance with EN 15194, meeting strict eBike safety standards
SPECIFICATIONS
General Info
Speeds: 1 × 10
Weight: 20 kg (44.1 lb)
Gear Inches: 30"–97" (2.36–7.72 m)
Folding Size: 41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
Folding Time: 10 sec
Frame Sizes: One size
Distance: Seatpost to Handlebar: 62–69 cm (24.4–27.2 in)
Distance: Saddle to Pedal: 67–110 cm (26.4–43.3 in)
Suggested Rider Height: 147–195 cm (57.9–76.8 in)
Max Gross Vehicle Weight: 125 kg (275.6 lb)
Max Rider Weight: 105 kg (231.5 lb)
Frame

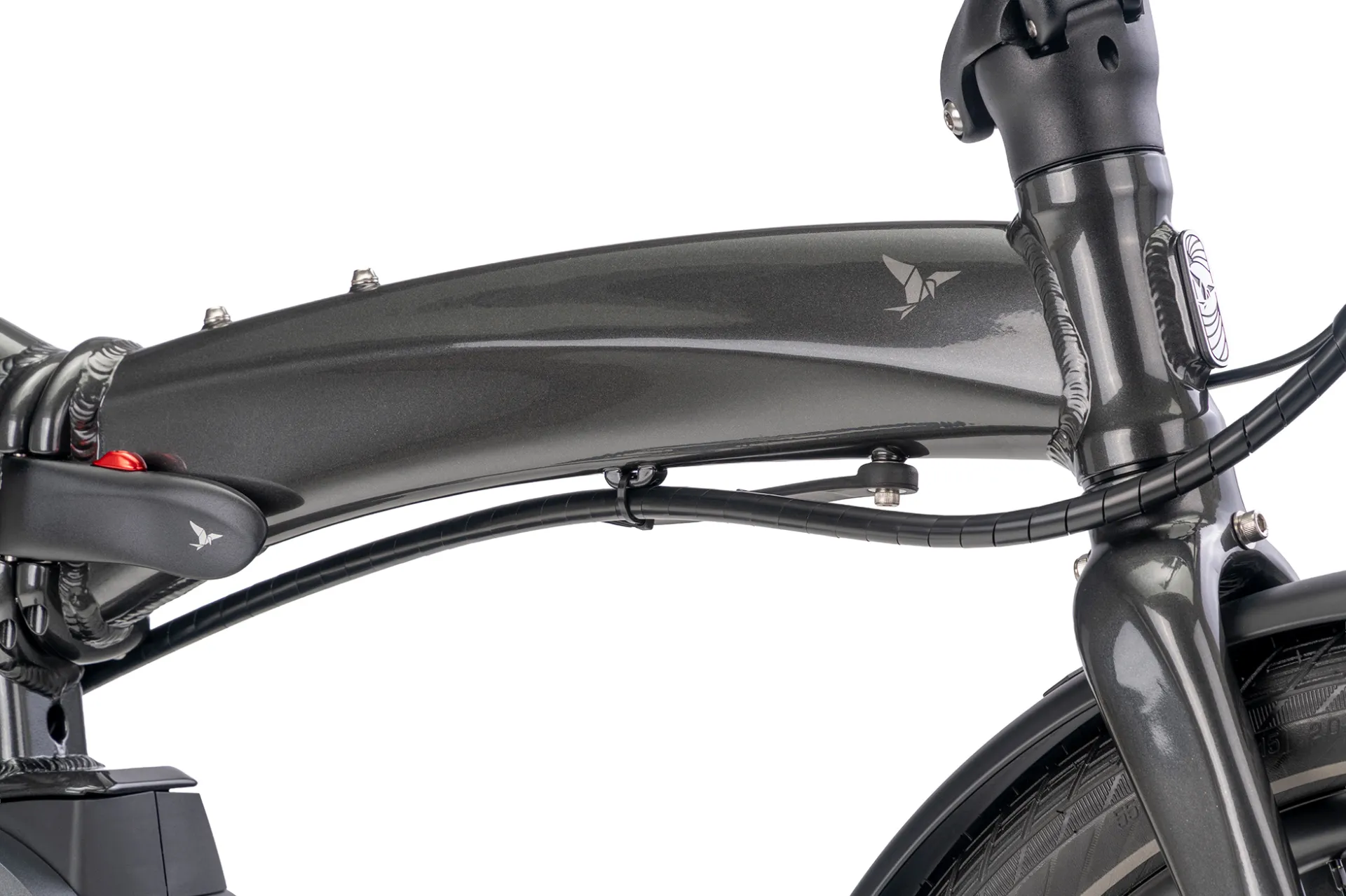

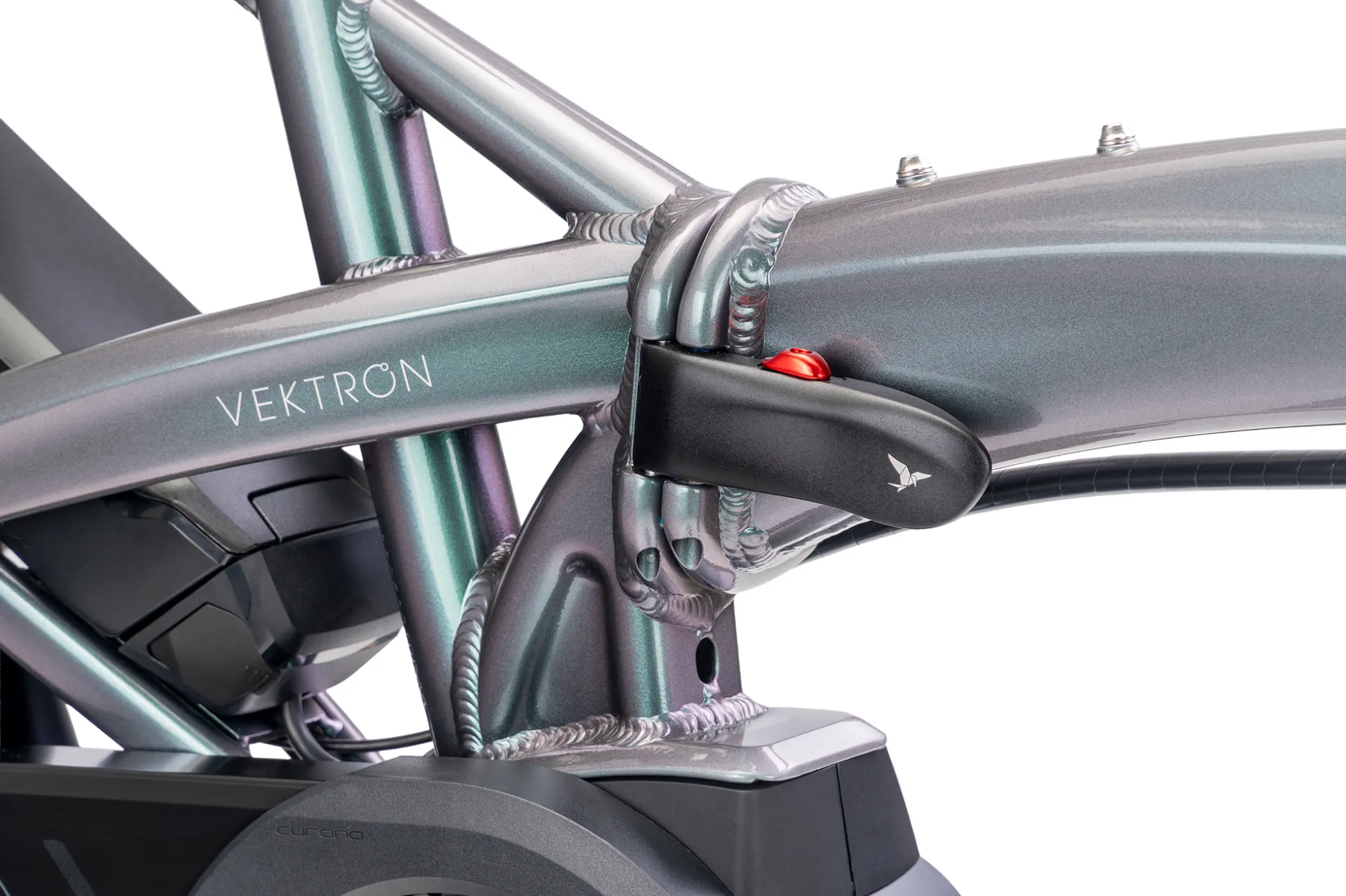

Frame: Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork: Tern Tarsus, 6061-AL, hydroformed
Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar: Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern Porter+ by Velo, patented GripPad design, PrimeGel padding
Seatpost: Tern Telescope, 34.9/30.9 mm
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Magura MT4, hydraulic disc
Rear Brake: Magura MT4, hydraulic disc
Brake Levers: Magura, hydraulic disc
Brake Cable & Housing: Magura, hydraulic disc
Wheels
Front Hub: Novatec, sealed cartridge bearing, disc
Rear Hub: Novatec, sealed cartridge bearing, disc
Spokes & Nipples: Stainless steel, double-butted
Rims: Kinetix Comp, for disc
Tyres: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Transmission
Shifter(s): Shimano Deore, 1 × 10 spd

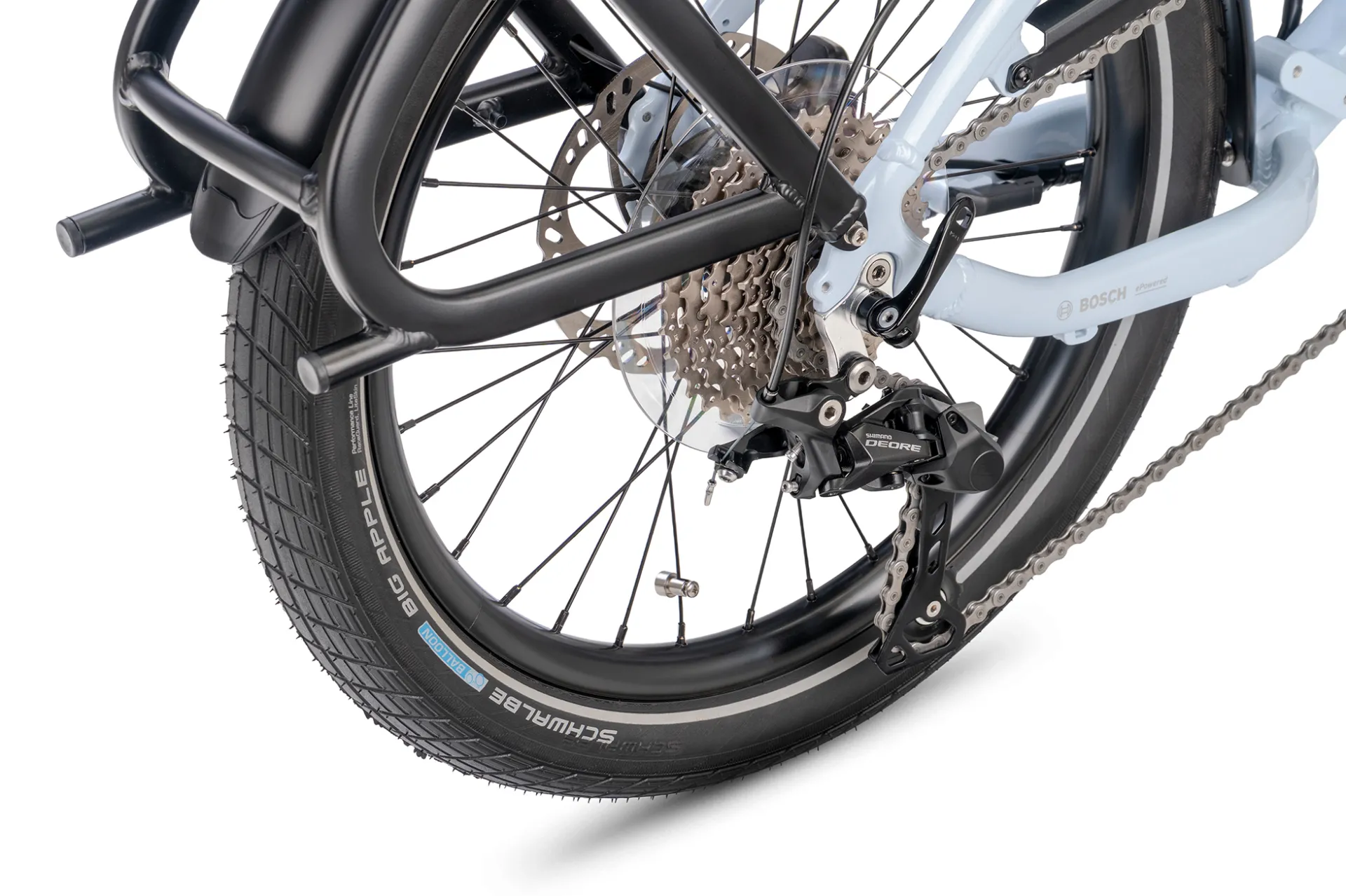

Rear Derailleur: Shimano Deore Shadow+
Crankset: Tern custom, forged 6061-AL crankarm
Cassette/Freewheel: Shimano 11-36T, 10 spd
Bottom Bracket: Motor integrated
Chain: 10 spd, DHT for eBike, GST corrosion resistant coating
Pedals: MKS EZY
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor: Bosch Performance, max speed 25 kph (EU)
Battery: Bosch PowerPack

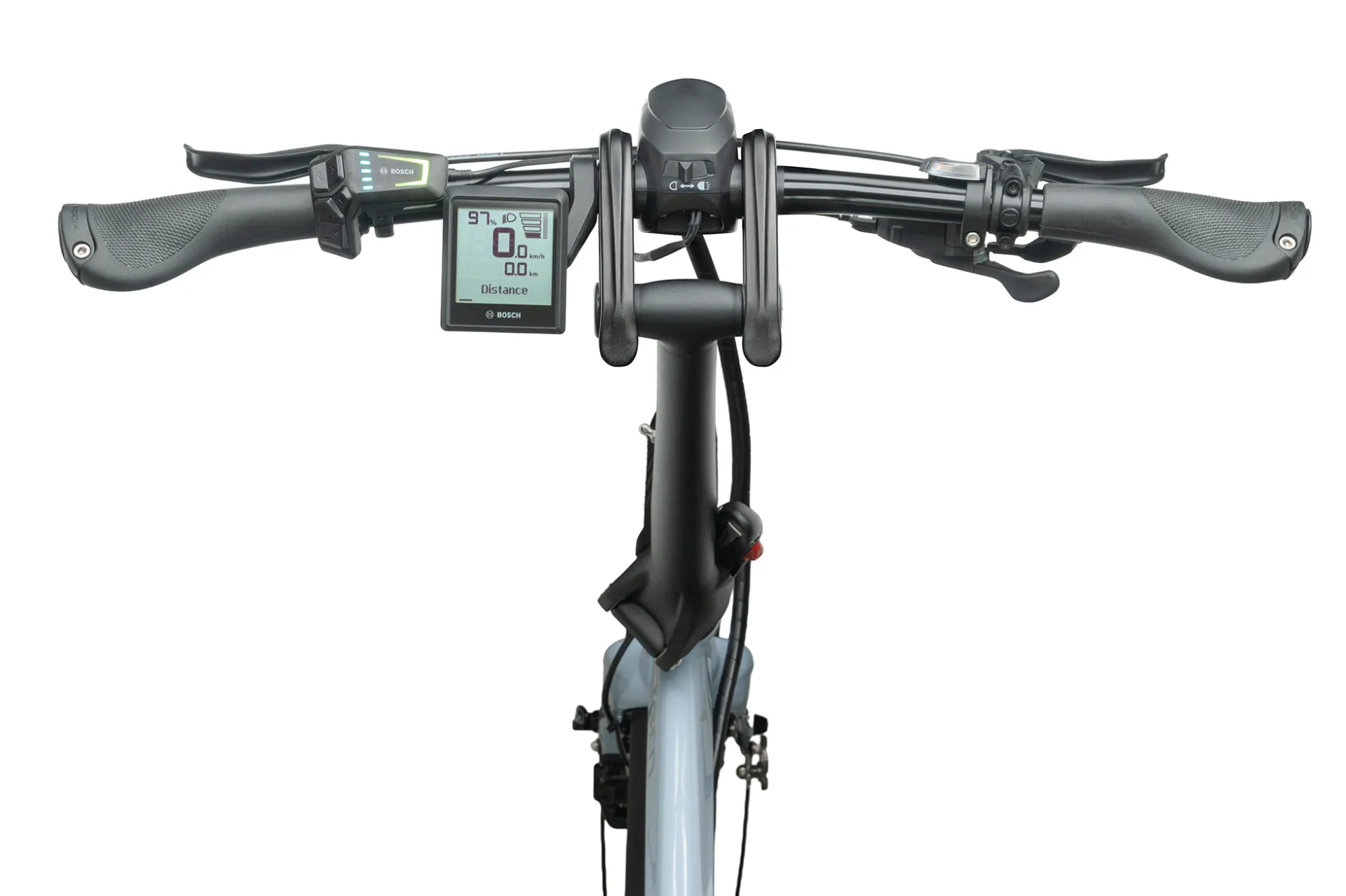

Display: Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, Bosch eBike Flow app connectivity, electronic bike lock
Range: 400 Wh: 40–87 km (25–54 mi)
Charger: 100–240V, 2A
Bells & Whistles
Chainguard: SKS Chainblade
Kickstand: URSUS, rear mount
Clip System: Magnetix 3.0
Luggage Socket: Yes
Front Light: Tern Valo Direct, 190 lumens
Rear Light: Herrmans H-Trace, for eBike
Fenders: SplashGuard, stainless hardware
Rack(s): Atlas V Rack, integrated 8 point mounting, 27 kg capacity
Related products
AVAILIABLE TO RIDE IN 3 WORKING DAYS!!!Compact, powerful folding e-bike with Bosch Active Line Plus motor, hydraulic brakes, child-seat ready rack, and adjustable fit for riders 147–195 cm.
AVAILIABLE FROM APRIL 2026!!

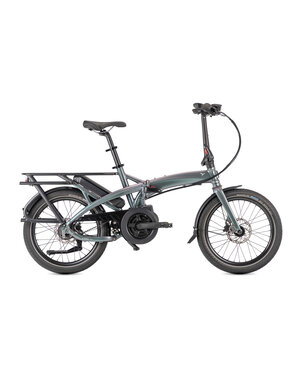

Tern Vektron P5i Ride It, Fold It, Go Further.
