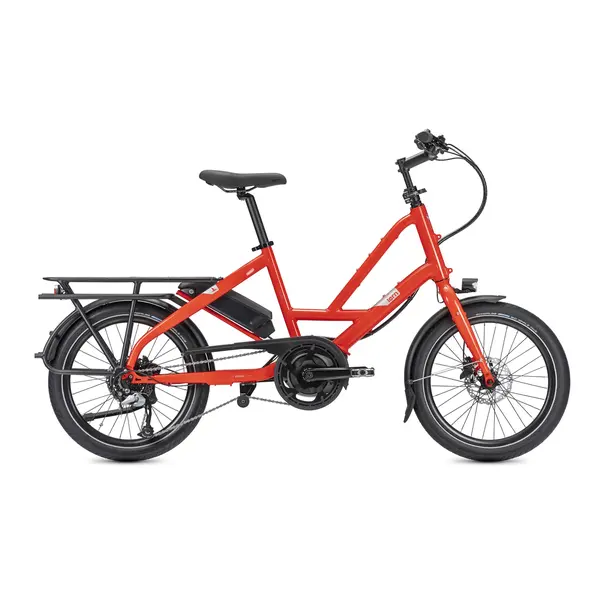

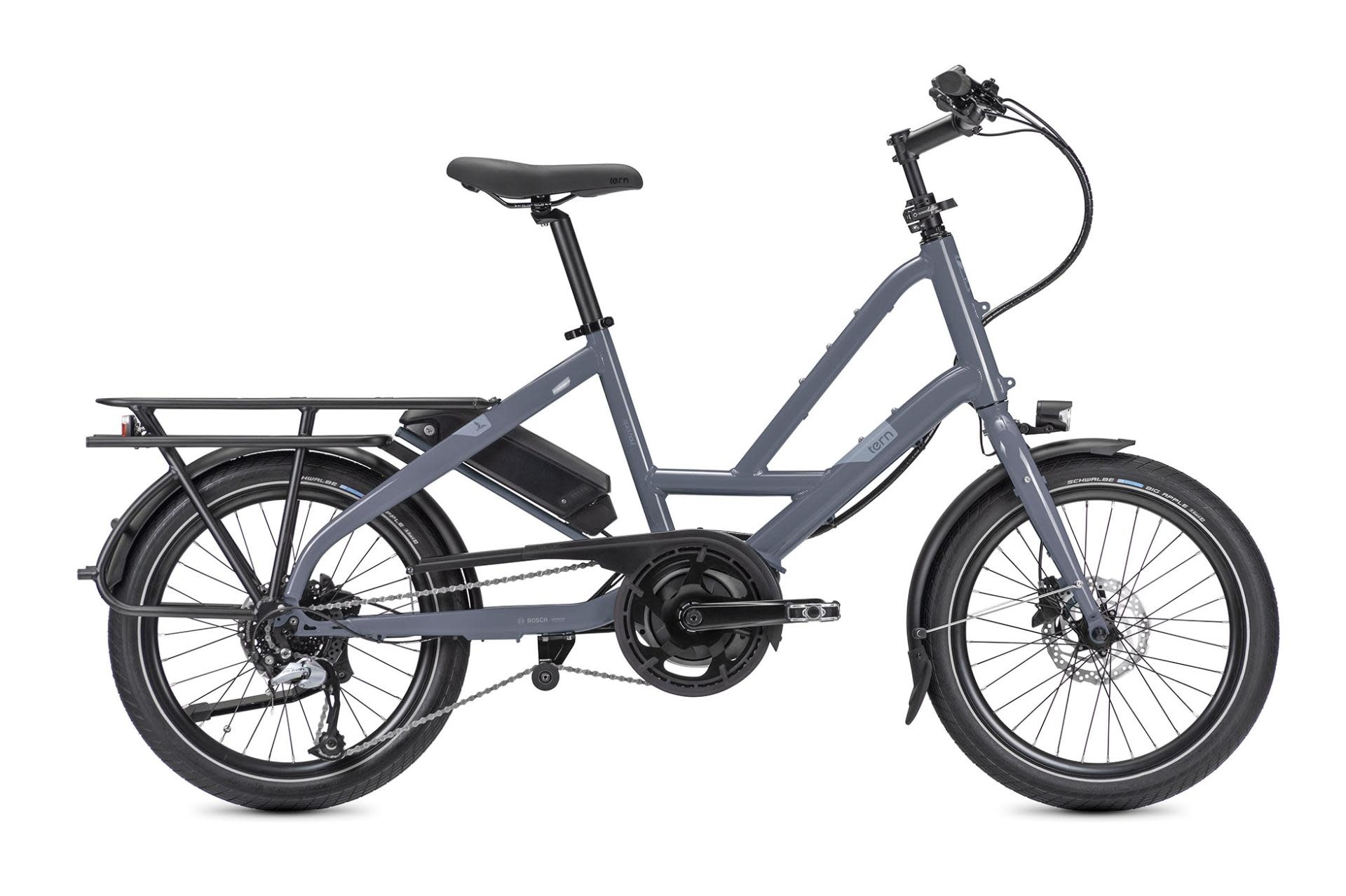

Tern Quick Haul D8 400W

£2,700.00 Out of stock
Tern Quick Haul D8 – Compact Electric Cargo Bike Simply capable. The Tern Quick Haul D8 is a budget-friendly compact e-cargo bike built for everyday hauling. Powered by a Bosch Active Line Plus motor (50 Nm torque, up to 270% support) and a 1×8 Shimano A Read more

Specifications

Brand:
Tern
Availability:
Out of stock

Information

What Makes it a D8?

  • Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
  • 1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights

  • Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
  • Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost
  • Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
  • Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
  • Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
  • Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight



SPECIFICATIONS



General Info

Generation: Gen 1

Speeds: 1 x 8
Weight: 22.8 kg (50.3 lb)
Gear Inches: 31" - 95" (2.45 - 7.57 m)
Frame Sizes: One size
Bike Size: 172.5 × 70 × 102.5 cm (67.9 × 27.6 × 40.4 in)
Distance: Seatpost to Handlebar: 60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal: 68 - 110 cm (26.8 - 43.3 in)
Suggested Rider Height: 160 - 195 cm (63 - 76.8 in)
Max Gross Vehicle Weight: 150 kg (330.7 lb)
Max Rider Weight: 120 kg (264.6 lb)

Frame

Frame: Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork: Cargo, steel, EFBE approved: 150 kg

Cockpit

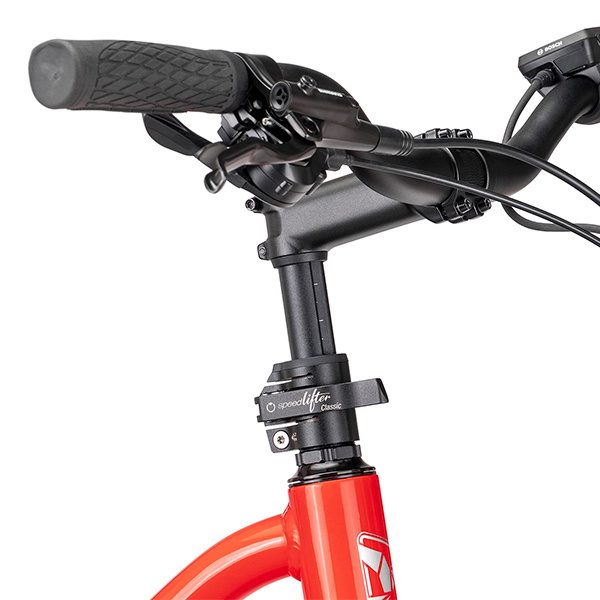

Stem: Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Headset: TH, cartridge bearings
Handlebar: Low riser, 31.8, 6061-AL
Grips/Bar Tape: Velo ergonomic, lock-on
Saddle: Velo Comfort
Seatpost: 31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp: Tern Collar

Brakes

Front Brake: Shimano, hydraulic disc
Rear Brake: Shimano, hydraulic disc
Brake Levers: Shimano, hydraulic disc
Brake Cable & Housing: Shimano, hydraulic disc

Wheels

Front Hub: Shimano disc
Rear Hub: Shimano disc
Spokes & Nipples: Stainless steel
Rims: Kinetix Comp, for disc
Tires: Schwalbe Motion Big Apple, 55-406, puncture protection, Reflex

Transmission

Shifter: Shimano Altus, 1 x 8 spd, trigger
Rear Derailleur: Shimano Altus Shadow
Crankset: Tern custom, forged 6061-AL crankarm
Cassette/Freewheel: Shimano 11-34T, 8 spd
Bottom Bracket: Motor integrated
Chain: KMC for eBike, 8 spd
Pedals: Urban with non-slip surface
Shifter Cable & Housing: SP

E-System

Motor: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch PowerPack 400
Display: Bosch Purion
Range: 400 Wh: 54 - 105 km (33.6 - 65.2 mi)
Charger: Compact Charger, 100-240V, 2A

Bells & Whistles

Bell: Aluminum
Chainguard: SKS Chainblade
Kickstand: Pletscher design, rear mount
Luggage Socket: Combo Mount
Front Light: Herrmans, 120 lumens
Rear Light: Herrmans
Fenders: Chromeplastic, stainless hardware
Rack: Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
