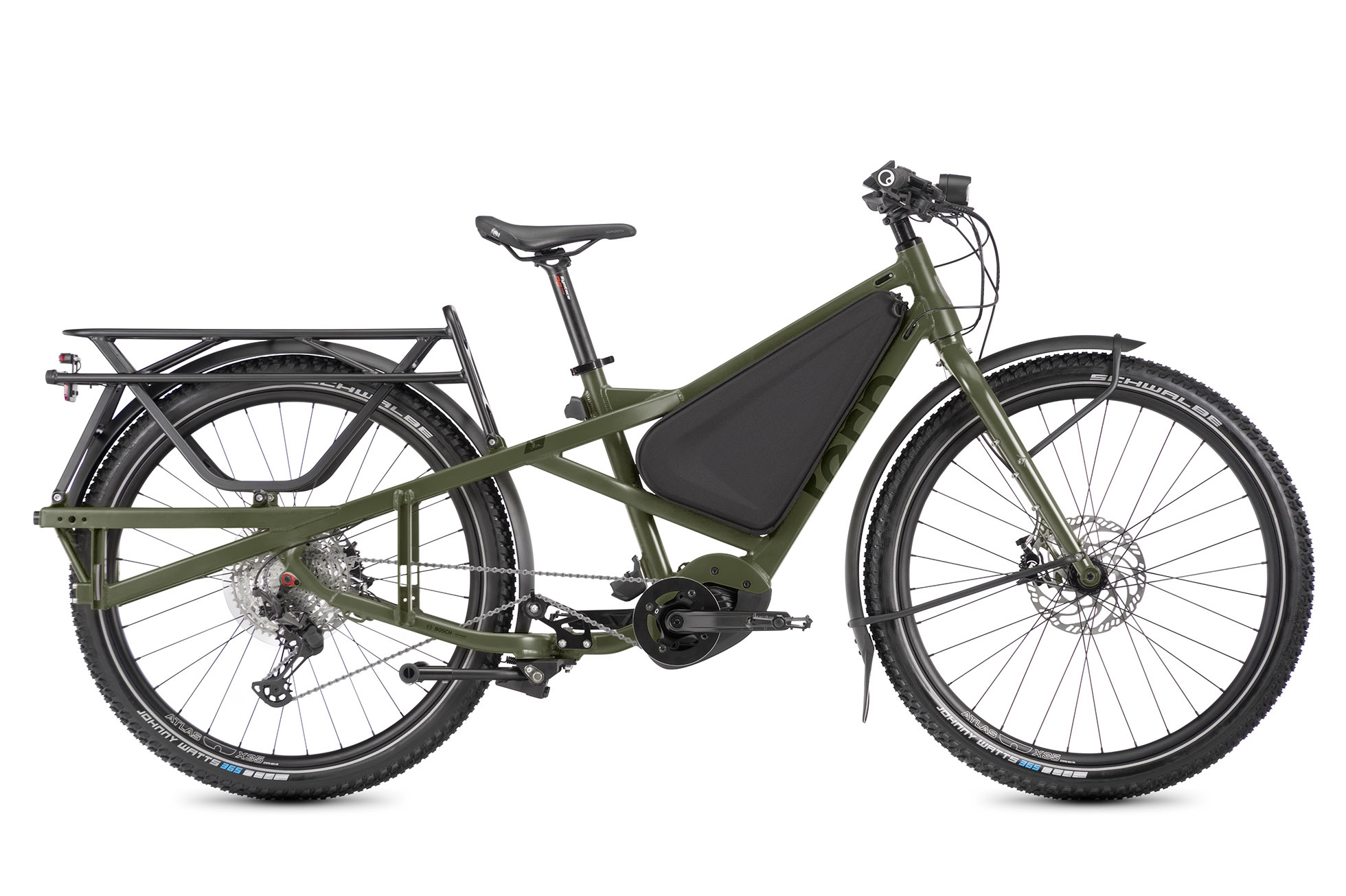

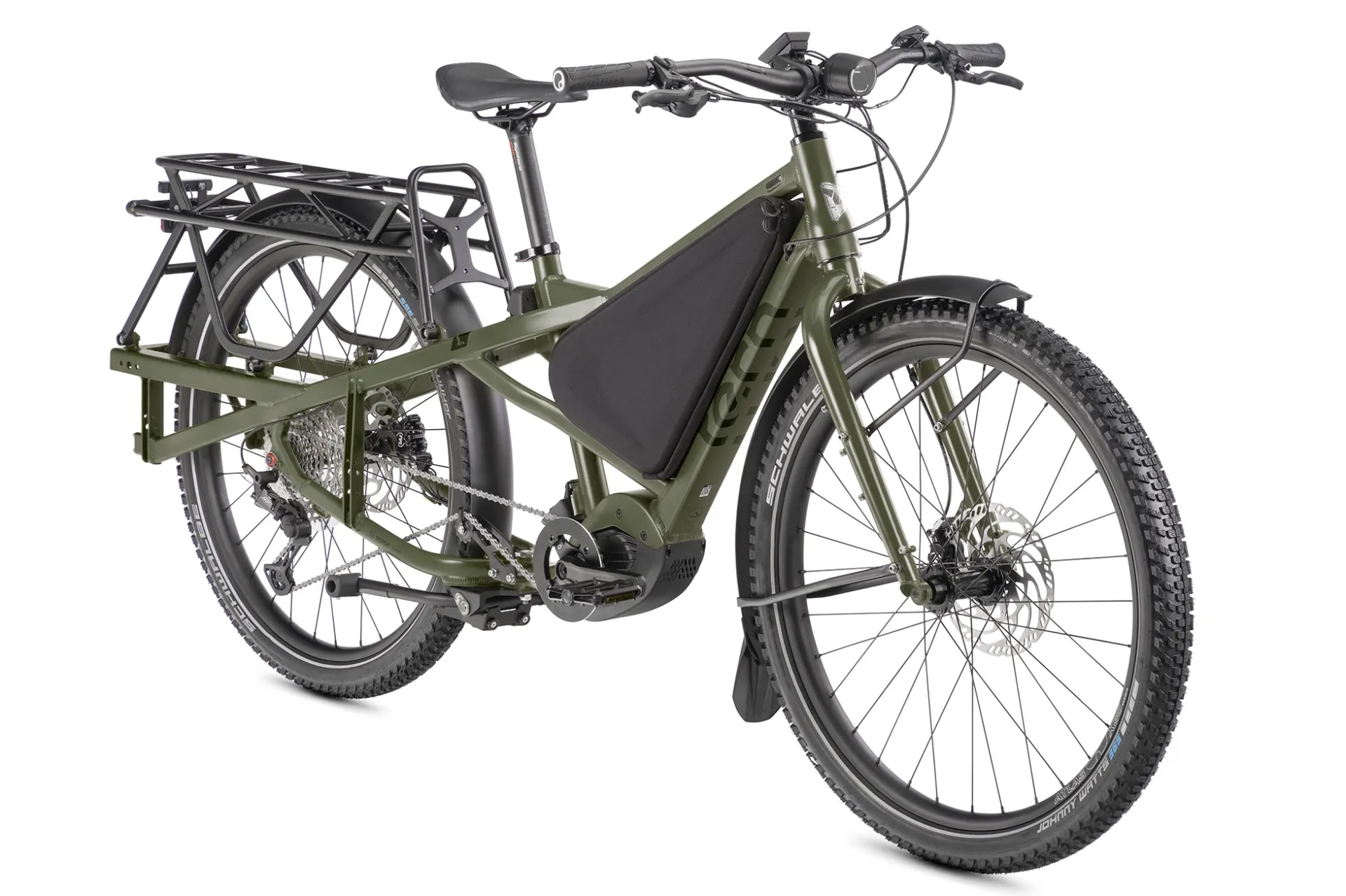

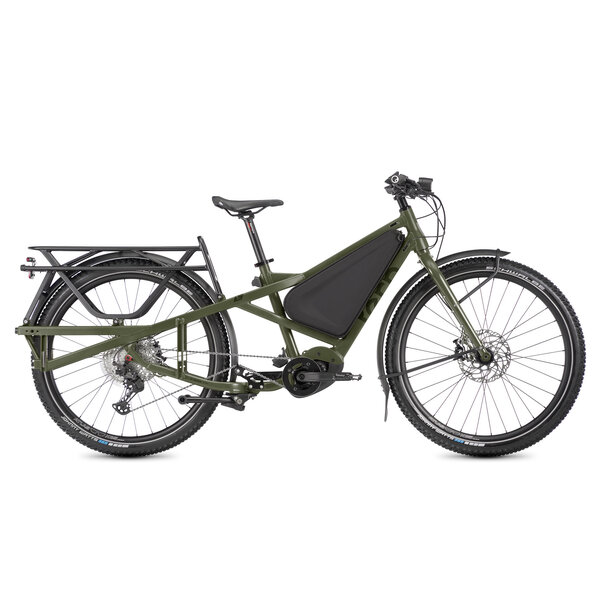

Tern Orox S12 Gen 1 800W

Name: Tern Tern Orox S12 Gen 1 800W
Brand: Tern
Price: 5900.00 GBP
Availability: InStock

£5,900.00 Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)

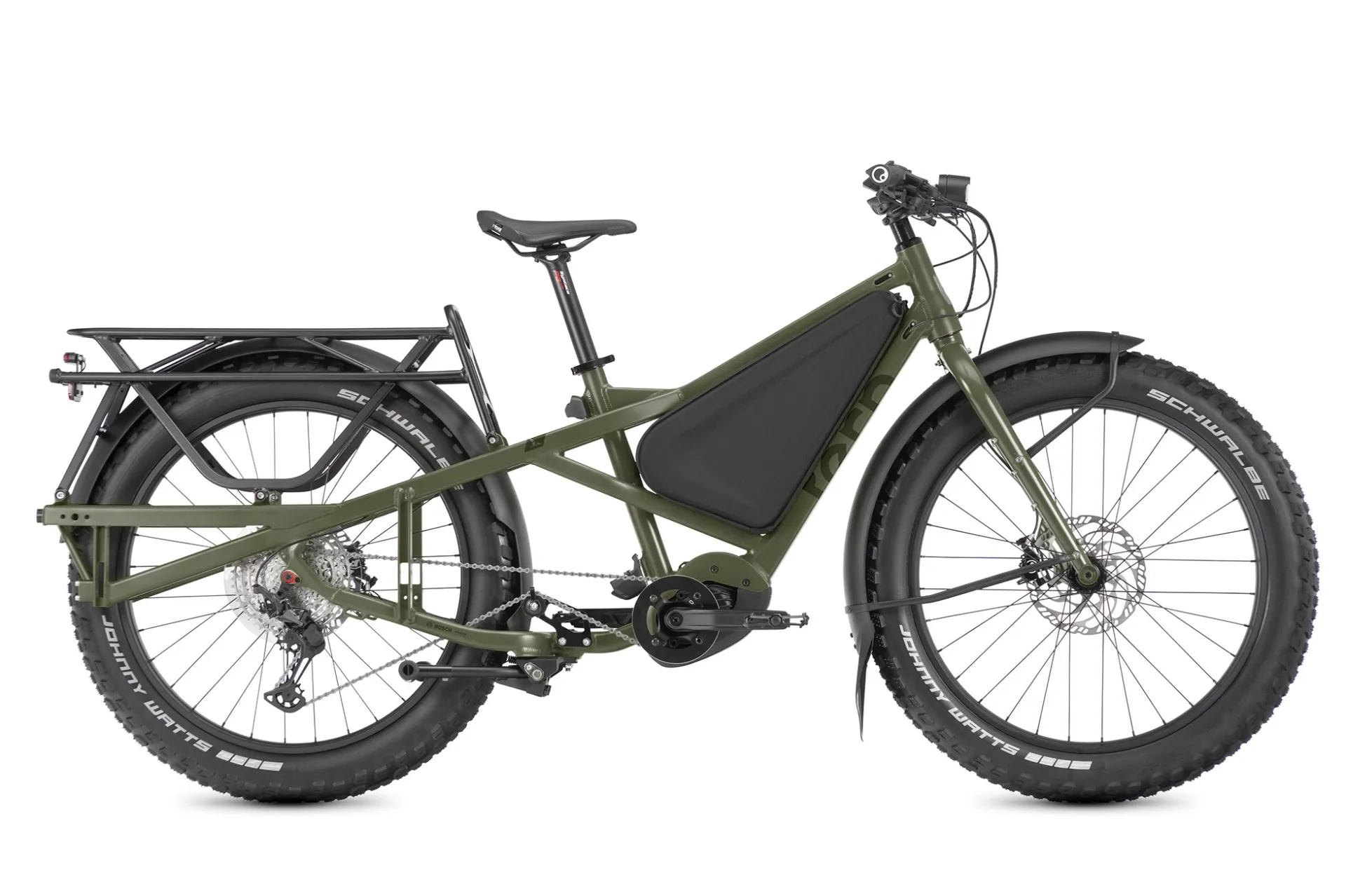

Tern Orox S12 adventure e-cargo bike. Bosch CX 85 Nm motor, dual battery, Shimano XT 12-speed, Magura brakes. Hauls up to 210 kg on any terrain. Read more

Specifications

Brand:

Tern

Availability:

Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)

Information

What makes it an S12?

Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting

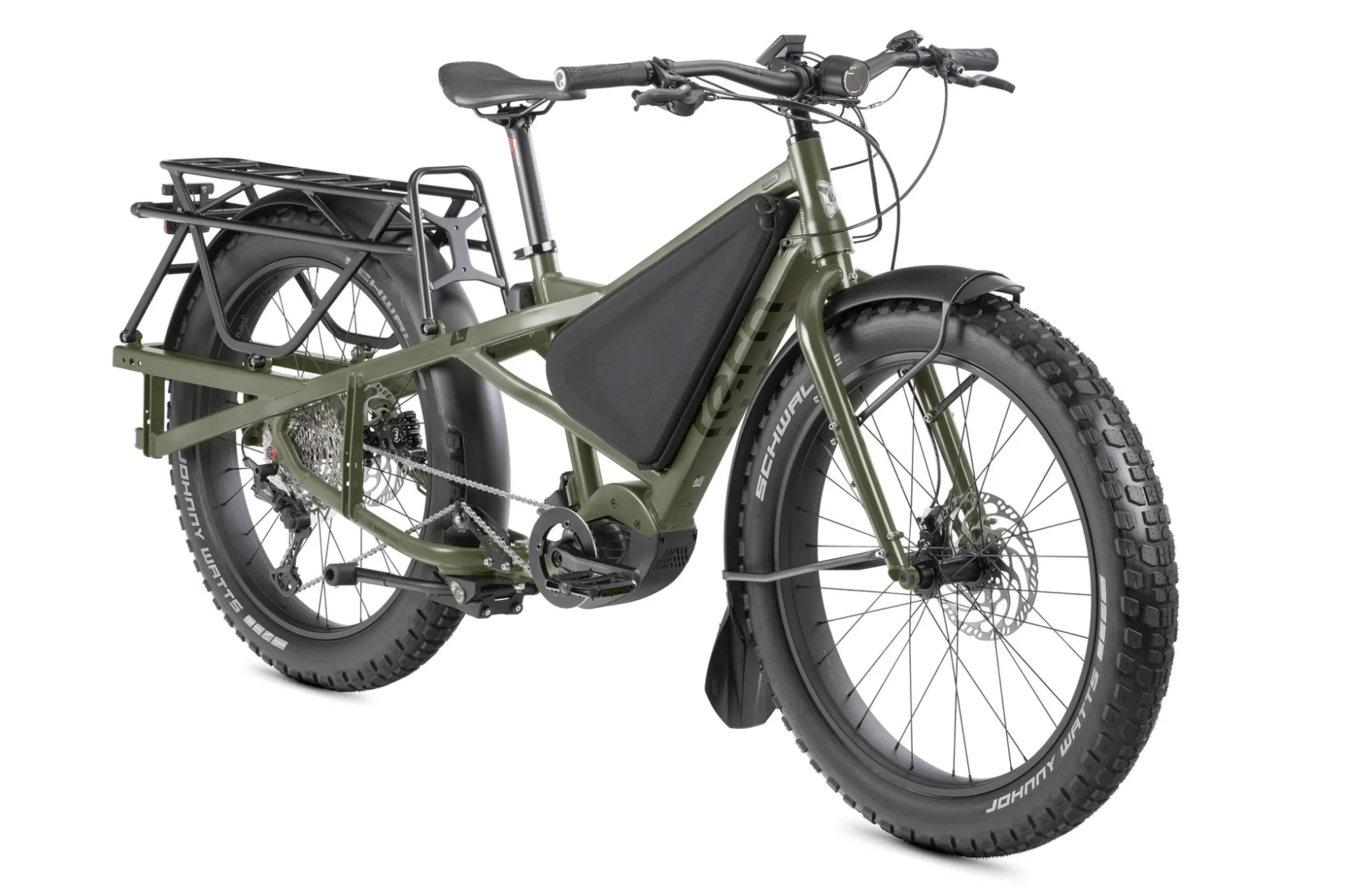

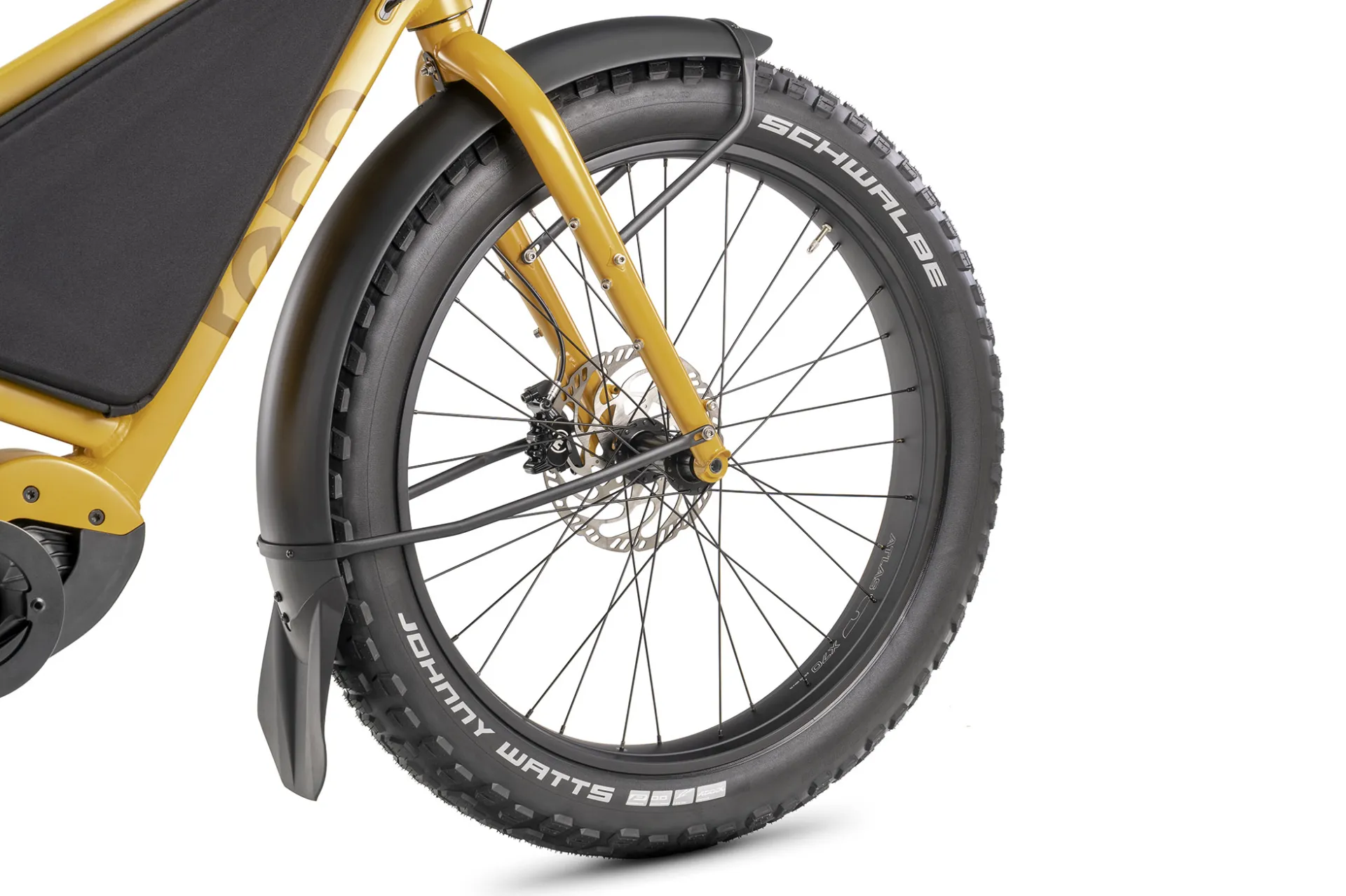

Custom 27.5" Schwalbe Johnny Watts all-terrain tires or 27.5" stud-compatible Vee Snowball tires take on even the toughest conditions
29" Schwalbe Johnny Watts all-terrain tires

Orox highlights

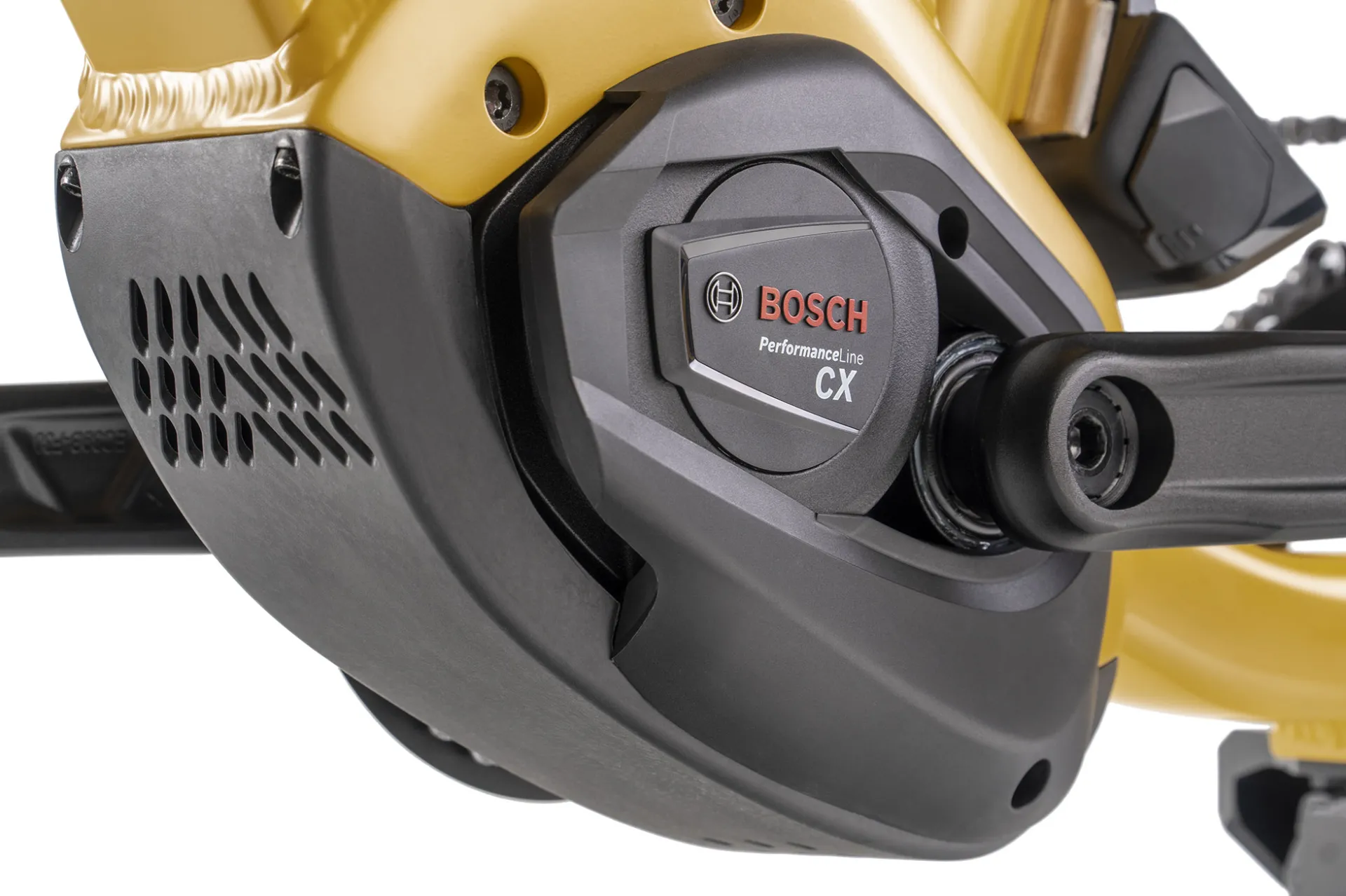

Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support

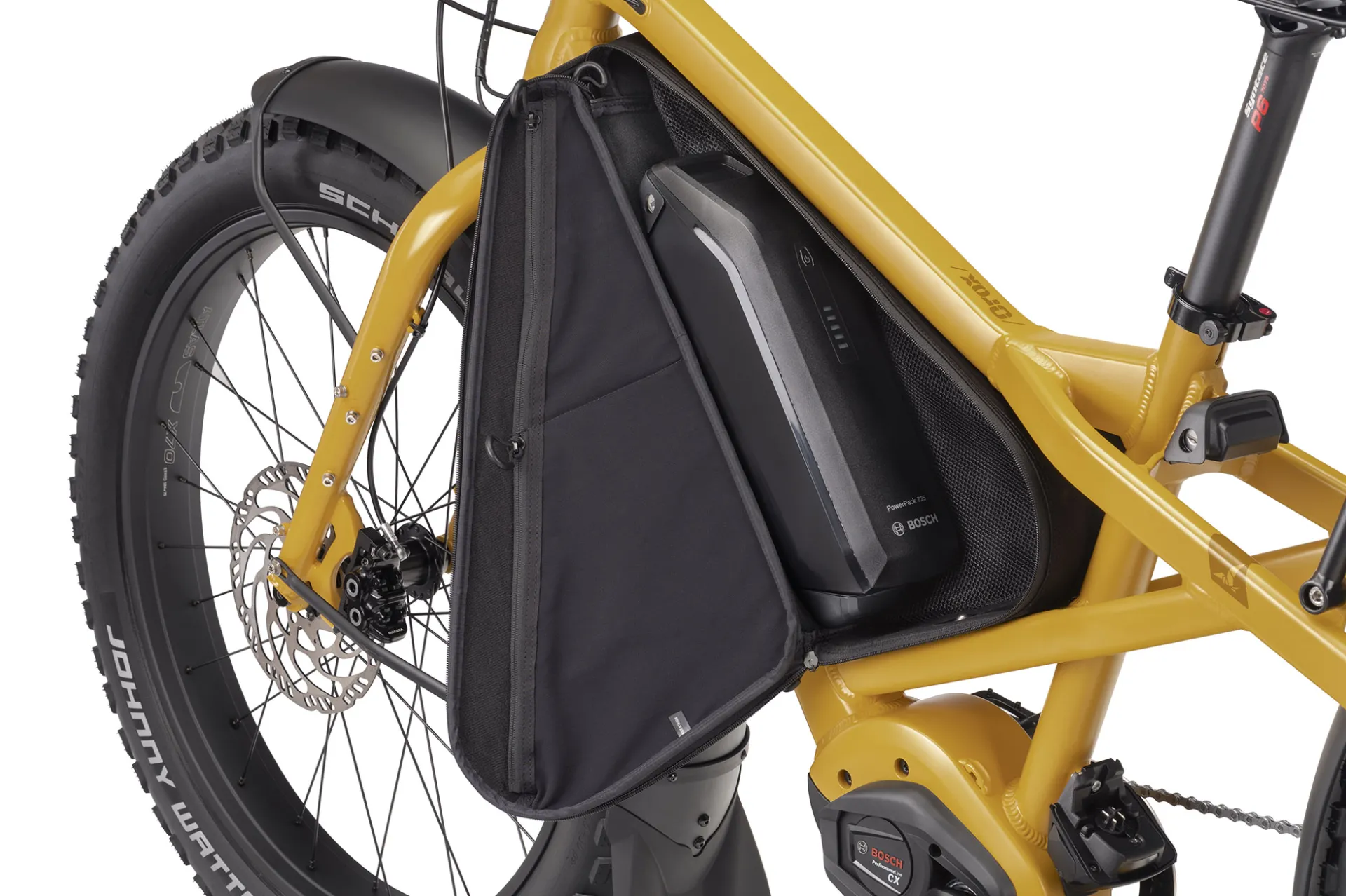

Dual-battery system draws from up to two batteries for ultra-long range
Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
Powerful and responsive Magura 4-piston hydraulic brakes
EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

SPECIFICATIONS

General Info

Color(s): Pine

Generation: Gen 1

Speeds: 1 x 12

Weight: M: 34.4 kg (75.8 lb)

Gear Inches: 18" - 95" (1.48 - 7.54 m)

Frame Sizes: M, L

Bike Size:M: 214 × 82 × 107.5 cm (84.3 × 32.3 × 42.3 in) ; L: 218 × 82 × 109.5 cm (85.8 × 32.3 × 43.1 in)

Wheelbase: M: 134 cm (52.8 in) ; L: 137 cm (53.9 in)

Seat Tube Length: M: 46 cm (18.1 in) ; L: 50.5 cm (19.9 in)

Top Tube Length: M: 61 cm (24 in) ; L: 64.5 cm (25.4 in)

Stack Height: M: 62.5 cm (24.6 in) ; L: 65 cm (25.6 in)

Standover Height: 70 cm (27.6 in)

Distance: Seatpost to Handlebar:

M: 61 - 66 cm (24 - 26 in) ;

L: 67 - 73 cm (26.4 - 28.7 in)

Distance: Saddle to Pedal:

M: 71 - 99 cm (28 - 39 in) ;

L: 76.5 - 104.5 cm (30.1 - 41.1 in)

Suggested Rider Height:

M: 155 - 185 cm (61 - 72.8 in) ;

L: 165 - 195 cm (65 - 76.8 in)

Max Gross Vehicle Weight: 210 kg (463 lb)

Max Rider Weight: 130 kg (286.6 lb)

Frame

Frame: Tern Orox, 6061-AL, patented design, EFBE tested and approved

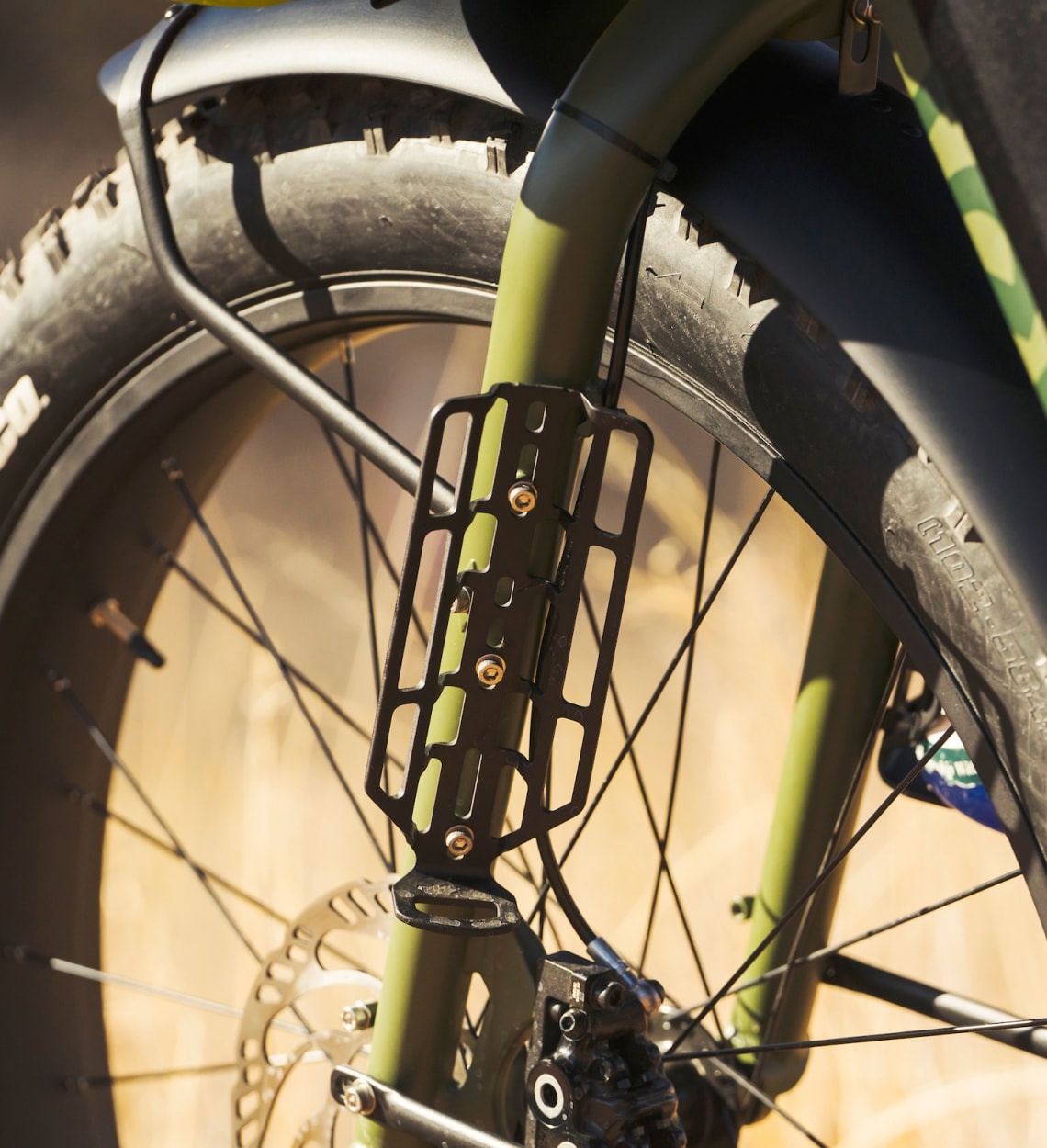

Fork: Atlas X, butted chromoly steel, EFBE tested and approved

Cockpit

Stem: Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified

Headset: FSA, 1.5", angular contact bearings

Handlebar: Level Nine, AL-7050, 800 mm, riser, eMTB approved

Grips/Bar Tape: Ergon

Saddle: Ergon SM, E-Mountain Sport, CrMo Rail

Seatpost: Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved

Seatpost Clamp: Tern Collar

Brakes

Front Brake: Magura MT5, 4-piston hydraulic disc, 203 mm rotor

Rear Brake: Magura MT5, 4-piston hydraulic disc, 203 mm rotor

Brake Levers: Magura MT5, hydraulic

Brake Cable & Housing: Magura, hydraulic

Wheels 29"

Front Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 29"

Rear Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 29"

Front Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx

Rear Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard

Spokes & Nipples: Stainless steel

Rims: Tern Atlas X, custom doublewall construction

Tires:Schwalbe Johnny Watts 29" x 2.6"

Wheels 27.5"

Front Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 27.5"

Rear Wheel: Tern Atlas X, ultra-heavy duty cargo construction, 27.5"

Front Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx

Rear Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard

Spokes & Nipples:Stainless steel

Rims: Tern Atlas X, custom doublewall construction

Tires: Vee Snow Ball, 27.5 x 4 or Schwalbe Johnny Watts 27.5" x 4"

Shifter: Shimano Deore, 1 x 12 spd

Rear Derailleur: Shimano Deore XT Shadow+

Crankset: Tern Orox custom

Cassette/Freewheel: Shimano 10-51T, 12 spd

Bottom Bracket: Motor integrated

Chain: KMC 12 spd, for eBike, EPT corrosion resistant coating

Pedals: MTB, non-slip

Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules

E-System

Motor: Bosch Performance CX, max speed 25 kph (EU);

Battery: 800 Wh, Bosch Dual Battery pack ready

Display: Bosch Kiox 300 w/ LED remote, electronic bike lock

Range: 800 Wh: 93 - 161 km (58 -100 mi); 1450 with adinional battery 1600 Wh: 185 - 322 km (115 - 200 mi)

Charger: 220V, 4A (EU); 100-240V, 4A (US)

Connect Module: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation

Bells & Whistles

Bell: Pitch Plus, brass

Tool: Thru-axle lever, 4/5 mm, Torx 2.5 mm

Chainguard: Custom Bash Guard

Paint Protection: ToughShield film on top and downtube, self-healing

Kickstand: Atlas Kickstand XL Cargo ready

Front Light: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam

Rear Light: LED w/ G-Sensed Brake Light

Fenders: Aluminum, heavy duty construction, oversize stays, 29"

Rack: Atlas X, 100 kg (220 lb) capacity
