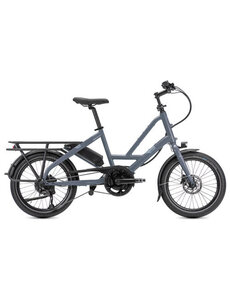

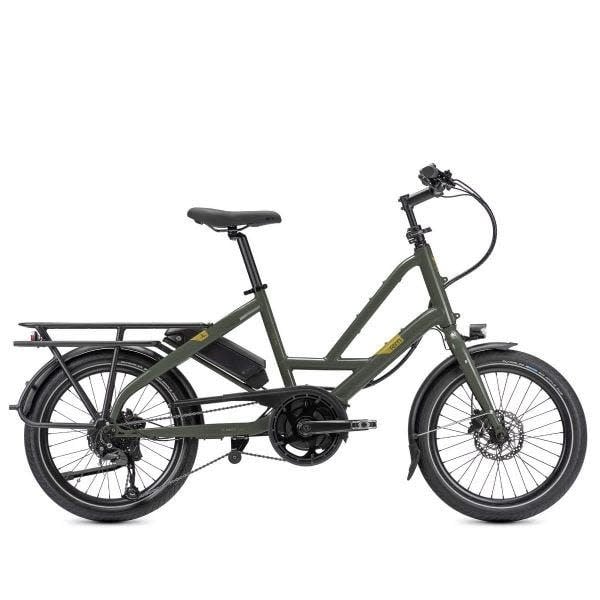

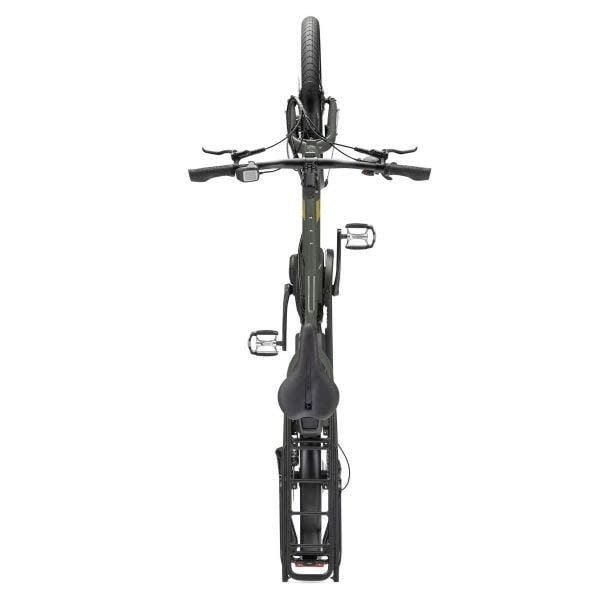

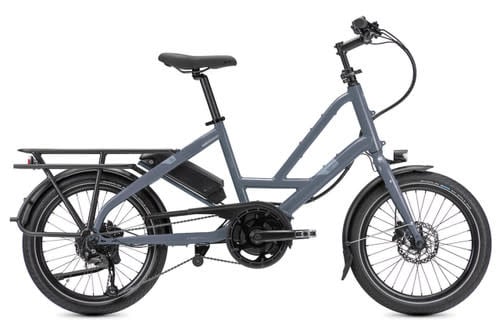

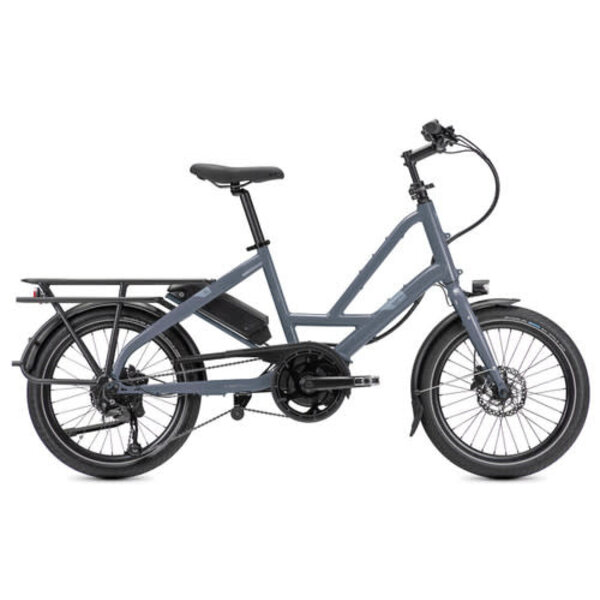

Tern Quick Haul P9 400Wh
Specifications
Information
What Makes it a P9?
- Bosch Performance Line Cruise motor provides up to 65 Nm of torque and 300% support
- 1x9-speed Shimano Alivio groupset with trigger shifter
Quick Haul Highlights
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost

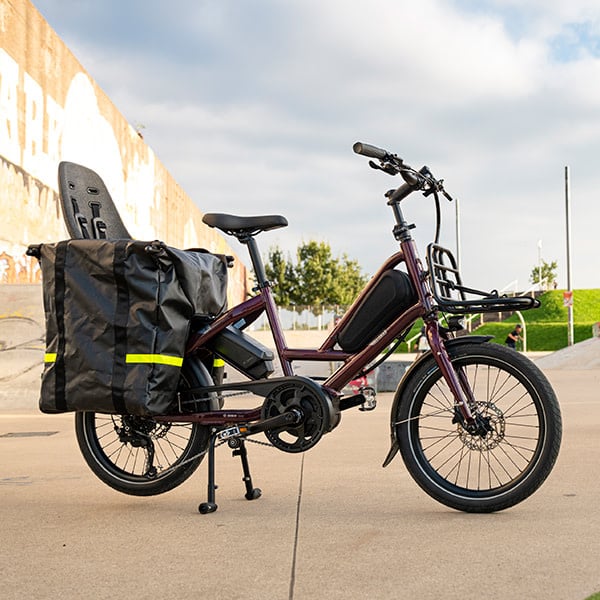

- Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight
SPECIFICATIONS
General Info
Speeds: 1 × 9
Weight: 22.9 kg (50.5 lb)
Gear Inches: 31"–95" (2.45–7.57 m)
Frame Size: One size
Seatpost to Handlebar: 60–64 cm (23.6–25.2 in)
Saddle to Pedal: 68–110 cm (26.8–43.3 in)
Suggested Rider Height: 160–195 cm (63–76.8 in)
Max Gross Vehicle Weight: 150 kg (330.7 lb)
Max Rider Weight: 120 kg (264.6 lb)
Frame
Frame: Tern Quick Haul, patented 6061-AL design, EFBE Tri-Test approved for 150 kg
Fork: Cargo-rated steel fork, EFBE approved to 150 kg
Cockpit
Stem: Speedlifter, 150 mm extension, 3D forged, 31.8
Headset: TH cartridge bearings
Handlebar: Low riser, 31.8, 6061-AL
Grips: Velo ergonomic, lock-on
Saddle: Velo Comfort
Seatpost: 31.6 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Shimano hydraulic disc
Rear Brake: Shimano hydraulic disc
Brake Levers: Shimano hydraulic
Brake Cable & Housing: Shimano hydraulic
Wheels
Front Hub: Shimano disc
Rear Hub: Shimano disc
Spokes: Stainless steel
Rims: Kinetix Comp (disc-compatible)
Tyres: Schwalbe Big Apple 55-406, puncture protection, Reflex sidewalls
Transmission
Shifter: Shimano Alivio 1×9 trigger
Rear Derailleur: Shimano Alivio Shadow
Crankset: Tern custom, forged 6061-AL
Cassette: Shimano 11–34T, 9-speed
Bottom Bracket: Motor integrated
Chain: KMC e-bike rated, 9-speed
Pedals: Urban, non-slip
Shifter Cable & Housing: SP
E-System
Motor: Bosch Performance, 300% assist, 65 Nm torque, 25 kph max (EU) / 20 mph (US)
Battery: Bosch PowerPack 400

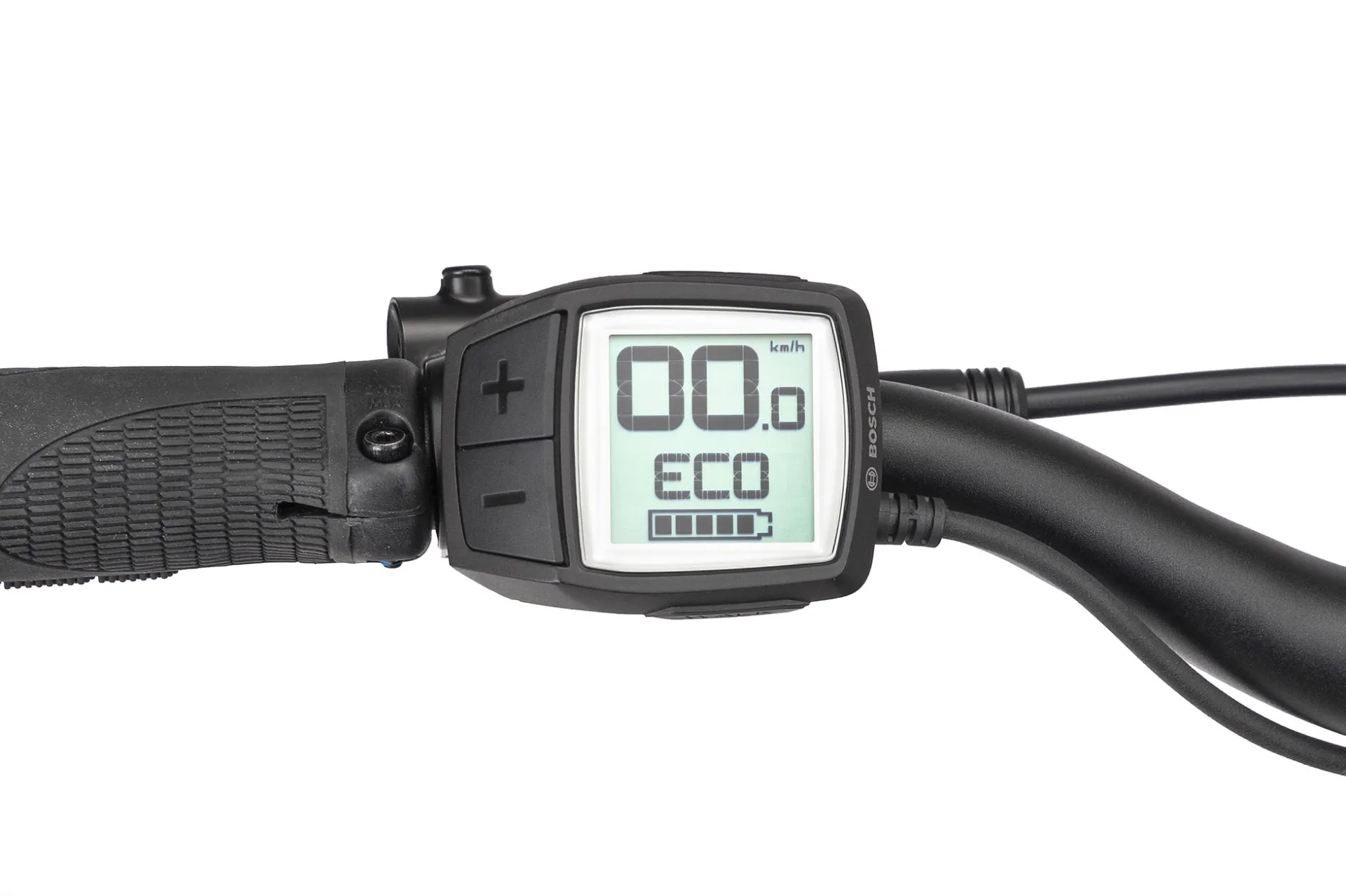

Display: Bosch Purion
Range: 400 Wh — 53–105 km (32.9–65.2 mi)
Charger: Compact Charger, 100–240V, 2A
Bells & Whistles
Bell: Aluminum
Chainguard: SKS Chainblade
Kickstand: Pletscher design, rear mount
Luggage Socket: Combo Mount
Front Light: Herrmans, 120 lumens

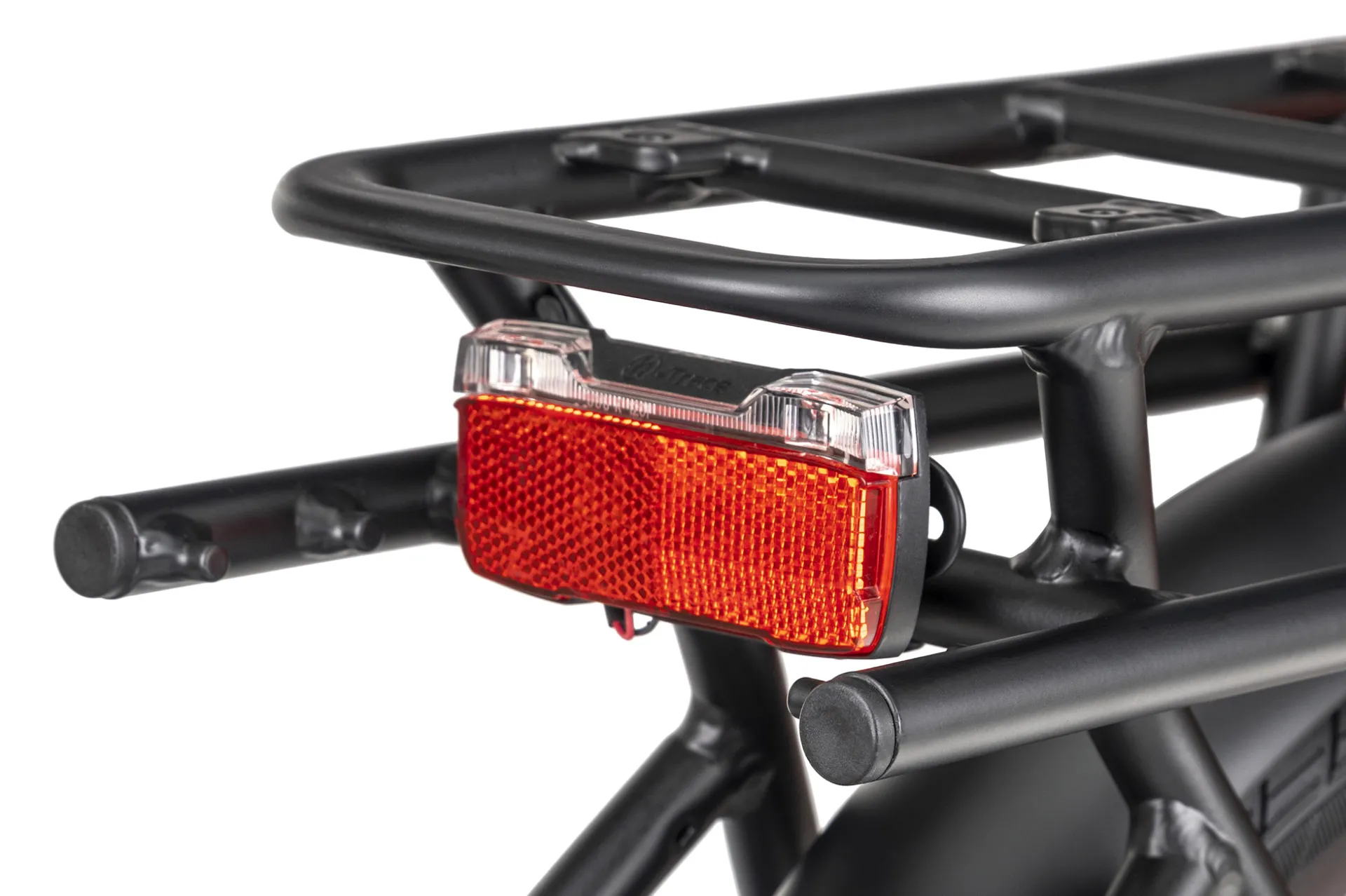

Rear Light: Herrmans
Fenders: Chromeplastic with stainless hardware
Rack: Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
Related products
SEA BREEZE AVAILABLE TO RIDE AWAY in 3 WORKING DAYS!! BLACK & BLUE AVAILABLE TO RIDE AWAY IN 3 WORKING DAYS!!!Tern HSD e-bike with Bosch motor, Gates belt drive, Shimano 5-speed hub, hydraulic brakes, and 180 kg capacity for daily cargo and commuting.

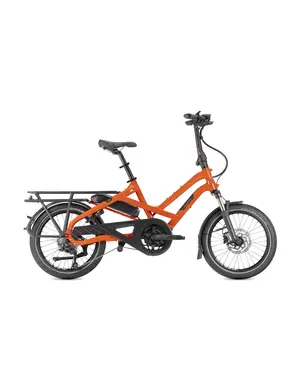

AVAILABLE TO RIDE AWAY IN 3 WORKING DAYS!!! Tern HSD P10 Gen 2 , Smart compact cargo e-bike with Bosch Performance motor, 10-speed Shimano Deore, 545 Wh battery, and 80 kg rack — powerful, reliable, and practical.

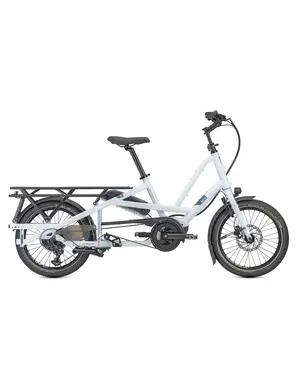

Tern Quick Haul Long D9, Compact longtail cargo e-bike with Bosch motor, 9-speed drivetrain, strong 190 kg capacity, and durable components for daily hauling and urban riding.
