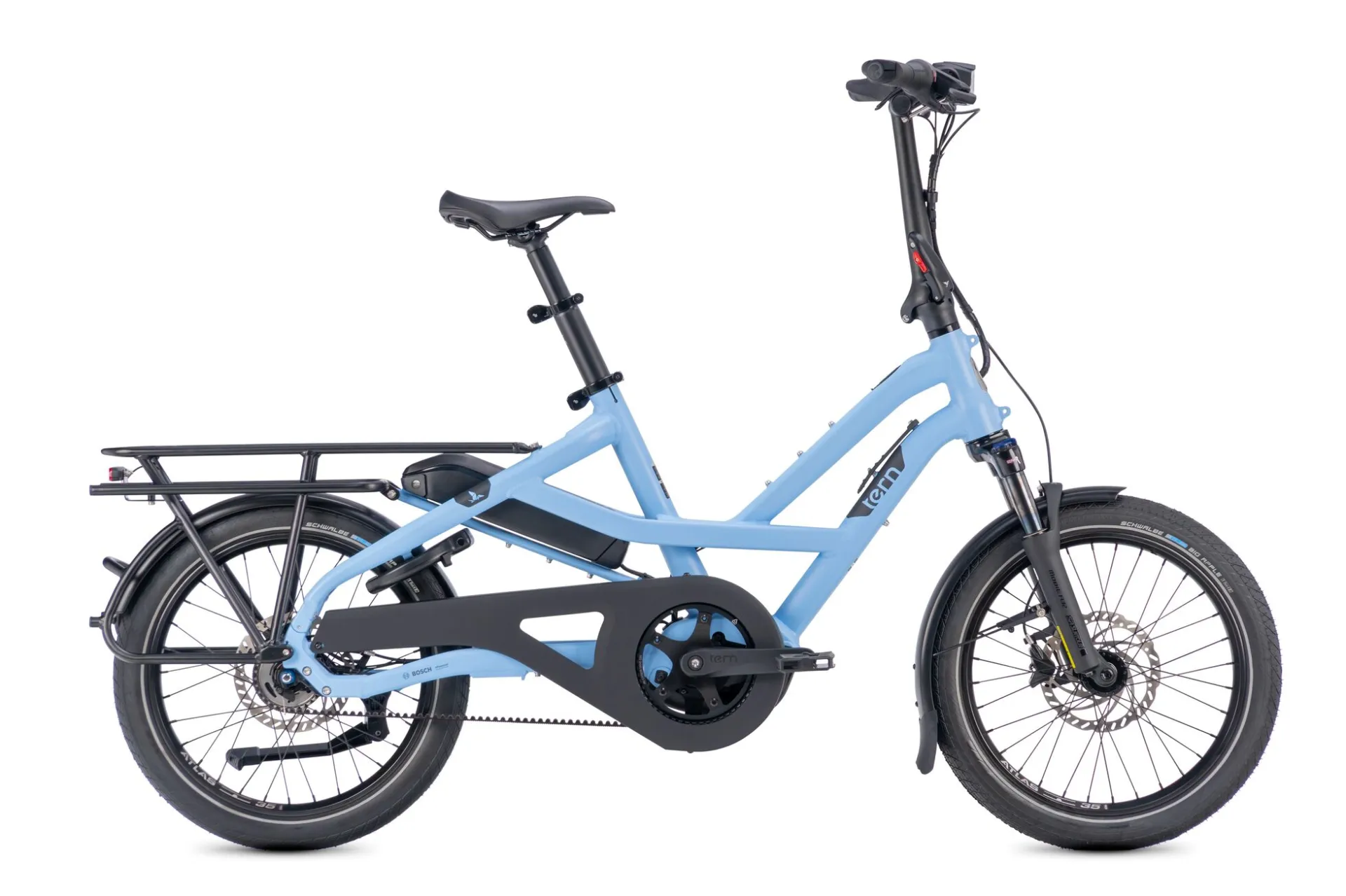

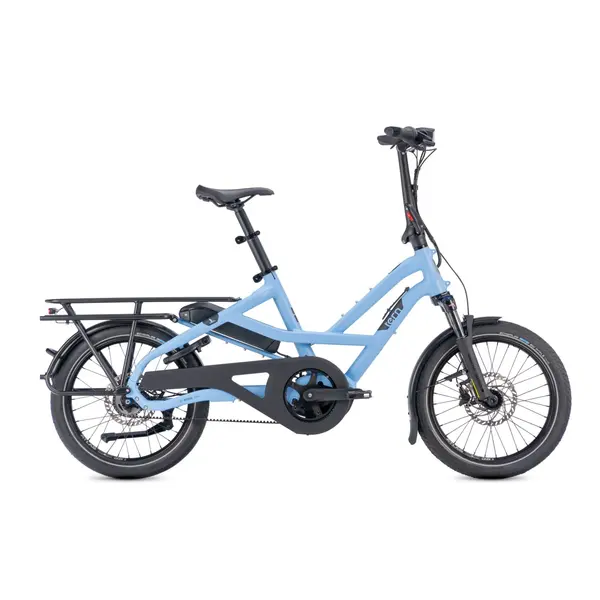

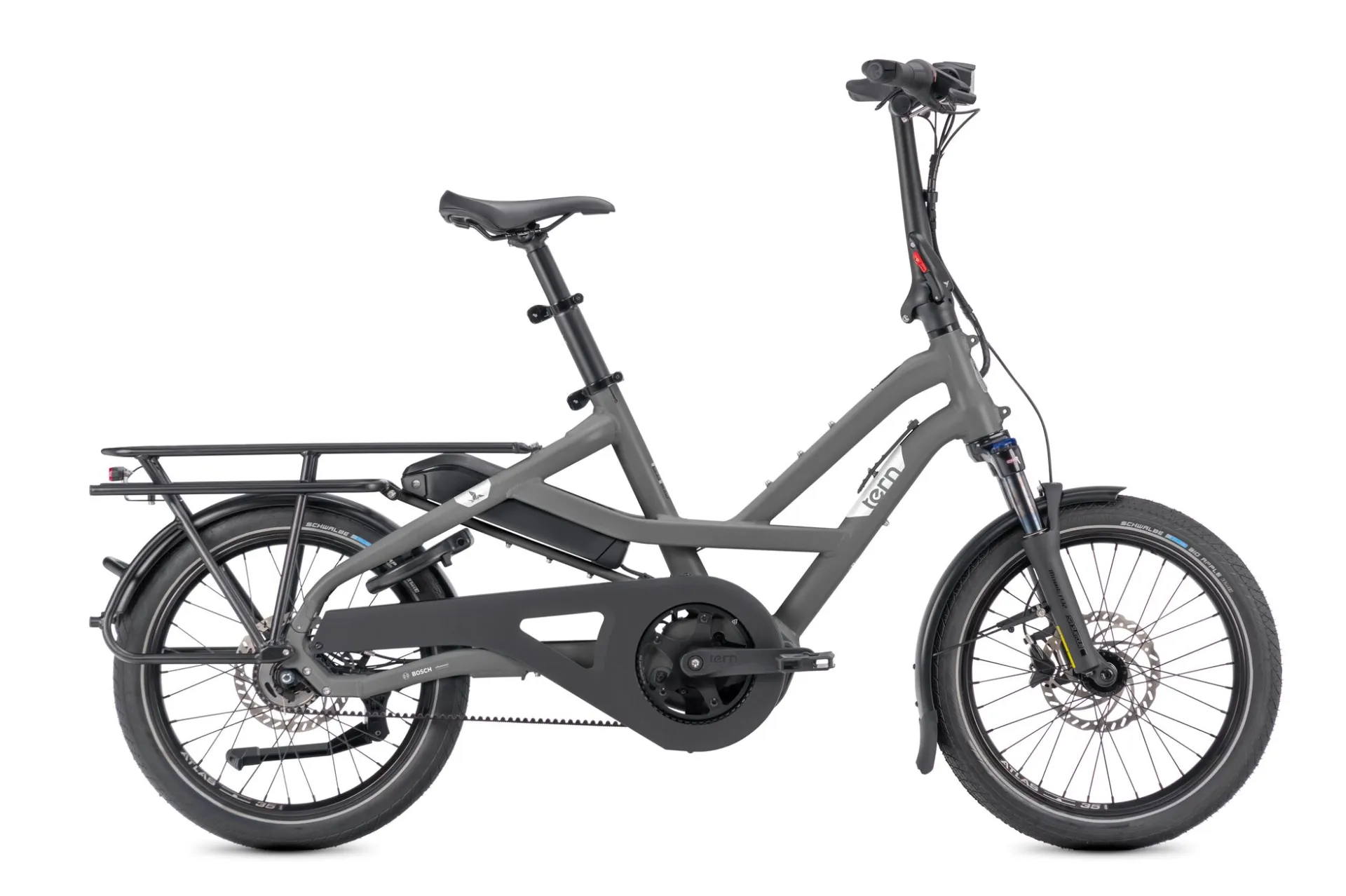

Tern HSD P5i Gen 3
Specifications
Information
What makes it a P5i?

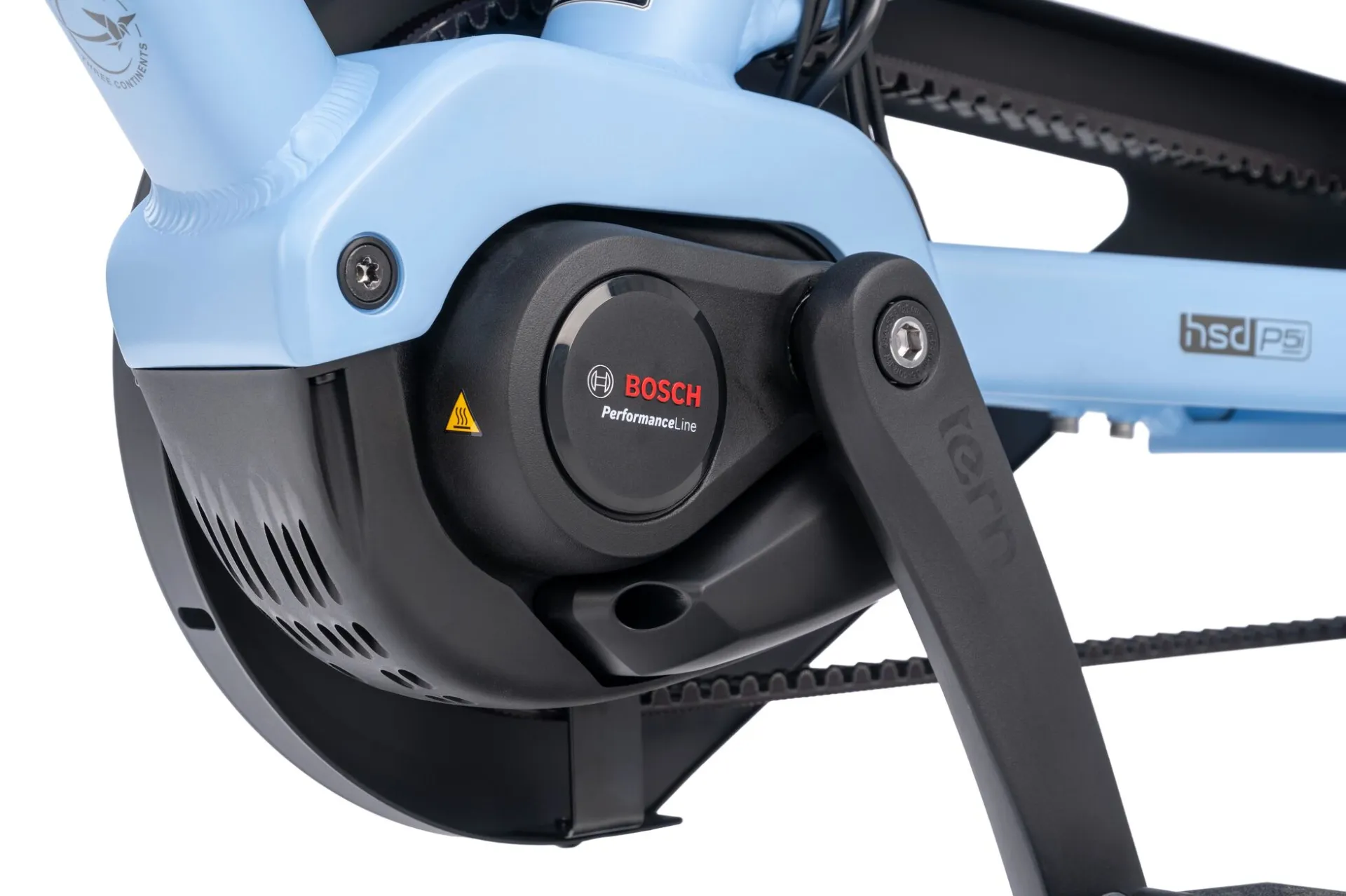

- Bosch Performance Line motor delivers up to 75 Nm of torque, boosting your pedaling power by up to 340%
- Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more

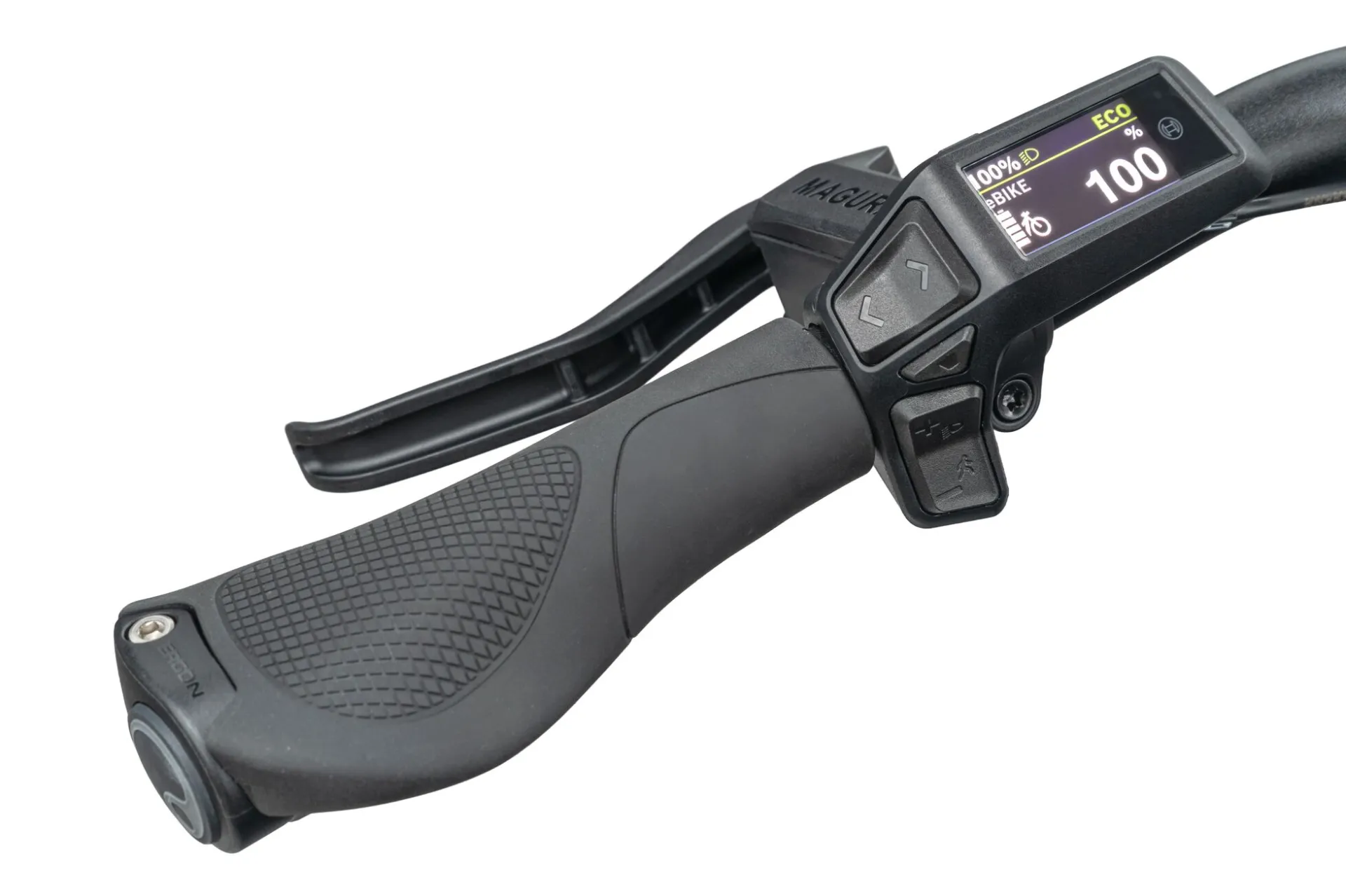

- Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free
- Shimano Nexus 5 internally geared hub with 263% gear range and twist shifter
- Silent, smooth, and virtually maintenance-free Gates Belt Drive
- Bosch PowerPack 545 battery provides long range of up to 107 km (67 mi)
HSD Highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 80 kg (176 lb)
- Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
- Magura hydraulic disc brakes deliver precise and responsive stopping power
- Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride

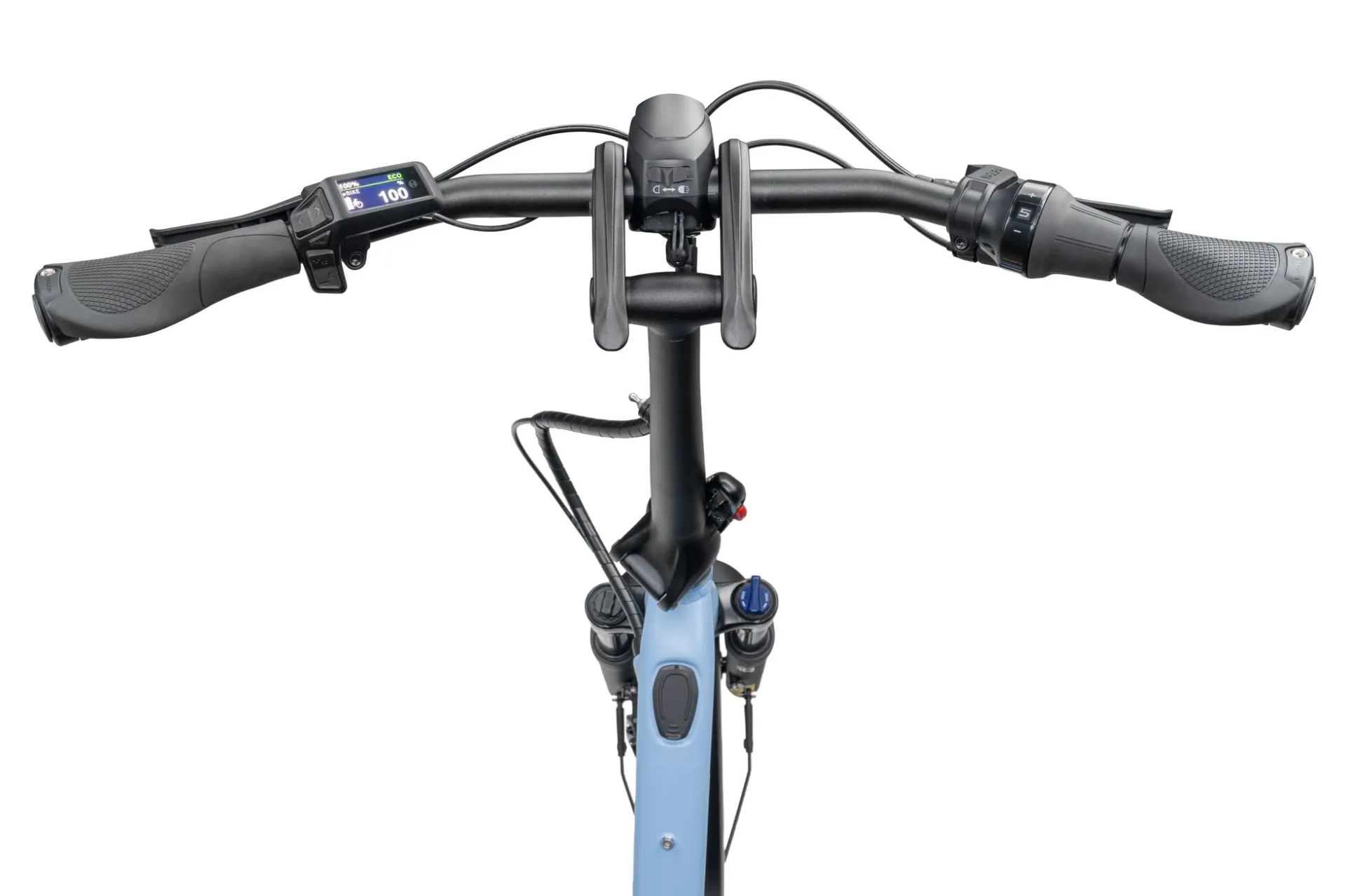

- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 190 kg) for proven cargo e-bike safety and reliability
SPECIFICATIONS
General Info
Generation: Gen 3
Color(s):
Speeds: 1 x 5
Weight: 28.1 kg
Gear Inches: 38" - 99" (2.99 - 7.88 m)
Frame Sizes: One size
Bike Size: 174 × 112.5 × 68 cm
Wheelbase: 119 cm
Standover Height: 48.5 cm

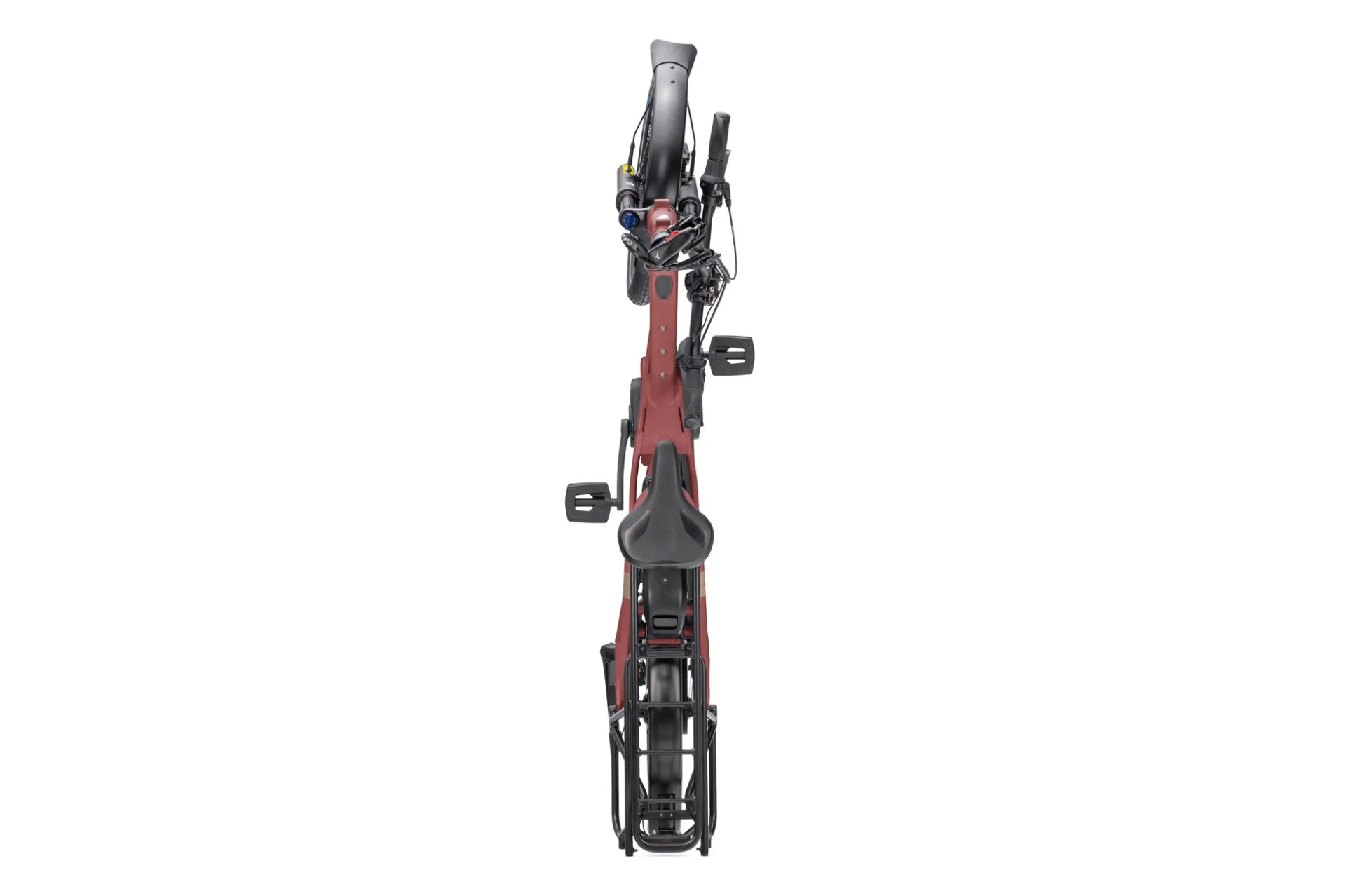

Folding Size: 166 × 42 × 87 cm
Folding Time: 5 seconds
Distance: Seatpost to Handlebar: 52 - 59 cm
Distance: Saddle to Pedal: 68 - 101 cm
Suggested Rider Height: 150 - 200 cm
Max Gross Vehicle Weight: 190 kg
Max Rider Weight: 130 kg
Frame
Frame: Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
Fork: Suntour custom for Tern, 32 mm stanchions, Thru-axle, EN17860 certified: 190 kg
Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern by Velo

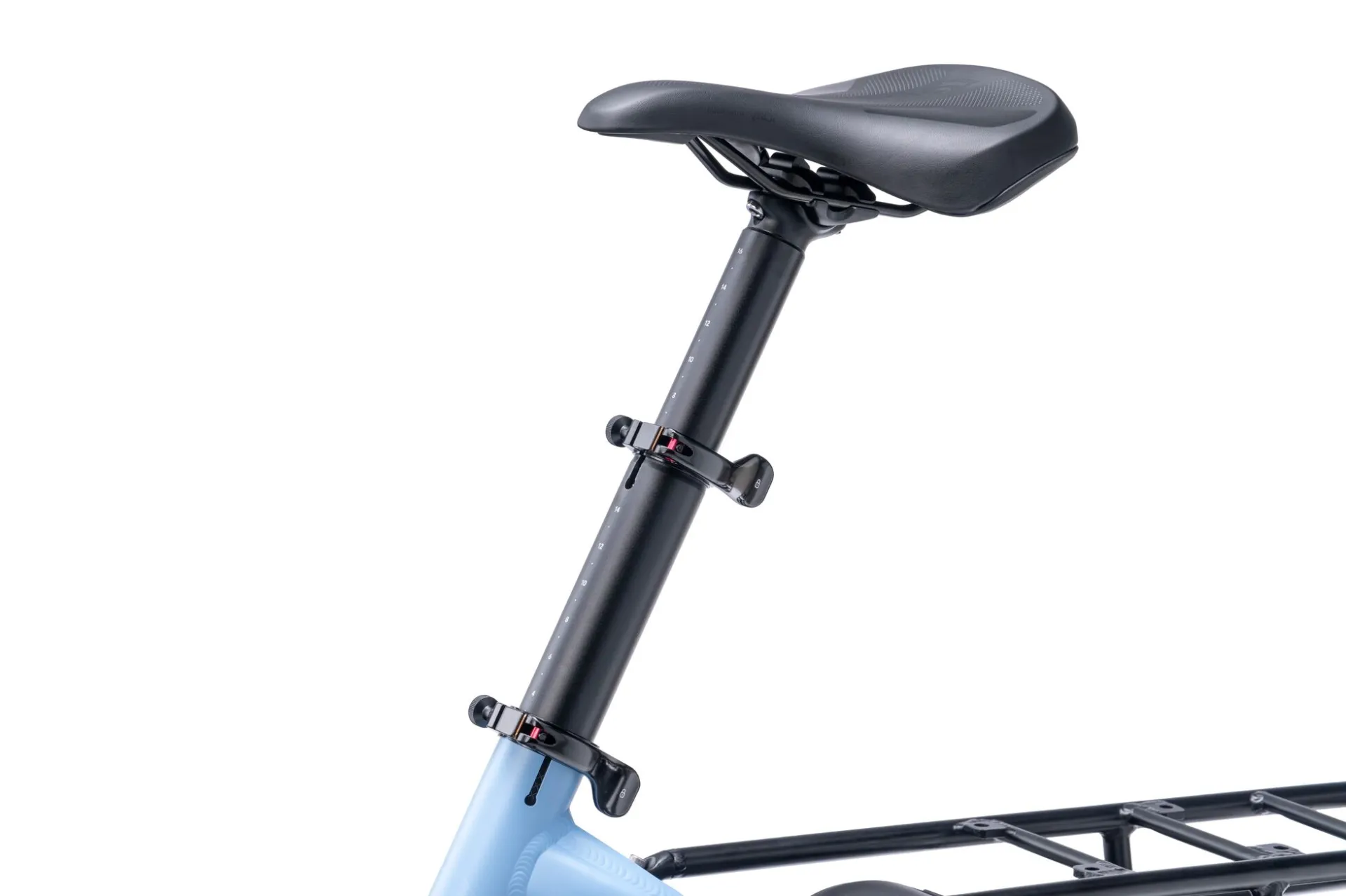

Seatpost: Tern VLT 40/34.9mm, with LightAction levers
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Magura, hydraulic disc, 180 mm rotor
Rear Brake: Magura, hydraulic disc, 180 mm rotor
Brake Levers: Magura, hydraulic disc
Brake Cable & Housing: Magura, hydraulic disc
Wheels
Front Wheel: Tern Atlas H, cargo wheel
Rear Wheel: Tern Atlas H, cargo wheel
Front Hub: Novatec, Thru-axle, sealed bearings

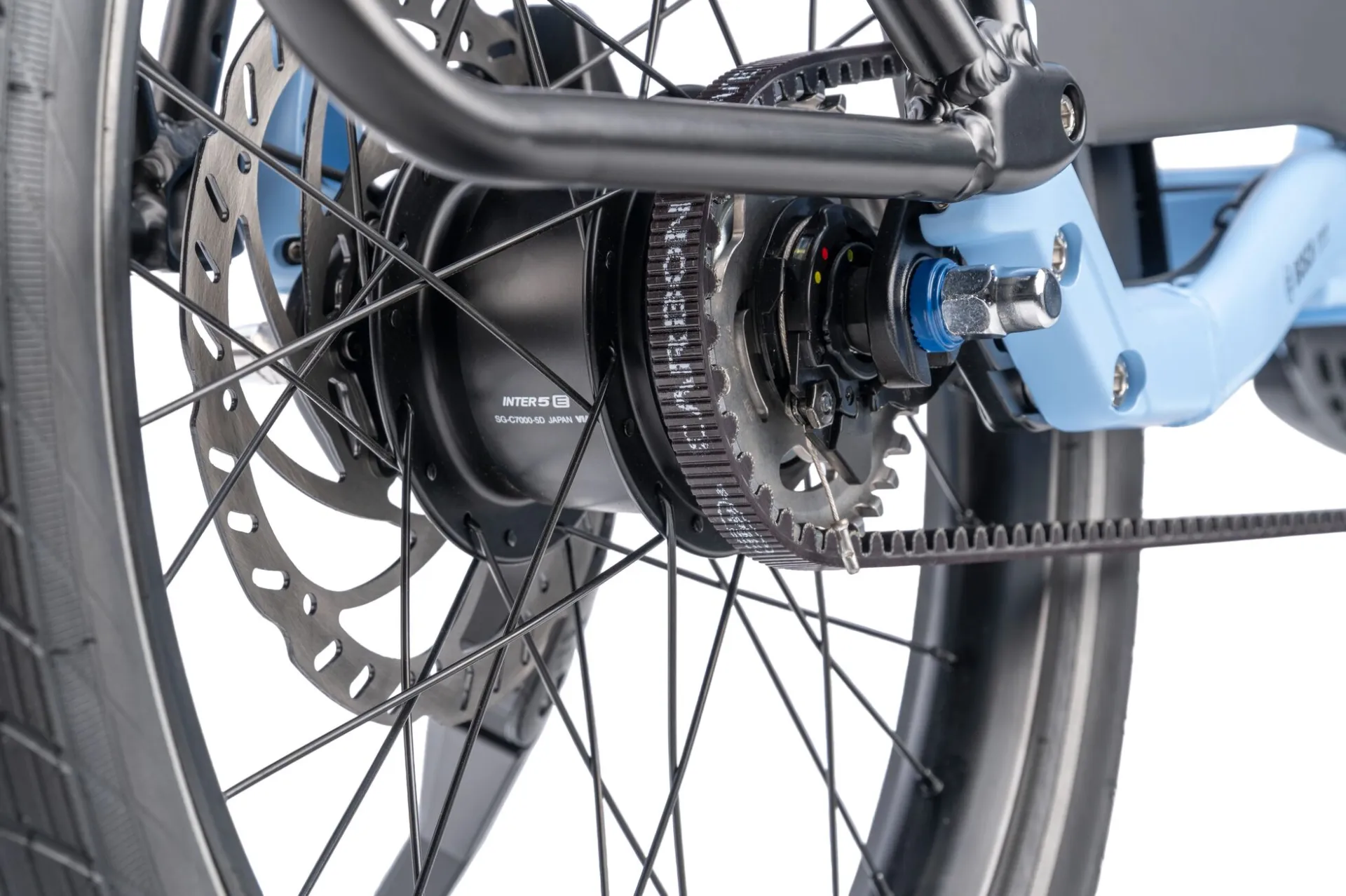

Rear Hub: Shimano Nexus 5
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, cargo
Tires: Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter: Shimano Nexus 5
Crankset: Tern HSD, Gates CDX CNC machined beltring
Cassette/Freewheel: Gates CDX, precision CNC machined cog
Bottom Bracket: Motor integrated
Chain: Gates Carbon Drive CDX belt
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Shimano
E-System
Motor: Bosch Performance (BDU34, 340% Assist, 75 Nm Torque, max speed 25 km/h)

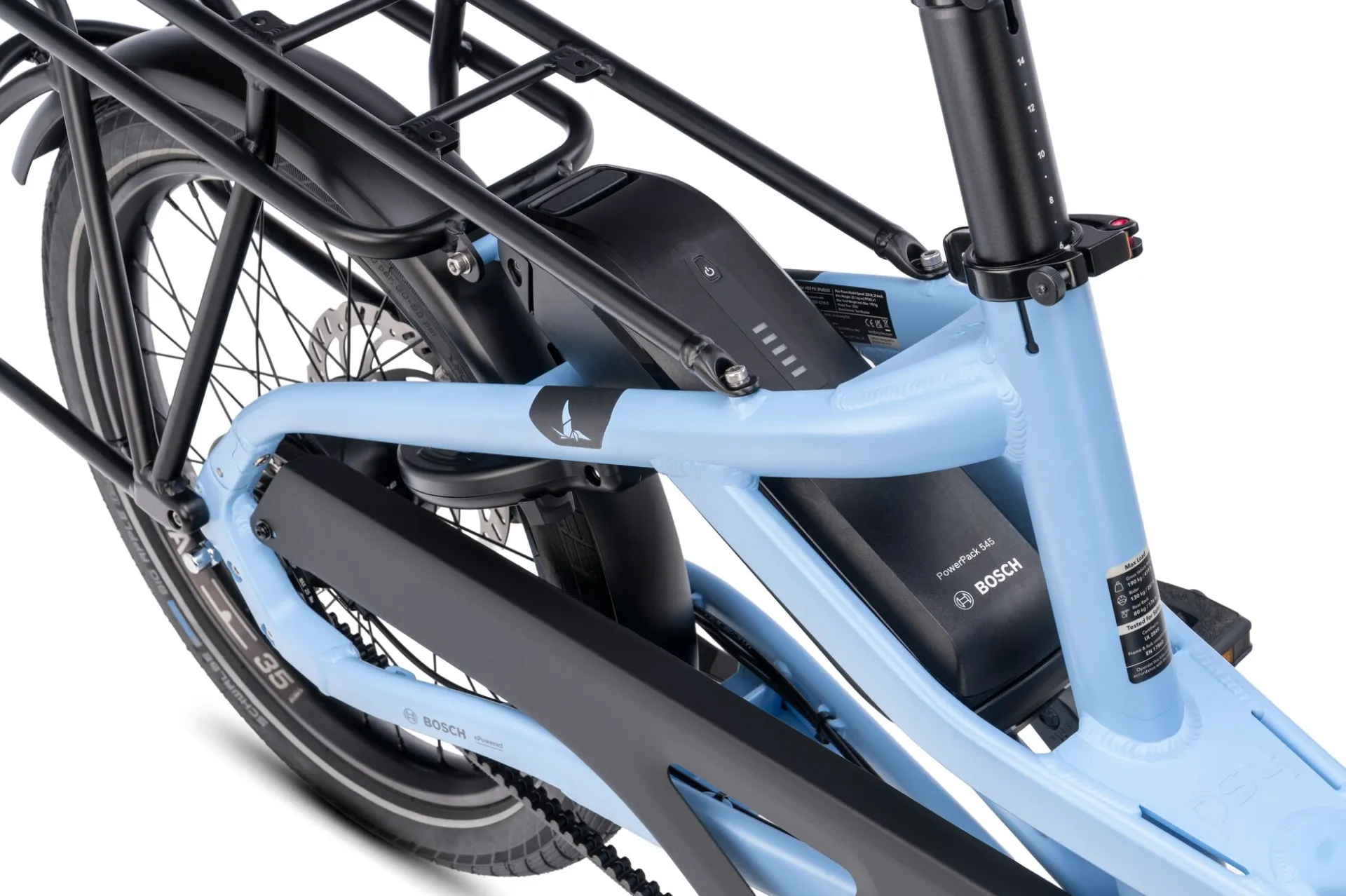

Battery: Bosch PowerPack 545
Display: Bosch Purion 200, connectivity with Bosch eBike Flow app, electronic bike lock
Range: 545 Wh: 56-107 km
Charger: Fast Charging, 220V, 4A
Bells & Whistles
Bell: Pitch Plus, brass
Chainguard: Tern Custom, full chain cover
Kickstand: Ursus, rear mount
Luggage Socket: Tern Combo Mount
Front Light: Tern Valo Direct, 190 lumens
Rear Light: Herrmans LED
Fenders: Aluminum, stainless hardware

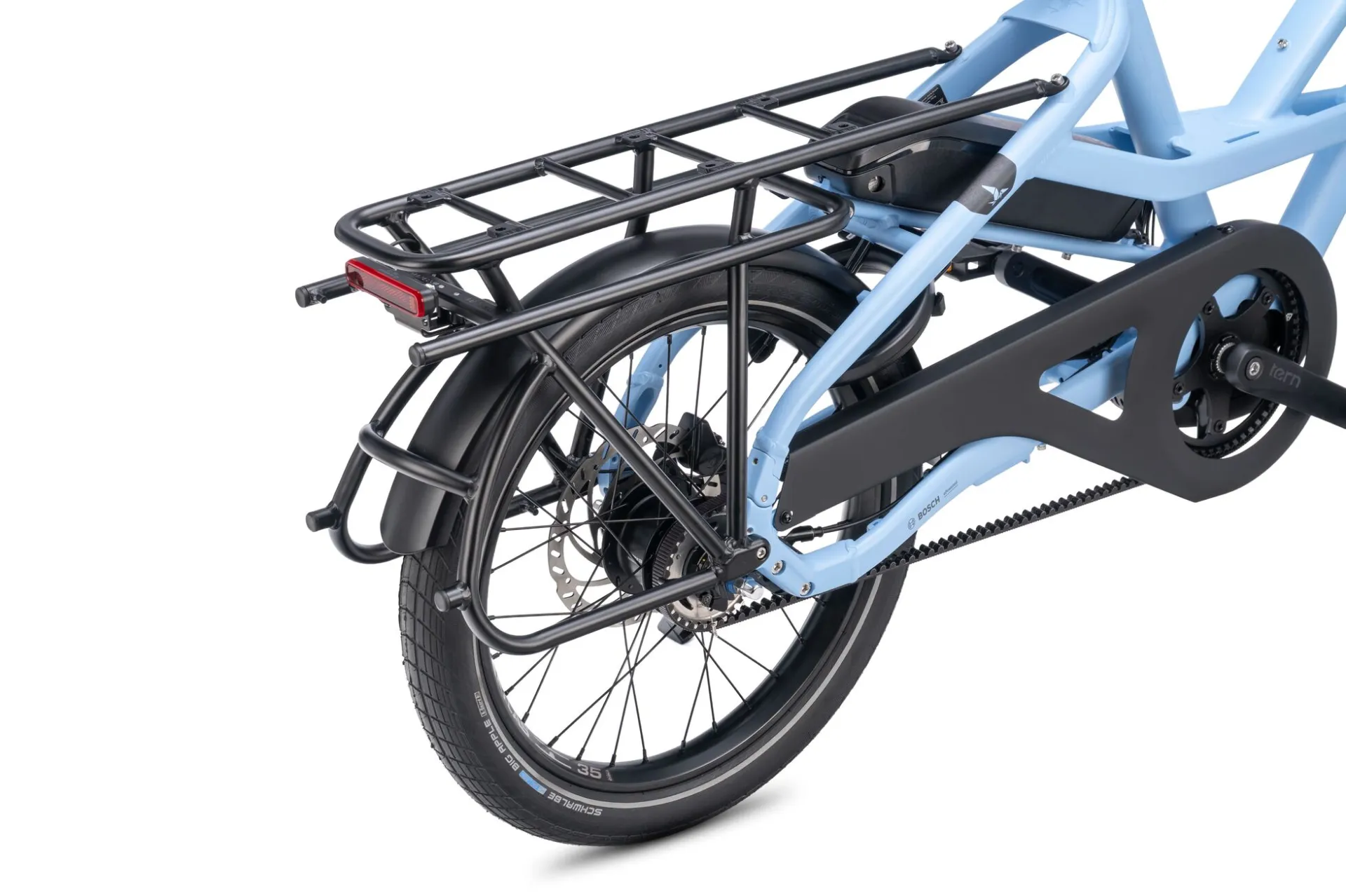

Rack: Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg
Frame Lock: AXA, keyed-alike with Bosch battery
