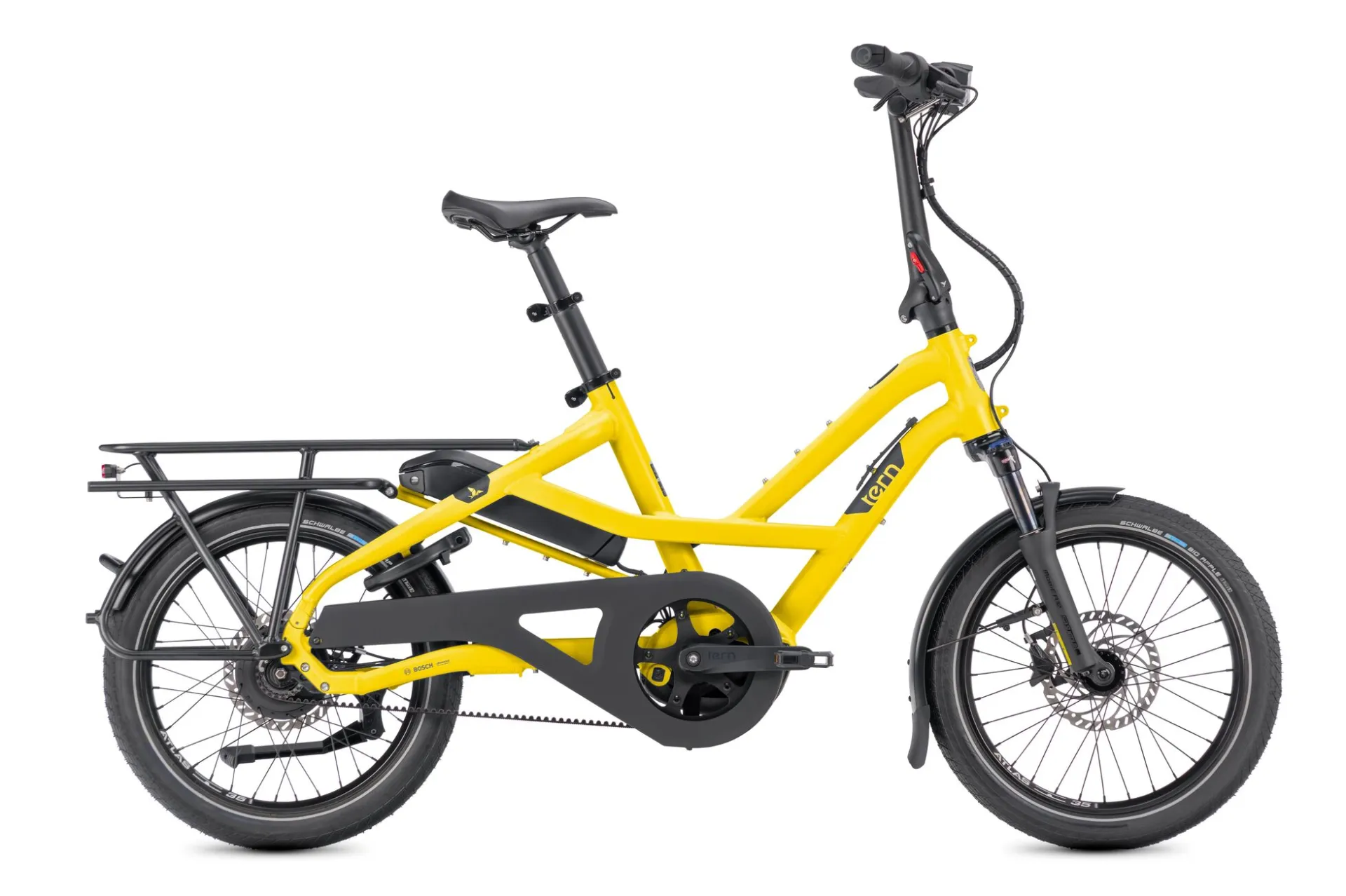

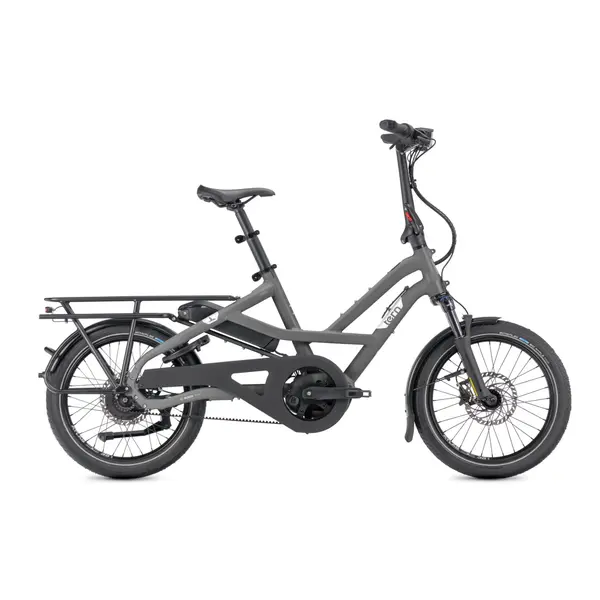

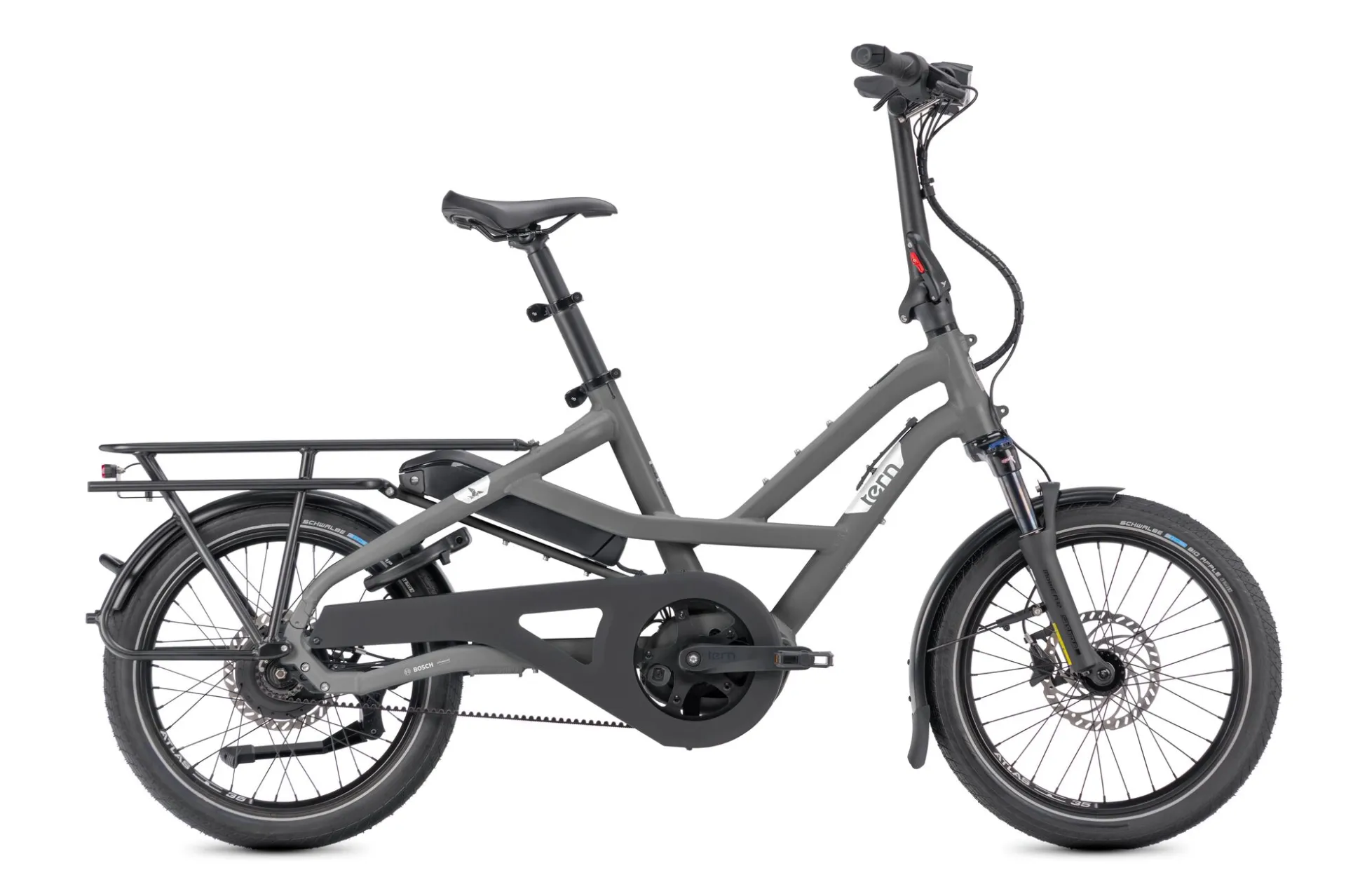

Tern HSD P00 Gen 3
£4,700.00
Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)
AVAILABLE FROM SEP 2026!!! Tern HSD P00 compact cargo e-bike: Bosch Performance motor (75 Nm), 545 Wh battery (up to 67 mi), Enviolo hub + Gates belt, 190 kg capacity. Stable, foldable, fits riders 4'11"–6'7". Ideal for families & daily hauling. Read more
Specifications
Brand:
Tern
Availability:
Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)
Information
What makes it a P00?

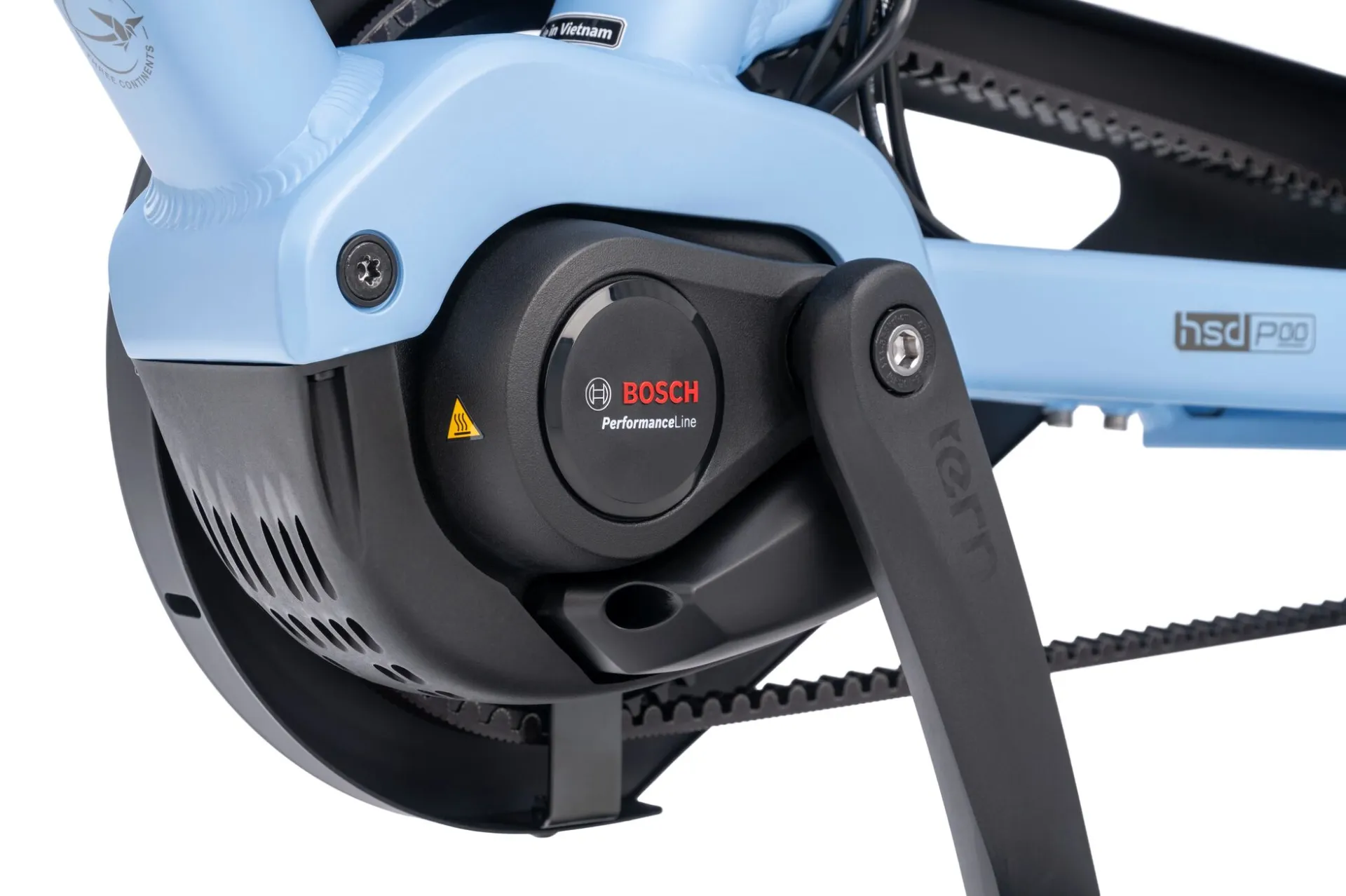

- Bosch Performance Line motor delivers up to 75 Nm of torque, boosting your pedaling power by up to 340%
- Bosch Smart System delivers a fully connected ride with eBike Lock, ride customization, over-the-air updates, and more

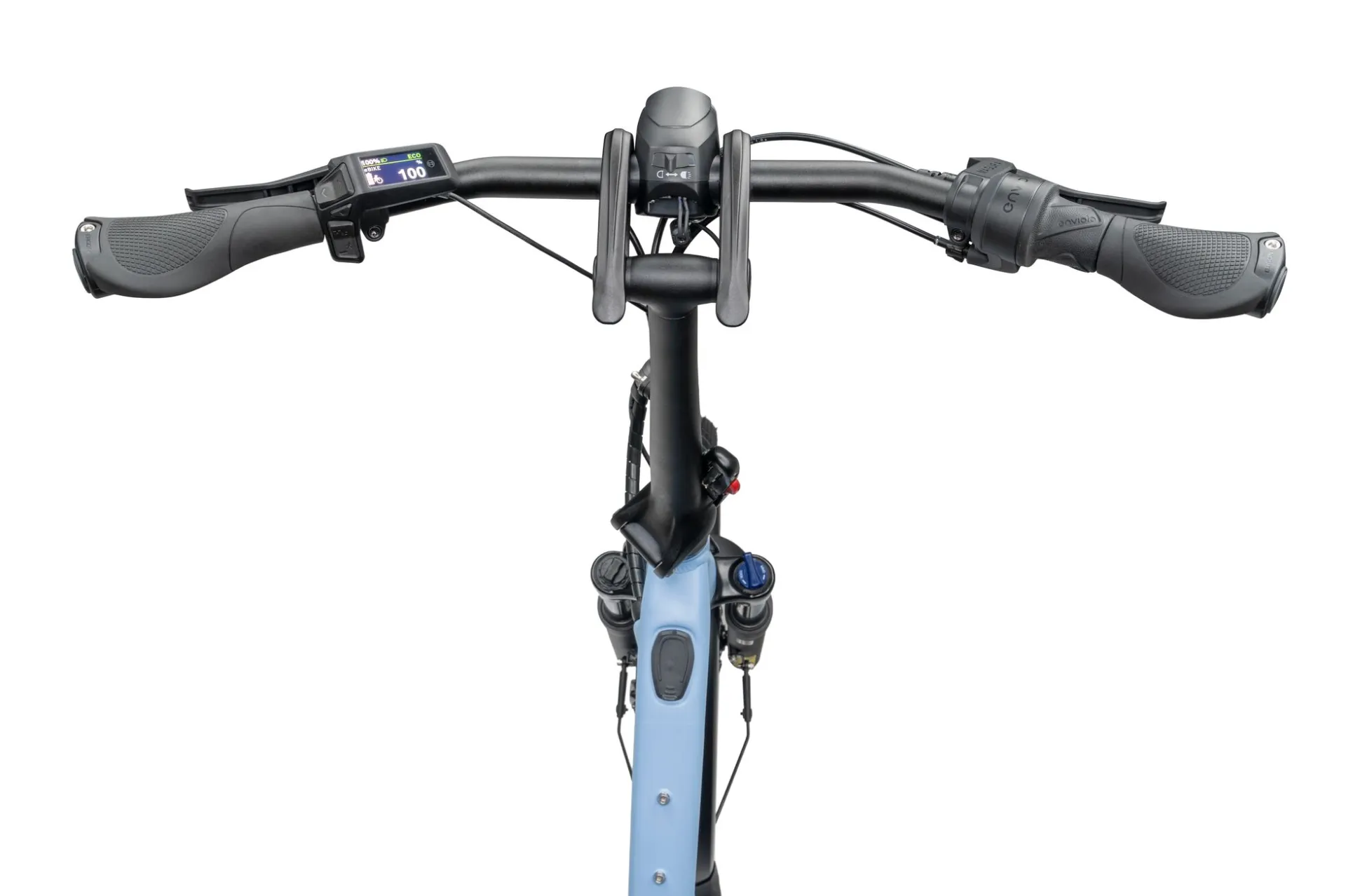

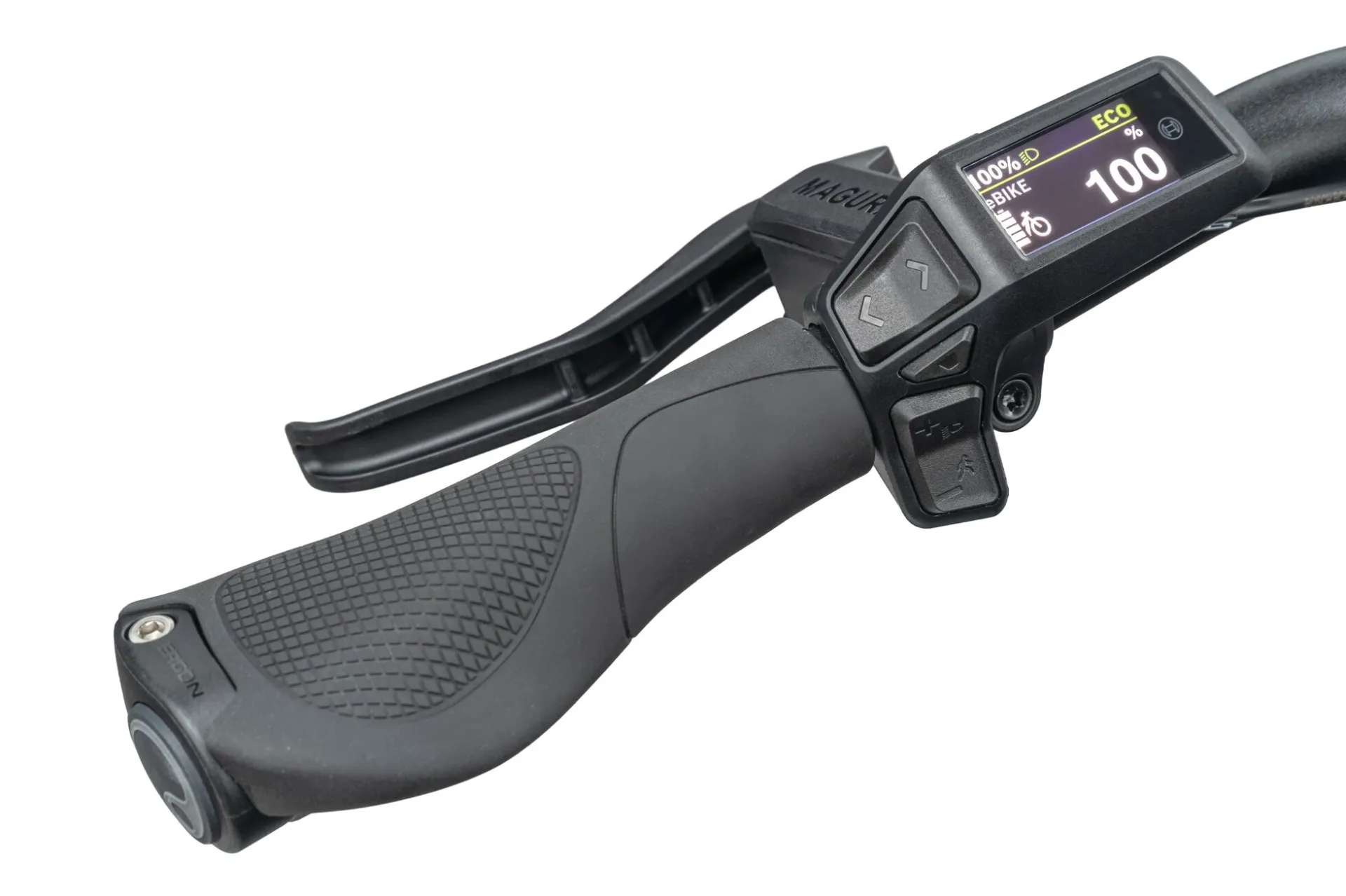

- Minimal, compact Purion 200 display lets you control all features with your thumb and keeps the cockpit clutter-free

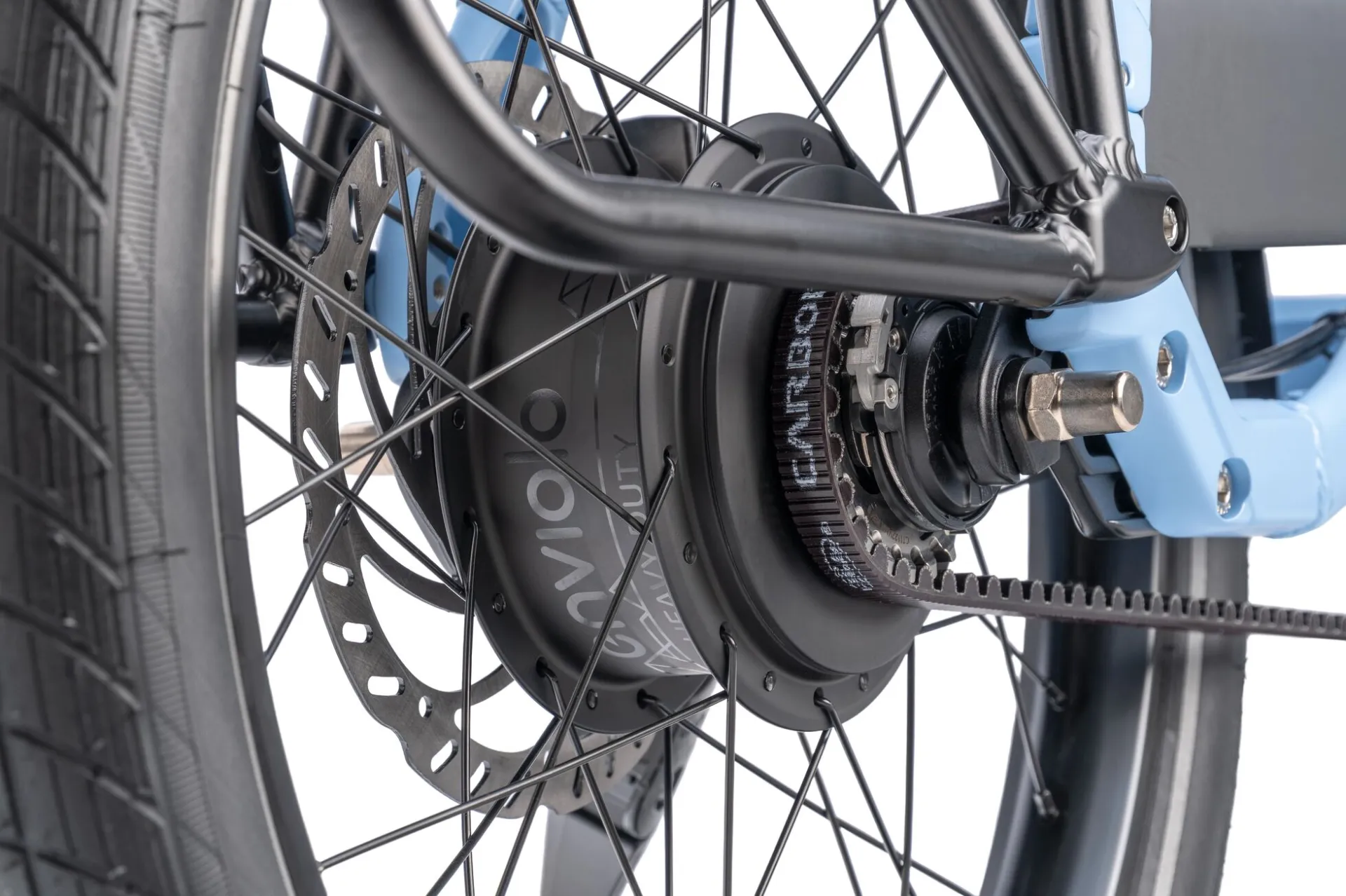

- Enviolo Heavy Duty internally geared hub with 380% gear ratio range and twist shifter
- Silent, smooth, and virtually maintenance-free Gates Belt Drive
- Bosch PowerPack 545 battery provides long range of up to 107 km (67 mi)
HSD Highlights
- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 80 kg (176 lb)
- Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
- Magura hydraulic disc brakes deliver precise and responsive stopping power
- Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 190 kg) for proven cargo e-bike safety and reliability
SPECIFICATIONS
Weight: 28.9 kg (63.7 lb)
Gear Inches: 28" - 106" (2.23 - 8.47 m)
Frame Sizes: One size
Bike Size: 174 × 112.5 × 68 cm (68.5 × 44.3 × 26.8 in)
Wheelbase: 119 cm (46.9 in)
Standover Height: 48.5 cm (19.1 in)

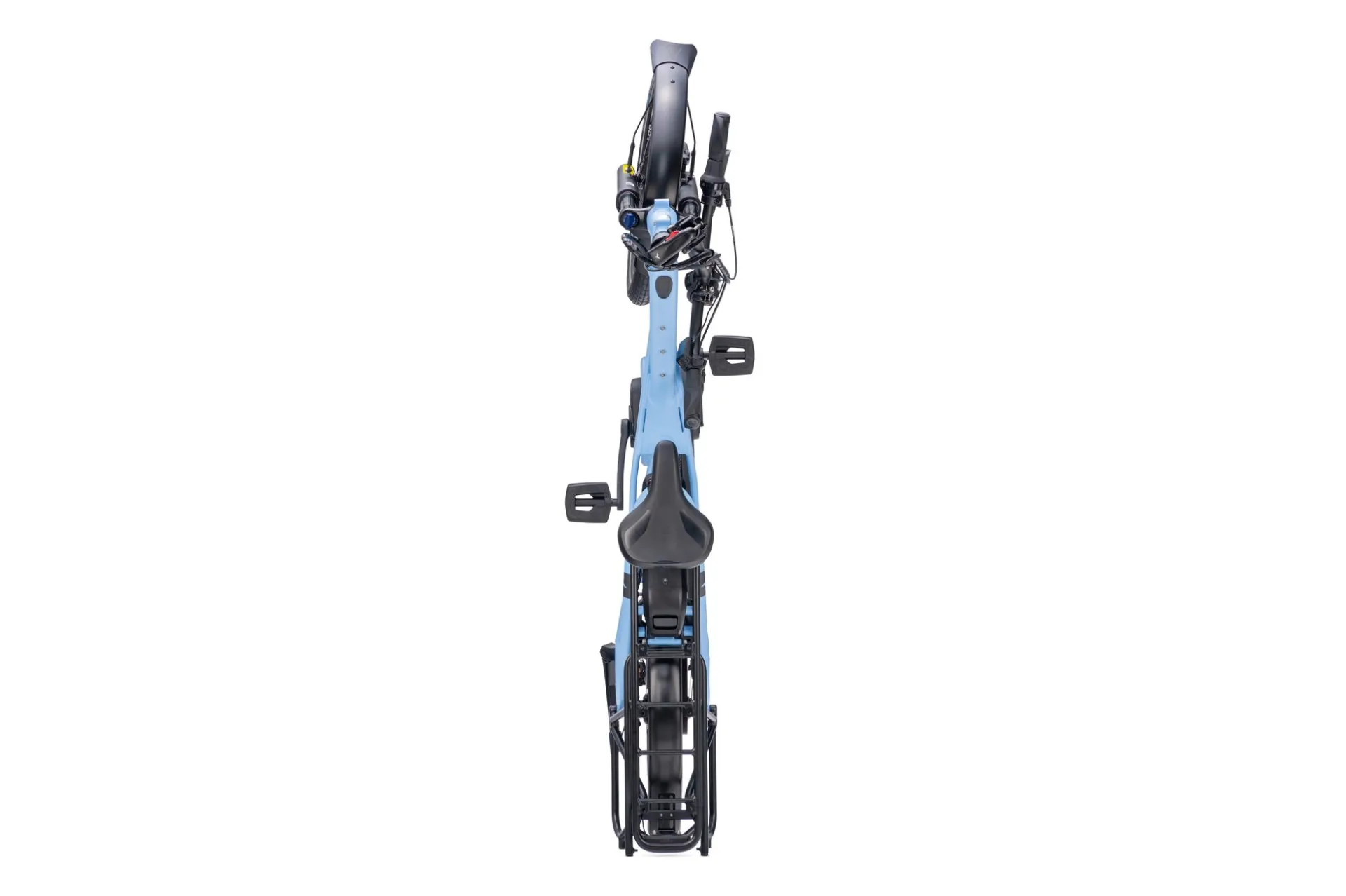

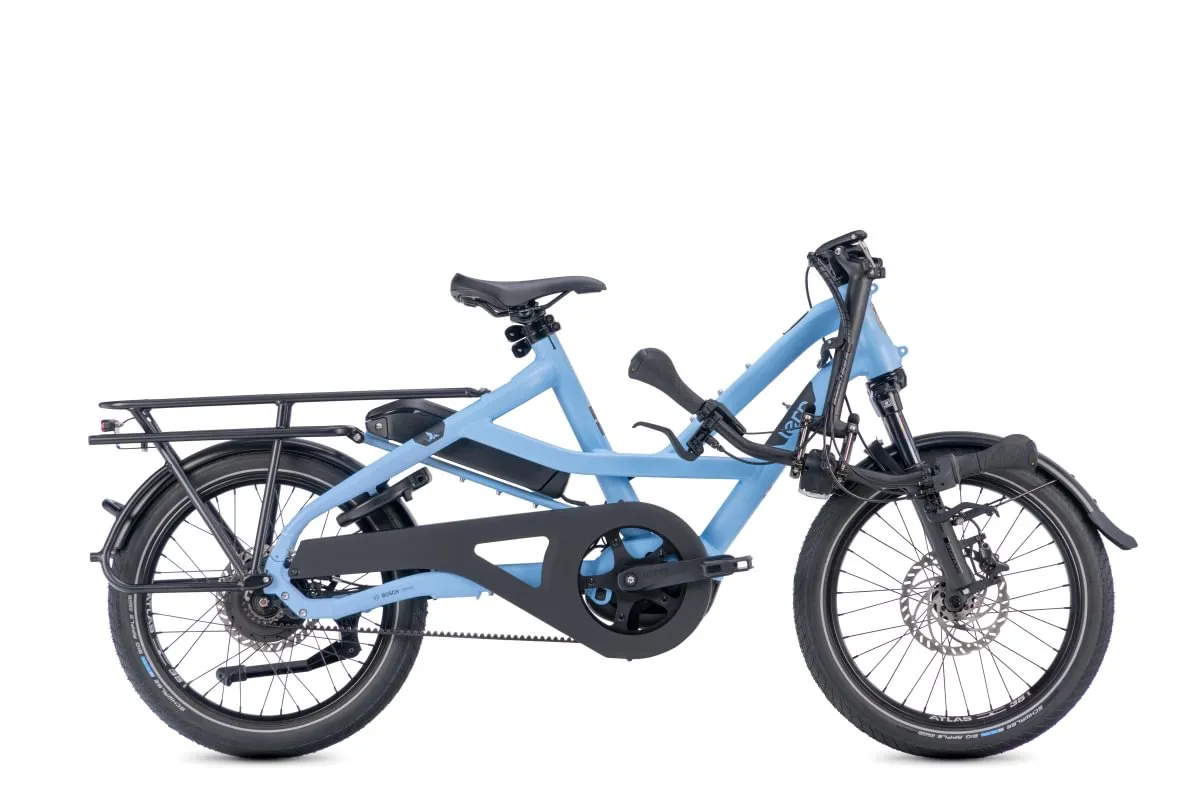

Folding Size: 166 × 42 × 87 cm (65.4 × 16.5 × 34.3 in)
Folding Time: 5 seconds
Distance: Seatpost to Handlebar: 52 - 59 cm (20.5 - 23.2 in)
Distance: Saddle to Pedal: 68 - 101 cm (26.8 - 39.8 in)
Suggested Rider Height: 150 - 200 cm (59.1 - 78.7 in)
Max Gross Vehicle Weight: 190 kg (418.9 lb)
Max Rider Weight: 130 kg (286.6 lb)
Frame
Frame: Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
Fork: Suntour custom for Tern, 32 mm stanchions, Thru-axle, EN17860 certified: 190 kg
Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern by Velo
Seatpost: Tern VLT 40/34.9mm, with LightAction levers
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Magura, hydraulic disc, 180 mm rotor
Rear Brake: Magura, hydraulic disc, 180 mm rotor
Brake Levers: Magura, hydraulic disc
Brake Cable & Housing: Magura, hydraulic disc
Wheels
Front Wheel: Tern Atlas H, cargo wheel
Rear Wheel: Tern Atlas H, cargo wheel
Front Hub: Novatec, Thru-axle, sealed bearings
Rear Hub: Enviolo Heavy Duty, 380% continuously variable range
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, cargo
Tires: Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter: Enviolo, Twist
Crankset: Tern HSD, Gates CDX CNC machined beltring
Cassette/Freewheel: Gates CDX, precision CNC machined cog
Bottom Bracket: Motor integrated
Chain: Gates Carbon Drive CDX belt
Pedals: Urban with non-slip surface, sealed bearings
Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:Bosch Performance (BDU34, 340% Assist, 75 Nm Torque, max speed 25 km/h
Battery: Bosch PowerPack 545
Display: Bosch Purion 200, connectivity with Bosch eBike Flow app, electronic bike lock
Range: 545 Wh: 56-107 km (35-67 mi)
Charger: Fast Charging, 220V, 4A
Bells & Whistles
Bell:Pitch Plus, brass
Chainguard:Tern Custom, full chain cover
Kickstand:Ursus, rear mount
Luggage Socket:Tern Combo Mount
Front Light:Tern Valo Direct, 190 lumens
Rear Light:Herrmans LED
Fenders:Aluminum, stainless hardware
Rack:Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg
Frame Lock:AXA, keyed-alike with Bosch battery
