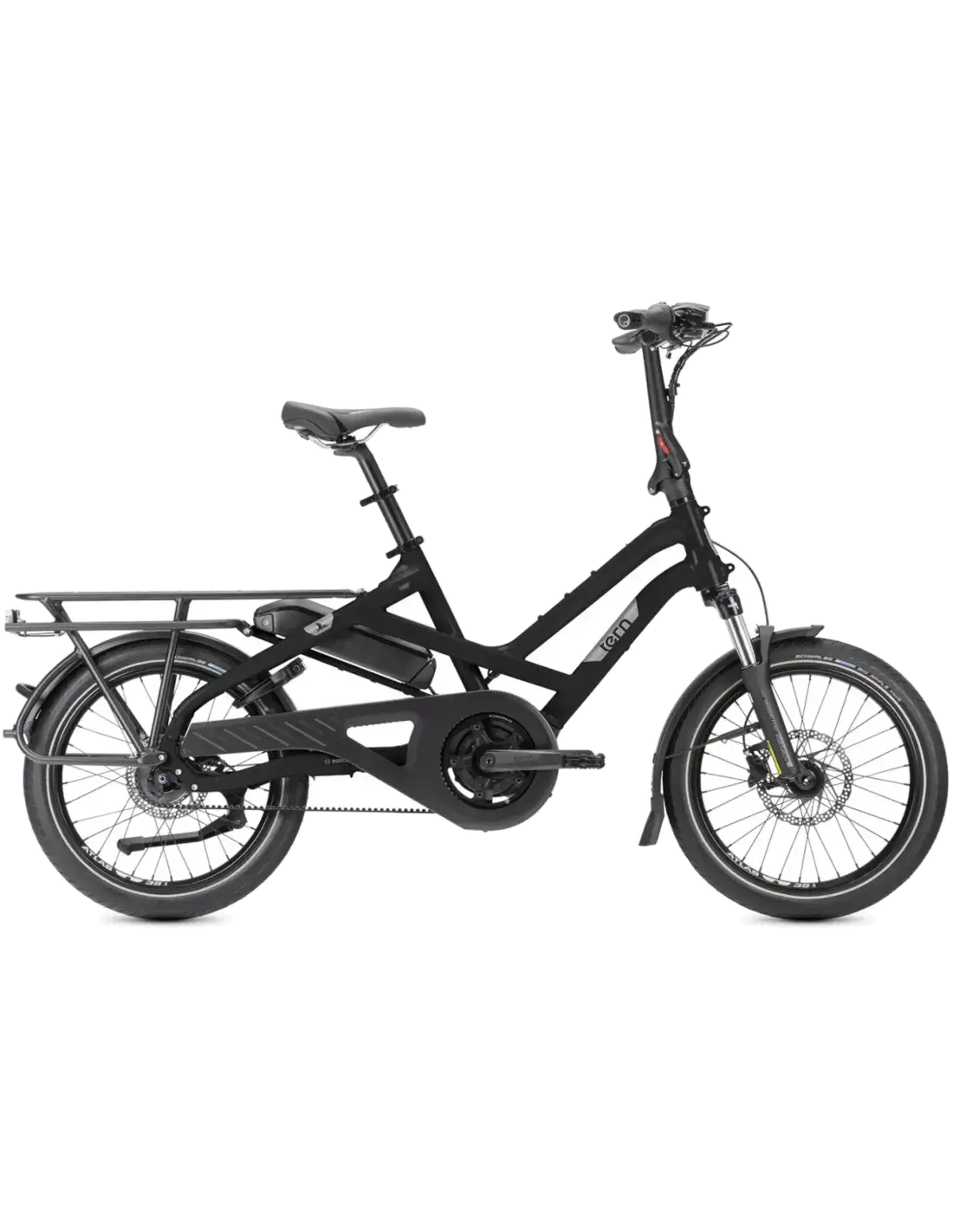

Tern HSD P51 Satin Black, Smart system 545Wh (Belt drive with Nexus Inter-5)
Specifications
Information
Tern HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
The compact HSD electric cargo bike stuns with its heavy-hauling abilities. Load up on groceries, carry a furry friend, or make extended errand runs without worrying about overloading. A long wheelbase and extra-low center of gravity ensure easy handling and stability, even under load. The HSD is more than enough bike for reliable urban hauling.
Compact, capable, and built for life on the move — the Tern HSD P5i combines Bosch Performance Line Smart System power with a virtually maintenance-free Gates CDX belt and Shimano Nexus 5-speed hub. With a max gross vehicle weight of 180kg and a fold-flat design for easy storage, it’s the ultimate small-format utility e-bike.
Key Features & Benefits:
- Bosch Smart Power:Bosch Performance Line motor with Smart System delivers 75Nm torque and smooth, natural assistance.
- Low-Maintenance Drive:Silent, grease-free Gates CDX belt and Shimano Nexus hub for effortless, reliable shifting.
- Compact Utility Design:Cargo- and passenger-ready with 80kg rack capacity and EFBE-certified 180kg max system weight.
Full Specification:
- Frame:Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180kg
- Fork:Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32mm stanchions, thru-axle, 70mm travel, EFBE approved: 180kg
- Motor:Bosch Performance Line Smart System, 75Nm torque, up to 340% assist, max speed 25kph (EU)
- Battery:Bosch PowerPack 545Wh
- Controller:Bosch Intuvia 100 display with LED remote, Smart System connectivity via Bosch eBike Flow app, 4 assist modes, walk assist, eBike Lock
- Number of Gears:5
- Gear Shifters:Shimano Nexus INTER-5E
- Chainset:Tern HSD custom, Gates CDX CNC-machined beltring
- Chainrings:Gates CDX, 55T
- Rear Cassette:Gates CDX precision CNC-machined cog
- Chain:Gates Carbon Drive CDX belt
- Front Derailleur:—
- Rear Derailleur:—
- Bottom Bracket:Motor integrated
- Pedals:Urban platform with non-slip surface
- Rims:Tern Atlas H, 35mm wide cargo rims
- Front Hub:Novatec, sealed cartridge bearings, thru-axle
- Rear Hub:Shimano Nexus INTER-5E internal gear hub
- Front Tyre:Schwalbe Big Apple 55-406, puncture protection, Reflex sidewalls
- Rear Tyre:Schwalbe Big Apple 55-406, puncture protection, Reflex sidewalls
- Brakes:Shimano hydraulic disc, 180mm front rotor / 160mm rear rotor
- Handlebars:Tern Sweep, 6061-AL, Tern Andros adapted
- Handlebar Tape:Ergon grips
- Headset:Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
- Stem:Tern Andros, adjustable, forged construction
- Saddle:Tern Upright by Velo
- Seatpost:Tern Telescope 34.9/30.9mm, 2014-AL
- Accessories:Valo Direct 190-lumen front light, Herrmans H-Trace rear light, SKS stainless fenders, Atlas H rear rack (80kg capacity), Ursus kickstand, ABUS frame lock keyed alike with battery, full chainguard, bell
- Weight:27.9kg (Gross vehicle weight: 180kg)
