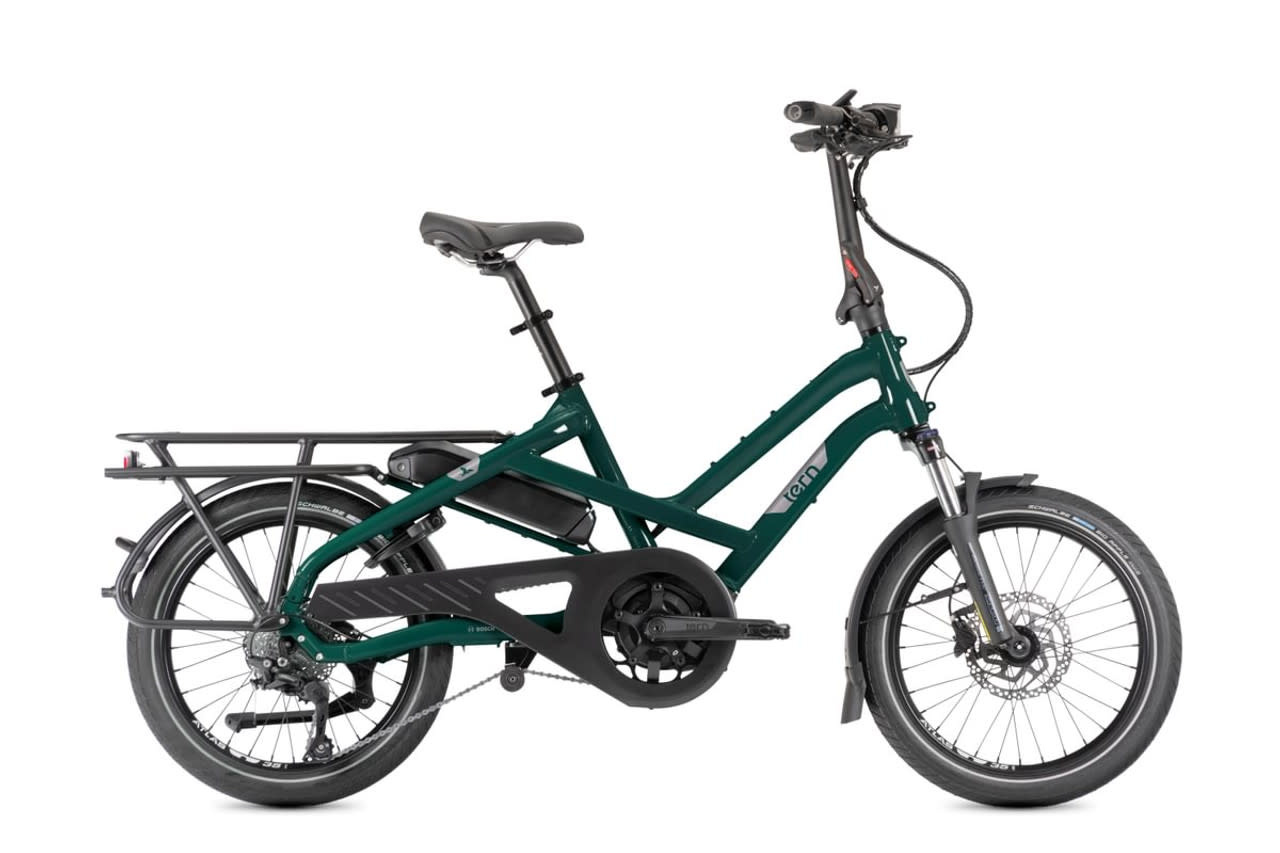

Tern HSD P10 Blue-Green, Smart system 545Wh (Belt drive with Nexus Inter-5)
Specifications
Information
The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
The compact HSD electric cargo bike stuns with its heavy-hauling abilities. Load up on groceries, carry a furry friend, or make extended errand runs without worrying about overloading. A long wheelbase and extra-low center of gravity ensure easy handling and stability, even under load. The HSD is more than enough bike for reliable urban hauling.
Compact yet mighty, the Tern HSD P10 delivers everyday utility in a space-saving format. Powered by Bosch’s Smart System Performance Line motor with 75Nm of torque and paired with a smooth 10-speed Shimano Deore drivetrain, it’s ideal for commuting, hauling, and urban adventures. The 545Wh PowerPack battery offers up to 121km of range, and the sturdy 180kg system weight rating means you can carry cargo or passengers with confidence.
Key Features & Benefits:
- Bosch Smart Power:Bosch Performance Line motor with Smart System delivers 75Nm torque and smooth, natural assistance.
- Smooth 10-Speed Shifting:Reliable Shimano Deore drivetrain for precise, efficient performance in varied terrain.
- Compact Utility Design:Cargo- and passenger-ready with 80kg rack capacity and EFBE-certified 180kg max system weight.
Full Specification:
- Frame:Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180kg
- Fork:Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32mm stanchions, thru-axle, 70mm travel, EFBE approved: 180kg
- Motor:Bosch Performance Line Smart System, 75Nm torque, up to 340% assist, max speed 25kph (EU)
- Battery:Bosch PowerPack 545Wh
- Controller:Bosch Intuvia 100 display with LED remote, Smart System connectivity via Bosch eBike Flow app, 4 assist modes, walk assist, eBike Lock
- Number of Gears:10
- Gear Shifters:Shimano Deore trigger shifter, 1x10-speed
- Chainset:Tern HSD custom
- Chainrings:—
- Rear Cassette:Shimano 11-36T, 10-speed
- Chain:KMC 10-speed, eBike-specific with EPT corrosion-resistant coating
- Front Derailleur:—
- Rear Derailleur:Shimano Deore Shadow+
- Bottom Bracket:Motor integrated
- Pedals:Urban platform with non-slip surface
- Rims:Tern Atlas H, 35mm wide cargo rims
- Front Hub:Novatec, sealed cartridge bearings, thru-axle
- Rear Hub:Novatec, sealed cartridge bearings, disc
- Front Tyre:Schwalbe Big Apple 55-406, puncture protection, Reflex sidewalls
- Rear Tyre:Schwalbe Big Apple 55-406, puncture protection, Reflex sidewalls
- Brakes:Tektro hydraulic disc, 180mm front rotor / 160mm rear rotor
- Handlebars:Tern Sweep, 6061-AL, Tern Andros adapted
- Handlebar Tape:Ergon grips
- Headset:Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
- Stem:Tern Andros, adjustable, forged construction
- Saddle:Tern Upright by Velo
- Seatpost:Tern Telescope 34.9/30.9mm, 2014-AL
- Accessories:Valo Direct 190-lumen front light, Herrmans H-Trace rear light, SKS stainless fenders, Atlas H rear rack (80kg capacity), Ursus kickstand, ABUS frame lock keyed alike with battery, full chainguard, bell
- Weight:27.6kg (Gross vehicle weight: 180kg)
