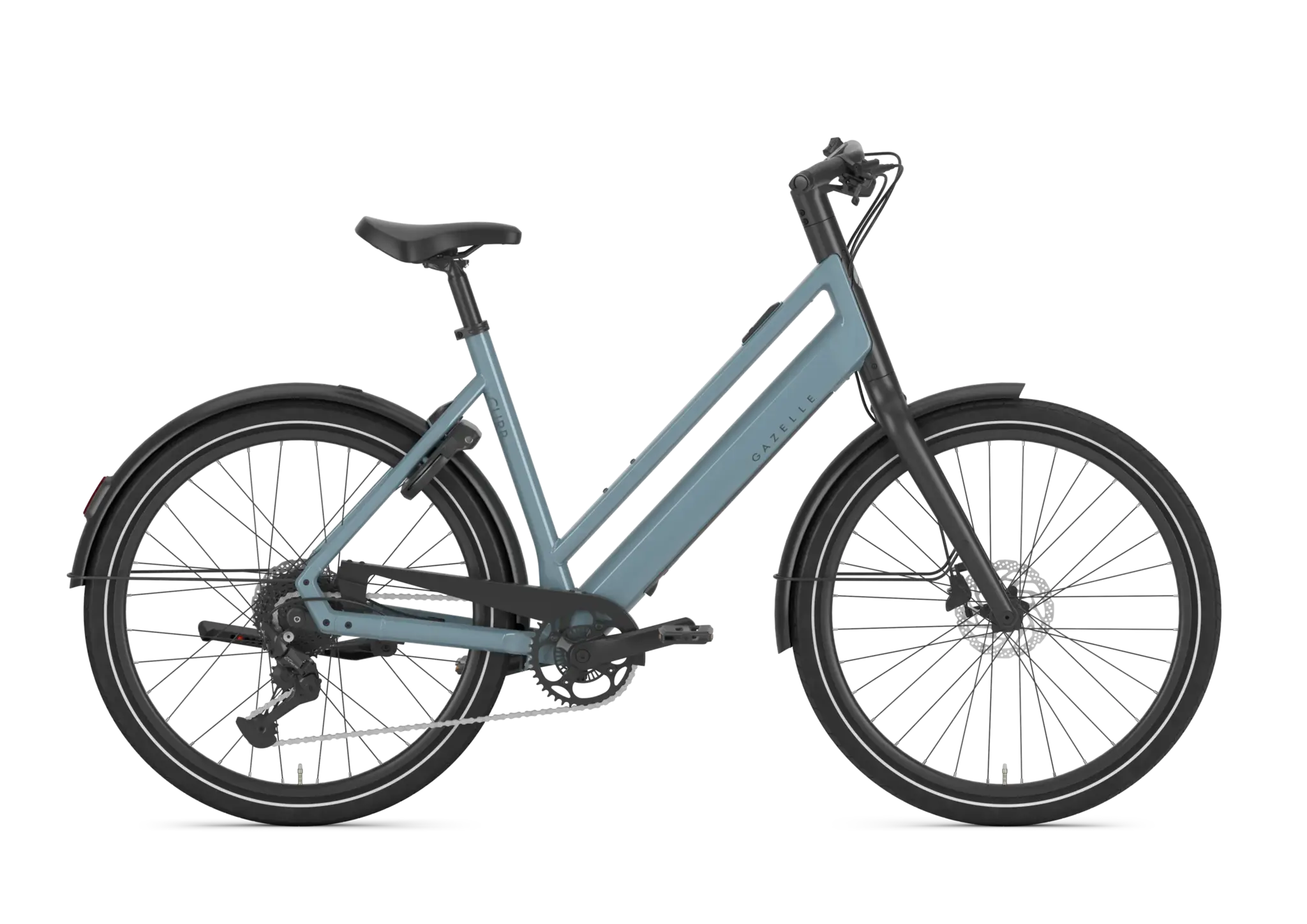

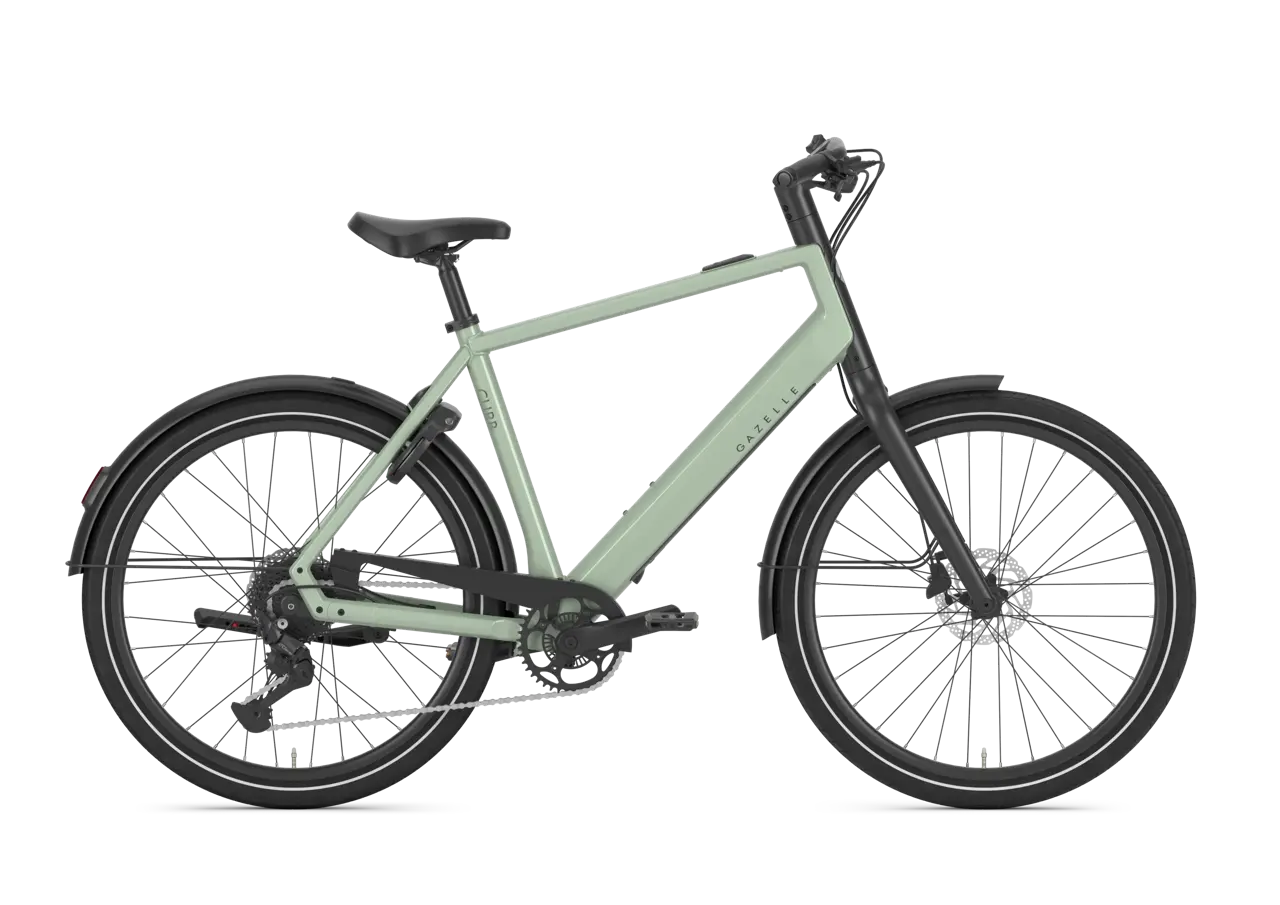

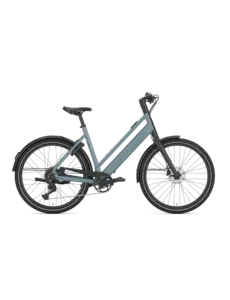

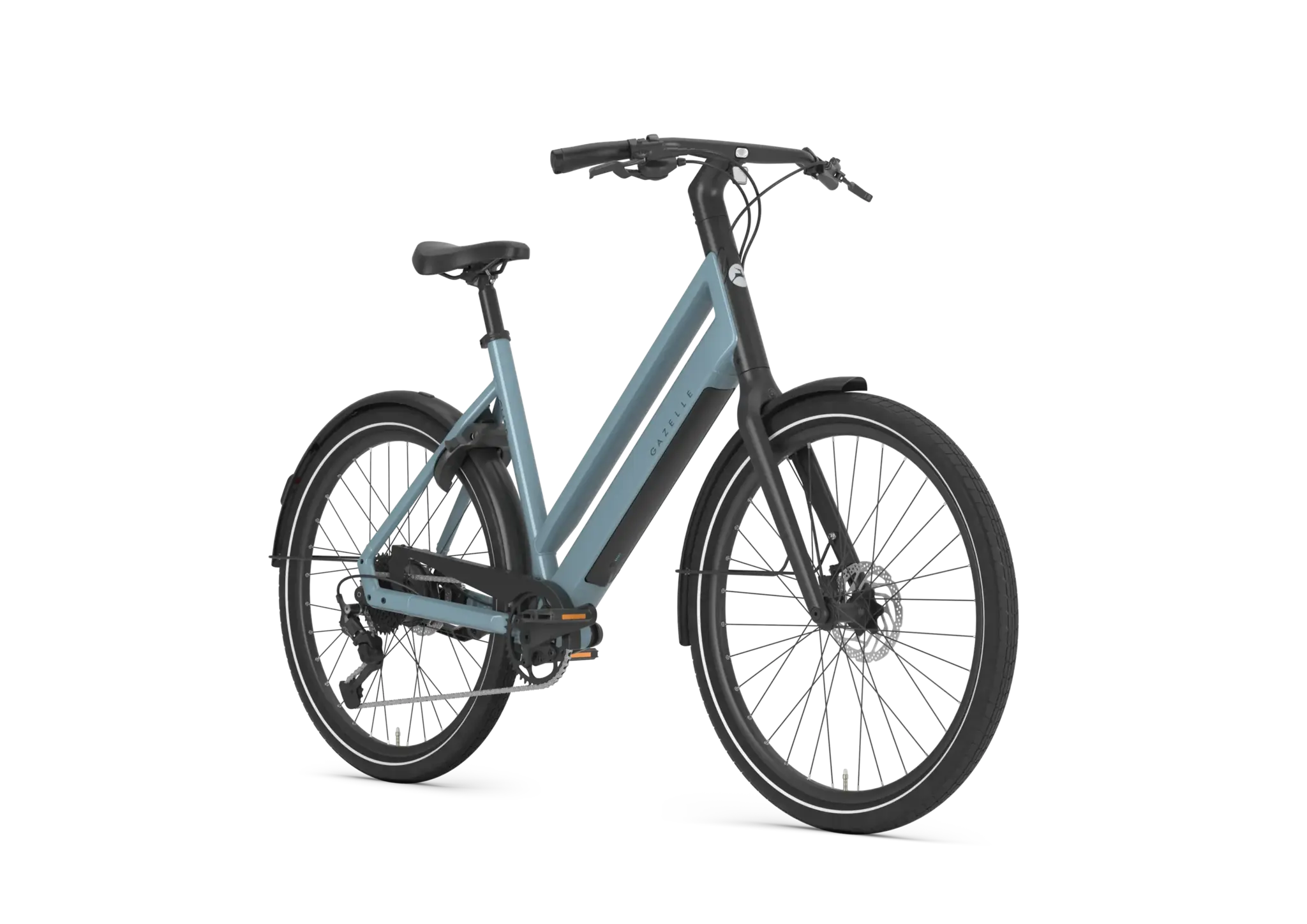

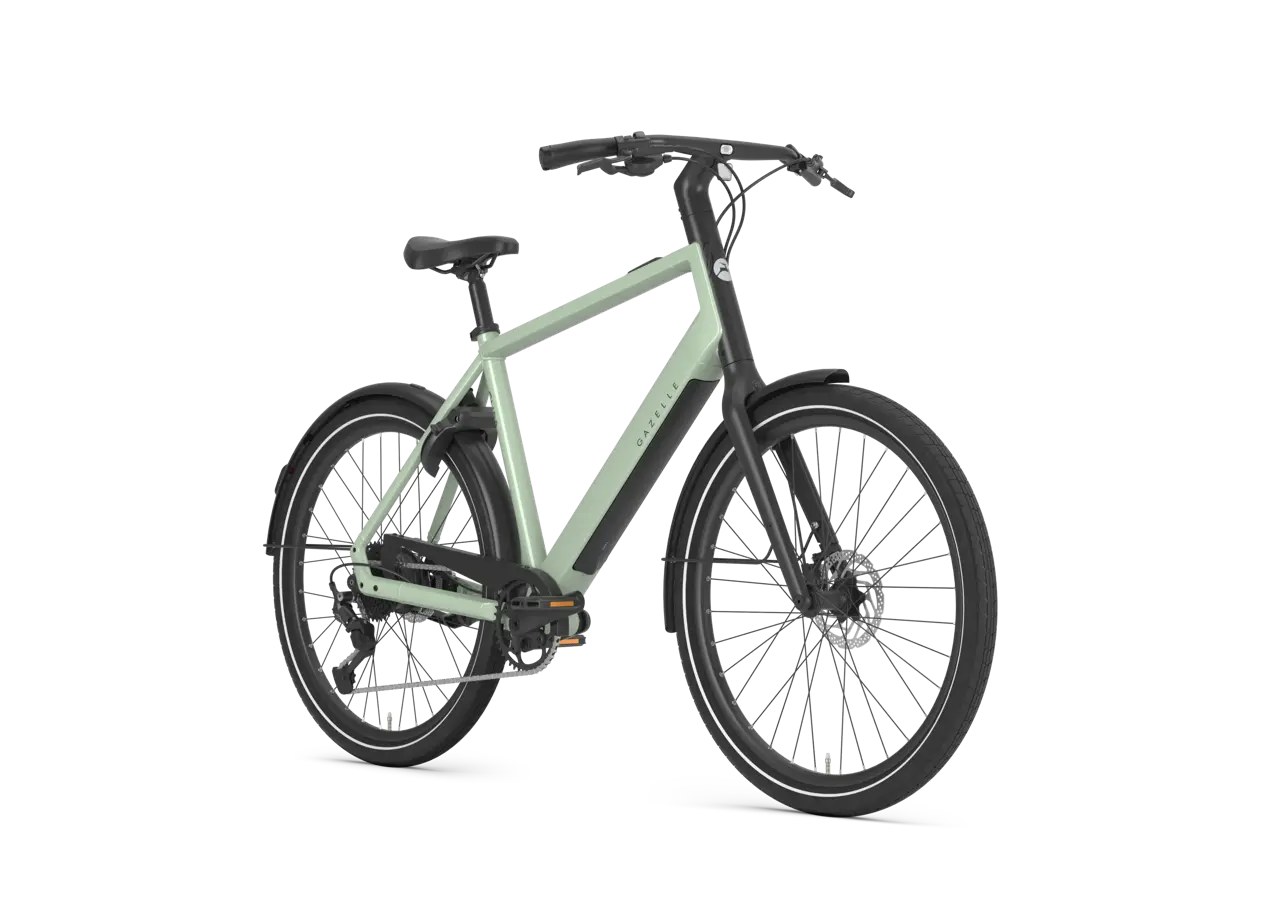

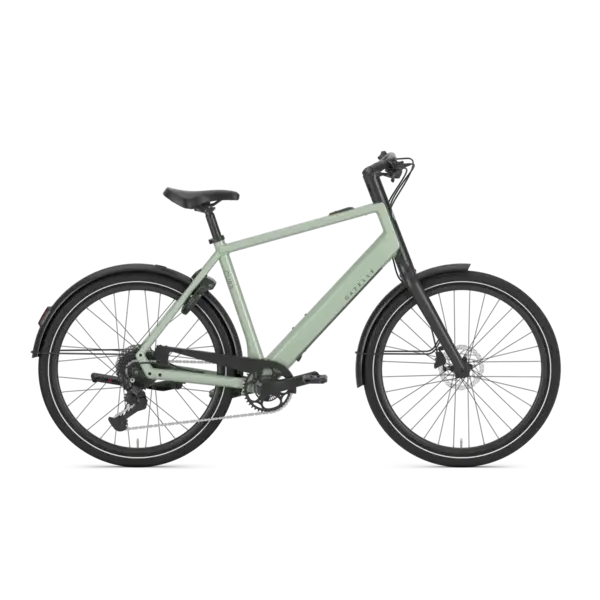

Gazelle Curb T9
Information
E-Bike System
| System Brand | Bosch Smart System |

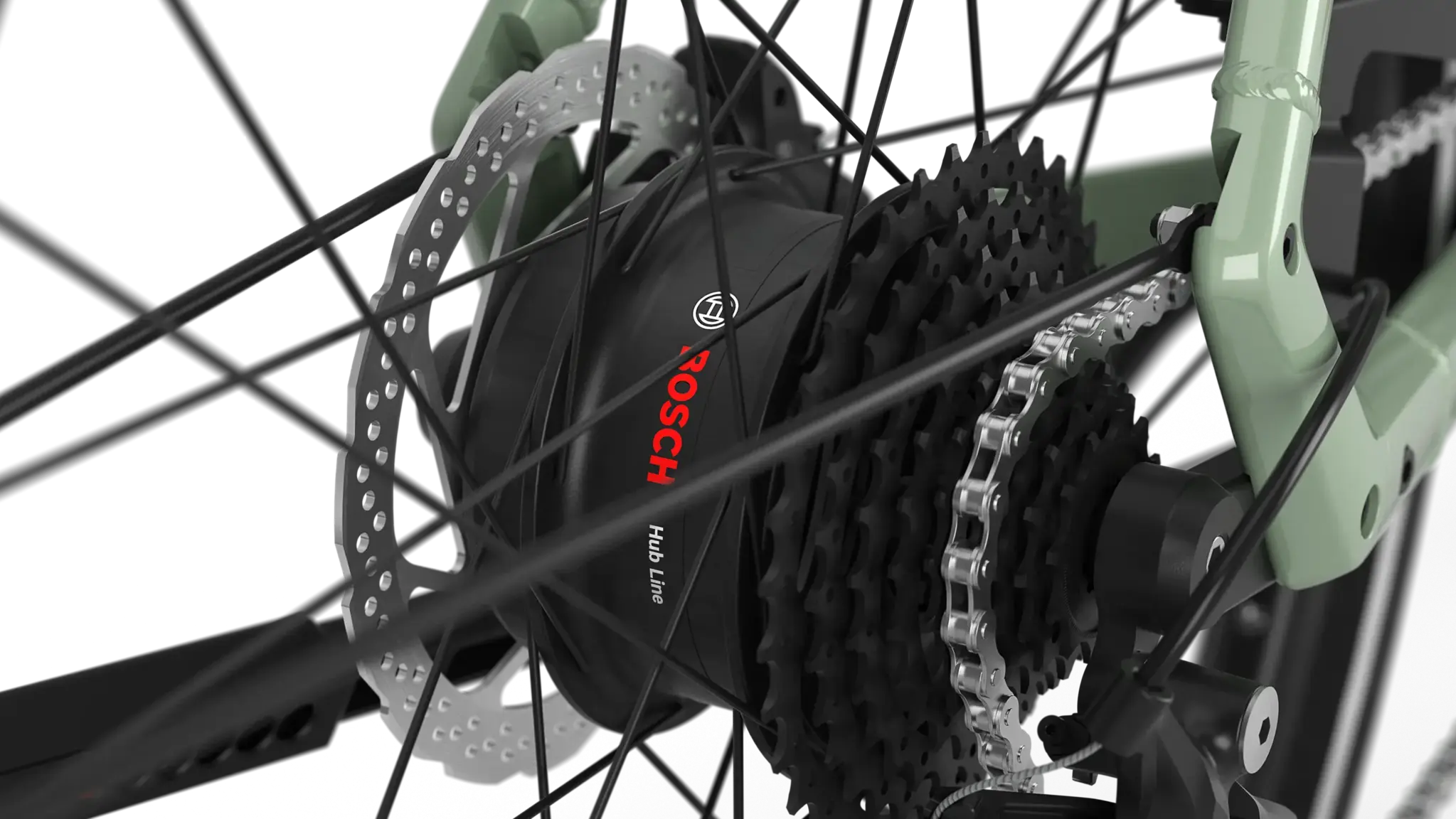

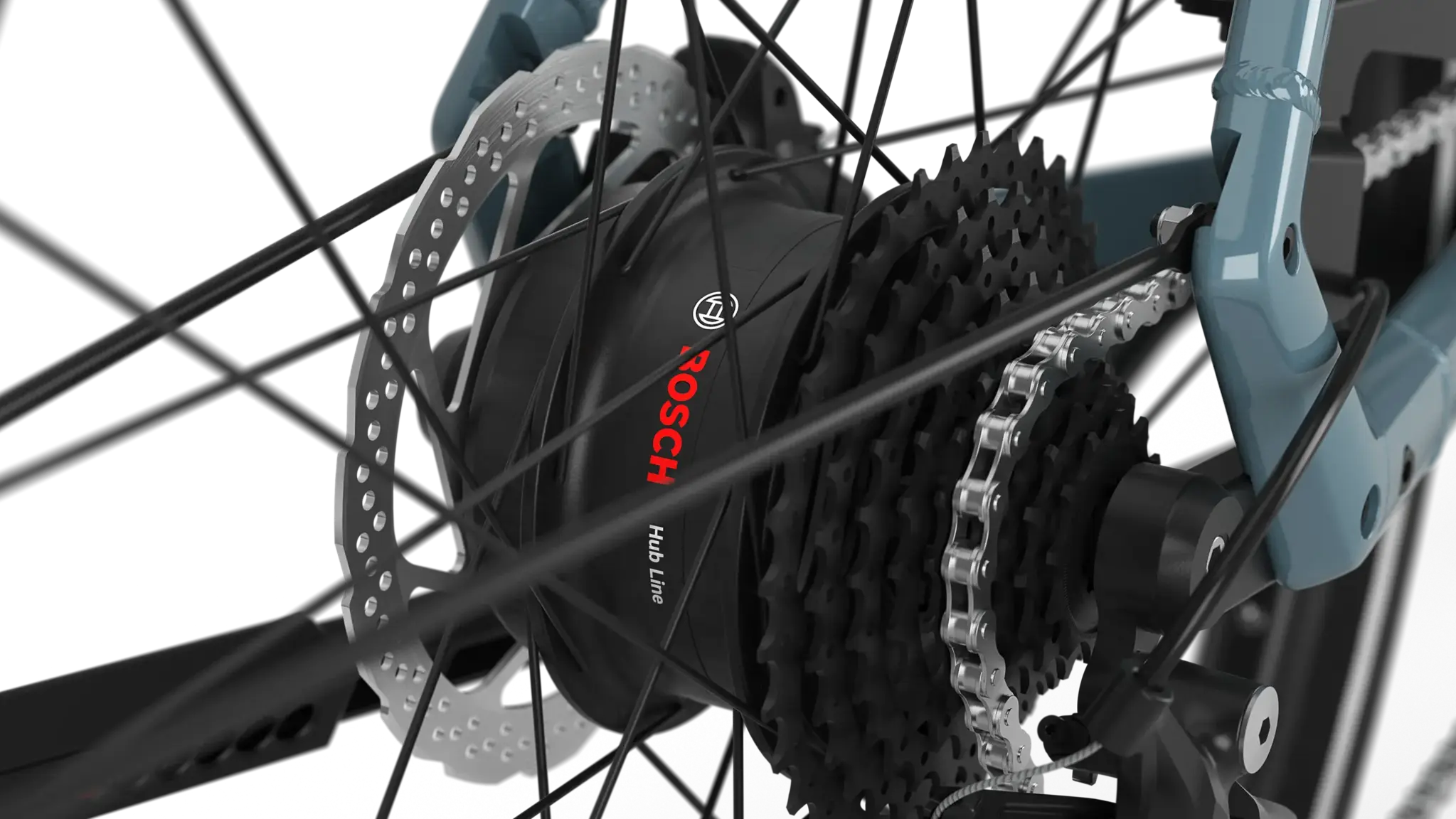

| Motor | Hub Line (Rear) |
| Max Torque | 45 Nm |
| Maximum Speed | 15 mph |
| Support Levels | 4 |
| Support Modes | Eco, Tour, Auto, Turbo |
| Walk Assist | Yes |
Display

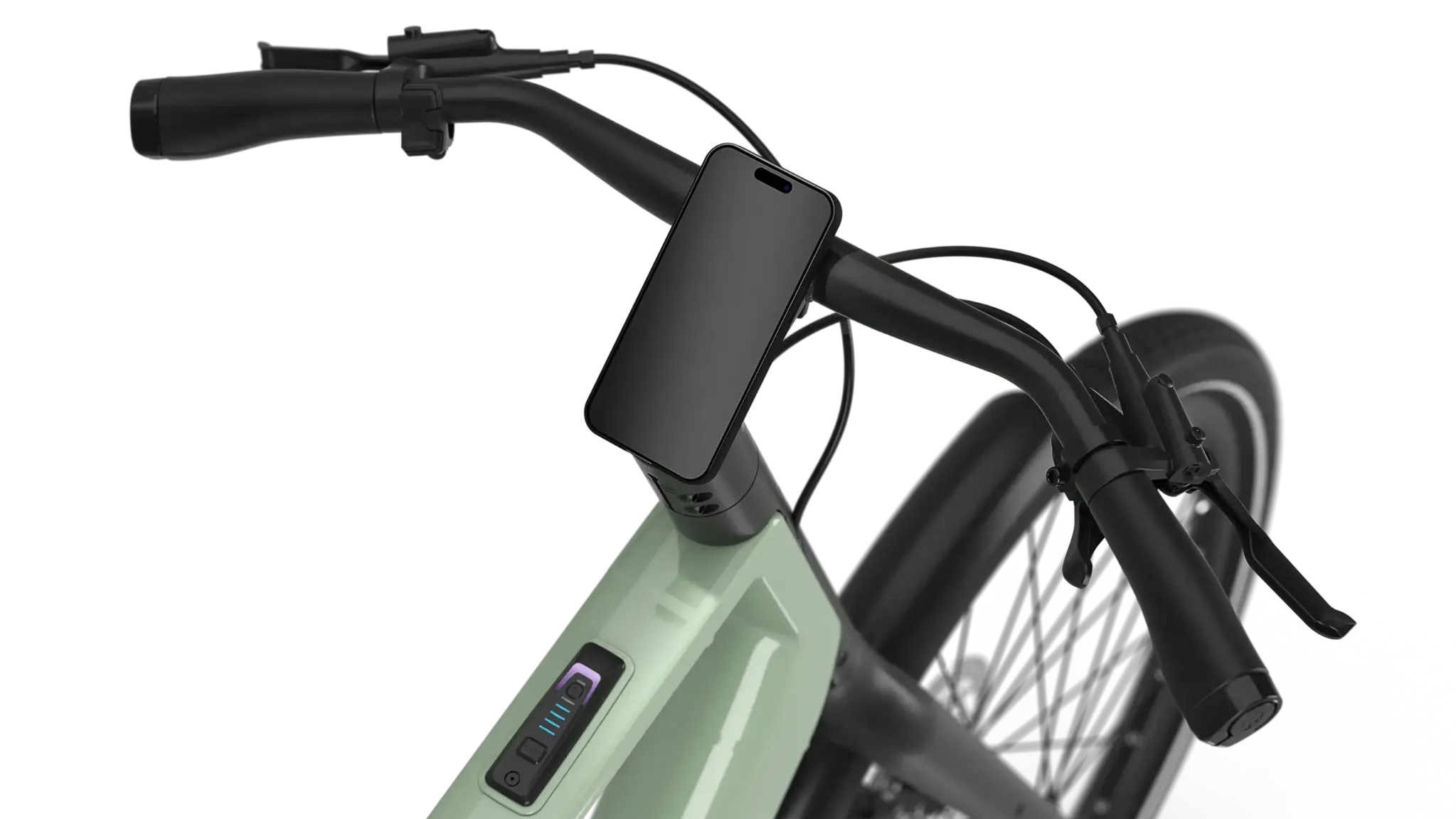

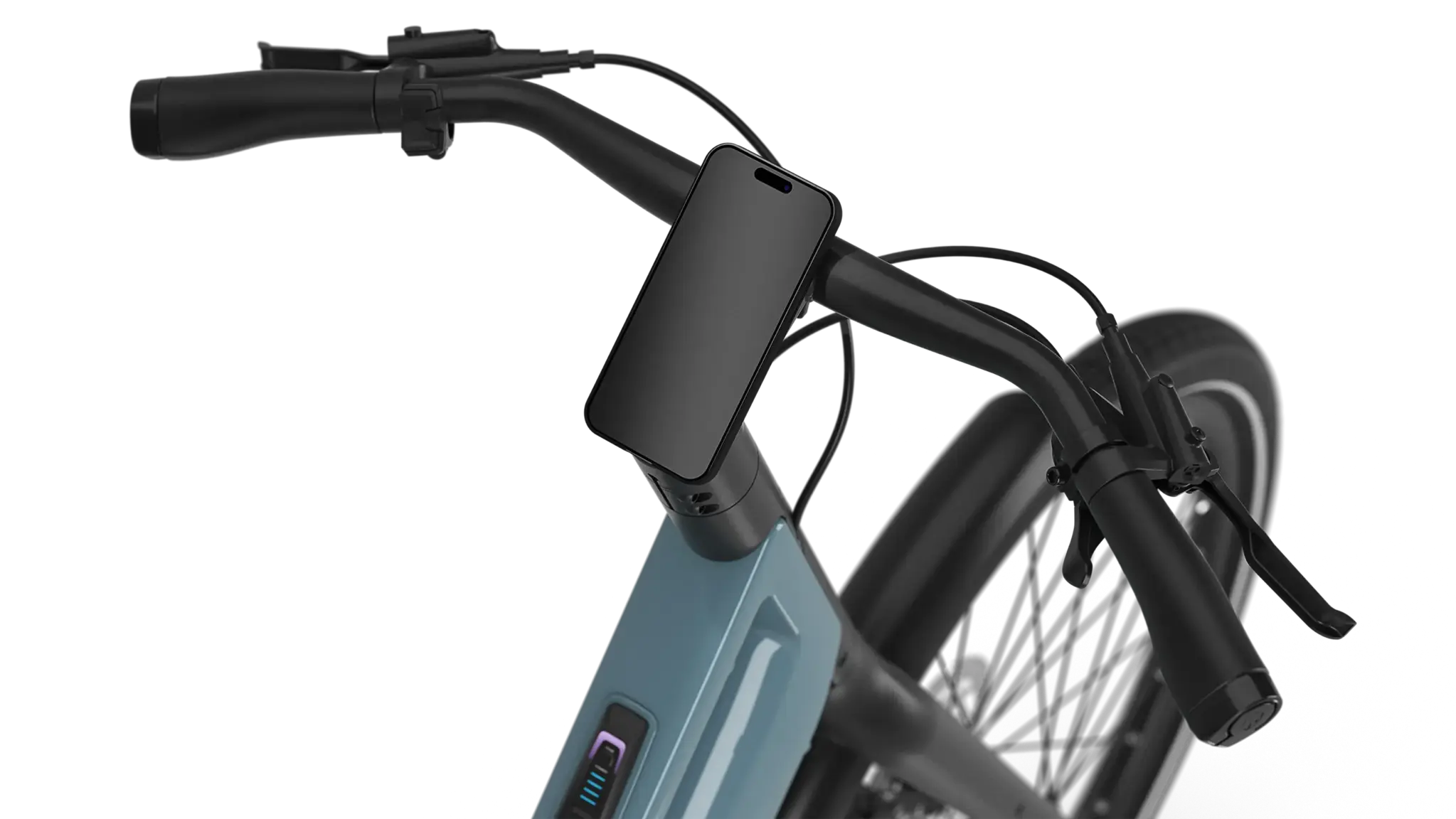

| Display Model | Bosch System Controller + Mini Remote |
| Display Type | LED |
| Removable | No |
Battery & Range
| Battery Brand | Bosch |
| Battery Model | Intube |
| Capacity | 360 Wh / 10 Ah |
| Voltage | 36 V |
| Position | Integrated in the frame |
| Charger | Bosch Compact Charger, 2A |
| Charging Time (2A) | 5 h 30 m |
Estimated Range
| Eco | 55 mi |
| Tour | 40 mi |
| Auto | 35 mi |
| Turbo | 20 mi |
Frame & Fork

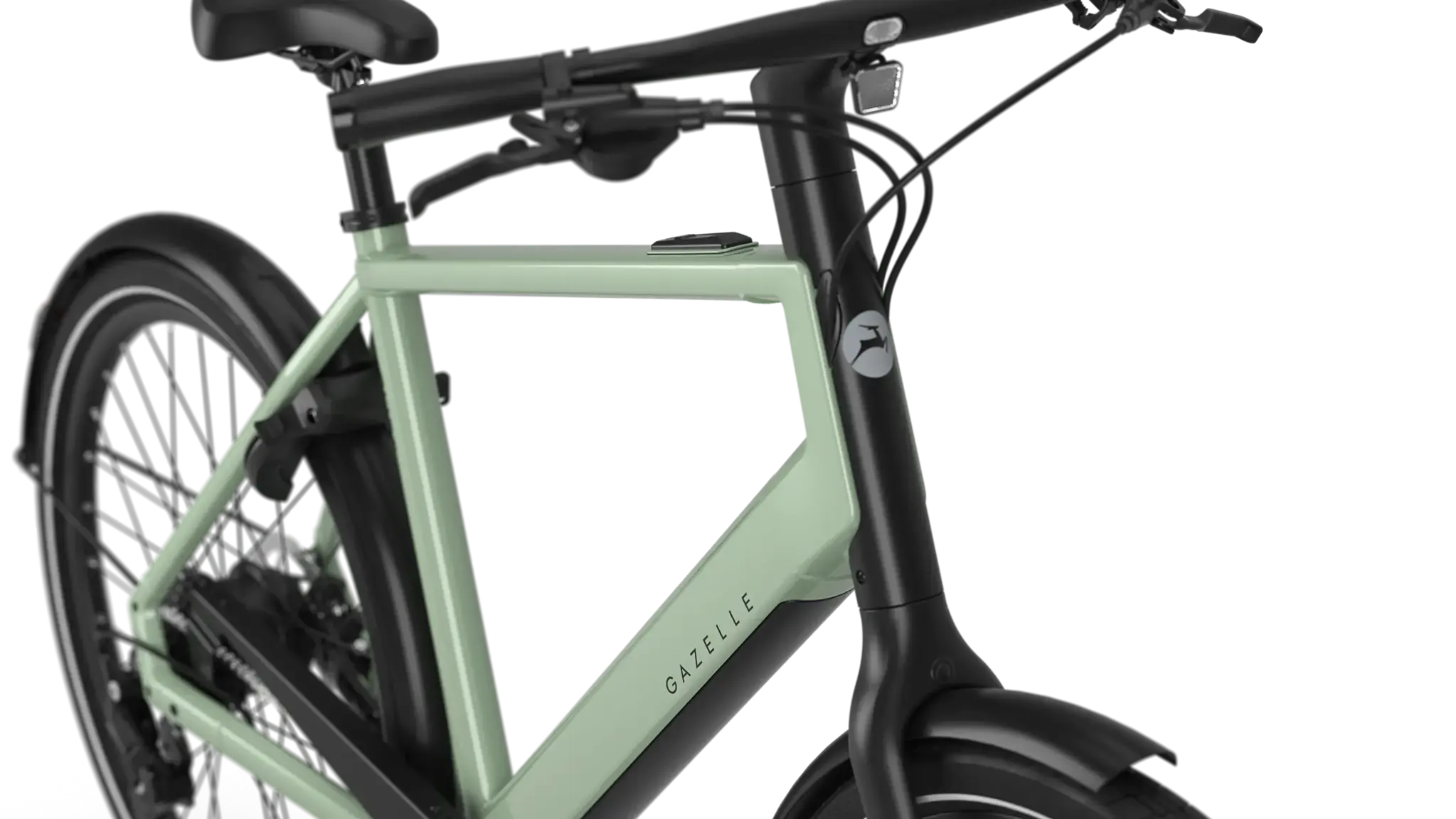

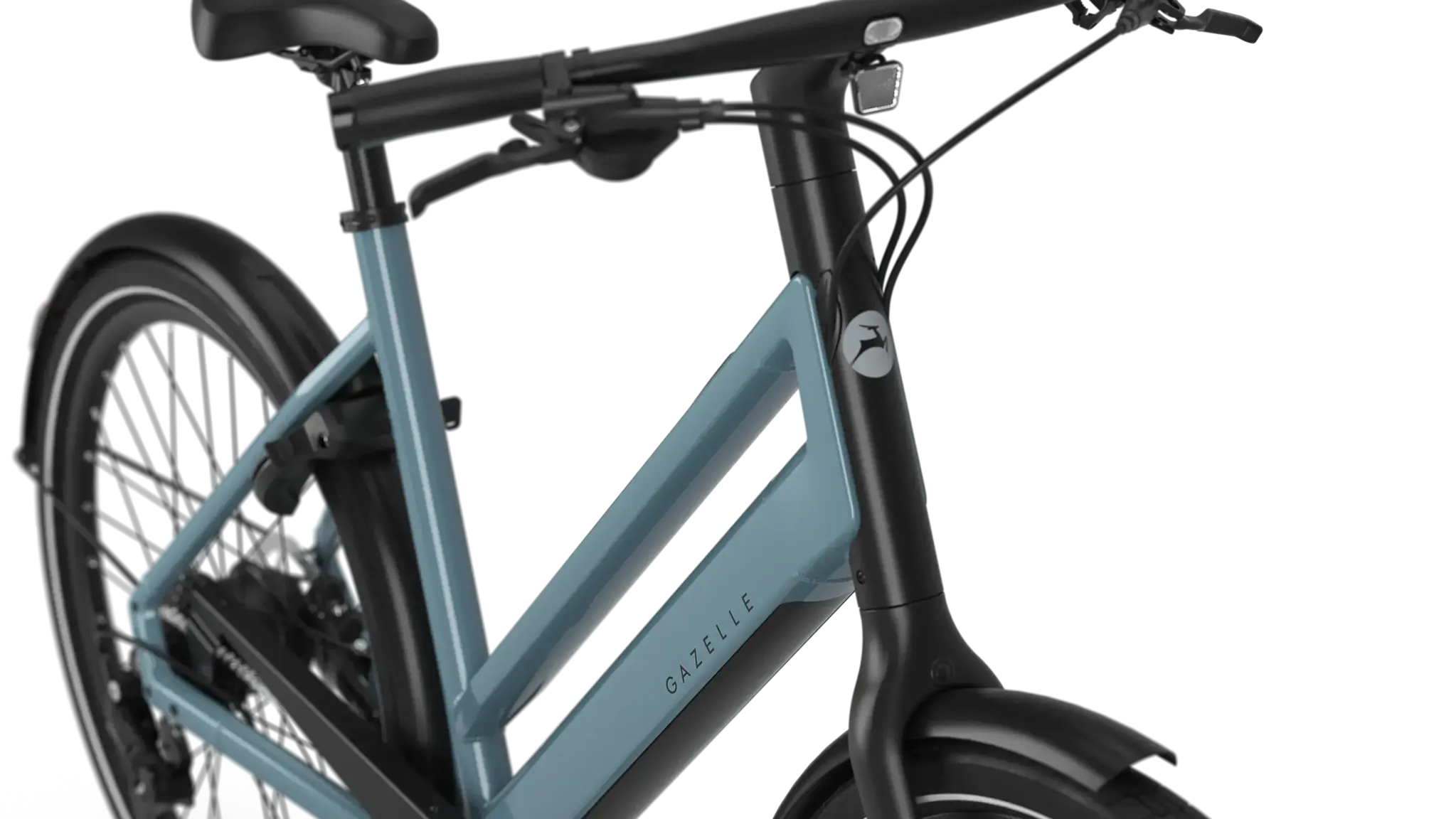

| Frame Material | Aluminum |
| Frame Shape | Low-Step, High-Step |
| Frame Sizes | S (45 cm), M (50 cm), L (55 cm), XL (60 cm) |
| Fork Material | Aluminum |
| Fork Suspension | Rigid |
General
| Model | Curb |
| Sitting Position | Active |
| Weight | 46.7 lbs (excl. battery) |
| Colors | Thunder grey gloss, Pistache green gloss |
Handlebar & Seat
| Handlebar | Aluminium, slightly curved |
| Grips | Herrmans Click (ergonomic) |
| Saddle | Selle Royal On Moderate |
Lighting

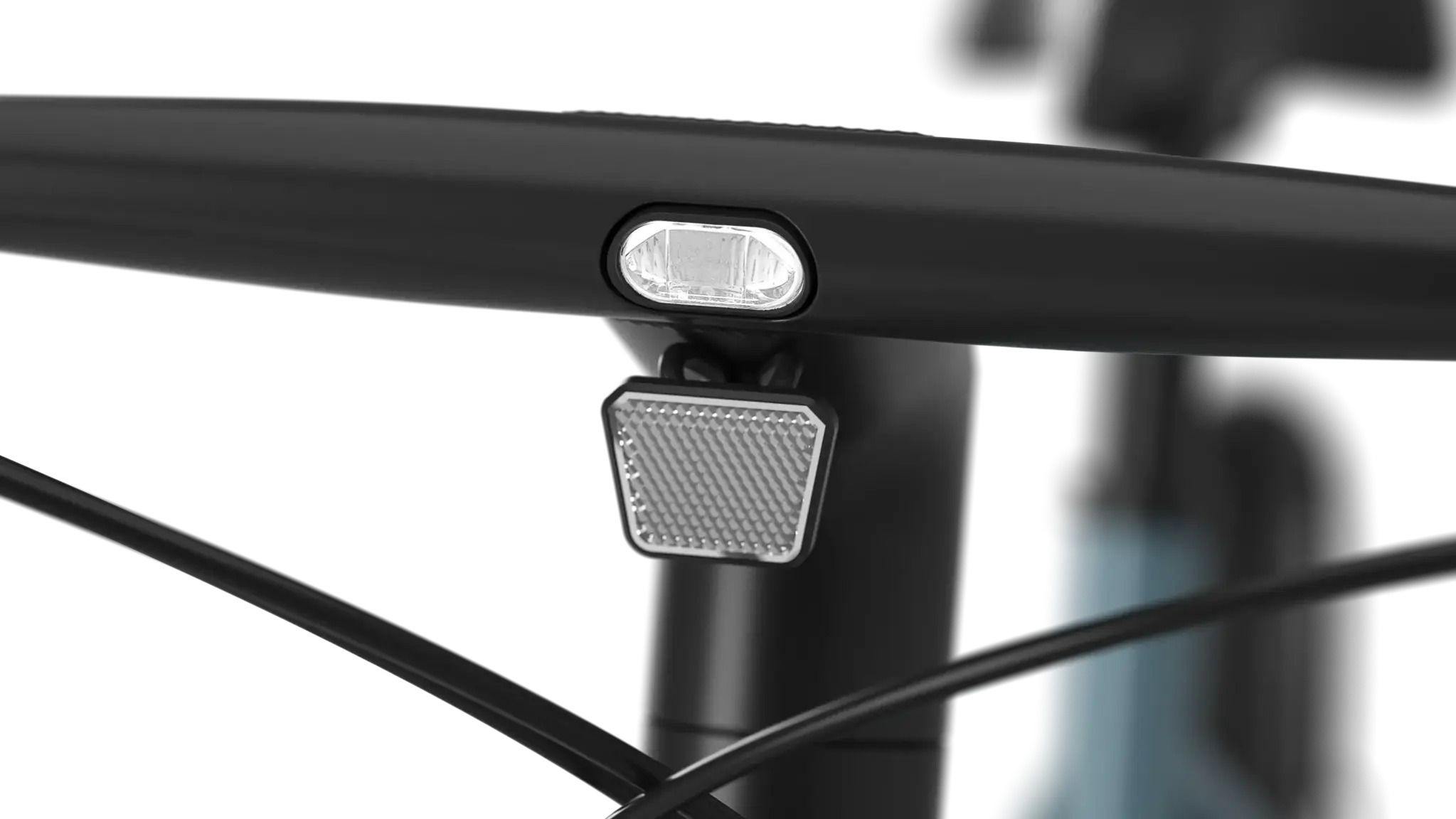

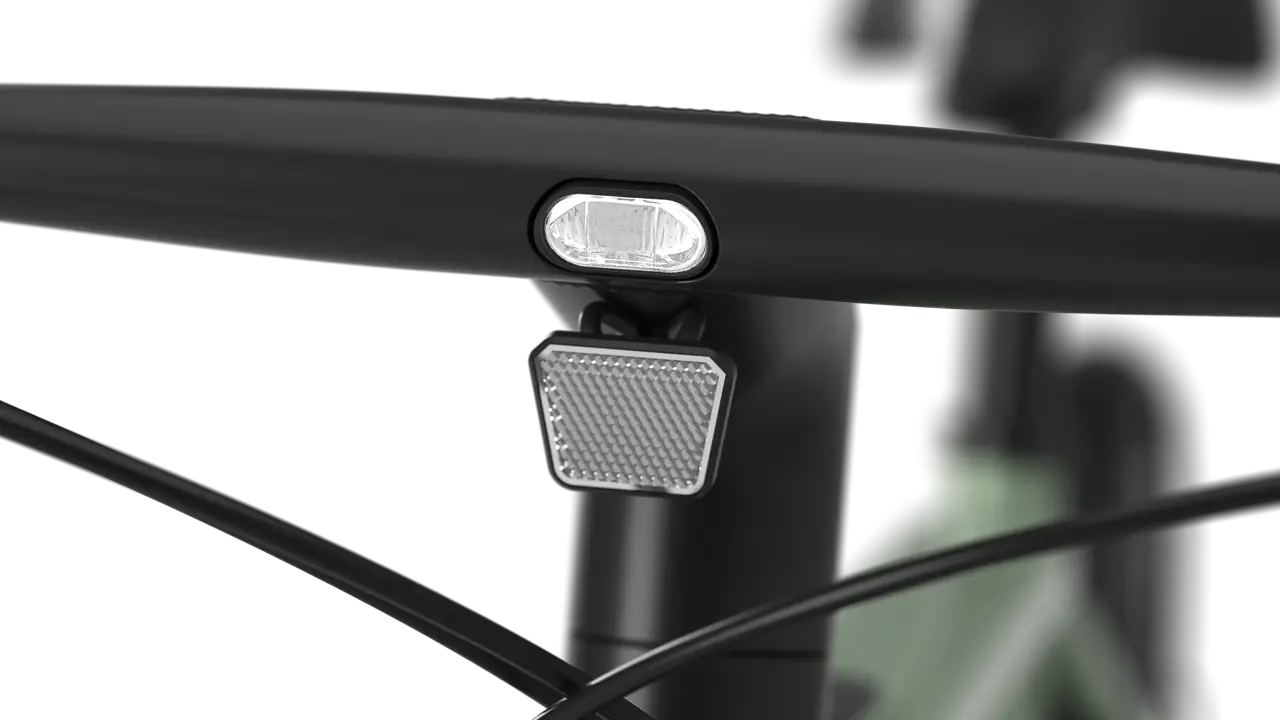

| Front Light | Supernova Starstream Mini |
| Rear Light | Supernova TL3Z |
Brakes
| Type | Shimano MT200 Hydraulic Disc (Front & Rear) |
| Disc Size | 160 mm |
Drivetrain
| Type | Chain (KMC X10) |
| Gears | Shimano Cues 9-speed |
| Front Sprocket | 42T |
Wheels & Tires
| Wheel Size | 27.5" |
| Tires | CST Urbano (50-584) |
| Rims | Ryde Andra 40 (double-walled) |
Other Features
| Lock | Axa (ART**) |
| Kickstand | Ursus Mooi |
| Carriers | Optionally available |
Warranty
| Frame & Fork | 10 years |
| Paint | 5 years |
| Battery, Motor, Display | 2 years |
Related products
Gazelle Bloom C7 26" family e-bike – Shimano EP5 mid-drive (50Nm), low-step frame, up to 112 miles range. Stable & powerful for child seats, school runs & daily loads. From £2,399.
Gazelle Bloom C310 – Premium low-step family e-bike with powerful Shimano EP5 mid-drive motor (60 Nm), stepless Enviolo hub gears, hydraulic disc brakes, 28" wheels, front & rear MIK carriers. Super stable for kids, shopping and heavy loads. Easy step-thr
Gazelle Bloom C7 – Stylish low-step family e-bike with Shimano EP5 mid-drive motor (50 Nm), 7-speed Shimano Nexus hub, hydraulic disc brakes, 28" wheels and front & rear MIK carriers. Super stable and easy to mount, perfect for parents, kids and daily cit
Gazelle Esprit C7 – Stylish and lightweight city e-bike with Shimano EP5 mid-drive motor (50 Nm), 7-speed Shimano Nexus hub, hydraulic disc brakes and 28" Schwalbe Fat Frank tires. Comfortable upright position. Perfect for daily urban commuting.
Gazelle Esprit C7 – Stylish and lightweight city e-bike with Shimano EP5 mid-drive motor (50 Nm), 7-speed Shimano Nexus hub, hydraulic disc brakes and 28" Schwalbe Fat Frank tires. Comfortable upright position. Perfect for daily urban commuting.
Gazelle Ultimate C380 – Premium city/trekking e-bike with powerful Bosch Performance Line PX motor (85-90 Nm), stepless Enviolo gears, Gates carbon belt drive, suspension fork & seatpost. Integrated battery, hydraulic 4-piston brakes and sleek design.
Gazelle Ultimate C380 – Premium city/trekking e-bike with powerful Bosch Performance Line PX motor (85-90 Nm), stepless Enviolo gears, Gates carbon belt drive, suspension fork & seatpost. Integrated battery, hydraulic 4-piston brakes and sleek design.

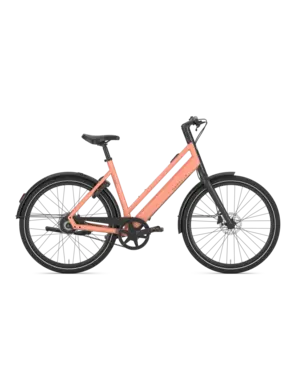

SOME SIZES ARE AVALIABE FROM END OF NOVEM AND SOME ARE FROM FEB 2027!! CONTACT US BEFORE ORDERING. The Gazelle Curb C1 is a sleek, minimalist urban e-bike featuring a low-maintenance Gates belt drive, Bosch Hub Line rear motor (45 Nm), and integrated 360
