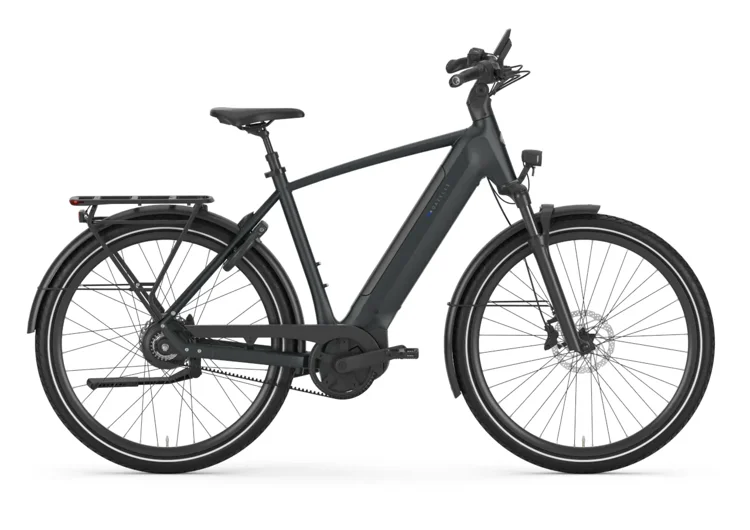

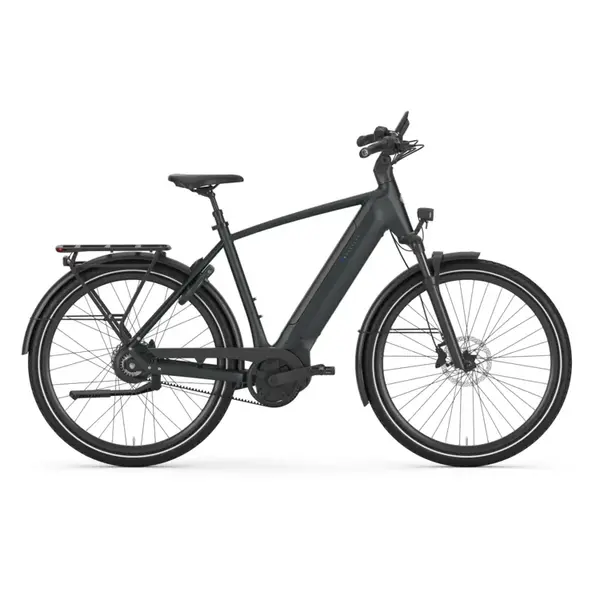

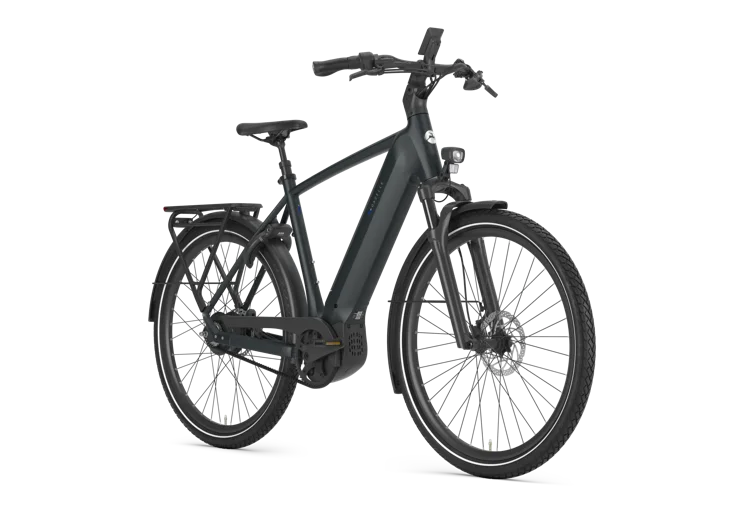

Gazelle Ultimate C380 High-Step Frame

£3,907.40 Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)

Gazelle Ultimate C380 – Premium city/trekking e-bike with powerful Bosch Performance Line PX motor (85-90 Nm), stepless Enviolo gears, Gates carbon belt drive, suspension fork & seatpost. Integrated battery, hydraulic 4-piston brakes and sleek design. Read more

Availability:

Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)

Information

E-bike Technology

Motor
- Max Torque: 85 Nm
- Max Assisted Speed: 15 mph
- Voltage: 36V
- Walk Assist: No
- Support Levels: 4 (Eco, Tour, Auto, Turbo)

Display
- Model: Bosch Kiox 500
- Type: LCD colour
- Connectivity: Bluetooth
- Description: Centrally placed colour display with clear ride data. Connects to smartphone via Bluetooth for navigation and extra functions. Controls located on the side of the handlebars.

Battery
- Charger: Bosch Standard Charger (included)
- Charger Brand: Bosch
- Battery Replaceable: No

Frame & Fork
- Frame Material: Aluminium
- Frame Shape: High-Step
- Frame Description: Stable aluminium frame with 70.5° headset angle and 71.5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
- Frame Size: M
- Sitting Position: Active / Upright
- Integrated Cables: Yes
- Fork: SR Suntour MOBIE 34
- Fork Type: Air suspension (telescope)
- Fork Travel: 80 mm
- Fork Lockout: Yes

General
- Colour: Grey
- Max Total Weight: 150 kg
- E-Bike: Yes
- EAN: -

Handlebar & Seat
- Handlebar: Aluminium, slightly curved
- Grips: Ergon GP1-L ergonomic
- Stem: Adjustable with Intelli-Mount interface for smartphone
- Saddle: Selle Royal Essenza Plus Gel
- Seatpost Suspension: Yes

Lighting
- Front Light: Herrmans MR10 (90 Lux, battery powered)
- Rear Light: Spanninga Commuter Glow (battery powered)

Carriers & Accessories
- Front Carrier: No
- Rear Carrier: Aluminium MIK HD system carrier
- Rear Carrier Max Load: 27 kg (59 lbs)
- MIK Profile: Yes
- Lock: Axa ring lock (with option for plug-in cable)
- ART Classification: ART**
- Kickstand: Ursus drop-down rear stand
- Fenders: Aluminium
- Chain Guard: Yes

Brakes
- Front Brake: Shimano MT420 hydraulic disc (180 mm, 4-piston)
- Front Brake Lever: Shimano BL-MT420
- Rear Brake: Shimano MT420 hydraulic disc (160 mm, 4-piston)
- Rear Brake Lever: Shimano BL-MT420

Drivetrain
- Gears: Enviolo Trekking Manual (stepless / continuously variable)
- Gear Type: Hub
- Stepless Shifting: Yes
- Automatic Shifting: No
- Drivetrain: Gates CDX belt
- Front Chainwheel: Gates CDX 55T
- Rear Chainwheel: Gates CDX 24T
- Crankset: Miranda Delta (aluminium)

Wheels & Tyres
- Wheel Size: 28" front & rear
- Front Hub: Shimano
- Rear Hub: Enviolo Trekking Manual
- Rims: Ryde ZAC 25 double-walled aluminium
- Spokes: Stainless steel, extra strong
- Tyres: Schwalbe The Green Marathon (80% recycled and renewable materials)

Warranty
- Frame: 10 years
- Fork: 5 years
- Paint: 5 years
- Motor: 2 years
- Battery: 2 years
- Display: 2 years
- Other Parts: 2 years

---
