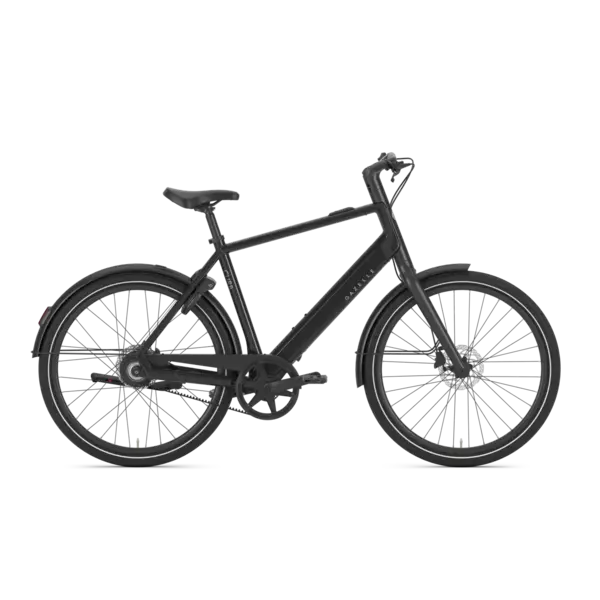

Gazelle Curb C1 High-Step
Information
E-Bike System
| System Brand | Bosch Smart System |
| Motor | Hub Line (Rear) |
| Max Torque | 45 Nm |
| Maximum Speed | 15 mph |
| Support Levels | 4 |
| Support Modes | Eco, Tour, Auto, Turbo |
| Walk Assist | Yes |
Display
| Display Model | Bosch System Controller + Mini Remote |
| Display Type | LED |
| Removable | No |
Battery & Range
| Battery Brand | Bosch |
| Battery Model | Intube |
| Capacity | 360 Wh / 10 Ah |
| Voltage | 36 V |
| Position | Integrated in the frame |
| Charger | Bosch Compact Charger, 2A |
| Charging Time (2A) | 5 h 30 m |
Estimated Range
| Eco | 55 mi |
| Tour | 40 mi |
| Auto | 35 mi |
| Turbo | 20 mi |
Frame & Fork
| Frame Material | Aluminum |
| Frame Shape | High-Step |
| Frame Sizes | M (50 cm), L (55 cm), XL (60 cm) |
| Fork Material | Aluminum |
| Fork Suspension | Rigid |
General
| Model | Curb C1 |
| Sitting Position | Active |
| Weight | 44.5 lbs (excl. battery) |
| Colors | Ivory white gloss, Soft peach gloss, Black gloss, Platinum white gloss |
Handlebar & Seat
| Handlebar | Aluminium, slightly curved |
| Grips | Herrmans Click (ergonomic) |
| Saddle | Selle Royal On Moderate |
Lighting
| Front Light | Supernova Starstream Mini |
| Rear Light | Supernova TL3Z |
Brakes
| Type | Shimano MT200 Hydraulic Disc (Front & Rear) |
| Disc Size | 160 mm |
Drivetrain
| Type | Gates Carbon Drive Belt |
| Gears | 1-speed Hub |
Wheels & Tires
| Wheel Size | 27.5" |
| Tires | CST Urbano (50-584) |
| Rims | Ryde Andra 40 (double-walled) |
Other Features
| Lock | Axa (ART**) |
| Kickstand | Ursus Mooi |
| Carriers | Optionally available |
Warranty
| Frame & Fork | 10 years |
| Paint | 5 years |
| Battery, Motor, Display | 2 years |
E-Bike System
| System Brand | Bosch Smart System |
| Motor | Hub Line (Rear) |
| Max Torque | 45 Nm |
| Maximum Speed | 15 mph |
| Support Levels | 4 |
| Support Modes | Eco, Tour, Auto, Turbo |
| Walk Assist | Yes |
Display
| Display Model | Bosch System Controller + Mini Remote |
| Display Type | LED |
| Removable | No |
Battery & Range
| Battery Brand | Bosch |
| Battery Model | Intube |
| Capacity | 360 Wh / 10 Ah |
| Voltage | 36 V |
| Position | Integrated in the frame |
| Charger | Bosch Compact Charger, 2A |
| Charging Time (2A) | 5 h 30 m |
Estimated Range
| Eco | 55 mi |
| Tour | 40 mi |
| Auto | 35 mi |
| Turbo | 20 mi |
E-Bike System
| System Brand | Bosch Smart System |
| Motor | Hub Line (Rear) |
| Max Torque | 45 Nm |
| Maximum Speed | 15 mph |
| Support Levels | 4 |
| Support Modes | Eco, Tour, Auto, Turbo |
| Walk Assist | Yes |
Display
| Display Model | Bosch System Controller + Mini Remote |
| Display Type | LED |
| Removable | No |
Battery & Range
| Battery Brand | Bosch |
| Battery Model | Intube |
| Capacity | 360 Wh / 10 Ah |
| Voltage | 36 V |
| Position | Integrated in the frame |
| Charger | Bosch Compact Charger, 2A |
| Charging Time (2A) | 5 h 30 m |
Estimated Range
| Eco | 55 mi |
| Tour | 40 mi |
| Auto | 35 mi |
| Turbo | 20 mi |
Frame & Fork
| Frame Material | Aluminum |
| Frame Shape | Low-Step, High-Step |
| Frame Sizes | M (50 cm), L (55 cm), XL (60 cm) |
| Fork Material | Aluminum |
| Fork Suspension | Rigid |
General
| Model | Curb C1 |
| Sitting Position | Active |
| Weight | 44.5 lbs (excl. battery) |
| Colors | Ivory white gloss, Soft peach gloss, Black gloss, Platinum white gloss |
Handlebar & Seat
| Handlebar | Aluminium, slightly curved |
| Grips | Herrmans Click (ergonomic) |
| Saddle | Selle Royal On Moderate |
Lighting
| Front Light | Supernova Starstream Mini |
| Rear Light | Supernova TL3Z |
Brakes
| Type | Shimano MT200 Hydraulic Disc (Front & Rear) |
| Disc Size | 160 mm |
Drivetrain
| Type | Gates Carbon Drive Belt |
| Gears | 1-speed Hub |
Wheels & Tires
| Wheel Size | 27.5" |
| Tires | CST Urbano (50-584) |
| Rims | Ryde Andra 40 (double-walled) |
Other Features
| Lock | Axa (ART**) |
| Kickstand | Ursus Mooi |
| Carriers | Optionally available |
Warranty
| Frame & Fork | 10 years |
| Paint | 5 years |
| Battery, Motor, Display | 2 years |
E-Bike System
E-Bike System
| System Brand | Bosch Smart System |
| Motor | Hub Line (Rear) |
| Max Torque | 45 Nm |
| Maximum Speed | 15 mph |
| Support Levels | 4 |
| Support Modes | Eco, Tour, Auto, Turbo |
| Walk Assist | Yes |
Display
| Display Model | Bosch System Controller + Mini Remote |
| Display Type | LED |
| Removable | No |
Battery & Range
| Battery Brand | Bosch |
| Battery Model | Intube |
| Capacity | 360 Wh / 10 Ah |
| Voltage | 36 V |
| Position | Integrated in the frame |
| Charger | Bosch Compact Charger, 2A |
| Charging Time (2A) | 5 h 30 m |
Estimated Range
| Eco | 55 mi |
| Tour | 40 mi |
| Auto | 35 mi |
| Turbo | 20 mi |
