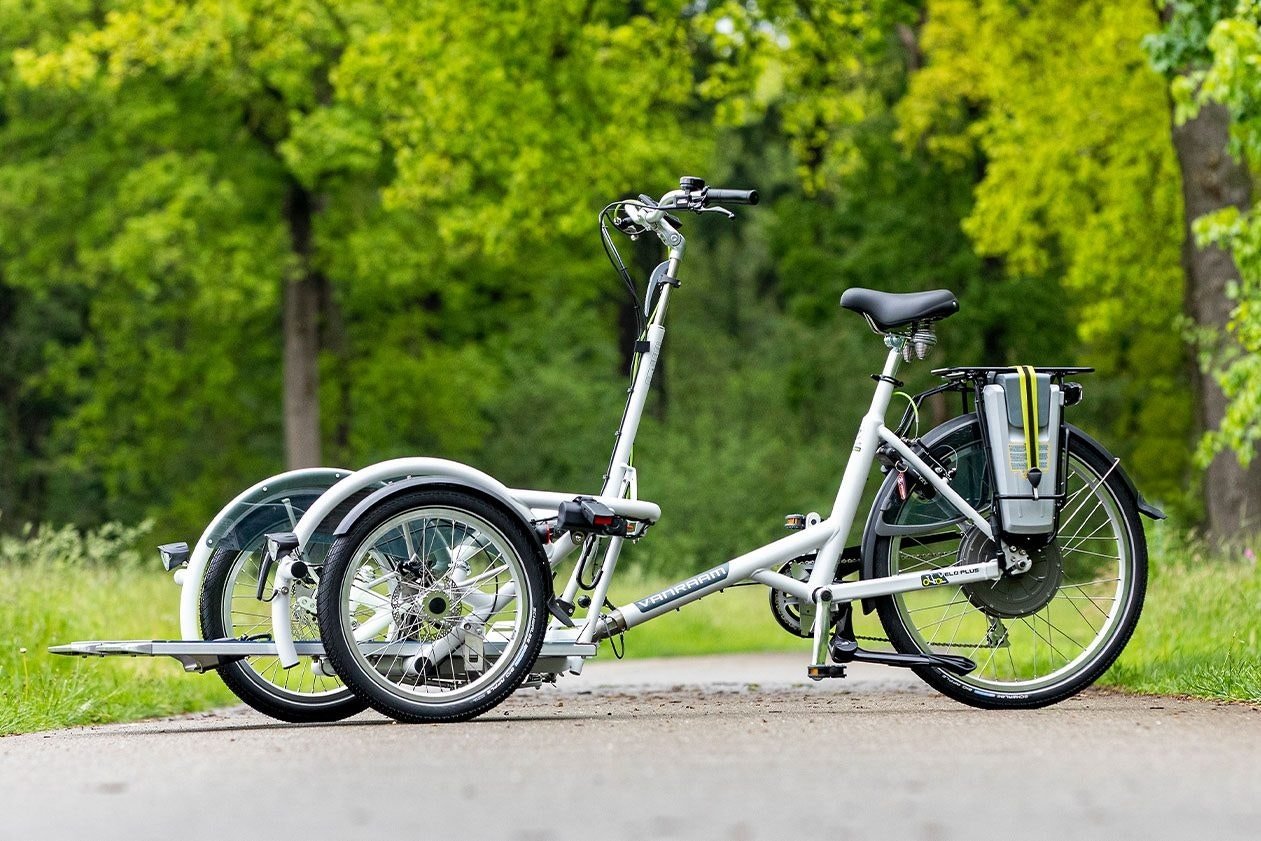

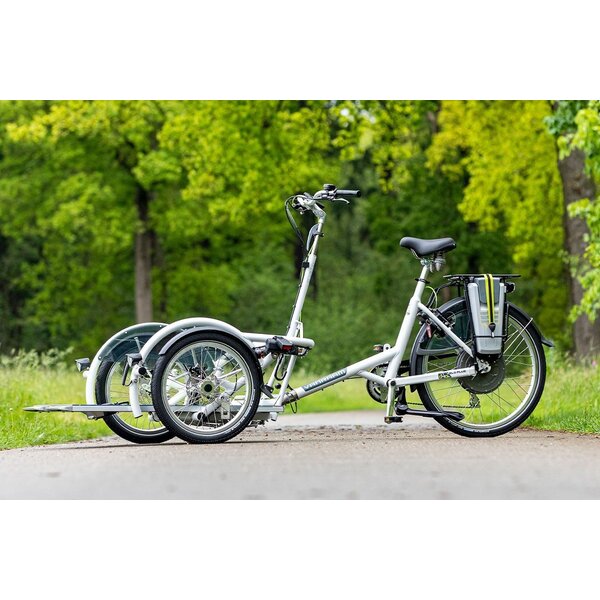

Van Raam VeloPlus wheelchair bike
Specifications
Information
Description Veloplus wheelchair bike

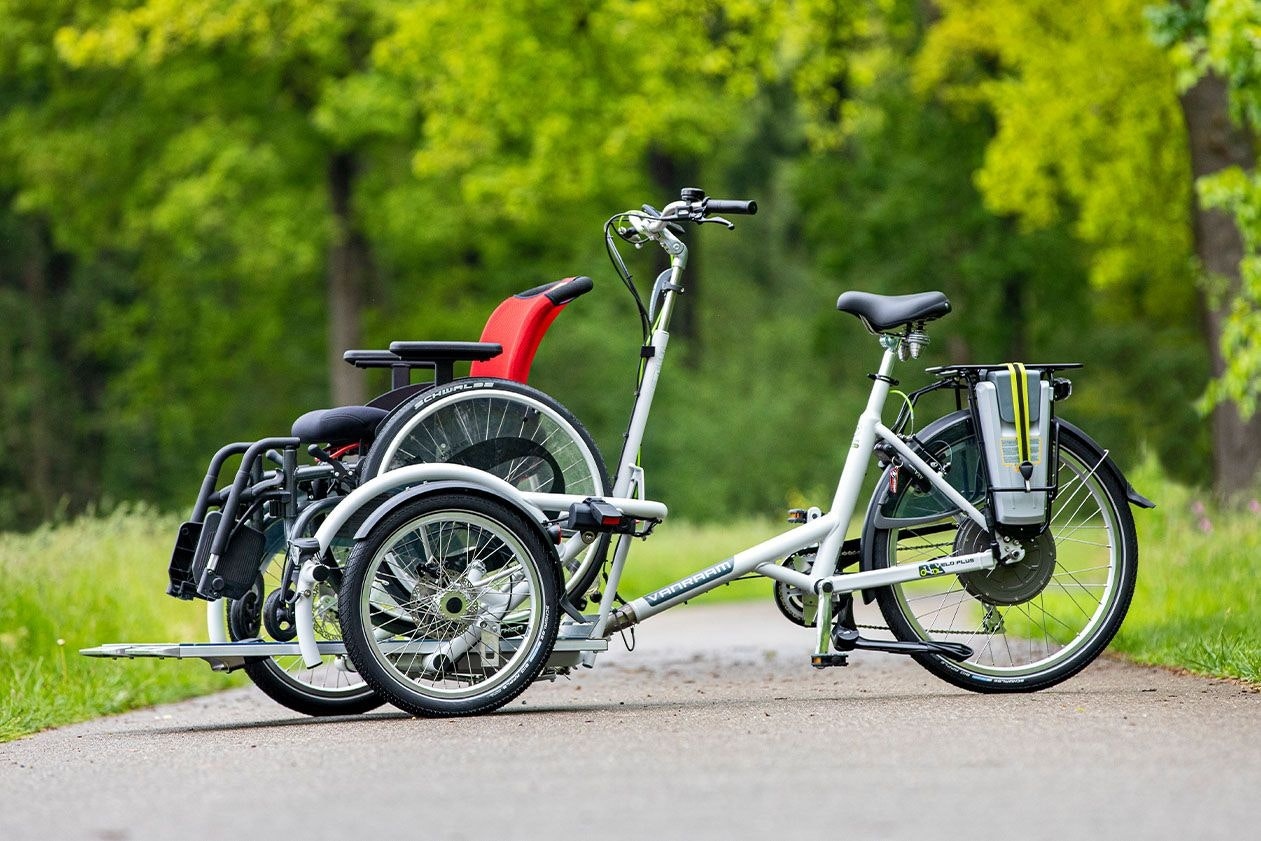

The VeloPlus wheelchair transport bike is designed for transporting people, who can remain seated in their own wheelchair, by cycle. The passenger is not required to be transferred between the wheelchair and the cycle. The co-rider can be wheeled on to the plateau of the cycle easily without having to be lifted. The tilted ramp makes it easy to roll the wheelchair on to the wheel-chair bike and fasten it properly with the wheelchair lock. The optional winch system makes this even easier. Instead of the driver using his or her own power to push the wheelchair user including the wheelchair up or down, the electric winch takes over.

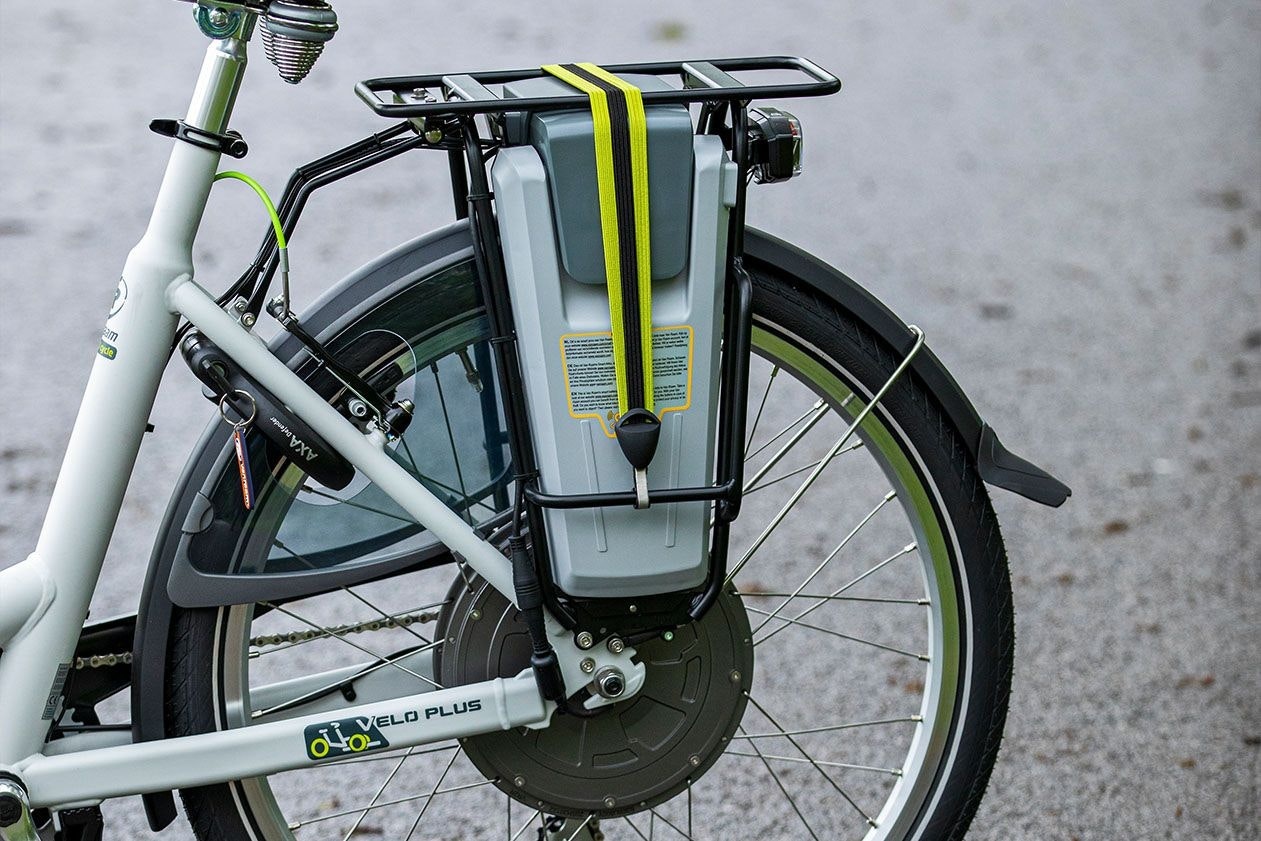

The wheelchair transport bike has a modern design with oversized rear frame, unique riding characteristics and is stable. The low position of the chair on the bicycle makes the ride easier and gives a lower centre of gravity. The widely placed and extra steered front-wheels ensure a reduced turning radius and stability. The electric engine may be optionally used for power assist during cycling. Read everything about electric pedal support (Pedelec) for this bike.

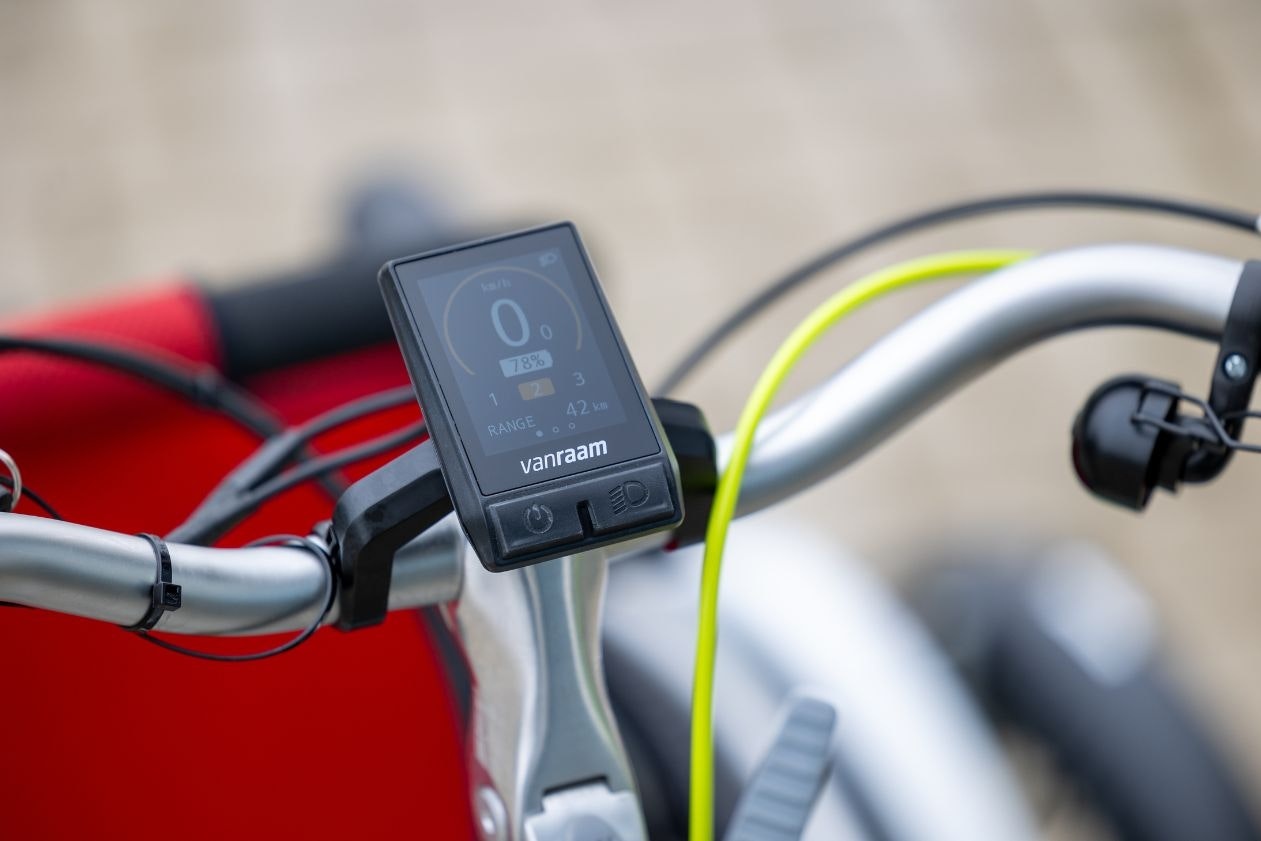

If you choose an optional electric pedal assist, it will be delivered as a smart e-bike. You can then use the vanRaam app to set a different support mode on your vanRaam bike. Read more about the vanRaam smart e-bike on our vanRaam app page.
The VeloPlus is mostly used in institutions or homes for transporting various persons. Then, it is possible to transport passengers, including wheelchair, up to 200 kg. For all the options available for this bike, see our configurator or the pricelist of the VeloPlus.
For more information see also FAQ.
Standard equipment
-
Automatic battery lights
-
Hydraulic brakes front
-
V-brakes rear
-
Drifter gel saddle
-
AXA defender lock
-
Environmentally friendly paint
-
Parking brake
-

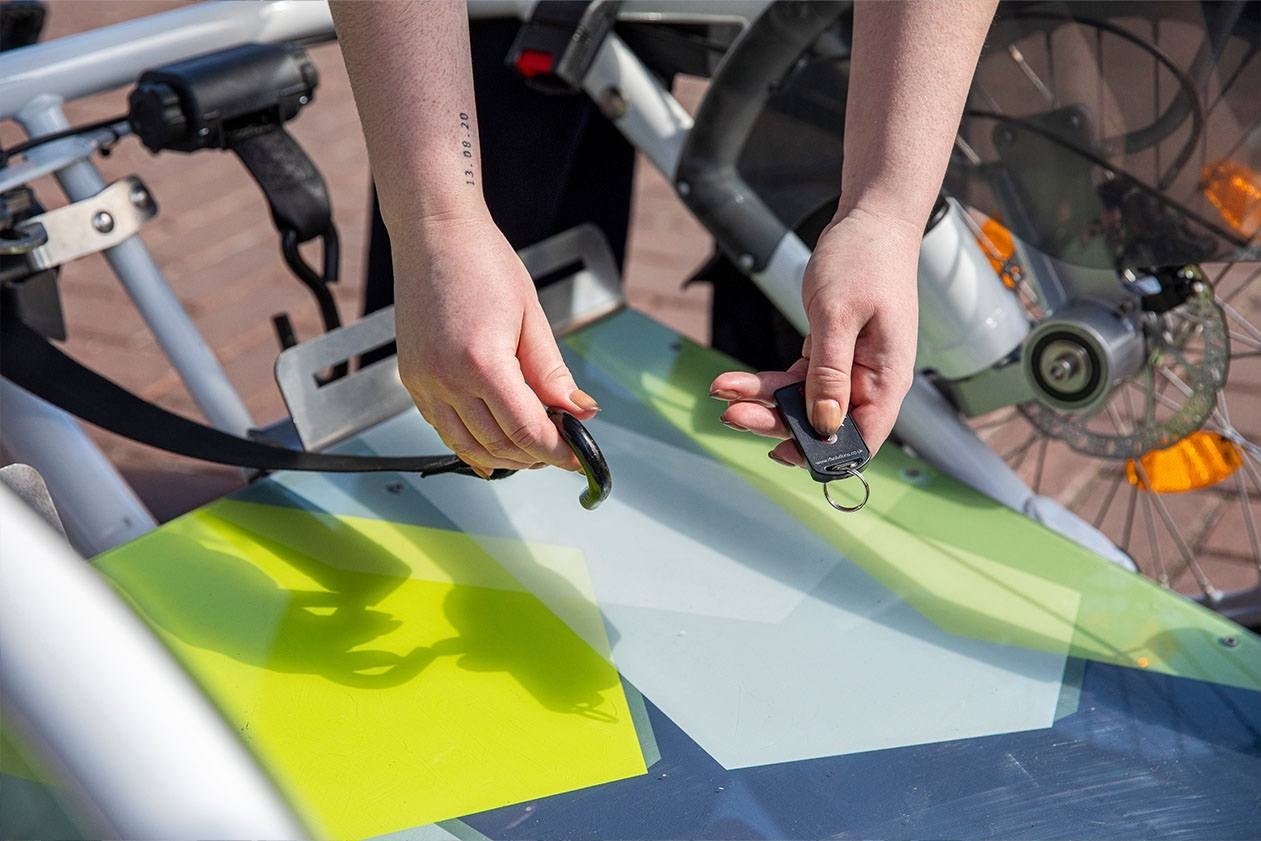

Wheelchair lock
-
Hip belt
-
Wheelchair fixation
-
Wheelchair protection
-
Five year guarantee on frame
-
Bicycle bell
Benefits
-
Wheelchair user can sit in her or his wheelchair
-
Easy to ride a wheelchair on it due to the tilted ramp
-
Almost every wheelchair is suitable
-
Steered front wheels for a short turning radius
-
Stable and safe
-
Easy to use
-
Wheelchair is easy and safe to lock onto the plateau
Specifications
| Average range (default battery) |
59 km |
| Min-max range (default battery) |
34-90 km |
| Maximum standard speed with pedal assistance |
20 km/h |
| Inseam length |
80-95 cm |
| Standard frame height |
52 cm |
| Boarding height |
28 cm |
| Weight without electrical system* |
64 kg |
| Weight with electrical system* |
74.8 kg |
| Cycle length |
253 cm |
| Cycle width |
110 cm |
| Wheel size front |
20" |
| Wheel size back |
26" |
| Basic color 1 |
(RAL 7047) Telegrey 4 matt |
| Basic color 2 |
(RAL 7031) Blue gray matt |
| RAL color of choice |
Yes |
| Maximum driver weight |
110 kg |
| Maximum passenger weight |
140 kg (incl. wheelchair) |
| Maximum passenger weight reinforced version |
200 kg (incl. wheelchair) |
| Maximum luggage carrier weight |
20 kg |

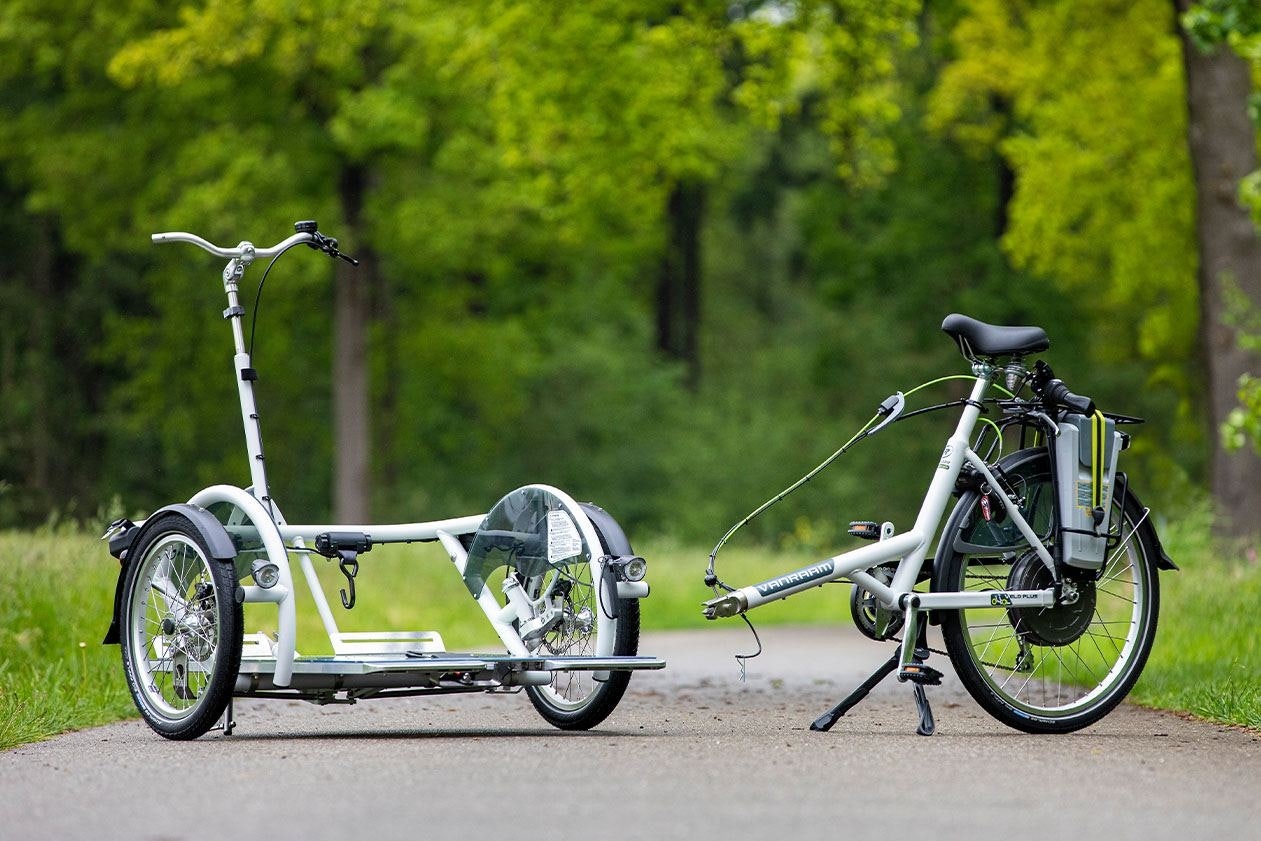

| Possible separable frame |
Yes |
| Item code |
384-0000 |
